IP ТВ H.264 HD MI кодер цифрового телевидения системы IPTV 24 канальный с 256 SPTS 4 Мб UDP
- Категория: Оборудование для радио и ТВ >>>
- Поставщик: Catcast,Technology,Co.,Ltd.,(chengdu)
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-17-2025 | 2285.33 $* | 2331.74 $* |
| Jul-17-2025 | 1853.79 $* | 1890.7 $* |
| Jun-17-2025 | 2249.78 $* | 2294.55 $* |
| May-17-2025 | 2231.88 $* | 2276.21 $* |
| Apr-17-2025 | 1781.63 $* | 1817.59 $* |
| Mar-17-2025 | 2195.85 $* | 2239.66 $* |
| Feb-17-2025 | 2177.51 $* | 2221.34 $* |
| Jan-17-2025 | 2159.37 $* | 2202.35 $* |
Характеристики
To IP tv H.264 HD MI to IP Encoder digital TV headend IPTV system 24 channels HD to IP encoder with 256 SPTS 4 MPTS UDP out
Product Description

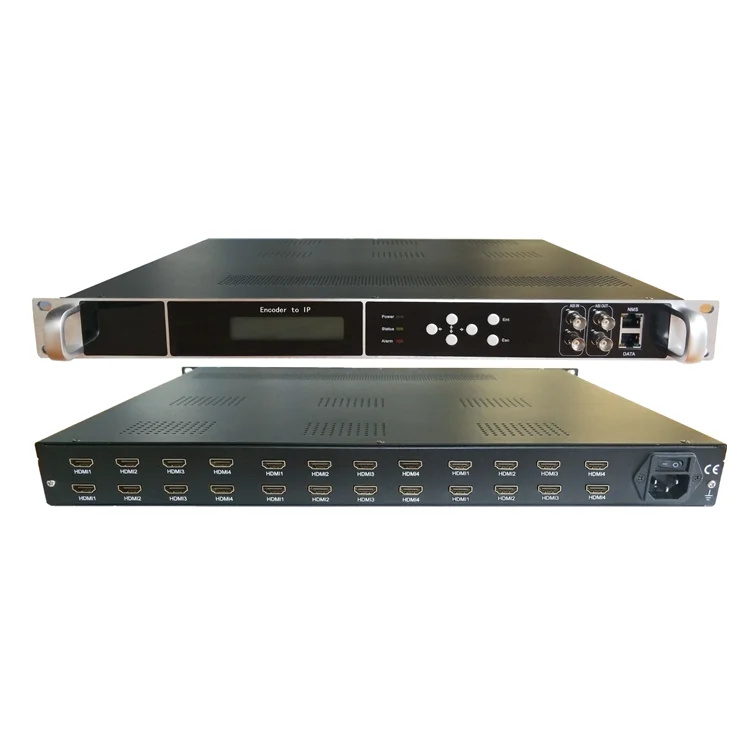

HP824LX Encoder is a professional high integration device which includes encoding, multiplexing. It supports 4/8/12/16/20/24 HD MI input, 2 ASI input, 1000M multicast IP stream output. It also supports ASI output. In conclusion, its high integrated and cost effective design makes the device widely used in varieties of digital distribution systems such as IPTV multicast, cable TV digital head-end, digital TV broadcasting etc.
Key Features
Support QR code, LOGO, OSD insertion for every local channel
4/8/12/16/20/24 HD MI input, support HDCP
Support MPEG-4AVC/H.264 Video encoding
Support MPEG1 Layer2, LC-AAC, HE-AAC v1&v2Audio encoding
4/8/12/16/20/24 SPTS and 4 MPTS output, IP output over UDP and RTP protocol, support multicast and unicast
2ASI inputs
2ASI Independent output (optional) as copy of 4MPTS
Support “Null PKT Filter” function
Support PID Remapping/ PCR accurate adjusting
LCD、key function
Control via web management, and easy updates via web
4/8/12/16/20/24 HD MI input, support HDCP
Support MPEG-4AVC/H.264 Video encoding
Support MPEG1 Layer2, LC-AAC, HE-AAC v1&v2Audio encoding
4/8/12/16/20/24 SPTS and 4 MPTS output, IP output over UDP and RTP protocol, support multicast and unicast
2ASI inputs
2ASI Independent output (optional) as copy of 4MPTS
Support “Null PKT Filter” function
Support PID Remapping/ PCR accurate adjusting
LCD、key function
Control via web management, and easy updates via web

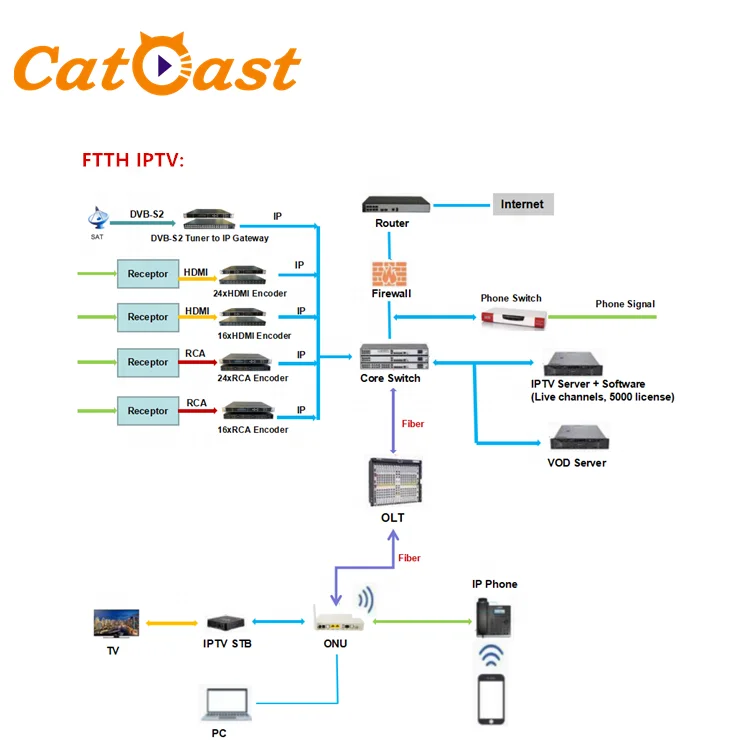

FTTH IPTV SYSTEM:

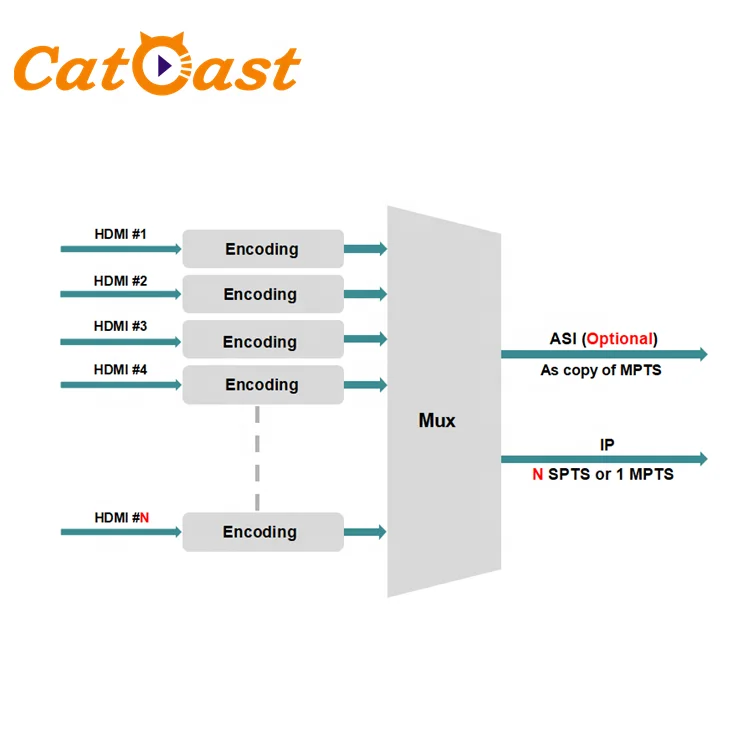

Principle Chart
Specification
input | HD MI(8/12/16/20/24xHD MI) | ||
2 ASI inputs | |||
output | 2 ASI output | ||
IP output:8/12/16/20/24× HD MI inputs with 8/12/16/20/24 SPTS and 4 MPTS output, IP output over UDP and RTP protocol | |||
video | Encoding | MPEG-4 AVC/H.264 | |
Resolution | Input:1920×1080_60P, 1920×1080_60i, 1920×1080_50P, 1920×1080_50i, 1280×720_60P, 1280×720_50P, 720×576_50i,720×480_60i, | ||
Output:1920×1080_60P, 1920×1080_50P, 1280×720_60P, 1280×720_50P, 720×576_50P, 720×480_60P 1920×1080_30P,1920×1080_25P, 1280×720_30P,1280×720_25P, 720x576_25P,720x480_30P | |||
Bit-rate | 1Mbps~13Mbps（each channel) | ||
Rate Control | CBR | ||
Audio | Encoding | MPEG1 Layer2 | |
Sampling rate | 44.1KHz and 48Khz | ||
Bit-rate | 64kbps ,128Kbps,192kbps,224kbps,256kbps,320kbps,384kbps | ||
Resolution | 24-bit | ||
Audio Gain | 0-255 Adjustable | ||
Multiplexing | Maximum PID Remapping | 180 output pids per channel | |
Function | PID remapping ( automatically or manually) | ||
Accurate PCR adjusting | |||
System function | Network management(WEB) | ||
Chinese and English language | |||
Ethernet software upgrade | |||
Miscellaneous | Dimension(W×L×H) | 482mm×480mm×45mm | |
Environment | 0~45℃(work)；-20~80℃(storage) | ||
Power requirements | AC100~240V，50/60Hz | ||
Related Products
Packing&Shipping
Package type: each pcs wth soft ,safety polyfoam ,then packed in brown box
Shipping way: it usually take 5-7 days by DHL, TNT, Fedex, UPS to arrive your local place
Company Introduction
Catcast Technology Co.,Ltd is a high-tech enterprise which concentrates on the research, manufacture, sale and engineer service of digital TV headend & broadcasting equipments with 18 years history in Chengdu, China. Catcast is building up both domestic and overseas markets while making a good contribution to the TV broadcasting industry. As a TV network investor, we have accumulated a great deal of experience in network operation of cable or wireless digital TV, IPTV, DSNG system as well as transfer analog tv system to digital tv system. Upgrade CATV/MATV to IPTV system. We are always striving for innovation , and keep the principle to do business: The same product , we win the quality. The same quality, we win the price.
