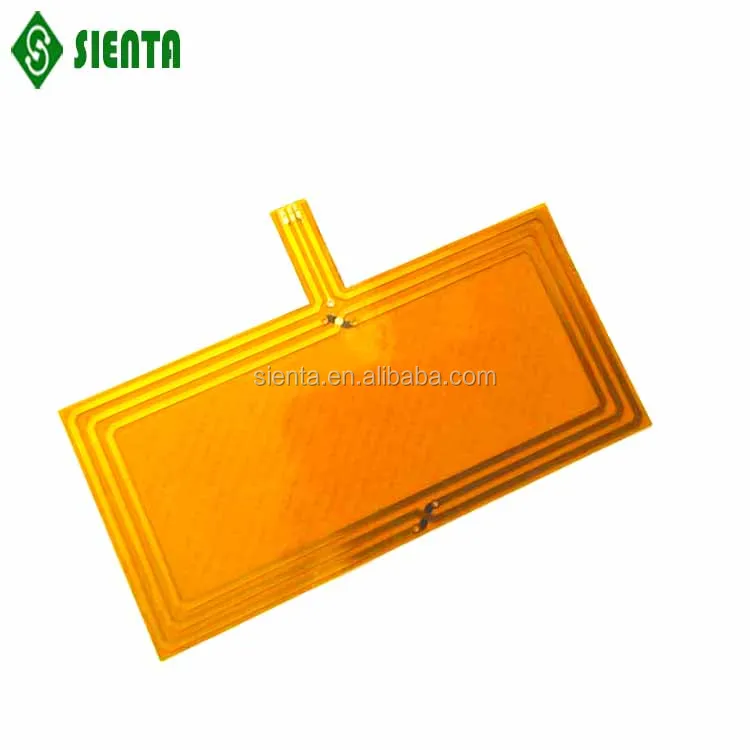

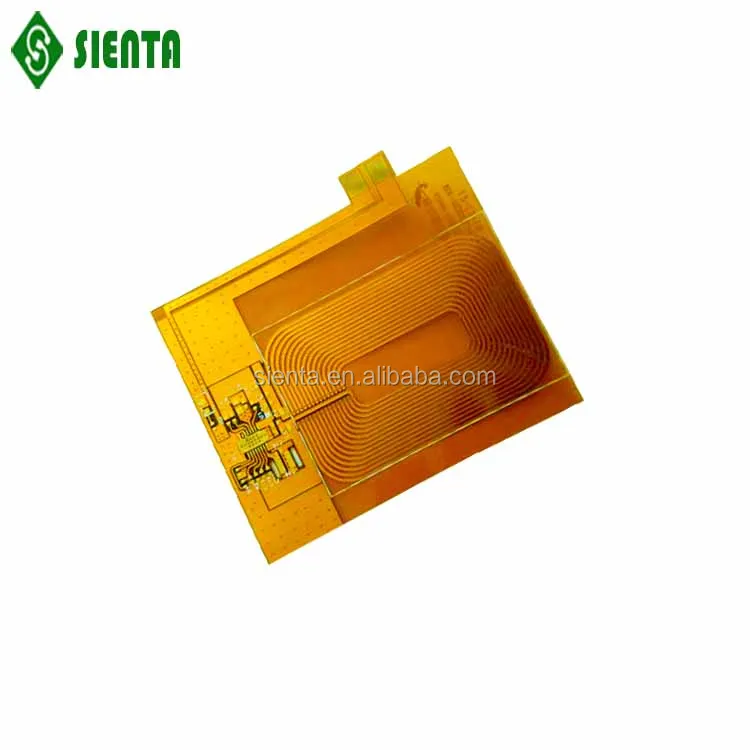

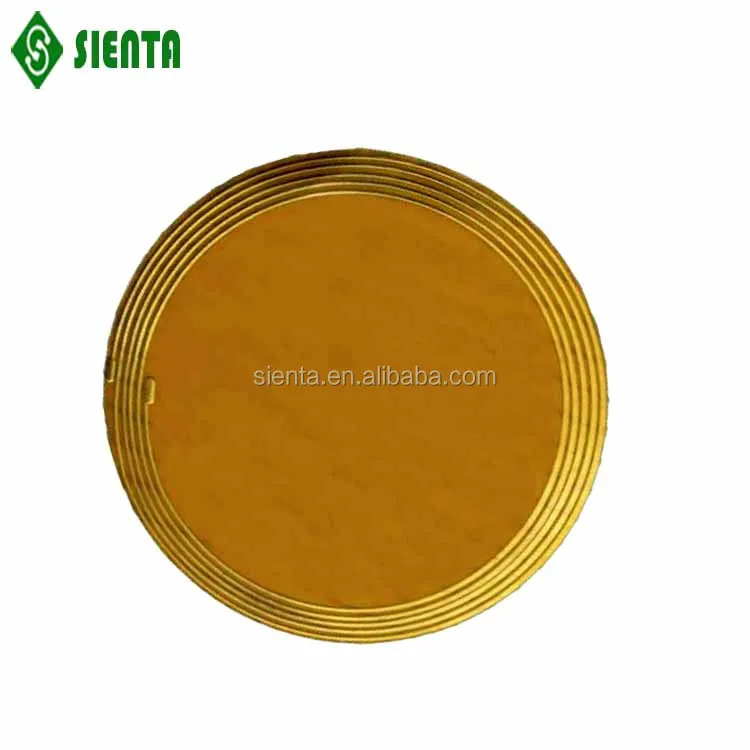

Высококачественная китайская антенна FPC
Высококачественная китайская антенна FPC
Высококачественная китайская антенна FPC
Высококачественная китайская антенна FPC
Высококачественная китайская антенна FPC
Высококачественная китайская антенна FPC
Высококачественная китайская антенна FPC

Высококачественная китайская антенна FPC


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-19-2025 0.65 $* 0.27 $*
Aug-19-2025 0.17 $* 0.15 $*
Jul-19-2025 0.5 $* 0.32 $*
Jun-19-2025 0.65 $* 0.26 $*
May-19-2025 0.78 $* 0.70 $*
Apr-19-2025 0.84 $* 0.30 $*
Mar-19-2025 0.36 $* 0.54 $*
Feb-19-2025 0.7 $* 0.6 $*
Jan-19-2025 0.70 $* 0.79 $*

Характеристики


Products Show
FPC Capacity
\t
PROCESS
\t
Item
\t
Unit
\t
Limit Tolerance
\t
Normal tolerance
\t
Board cutting & thickness
\t

Layer
\t
/
\t
1-6 layer
\t
1-6 layer
\t
/
\t
2-layer(rigid flex)
\t
2-layer(rigid flex)
\t
cutting size: 250mm
\t
mm
\t
250*1000mm
\t
250*500mm
\t

Min. thickness
\t
mm
\t
0.075mm(FPC)
\t
0.10mm(FPC)
\t
mm
\t
0.3mm（rigid flex）
\t
0.3mm（rigid flex）
\t
Other auxiliary material
\t
Adhesive stiffener
\t
um
\t
PSA:50um
\t
PSA:50um
\t
hot setting adhesive
\t
um
\t
12.5/25/40um
\t
12.5/25/40um
\t
PI stiffener
\t
um
\t
PI: 1.0-13mil
\t
PI: 1.0-13mil
\t
Other stiffener type
\t
/
\t
steel, Al, silicon steel sheet
\t
\t
Drilling
\t
Min. drilling hole size
\t
mm
\t
0.1
\t
0.2
\t
hole diameter tolerance
\t
mm
\t
±0.075
\t
±0.1
\t
PTH
\t
hole wall copper thickness
\t
um
\t
8/15/25
\t
8/15/25
\t
Exposure
\t
Min line width/space
\t
mm
\t
0.05/0.05
\t
0.075/0.075
\t
hole ring
\t
mm
\t
0.125
\t
0.2
\t
offset tolerance
\t
mm
\t
0.1
\t
0.15
\t
Line width tolerance
\t
mm
\t
±0.03
\t
±0.04
\t
Distance between hole edge to outline
\t
mm
\t
≥0.4
\t
≥0.5
\t
Lamination
\t
Coverlay tolerance
\t
mm
\t
0.15
\t
0.2
\t
PI stiffener with outline
\t
mm
\t
±0.3
\t
±0.3
\t
Sensitive PSA
\t
mm
\t
±0.3
\t
±0.3
\t
FR4 location tolerance
\t
mm
\t
±0.3
\t
±0.3
\t
Ink
\t
Soler mask thickness
\t
um
\t
8
\t
15
\t
Silk screen thickness
\t
um
\t
8
\t
15
\t
Profile
\t
R angle for etching cutting die
\t
mm
\t
0.5
\t
0.5
\t

Steel die tol.
\t
mm
\t
LS: ±0.075
\t
LS: ±0.075
\t
mm
\t
HS: ±0.01
\t
HS: ±0.01
\t

Cutting die tol.
\t
mm
\t
Etching: ± 0.20
\t
Etching: ± 0.30
\t
mm
\t
Wooden: ± 0.30
\t
Wooden: ± 0.50
\t
Laser tol.
\t
mm
\t
± 0.05
\t
± 0.05
\t
Offset tol. for fingers
\t
mm
\t
± 0.10
\t
± 0.10
\t
Surface treatment
\t

Immersion gold
\t
um
\t
Ni: 2.0~5.0
\t
Ni: 2.0~5.0
\t
um
\t
Au: 0.03~0.08
\t
Au: 0.03~0.08
\t
Plating tin
\t
um
\t
8~20
\t
8~20
Equipments

Drilling

Drilling machine

PTH

PTH line

Pressing

Hot pressing machine

Exposure

Exposure machine

Application

Mobile Phone

FPC will more thiner and more portable, can save product volume, easily connect battery,voice tube and keyboard together

Computer

By flexible circuit board configuration, the digital signal is transformed into a picture through the LCD screen.

Solar cells

FPC used in solar cells, which can easily deployable

Our Certifications
Packing & Delivery

Packing Details  : Vacuum packing, PET bag,antistatic bag  or per customer's request

Delivery Details : 3-20 days after order placed

FAQ

Q: How long is your delivery time?

A: As FPC belong to customized products,generally it is 3-7 days for samples and 10-20 days for mass products.The actual delivery date according to difficulty of the products, the quantity and etc.

Q: Which files do you accept for offer ?

A: We accept Gerber file, CAD file, brd file, PCB file, pdf file and etc.

Q: What's your MOQ ?

A: We have no MOQ limited.

Q: What is your terms of payment ?

A: Samples:  100% T/T in advance

    Mass: According to actual amount.

High quality China antenna FPC factory

High quality China antenna FPC factory

High quality China antenna FPC factory
