FIRE EXTINGUISHER MED:

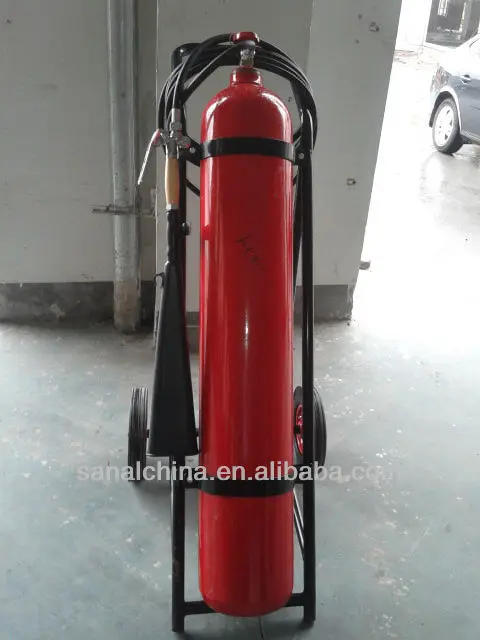

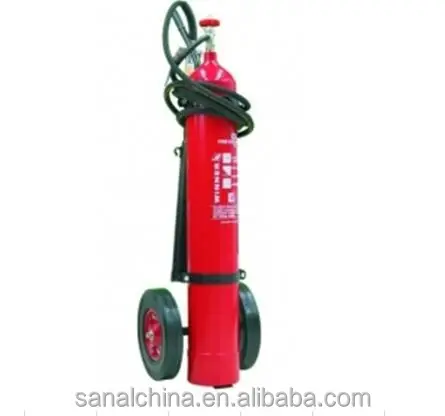

TROLLEY TYPE 30KG CO2 FIRE EXTINGUISHER EN3 MED

SPECIFICATION:

Out-diameter	Temperature Range	Test Pressure	Fire Class	Filling Weight
Φ229mm	-30℃~+60℃	300bar	144B	30Kg


Volume 43L
Cylinder Length 1280mm
Cylinder Weight 48kg
Extinguisher Weight 104Kg
Max. Allowable Pressure 200bar
Min. Wall-thickness 5.2mm
Material 34CrMo4

Packing Size 118×55×124cm

10KG CO2 FIRE EXTINGUISHER EN3 MED

Out-diameter Φ156mm
Volume 15L
Cylinder Length 980mm
Cylinder Weight 15.8kg
Extinguisher Weight 42Kg
Filling Weight 10Kg
Temperature Range -30℃~+60℃
Max. Allowable Pressure 174bar
Test Pressure 250bar
Min. Wall-thickness 3.0mm
Material 34CrMo4
Fire Class 113B
Packing Size 46×30×120cm

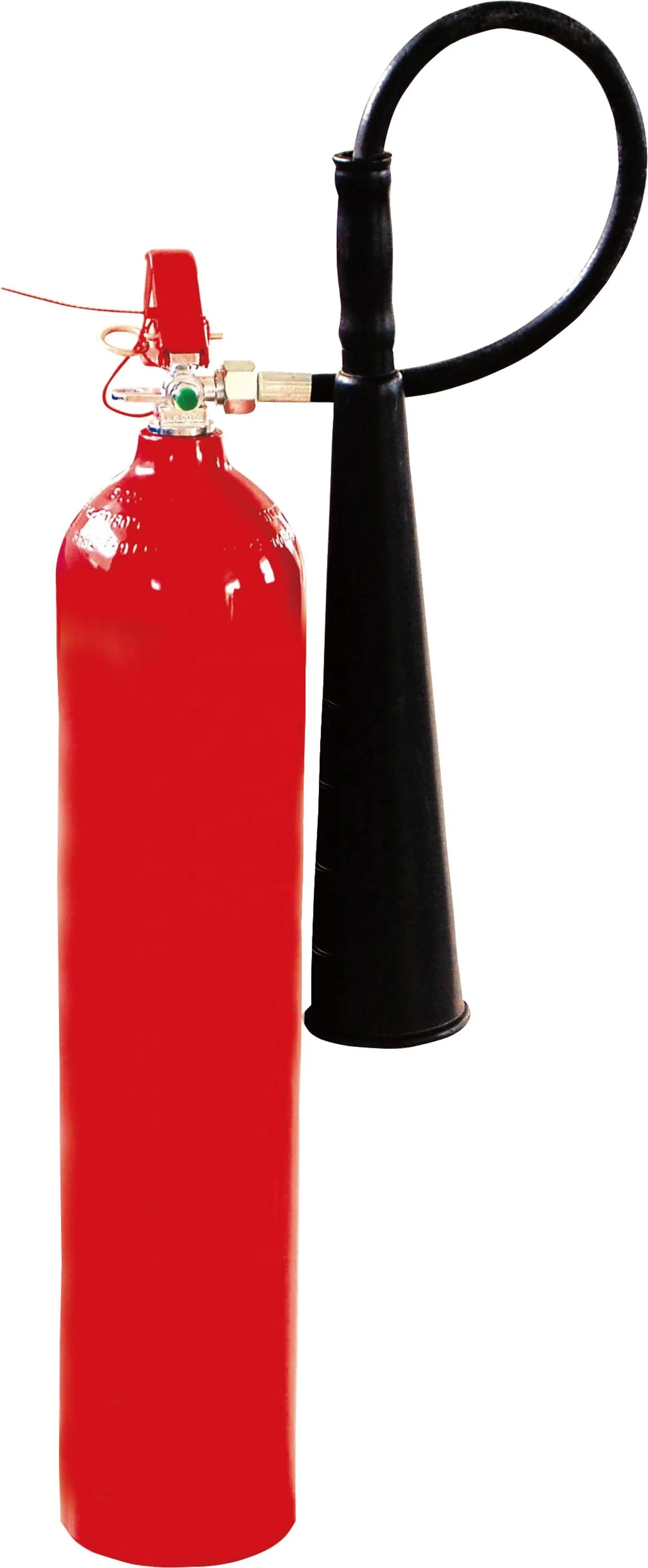

2KG CO2 FIRE EXTINGUISHER EN3 MED



Agent capacity:2KG CO2

Fire class:34B

Temperature range:-30℃~+60℃

Minimum Effective discharge time (seconds):6s

Cylinder material: 34CrMo4

Cylinder volume: 3L

Cylinder diameter (mm): φ105mm

Min wall thickness for Cylinder (mm):2.3mm

PS (Bar) (Operating Pressure): 174bar

PT (Bar) (Test Pressure):  250bar

Cylinder length: 475mm

Cylinder weight: 4.9kg

Fire extinguisher weight: ~7kg

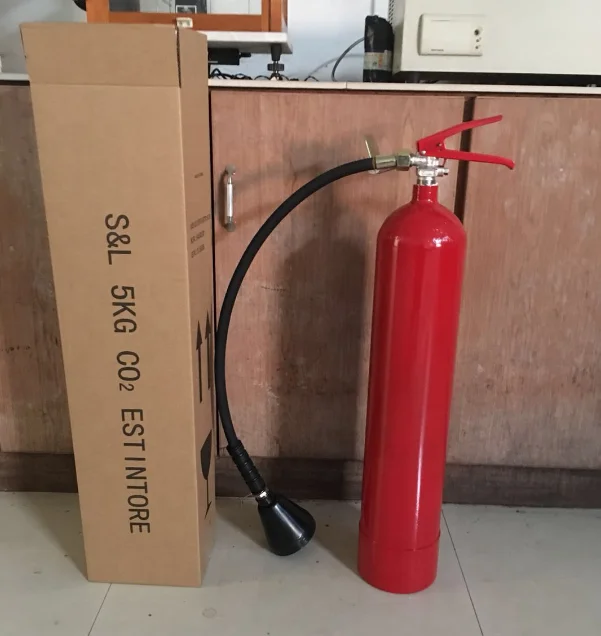

5KG CO2 FIRE EXTINGUISHER EN3 MED



Agent capacity:5KG CO2

Fire class:89B

Temperature range:-30℃~+60℃

Minimum Effective discharge time (seconds):9s

Cylinder material: 34CrMo4

Cylinder volume: 7.5L

Cylinder diameter (mm): φ138mm

Min wall thickness for Cylinder (mm):3.0mm

PS (Bar) (Operating Pressure): 174bar

PT (Bar) (Test Pressure):  250bar

Cylinder length: 655mm

Cylinder weight:11kg

Fire extinguisher weight: ~14.6kg

25KG 40%ABC POWDER FIRE EXTINGUISHER EN3 MED



Out-diameter Φ270mm
Volume 30.5L
Cylinder Length 626mm
Cylinder Weight 13.2Kg
Extinguisher Weight 59Kg
Dry Powder Filled Weight 25Kg
Temperature Range -30℃~+60℃
Max. Working Pressure 18bar
Test Pressure 35bar
Min. Wall-thickness 2.1mm
Material HP295
Fire Class 55A ⅠB C
Packing Size 58×45×98cm




50KG 40%ABC POWDER FIRE EXTINGUISHER EN3 MED

Out-diameter Φ320mm
Volume 60.5L
Cylinder Length 875mm
Cylinder Weight 21.2Kg
Dry Powder Filled Weight 50Kg
Temperature Range -30℃~+60℃
Max. Working Pressure 18bar
Test Pressure 35bar
Min. Wall-thickness 2.4mm
Material HP295
Fire Class 55A ⅡB C
Packing Size 64×49×110cm





Parameter	6kg Stored Pressure Powder Extinguisher	9kg Stored Pressure Powder Extinguisher	12kg Stored Pressure Powder Extinguisher	6L Stored Pressure Foam Extinguisher	9L Stored Pressure Foam Extinguisher	2KG CO2 STEEL Extinguisher	5KG CO2 STEEL Extinguisher
Agent capacity	6kg	9kg	12kg	6L	9L	2kg	5kg
fire class	27A 183B	34A 233B	43A 233B	13A 113B	13A 183B	34B	89B
Temperature range	-30℃~+60℃	-30℃~+60℃	-30℃~+60℃	+5℃~+60℃	+5℃~+60℃	-30℃~+60℃	-30℃~+60℃
Minimum Effective discharge time (seconds)	15s	15s	15s	12s	15s	6s	9s
Cylinder material	DC01	DC01	DC01	DC01	DC01	34CrMo4	34CrMo4
Cylinder volume	7.98L	11.47L	13.55L	7.98L	11.2L	3L	7.5L
Cylinder diameter (mm)	φ160mm	φ180mm	φ180mm	φ160mm	φ180mm	φ105mm	φ138mm
Min wall thickness for	1.24mm	1.3mm	1.3mm	1.24mm	1.3mm	2.3mm	3.0mm
PS (Bar) (Operating Pressure)	18bar	18bar	18bar	18bar	18bar	174bar	174bar
PT (Bar) (Test Pressure)	27bar	27bar	27bar	27bar	27bar	250bar	250bar
Cylinder length	450mm	510mm	600mm	470mm	525mm	475mm	655mm
cylinder weight	2.82kg	4.31kg	4.57kg	3.25kg	4.63kg	~4.9kg	~11kg
fire extinguisher weight	~9.7kg	~14.25kg	~18kg	~10.3kg	~15kg	~7kg	~14.6







SANAL is professional fire fighting products company which located in China and in Italy.Fire extinguisher EN3 and fire hose reel LPCB are our main products.

There are many type of fire extinguisher are available in our products list ,including powder fire extinguisher,co2 fire extinguisher,foam fire extinguisher...
