Плазменный очиститель для плазменной очистки травки обработки поверхности воздухом O2 n2
- Категория: Cleaning Equipment >>>
- Поставщик: Zhengzhou,TCH,Instrument,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.81 $* | 0.85 $* |
| Aug-18-2025 | 0.30 $* | 0.53 $* |
| Jul-18-2025 | 0.17 $* | 0.77 $* |
| Jun-18-2025 | 0.14 $* | 0.24 $* |
| May-18-2025 | 0.6 $* | 0.56 $* |
| Apr-18-2025 | 0.72 $* | 0.91 $* |
| Mar-18-2025 | 0.40 $* | 0.28 $* |
| Feb-18-2025 | 0.50 $* | 0.61 $* |
| Jan-18-2025 | 0.28 $* | 0.23 $* |
Характеристики
Plasma Cleaner for Plasma cleaning, etching, surface treatment with air , O2, n2, Ar
Product Description
Brief introduction of the Plasma Cleaner for Plasma cleaning, etching, surface treatment with air , O2, n2, Ar
This plasma cleaners are versatile plasma cleaning tools to remove contamination from the surface of samples such as plastic packages, wafers and glass slides in sample preparation and device fabrication. Our systems also can be used for photoresist ashing, ink removal, surface activation and wettability improvement.
Typical applications:
- Cleaning for wire bonding, die attach process.
- SEM/TEM sample cleaning for hydrocarbon contamination removal
- Optics, glass and substrate cleaning before epoxy bonding
- Photoresist ashing, descum and silicon wafer cleaning
- PDMS, microfluidics, glass slides and lab-on-a-chip
- Improve bonding for metal to metal or composite
- Improve bonding for plastic, polymer and composite materials
- Medical device activation, sterilization and improve coating adhesion

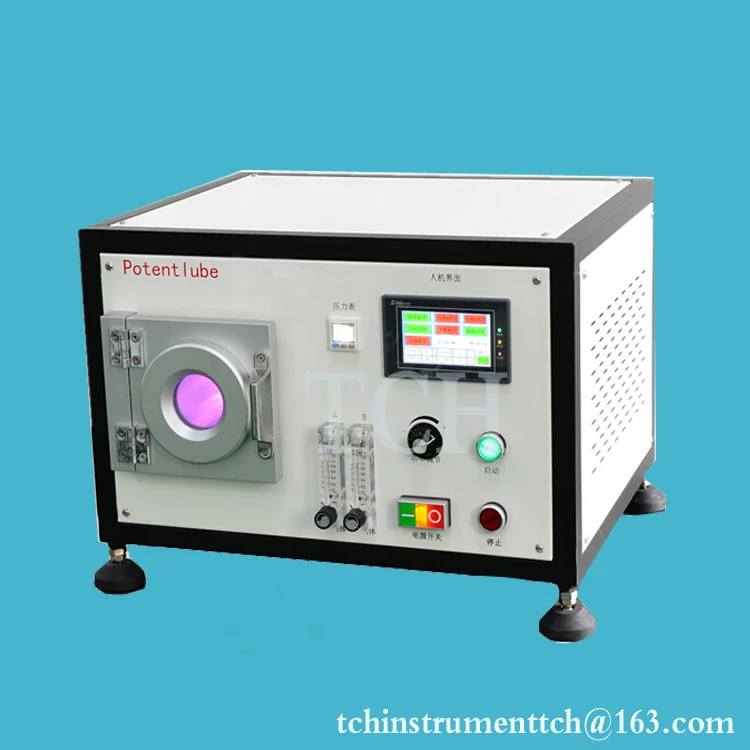

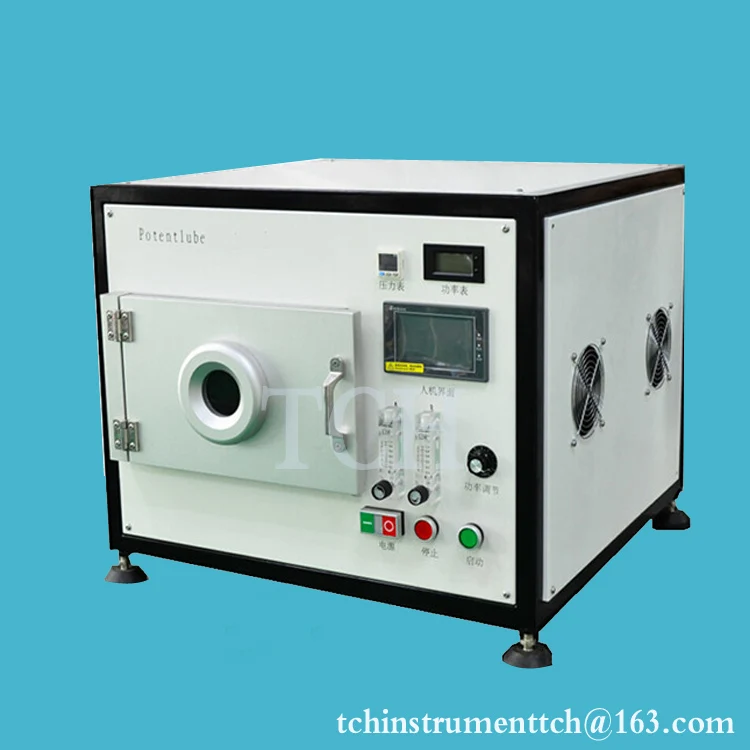

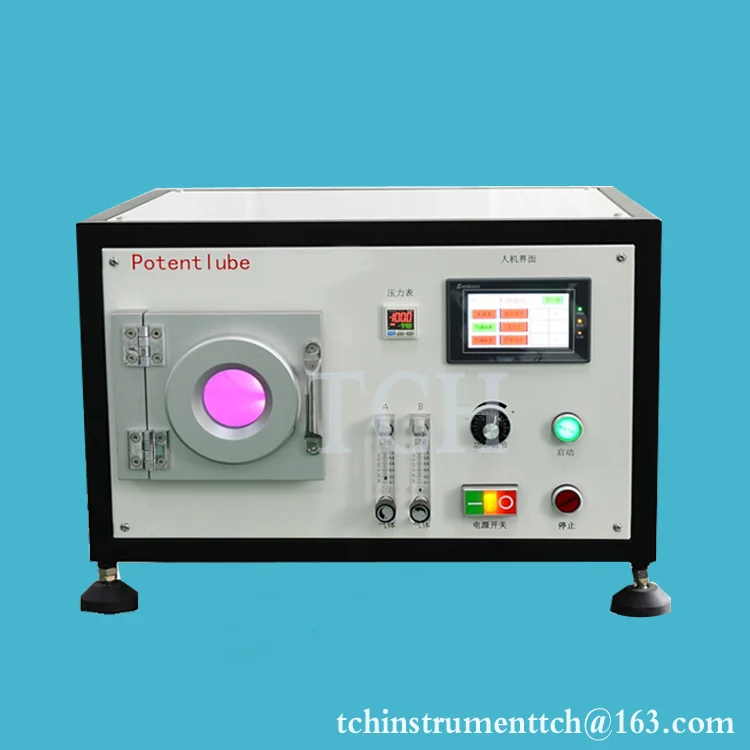

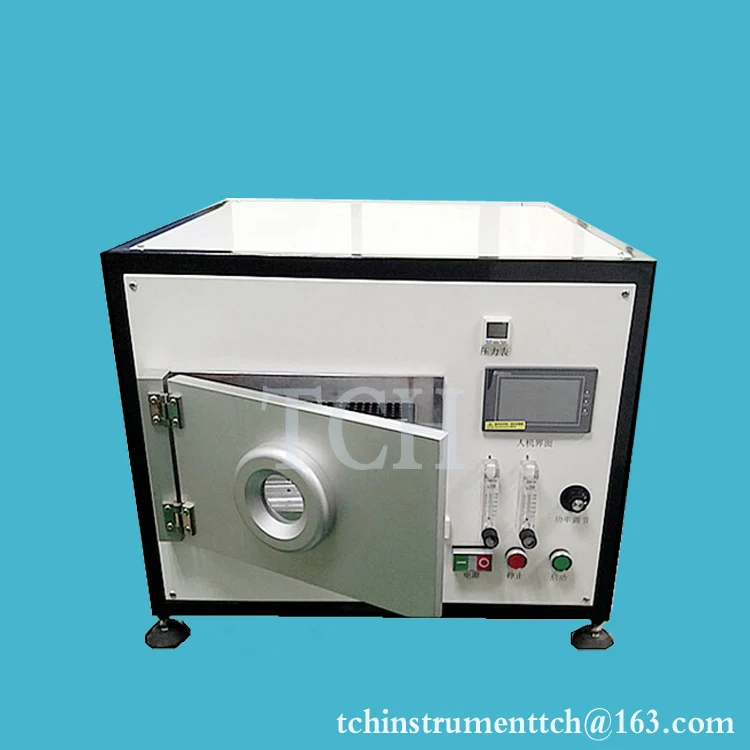

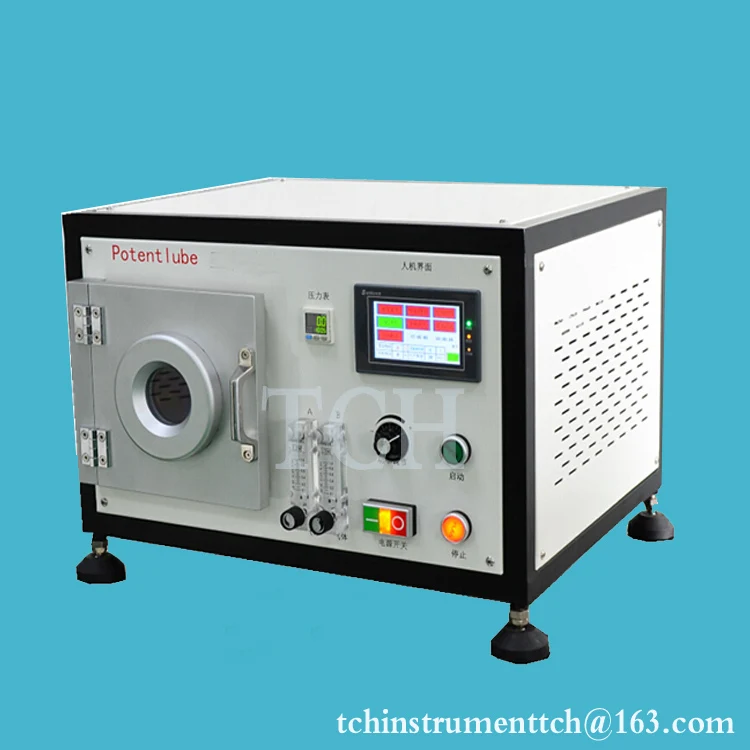

Specification of the Tabletop 2L Plasma Cleaner with stainless steel chamber
TCH-2S | |
Input Power | AC 220V, 50/60 Hz |
RF Power | 40KHz or 0-150W/0-300W |
RF frequency | 13,56 MHz |
Frequency offset | Less than 0.2KHz |
Control Panel | Control Function: Clean time, RF Power, Vacuum Pump |
Process Control | MCU Automatic and manual mode |
Plasma Chamber | Φ100mm×270mm stainless steel chamber 2 Liter Capacity |
Characteristic impedance | 50 Ohm,Automatic matching |
Vacuum degree | 10Pa -1000Pa |
Cleaning time | 1 to 100 minutes ( adjustable) |
Flow rate | 60—600ml/min(adjustable) |
Inert Gas | Many inert gases can be chosen for plasma cleaning such as N2, Ar, Air, and Mixed gas depended on what kind material will be treated. ( not included in the package) |
Optional | Combinations of plasma cleaner with Two Channel Gas Mixer will be a solution for introducing up to two process gases. |
Vacuum chamber temperature | Less than 65°C |
Cooling type:
| Forced cooling |
Dimensions | 400x450x250 |
Net Weight | 36.5kg |
Warranty | One year limited warranty with lifetime support |
reference of the Tabletop 2L Plasma Cleaner with stainless steel chamber
