365nm 200x200 мм УФ-клей смола барабан Коробка
- Категория: Other Drying Equipment >>>
- Поставщик: Shenzhen,Height-Led,Opto-Electronics,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.4 $* | 0.76 $* |
| Aug-19-2025 | 0.88 $* | 0.52 $* |
| Jul-19-2025 | 0.78 $* | 0.12 $* |
| Jun-19-2025 | 0.56 $* | 0.96 $* |
| May-19-2025 | 0.71 $* | 0.41 $* |
| Apr-19-2025 | 0.21 $* | 0.76 $* |
| Mar-19-2025 | 0.68 $* | 0.15 $* |
| Feb-19-2025 | 0.26 $* | 0.97 $* |
| Jan-19-2025 | 0.27 $* | 0.57 $* |
Характеристики

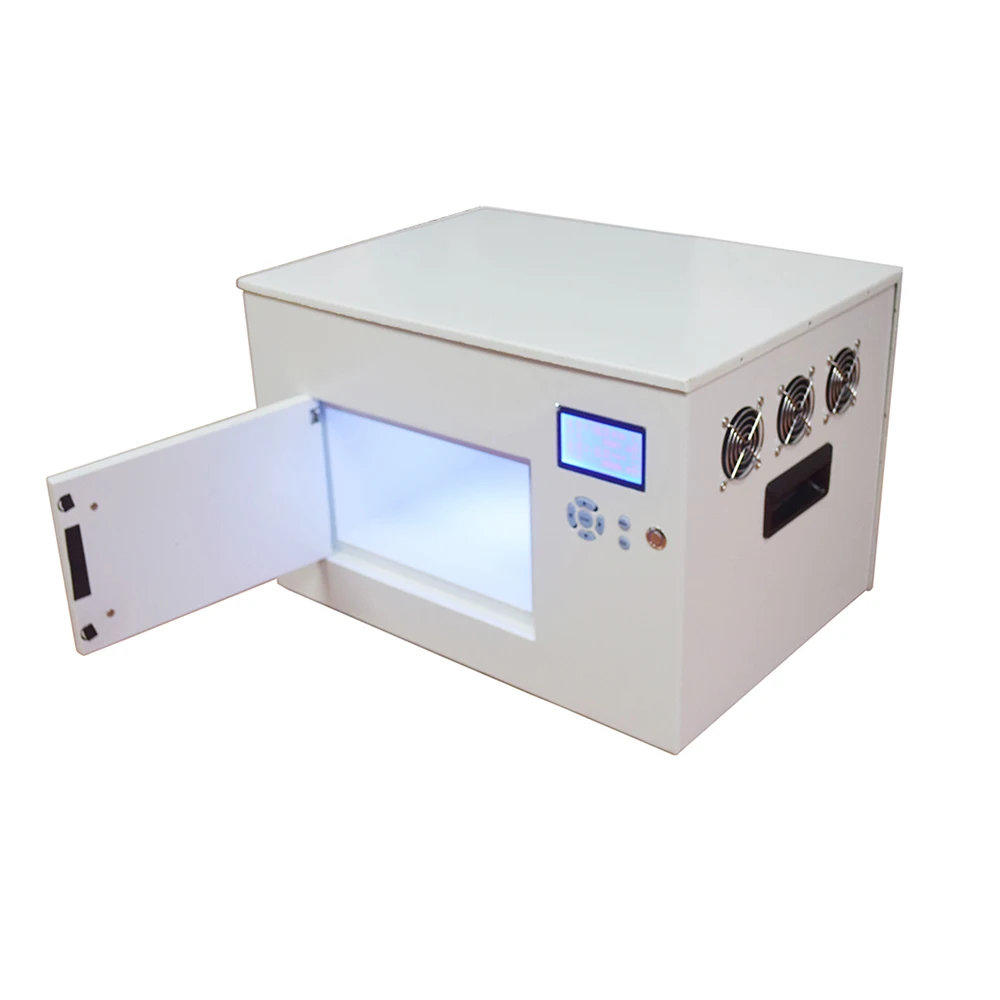

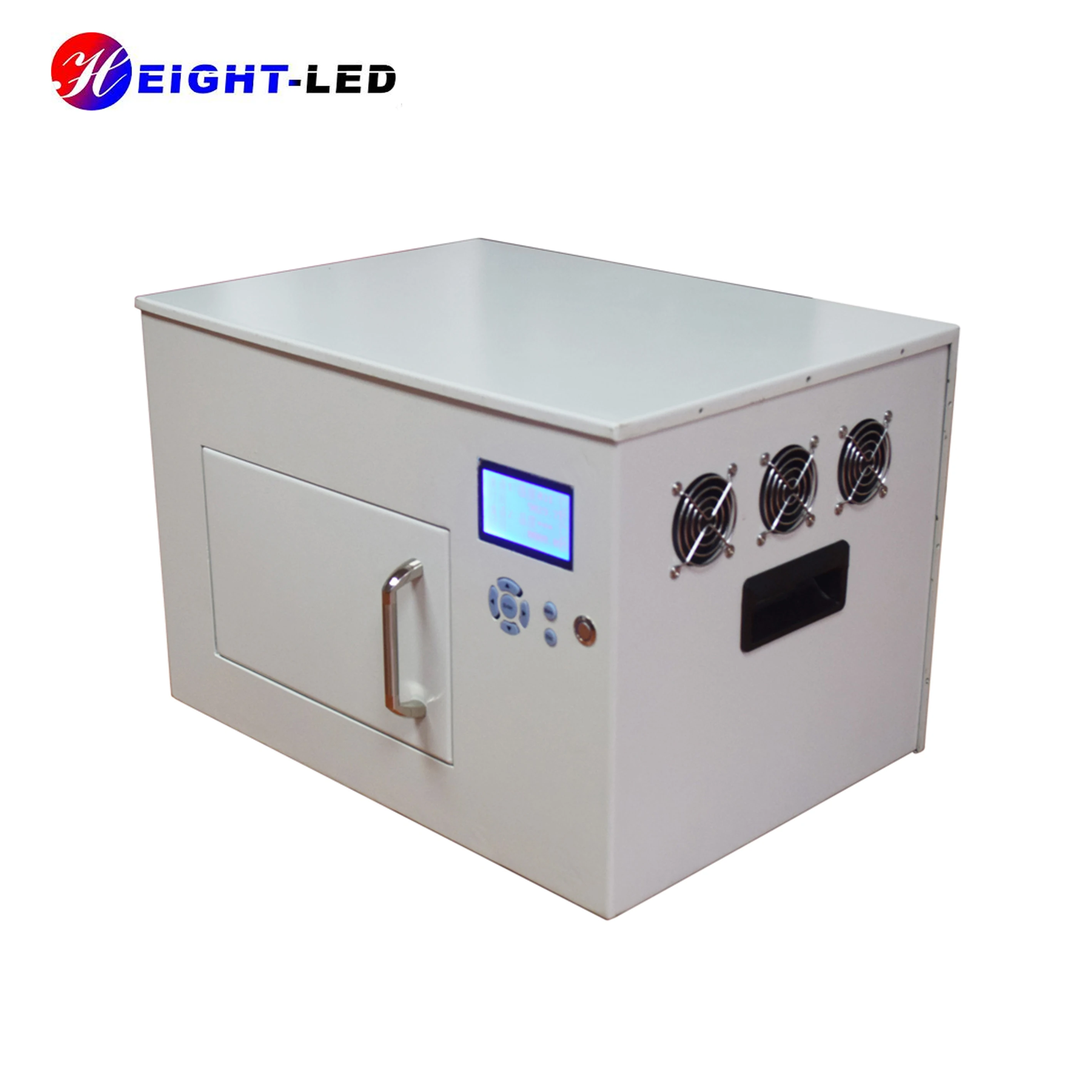

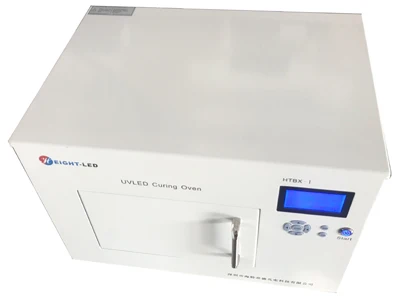

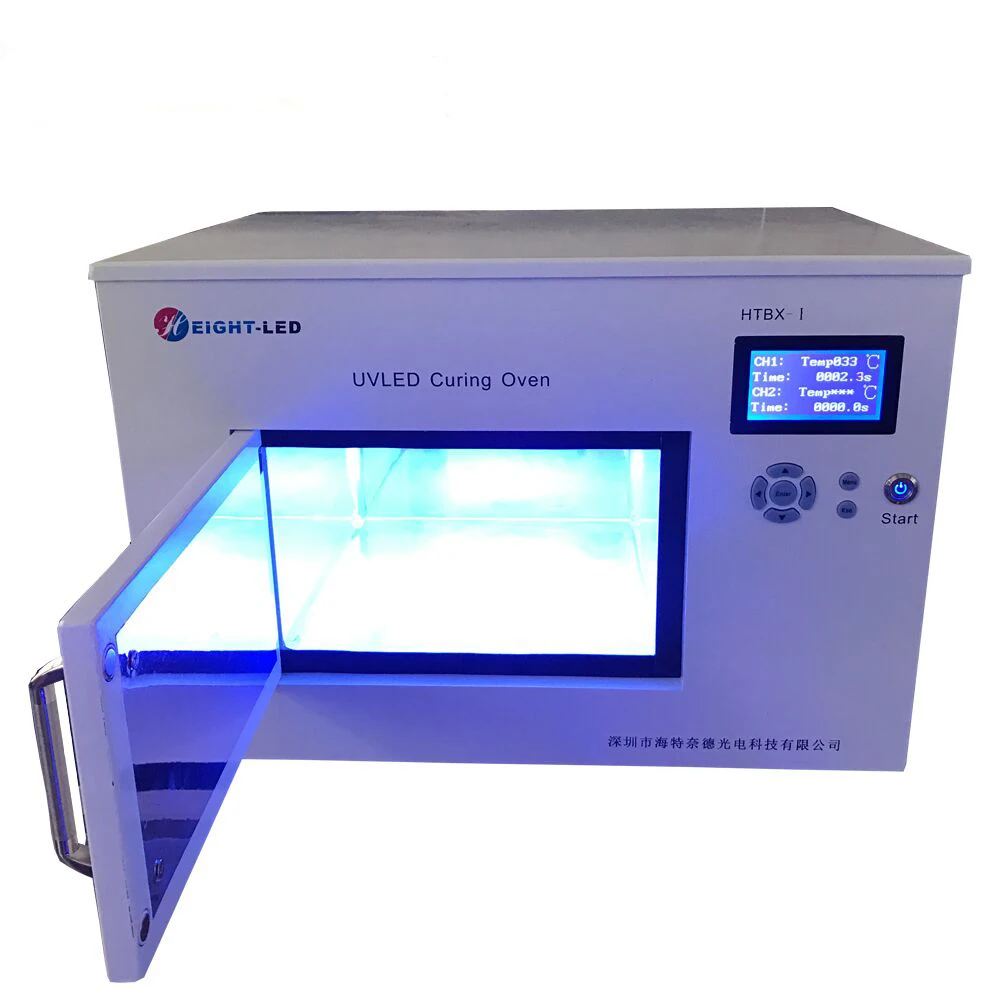

365nm 200x200mm uv glue resin dryer box uv curing oven![Logo.jpg]()
![.jpg]()
![.png]()
![.png]()
![.png]()
Product Description
HTLD UV LED curing machine contain two parts: Controller and Irradiation Head.
Technical data of controller
Type | HTBX-I | ||
Channel | 1 | ||
The size of controller | L450*W320*H300mm | ||
Terminal I/O | Input | Pedal switch & serial RS-232 communication signals | |
Output | serial RS-232 communication signals | ||
Cooling method of controller | Air cooling | ||
Power supply voltage | AC100~240V±10%(50/60HZ) | ||
Operation mode | Touch Panel | ||
Ambient temperature and humidity | Ambient temperature:-10℃—50℃ Relative humidity:25%—85%RH | ||
Dimming/Exposure control | Digital Debugging,Manual exposure control,Foot control or timing control (0.1~9999S) | ||
Setting operation | Using the operating switch is set,Power key parameter switch,RS-232 | ||
External Control |
External input | Enter irradiation alone Irradiation stop input, Interlocking,All lights illuminated input,Query switch | |
External output | READY signal,Error signal,Warning Output,Busy output(Various skinhead),+5VOutput (indicator used) | ||
Technical data of uv led light
| product model | eimitting window size | wavelength | cooling method | peak irradiation | irradiation distance |
| HTBX-I | 220x230mm | 365nm | air cooling | 8000mw/cm² | 10-130mm |
Product application
Product advantages
Company Information
Shenzhen Height-LED Opto-electronics Technology Co., Ltd located in Shenzhen, Guangdong, China. Starting in 2007, Height-LED engaged in UV-LED curing UV ink, UV adhesive UV paint, UV varnish and other UV sensitive materials. Our team has more than 10 years combined experience in UV curing systems and can meet the requirements of each client.
FAQ
Q1: Why choosing HTLD UV LED curing system?
A:Our team has over 10 years combined experience in UV curing systems and can meet the requirements of each client.
Q2: Can I use UV LED curing system in our production?
A:HTLD UV curing system can be used for curing UV ink, UV adhesive UV paint, UV varnish and other UV sensitive materials.
Q3: What is UV LED curing system’s major advantages than other UV curing system?
A:Extra-long life, energy saving and environment friendly.
Q4: Which wavelength do I need?
A:It depends on your UV sensitive materials.
Q5: How much the size of emitting window do I need?
A:It depends on your production.
Q6: How much the Peak Irradiance do I need?
A:It depends on your UV sensitive materials and your Production efficiency.
Q7: The common emitting window and Peak Irradiance can not meet my requirments?
A:Do not worry! Any size of emitting window and Peak Irradiance can be customized .
Q8: Where is your company located?
A: 2/F, Building B, Sanhe international science and technology Building, Lai Wu Shan New Village ,Da Lang Road,Long Hua District, ShenZhen.
