Тяньцзинь миры 42 дюймовые рыболовные плоскогубцы из нержавеющей стали межфланцевый клапан вороты маховик Дроссельный с коническим отверстием производства
- Категория: Butterfly Valves >>>
- Поставщик: Tianjin,Worlds,Valve,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-20-2025 | 11.36 $* | 11.37 $* |
| Jul-20-2025 | 9.46 $* | 9.73 $* |
| Jun-20-2025 | 11.25 $* | 11.28 $* |
| May-20-2025 | 11.98 $* | 11.40 $* |
| Apr-20-2025 | 9.99 $* | 9.17 $* |
| Mar-20-2025 | 11.26 $* | 11.67 $* |
| Feb-20-2025 | 11.27 $* | 11.86 $* |
| Jan-20-2025 | 11.69 $* | 11.2 $* |
Характеристики

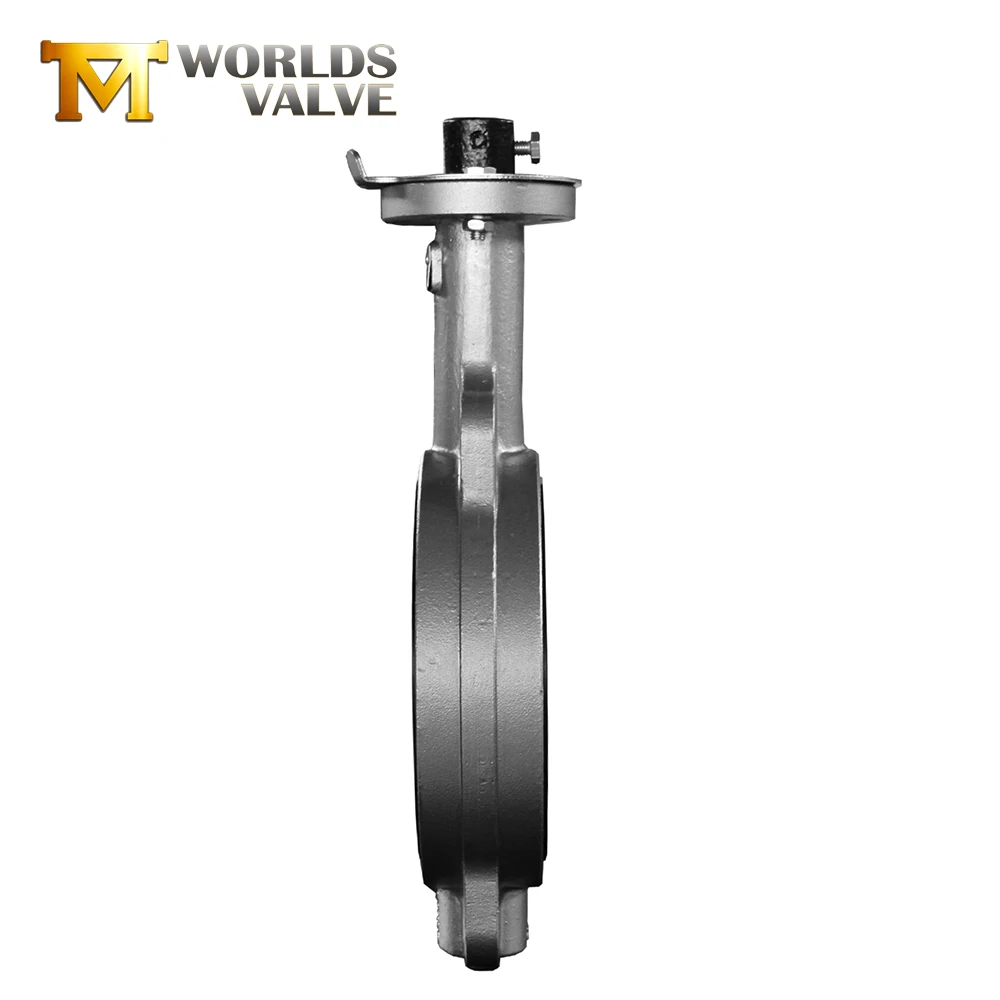

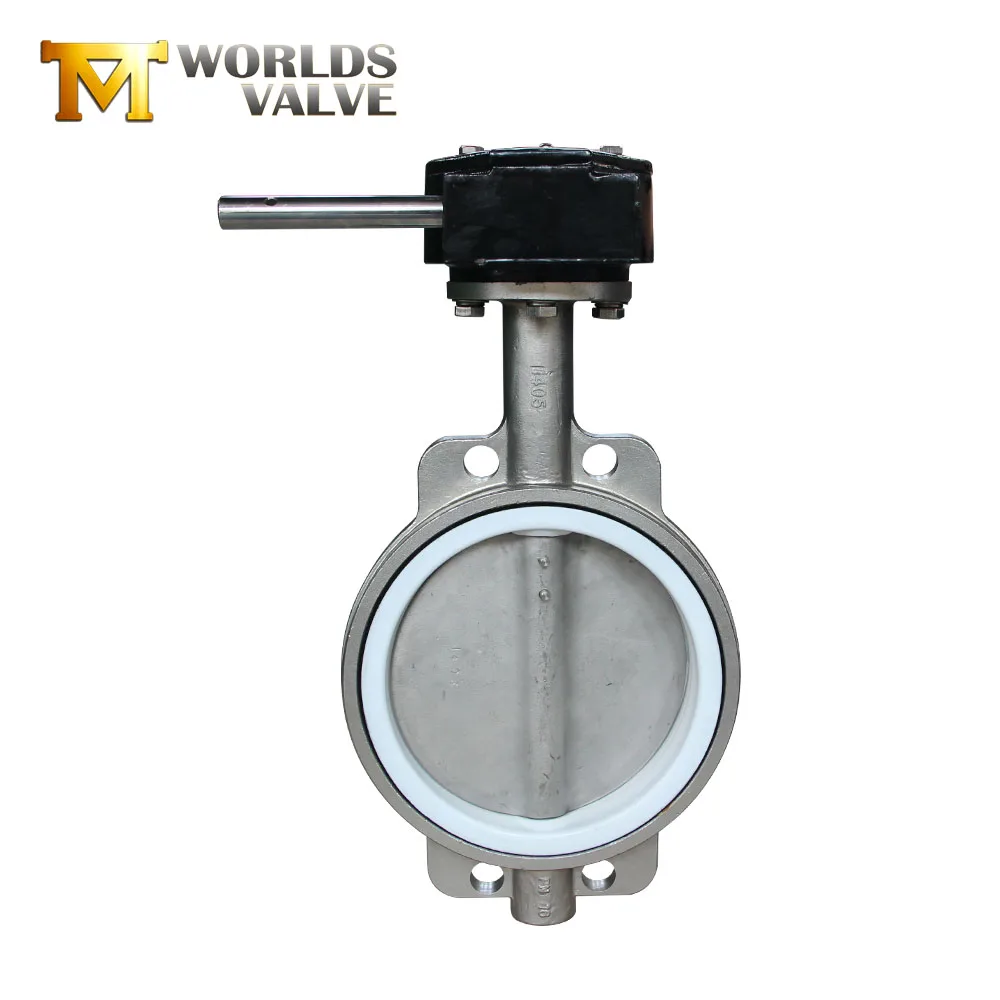

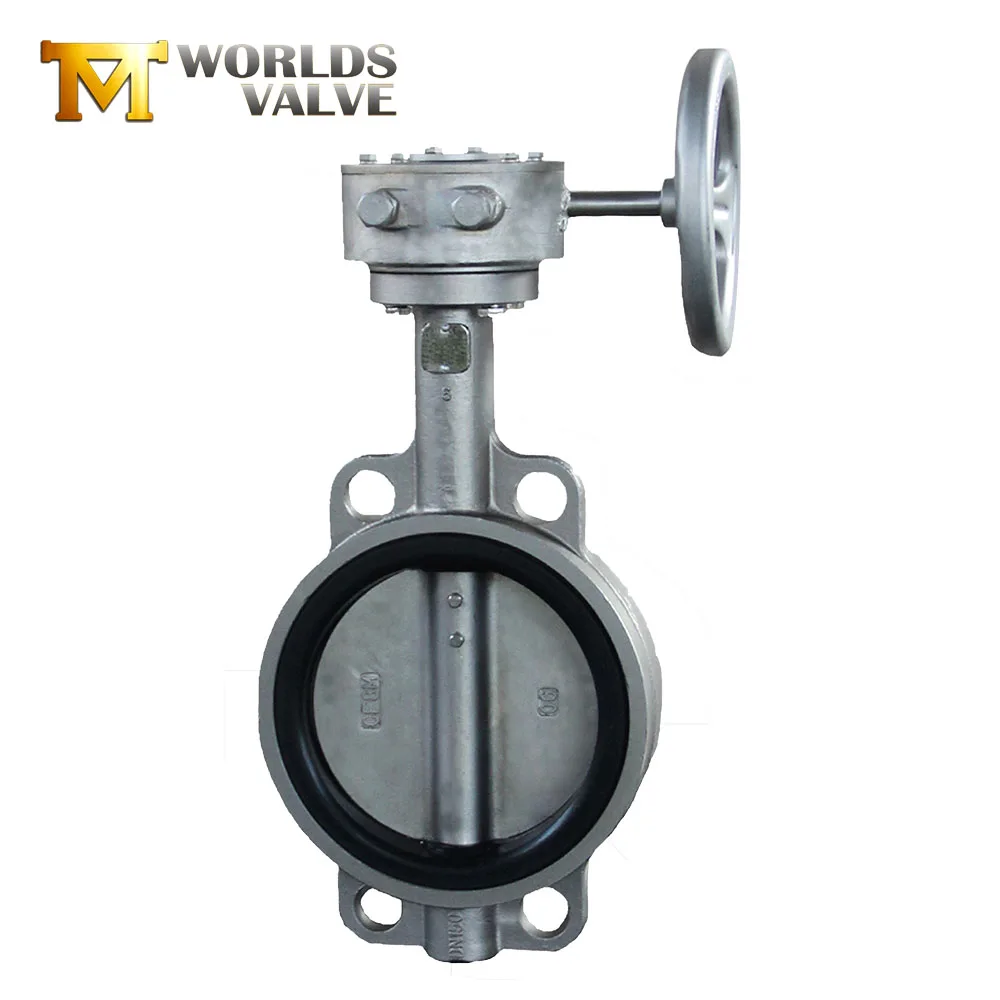

Tianjin worlds 42 inch stainless steel wafer type handwheel butterfly valve with taper pin
Product Description
Technical Parameters:
Size | DN50-DN1200 | DN50-DN1200 |
Working pressure | 16Bar | 10Bar |
Shell | 24Bar | 15Bar |
Seal(Air) | 6Bar | 6Bar |
Operating Temperature | -45℃~+150℃ | |
Operating Environment | Ballast and bilge system Chemical processing Desalination plants Drilling rigs Drinking water Dry powder Food and beverage Gas plants HAVC Mining industry Paper industry Sand handling Seawater Sugar industry Thermo technical water treatment Waste water | |

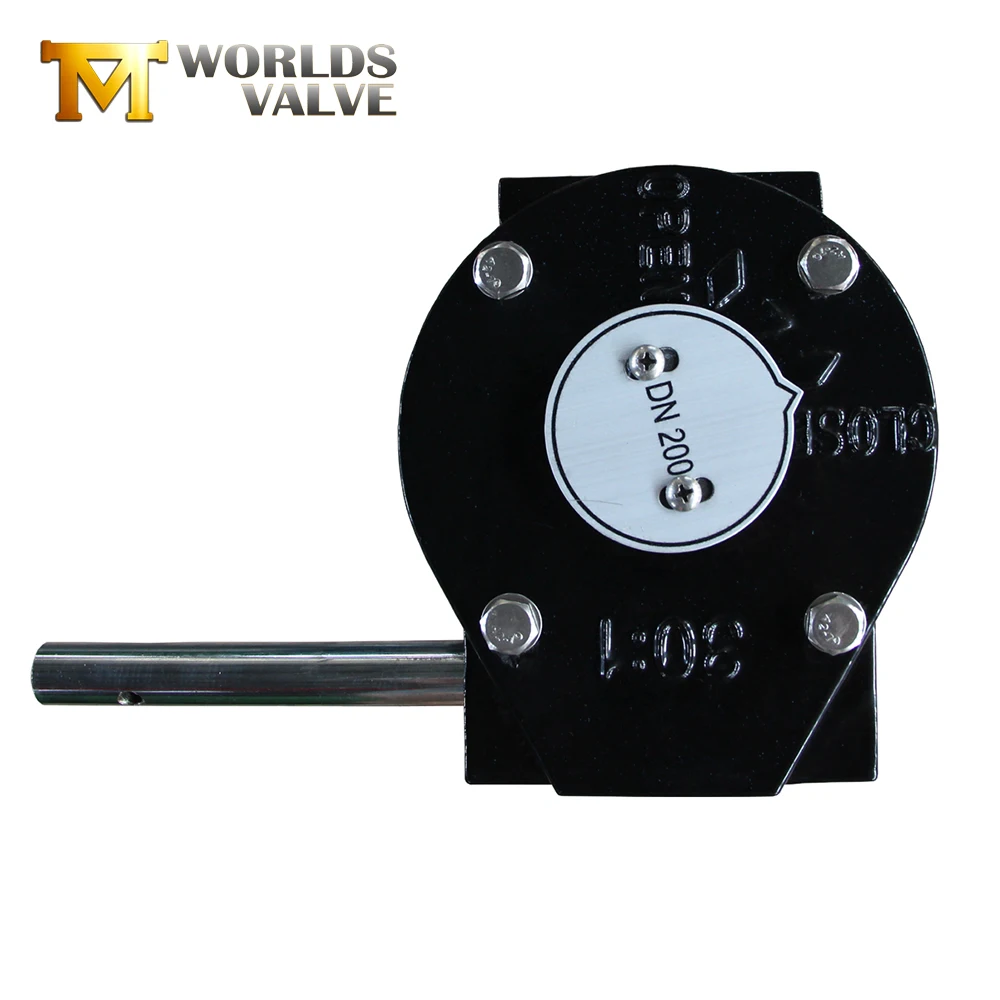

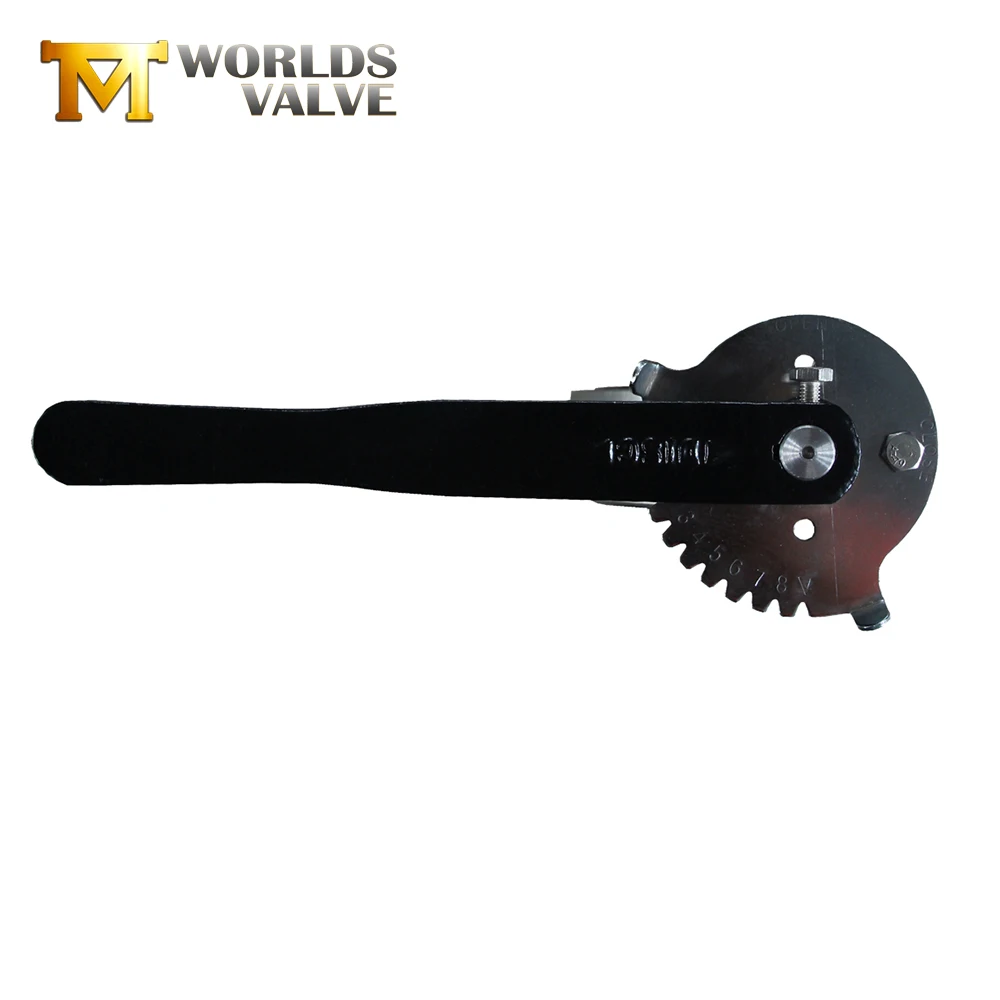

Driving method | Hand Lever Worm Gear Electric Pneumatic | |
Executive Standard:
Design Standard | EN 593 , MSS SP67 API 609 BS5155 |
Inspection & Test | API 598 ISO 5208 EN 12266 |
End Standard | ANSI B16.1 CL. 125LB & B16.5 CL. 150LB AS 2129 Table D & E BS 10 Table D & E DIN 2501 PN6, PN10 & PN16 EN 1092 PN6, PN10 & PN16 ISO 2531 PN6, PN10 & PN16 ISO 7005 PN6, PN10 & PN16 KS B 1511 / JIS B 2210 5K & 10K MSS SP44 CL. 150LB AWWA C207 SABS 1123 Table 1000/3 & Table 1600/3 |
Face to Face | ISO 5752 , EN 558 , MSS SP67 and API 609 DIN3202 |
Top Flange | ISO 5211 |
Main Material:
Name | Material |
Body | Carbon Steel Stainless Steel |
Disc | Ductile Iron Carbon Steel Stainless Steel AL-Bronze |
Shaft | Stainless Steel Monel K500 |
Seat | BUNA NBR EPDM VITON PTFE HEPDM Neoprene Hypalon Natural rubber |
PACKING & SHIPPING
COMPANY PROFILE
TIANJIN WORLDS VALVE CO., LTD.is located at TIAN JIN BIN HAI where is only 3 kilometers away
from Tianjin Xingang Port,TIANJIN WORLDS VALVE CO.,LTD. is a specialized manufacture enterprise
that focuses producing, installing, sale and service. The main products include Center Line Butterfly Valve,
Flanged Butterfly Valve, Metal Butterfly Valve, Check Valve, Gate Valve, Waterpower Control Valve,
Microresistance Slow Close Check Valve, Multi-function Pump Control Valve and their series products.
Moreover, we can produce control valve and pressure reducing valve that are different materials,
pressures, specifications, actuation ways. Our products include more than 50 serials and 1200 species,
and the annual production output is more than 8.000 metric tons. WORLDS valves have been selling
well all over China and exporting to Europe, America and other countries and areas, which are used
widely in water supply and drainage, electric power, petrol chemical industry, metallurgy and other trades.
Our products are quite creative, good quality, cheap price and excellent credit, so customers trust
our products.
Related products
FAQ
1. Q: Are you a manufacturer or trading company ?
A: we are valve manufacturer and factory ,and not trading company.
2. Q: Do you have agent or representative abroad?
A: We dont have agent abroad,
please contact us to purchase valves from Tianjin Worlds Valve Co.,Ltd directly.
3. Q: What's your product range?
A: We can produce Butterfly valve,Gate valve,Check valve,Y strainer,
by ISO/ANSI/DIN/JIS/ EN/GOST/AS standard.
4. Q: Is there any stock in your factory? and how about your lead time?
A: We stock valves with normal sizes.
The lead time depends on your quantity,generally 30-40 days.
5. Q: Which countries do you export to ?
A: We export directly to vast majority of countries in the world.
6. Q: What certificates will you provide ?
A: We can provide CE-PED / ISO / WRAS - UK/ ACS-France CO.
7. Q : How do you control the quality of the product?
A: Adheres to strict quality control procedures that begin with product design and carry
through to the end of the production process using state-of-the-art quality control equipment.
