19mm pitch pvc filling for cooling tower infill fill pack

Product Description

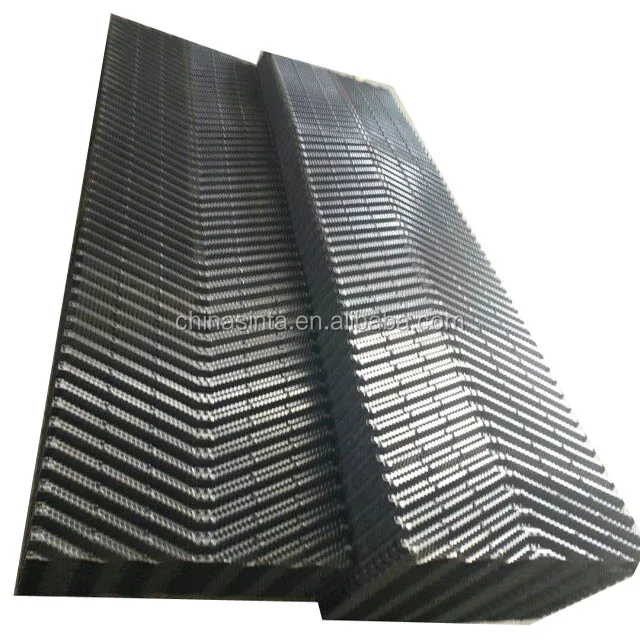

cooling tower fill pack.jpg

Cooling tower fill comes in multiple different styles that have different efficiency levels, pros and cons. The cross-corrugated fill that is used in many cooling towers can be extremely efficient because it offers the most surface area possible, exposing the most water to the most air possible, but because of this design, it’s easy for contamination to take place. This is often called “fouling” and cross-corrugated fill is known for being susceptible to fouling.

PVC cooling tower fills.jpg

Cooling tower fill will require repair or replacement over the course of its use, making sure that the correct type of fill is used is very important, or the costs involved in repeated maintenance can be prohibitive. As it ages, cooling tower fill that hangs is an indication that it is the scale it has collected has more weight than the fill can handle. In some situations, fill can even freeze, and that can take a toll on the condition of the fill overall. Fill that has fallen, or is damaged, can be replaced by a professional technician.

Material:PVC,PP

Color:black,white,green

Width:155mm,305mm,610mm

Length:any length

Sheet thickness:0.25-0.4mm

Flute size:12mm,15mm,19mm

Main techinical data :

Product	Surface Area	Sheet Spacing	Flute Angle	Media Pack Sizes -Inches(mm)
Product	Surface Area	Sheet Spacing	Flute Angle	Min	Max	Standard
CF-1200	69ft2/ft3 (226m2/m3)	0.46’’ (12mm)	30°	D:3.9’’(100mm) W:6’’(153mm) L:12’’(305mm)	D:11.8’’(300mm) W:12’’(305mm) L:120’’(3048mm)	D:11.8’’(300mm) W:12’’(305mm) L:48’’(1220mm),72’’(1829mm),96’’(2439mm) or 120’’(3048mm)
CF-1900	48ft2/ft3 (57.5m2/m3)	0.75’’ (19mm)	30°	D:6’’(153mm) W:6’’(153mm) L:12’’(305mm)	D:24’’(610mm) W:24’’(610mm) L:144’’(3658mm)	D:12’’(305mm) or 24’’(610) W:12’’(305mm) or 24’’(610) L:48’’(1220mm),72’’(1829mm),96’’(2439mm) or 120’’(3048mm)

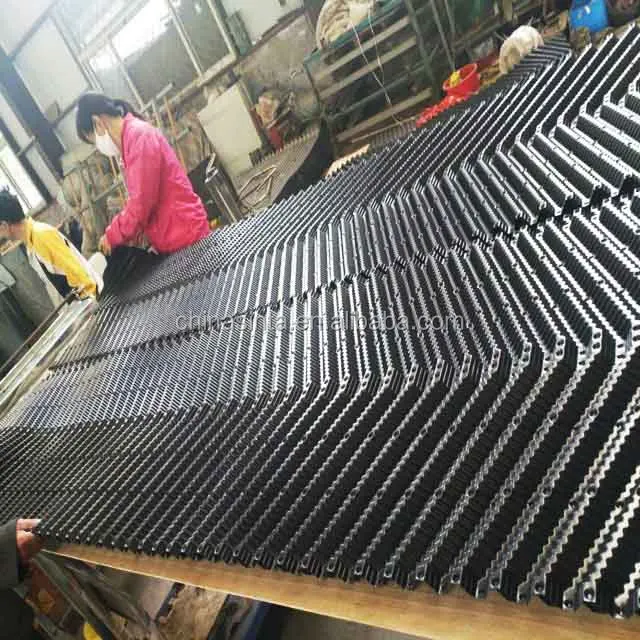

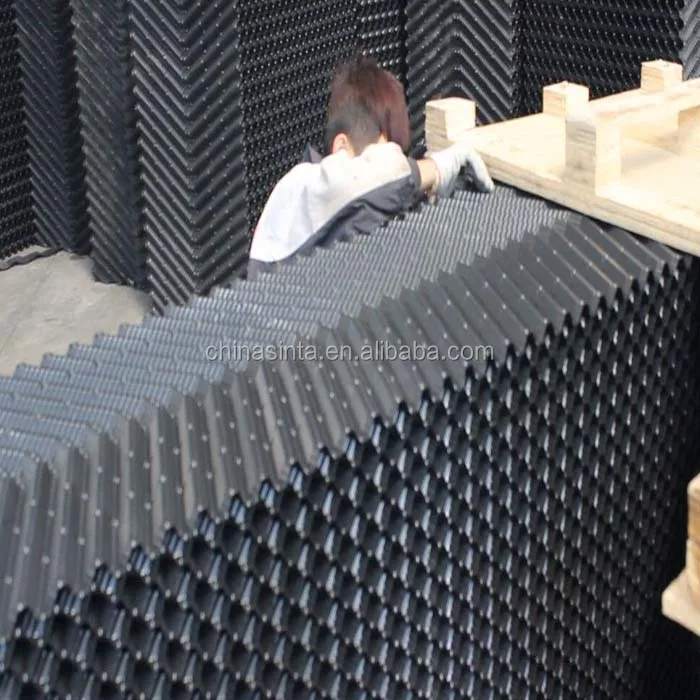

Above photo shows glue point,we will deliver PVC fill in sheet,and also can be in block. the fill in block will take much more space,we do not advise deliver them after glue(please check the floowing photo that shows the fill after glue).

If there is any problem during glue counerflow cooling tower fill film,please let us know.

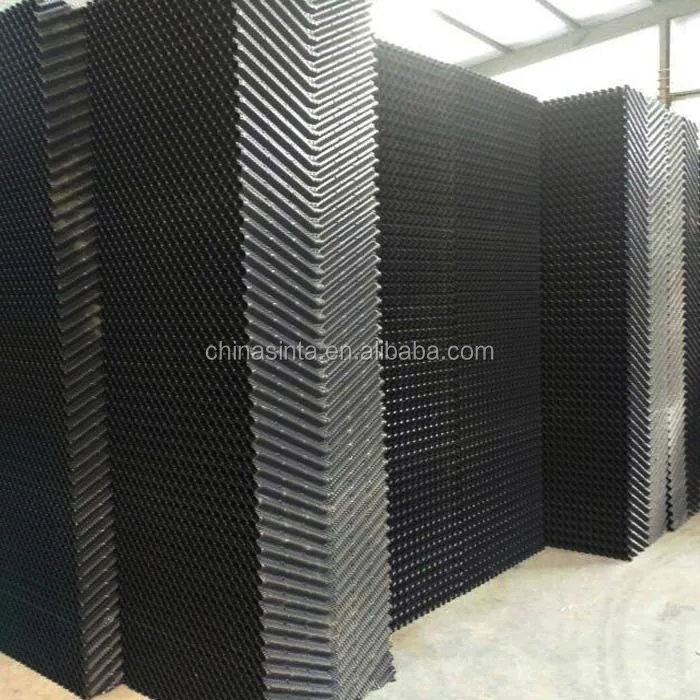

cooling tower fill packs

PVC-material: Unplasticized (uPVC)
PP-material: Impact-resistant, environmentally friendly
PVC and PP material: Resistant to rot, fungi and most dissolved chemicals, UV-stabilized
Max. application temperature: For waste water applications temperatures should not exceed 40 °C. For cooling tower applications the operational temperature should be measured at the inlet pipe of the system and should not exceed the maximum application temperature stated above.
High temperature applications: Fill media in high-temperature version in PVC (up to 75 °C) and PP (up to 100 °C) available on request.

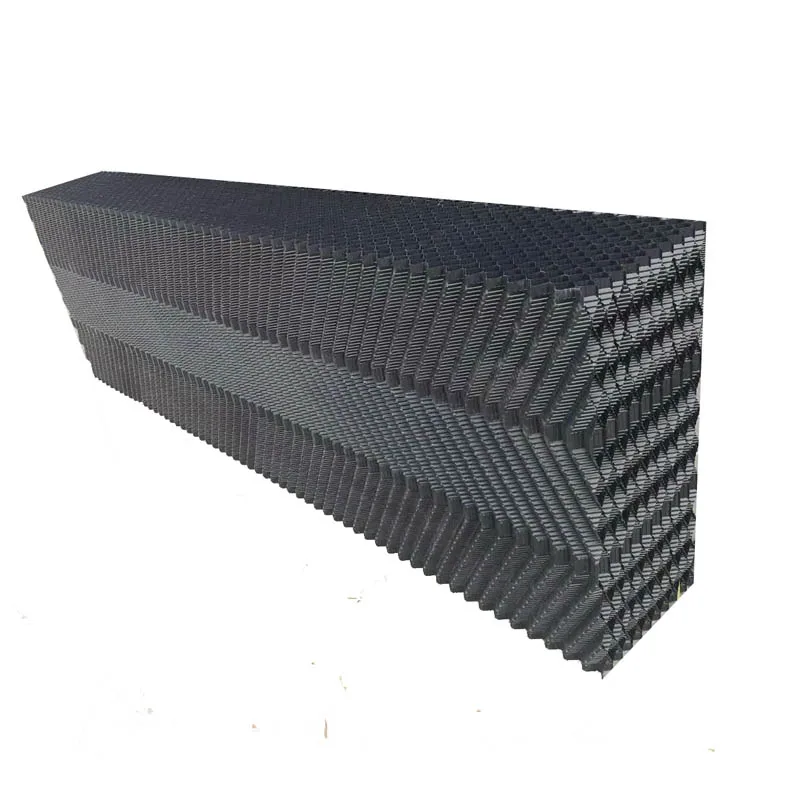

pvc cooling tower fill

PP hexagonal honeycomb cooling tower fill (honeycomb filler )

PP cooling tower fill pack.jpg

We could produce PVC and PP material cooling tower fill pack, the PP fill is for high temperature.

Company infomation

Hebei Sinta FRP Trading CO., Ltd supply various of cooling tower fill film for more than 10 years,

We have a professional team and Advanced equirment to meet cilents' requirments.

Our main cooling tower parts as cooling tower fills(PP/PVC), drift eliminators, air inlet louvers,spray nozzles,mist eliminators,etc. Customization and OEm acceptable. Welcome to contact us for more. www.sintafrp.com

Packaging & Shipping

Oblique Cooling tower fills package:

Loose sheets for cooling tower infill

Cooling tower infill1

Cooling tower nozzles you may like:

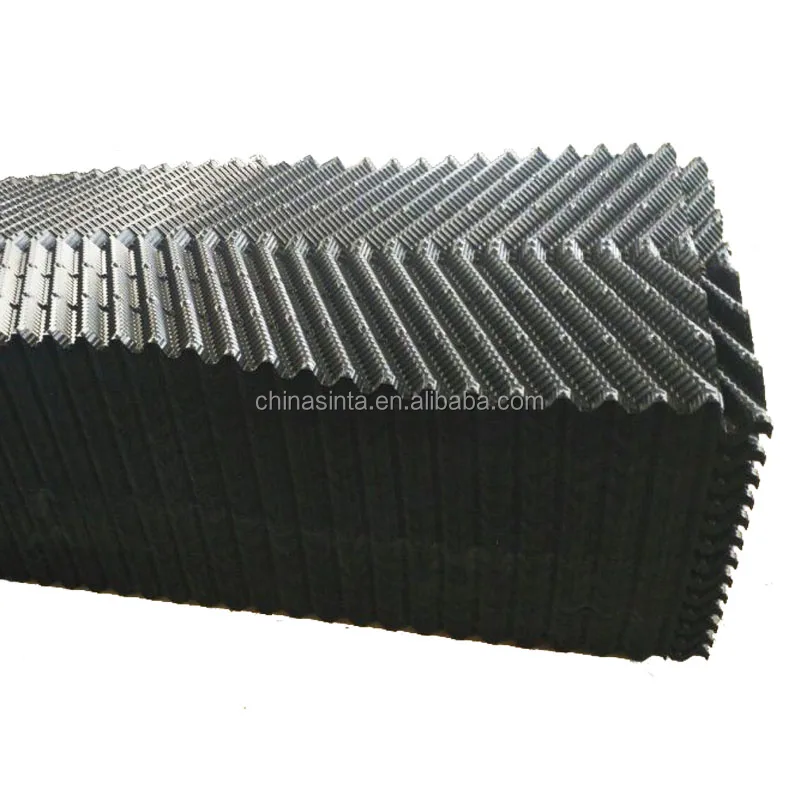

pvc fill pack for cooling tower

FAQ

Q: Does your products come with warranty?

A: YES! We provide our products with 1 years International Warranty.

Q: Can I customize from your factory?

A: Absolutely! We will try our best to satisfy every single requirement from you about cooling systems. At the same time, according to your requirements, we will provide you with a very reasonable and detailed quotation list.

Q: Can you give me a discount?

A: Well, first we will make sure the high quality of the products, then we do our best to save every single cent of you as much as we can by exquisite design

.Of course,the more the better.300*300*1830mm PVC Cooling Tower Fill Pack
