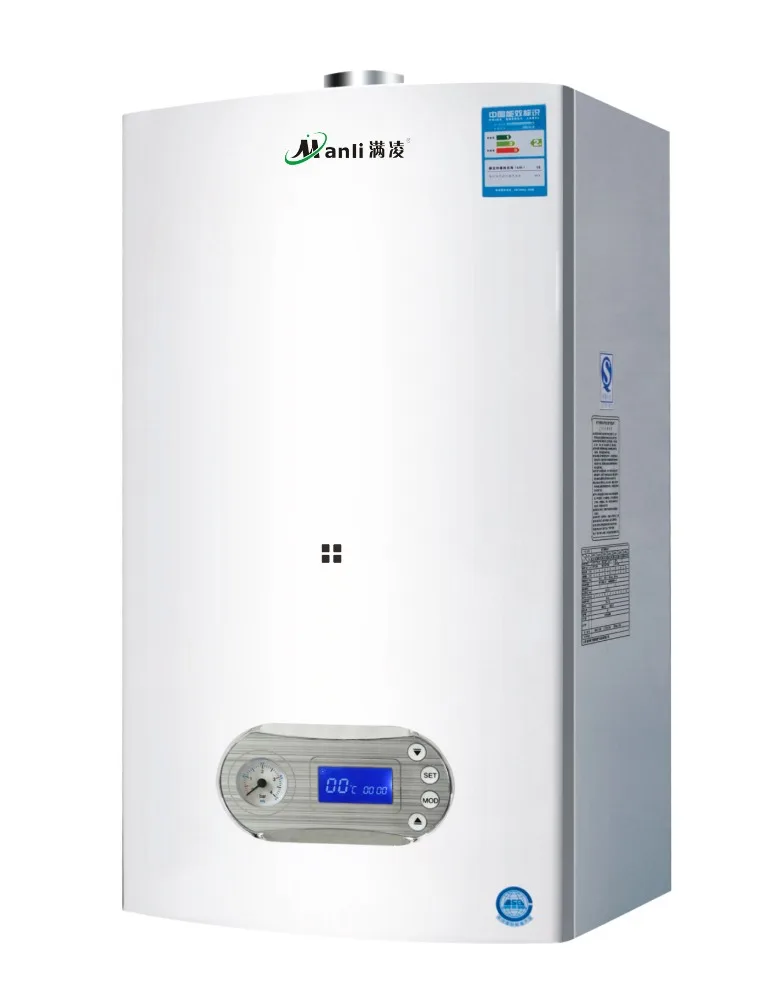

Газовая горячая вода

Rated heat input

KW

24

Minimum heat input

KW

7.2

Rated heating output

KW

20.5

Min heating heat output

KW

5.8

Rated Production hot water energy(30 K hot temperature rise out of water)

Kg/min

9.4

Rated gas pressure (N.G)

Pa

(12T)2000Pa

Heating system applies to the pressure

Mpa

0.05-0.3

Shower hot water system applies to the pressure

Mpa

0.05-0.6

Heating water cycle way

Configuration water tank inside

Hot water temperature adjust

Heating water(°C)

40~80

Bath water (°C)

30~60

Thermal efficiency(Ideal working conditions)

>88~95%

Electrical parameters(Electrical rating108W)

AC220V/50Hz

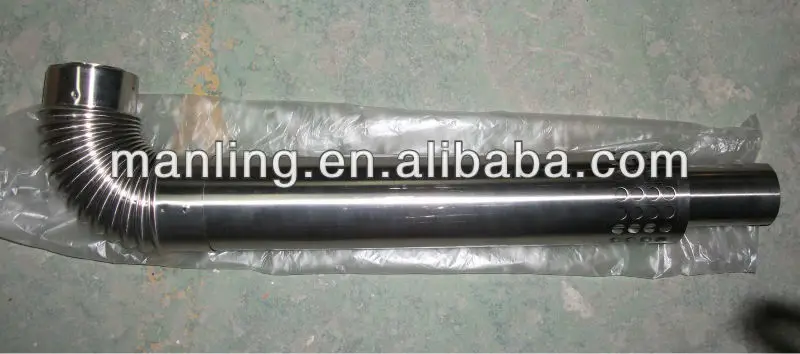

Exhaust pipe

Outside diameter(mm)

90

Inner diameter(mm)

60

Piping specifications

Shower nozzle inlet and outlet water

G1/2''

Intake pipe

G3/4''

Heating conduit for back

G3/4''

Reference heating area

<160m²

Product Weight

40Kg

Product size(mm)

750×440×330
