Электромагнитный клапан для холодильника модели SV электромагнитный выхлопного
- Категория: Brass Valves >>>
- Поставщик: Zhejiang,Hongsen,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.82 $* | 0.81 $* |
| Aug-15-2025 | 0.19 $* | 0.39 $* |
| Jul-15-2025 | 0.84 $* | 0.77 $* |
| Jun-15-2025 | 0.43 $* | 0.19 $* |
| May-15-2025 | 0.0 $* | 0.79 $* |
| Apr-15-2025 | 0.14 $* | 0.61 $* |
| Mar-15-2025 | 0.9 $* | 0.67 $* |
| Feb-15-2025 | 0.30 $* | 0.42 $* |
| Jan-15-2025 | 0.14 $* | 0.2 $* |
Характеристики
\\

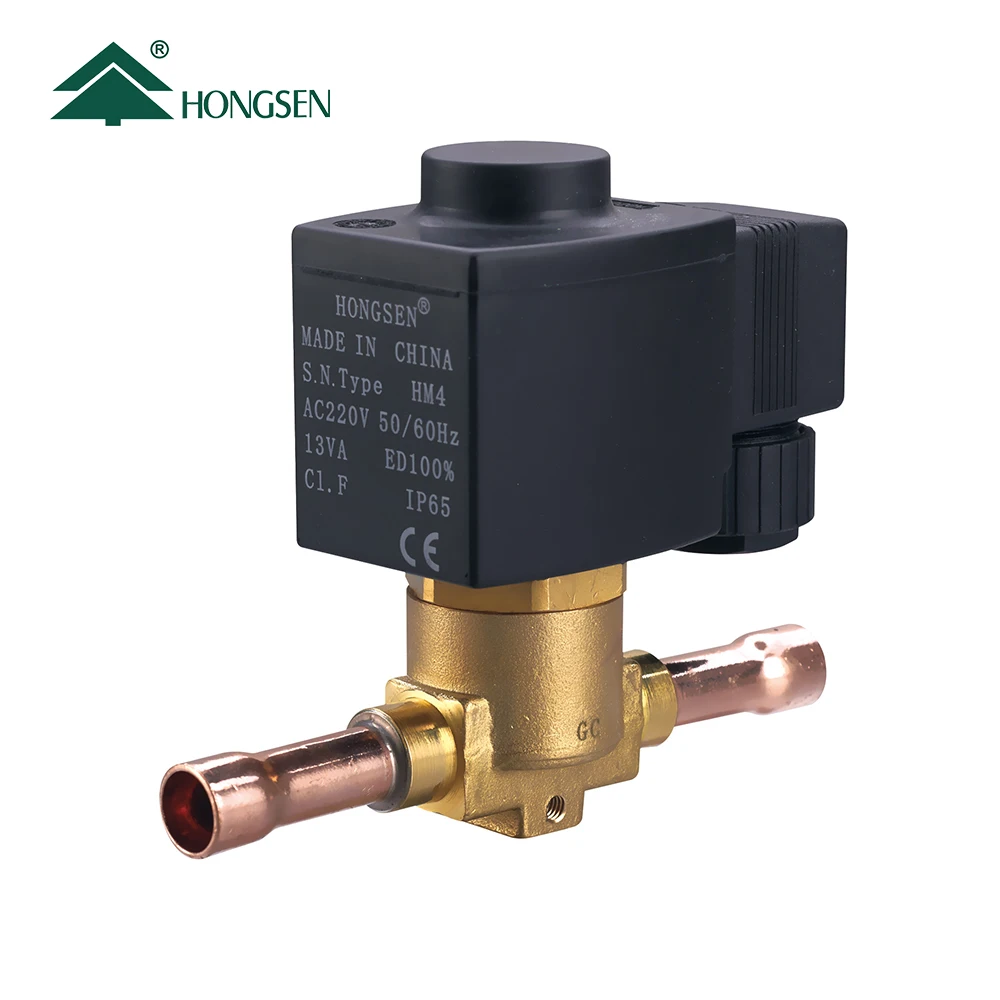

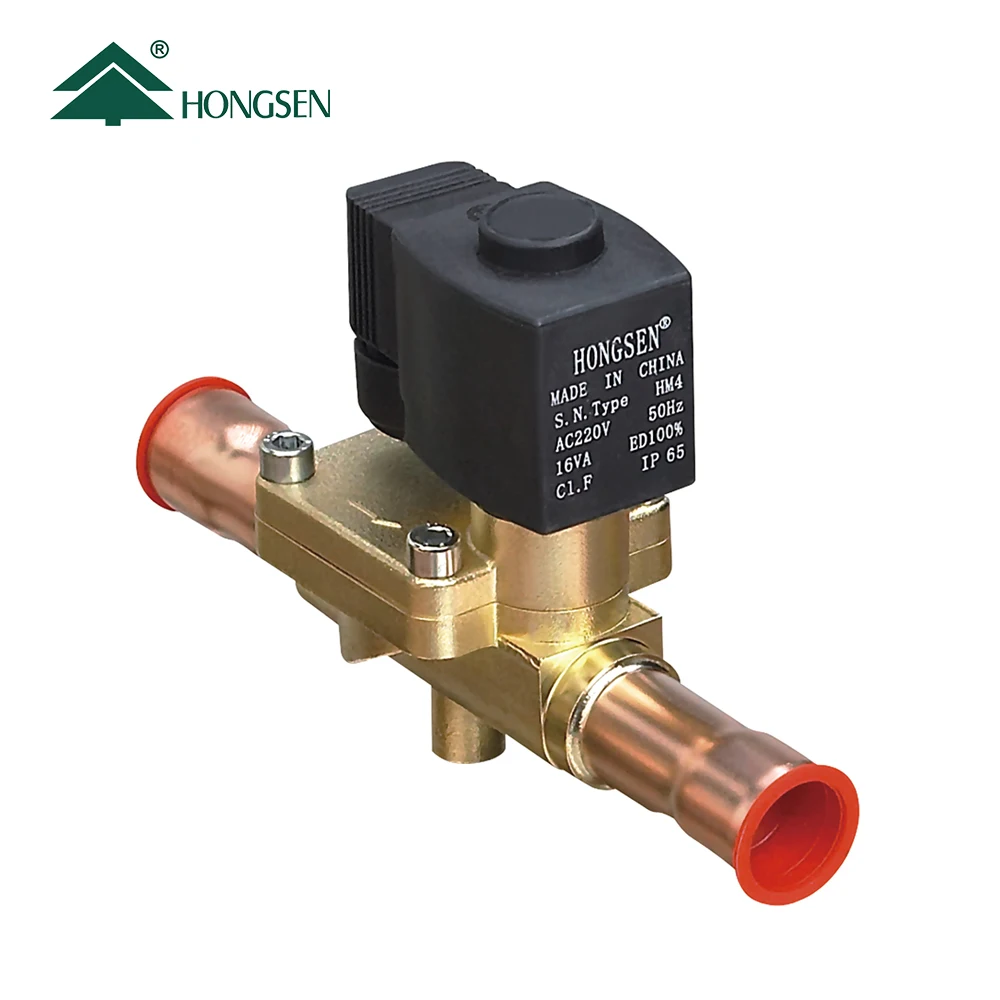

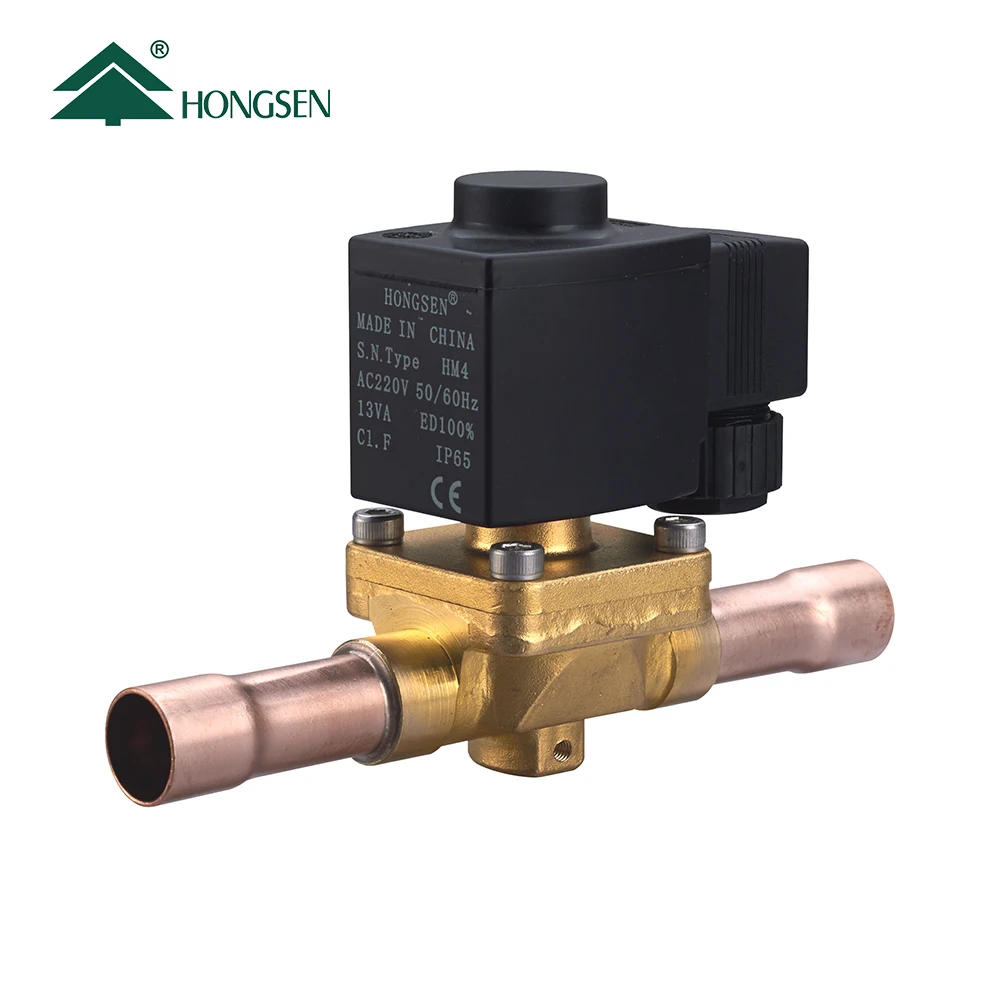

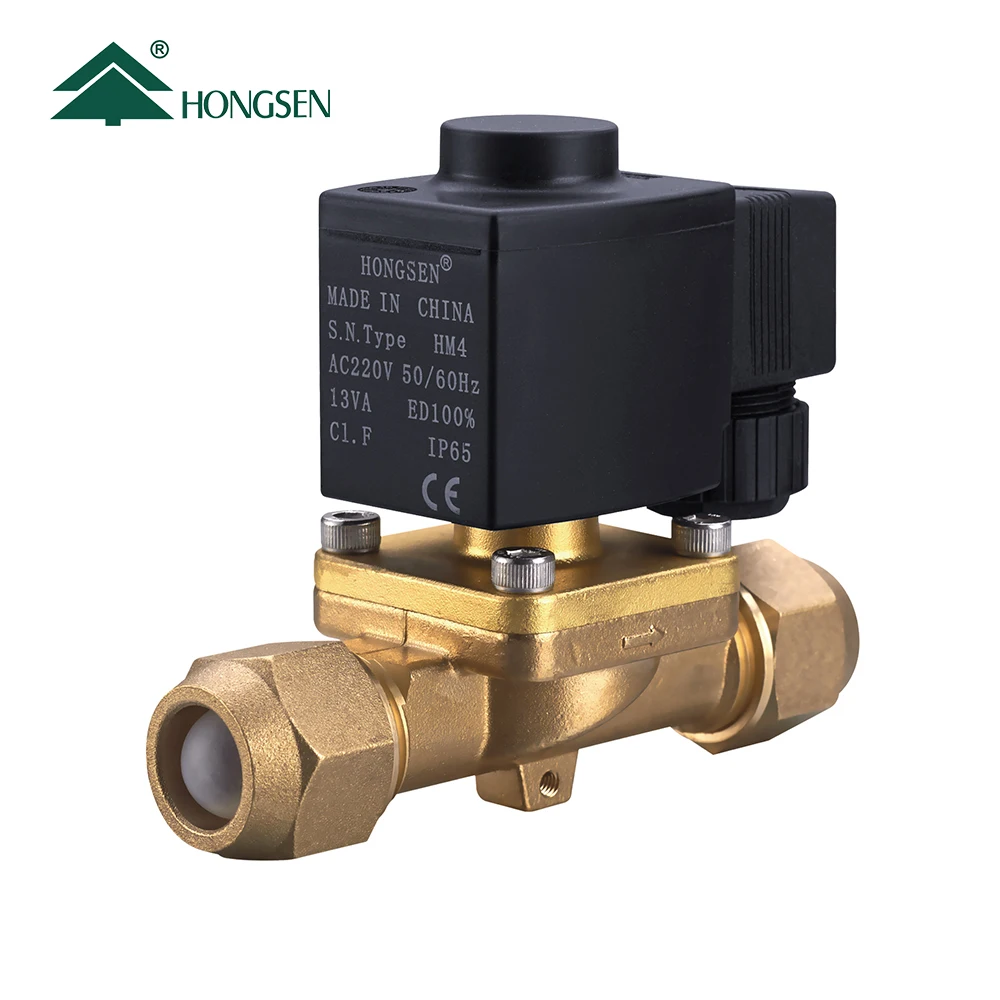

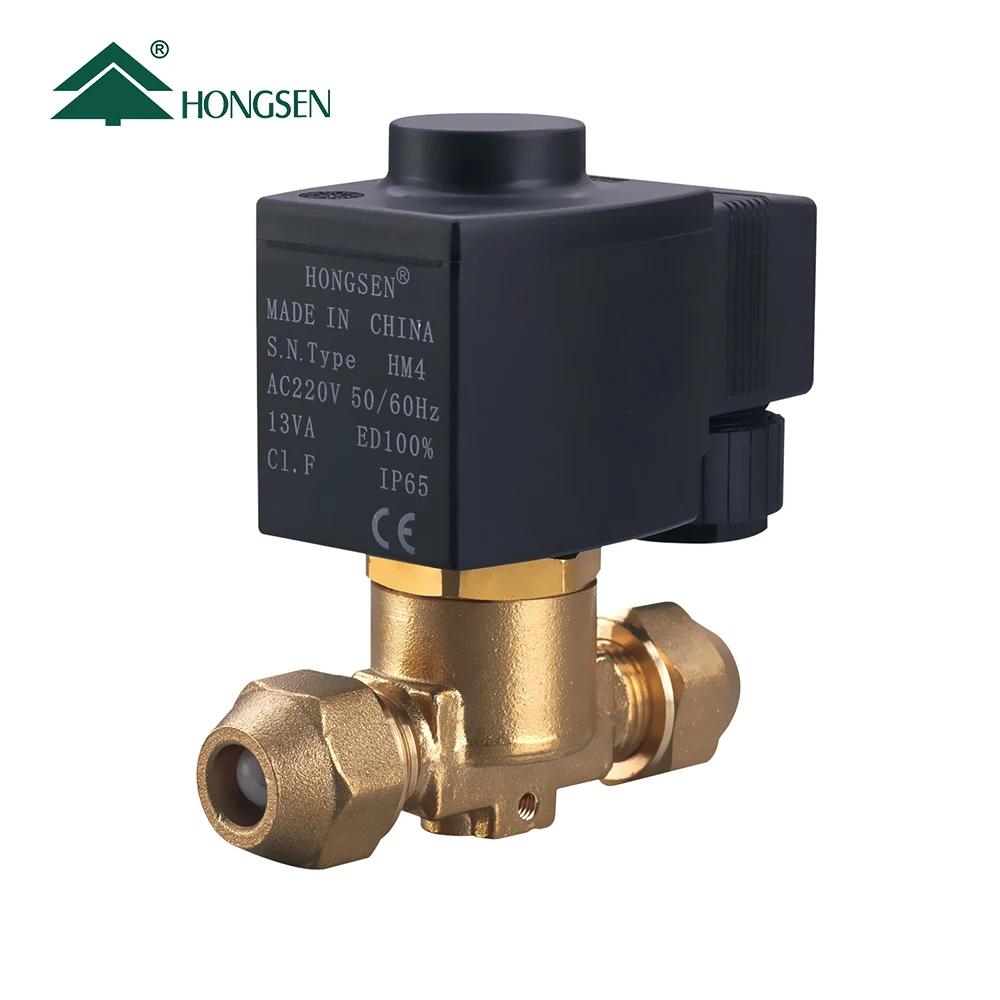

· Model SV solenoid valve is a once open-type or twice open-type solenoid valve to be suitable to one-way flow.
· Model SV solenoid valve is used on the liquid, air suction and hot vapor pipes of the refrigeration, cold storage and air conditioning facilities.
· Model SV solenoid valve has perfect sealing on its valve seat and sealing part.
· The coil of varies voltages is available for Model SV solenoid valve with a universal valve body.
· Model SV solenoid valve could be supplied in whole or in split, that means the valve body and coil could be supplied separately.
Features:
The proprietary coil is an entirely sealed disign with an effective waterproof performance and a long service life(IP65);
The solenoid coil could be operated properly even under unstable voltage.
Various AC and DC solenoid coil is convenient in assembly and disassembly;
Clip type solenoid coil is convenient in assembly and disassembly
It is applicable to various compressors in the refrigeration, cold
Storage and air conditioning facilities
Technical Parameters:
| Applicable Refrigerants: | HCFC,HFC and related medium viscosity ≤2° E lubricant oil |
| Applicable Medium Temperature: | -30℃~+105℃ |
| Coil Application Ambient Temperature | -40℃~+65℃ |
| Coil Standard Voltage | AC380V,220V,110V,24V/50,60Hz,DC24V |
| Coil Allowable Voltage Fluctuation | +10%~-10% |
| Coil Connection | Standard 3-wire insert connector |
Product Model:
| Structure | Model | Connection | P(bar) | Maximum Working Pressure | Kv(m3/h) | ||
| Spec | Type | Minimum | MOPO LiquidMOP | ||||
| Direct Operated | SV20-2 | 1/4 | SAE | 0.0 | 31 | 45 | 0.16 |
| SV28-2 | ODF | ||||||
| SV20-3 | 3/8 | SAE | 0.27 | ||||
| SV28-3 | ODF | ||||||
| Servo Operated | SV64-3 | SAE | 0.05 | 0.8 | |||
| SV68-3 | ODF | ||||||
| SV64-4 | 1/2 | SAE | |||||
| SV68-4 | ODF | ||||||
| SV70-5 | 5/8 | SAE | 2.2 | ||||
| SV78-5 | ODF | ||||||
| SV70-6 | 3/4 | SAE | |||||
| SV78-6 | ODF | ||||||
| SV98-7 | 7/8 | ODF | 0.2 | 2.6 | |||
1) Sv value: When the pressure differential is 100 KPa, the flowrate at m3h of water in density 1 t/m3 flows the solenoid valve.
2) The MOPD of gaseous medium is about 1 bar higher than that of liquid.
| Model | Nominal Refrigerating Capacity kW | ||||||||
| Liquid | Air Suction | Hot Vapor | |||||||
| R22/R407C | R134a | R404A/R507 | R22/R407C | R134a | R404A/R507 | R22/R407C | R134a | R404A/R507 | |
| SV20 | 5.10 | 5.00 | 3.80 | —— | —— | —— | 2.50 | 2.00 | 2.00 |
| SV64 | 16.10 | 14.80 | 11.20 | 1.80 | 1.30 | 1.60 | 7.40 | 5.90 | 6.00 |
| SV70 | 38.20 | 35.30 | 26.70 | 4.30 | 3.10 | 3.90 | 17.50 | 13.90 | 14.30 |
| SV98 | 52.30 | 48.30 | 36.50 | 5.90 | 4.20 | 5.30 | 24.00 | 19.00 | 19.60 |
Structure:
1,solenoid coil; 2,O-Ring; 3,sealing cap; 4,nut; 5,valve body; 6,plate; 7,valve element; 8,valve seat; 9,core cap; 10,dust cap; 11,pipe
| Model | Overall Dimension | Weight(g) | |||||
| A | H | L | L1 | ΦD | M | ||
| SV20-2 | 70 | 65 | 58 | —— | —— | 7/16-20UNF | 395 |
| SV28-2 | 70 | 65 | 90 | 7 | 6.5 | —— | 395 |
| SV20-3 | 70 | 65 | 64 | —— | —— | 5/8-18UNF | 450 |
| SV28-3 | 70 | 65 | 104 | 8 | 10.1 | —— | 450 |
| SV64-3 | 70 | 72 | 87 | —— | —— | 5/8-18UNF | 496 |
| SV68-3 | 70 | 72 | 108 | 8 | 10.1 | —— | 496 |
| SV64-4 | 70 | 72 | 89 | —— | —— | 3/4-16UNF | 503 |
| SV68-4 | 70 | 72 | 114 | 10 | 12.8 | —— | 458 |
| SV70-5 | 70 | 75 | 104 | —— | —— | 7/8-14UNF | 746 |
| SV78-5 | 70 | 75 | 152 | 14 | 16.1 | —— | 598 |
| SV70-6 | 70 | 75 | 104 | —— | —— | 1-1/16-14UNS | 816 |
| SV78-6 | 70 | 75 | 158 | 16 | 19.2 | —— | 616 |
| SV98-7 | 70 | 88 | 180 | 17 | 22.3 | —— | 1020 |
Main Products
Company
Zhejiang Hongsen Machinery Co.,Ltd was founded in 1992, which devoted itself in the R&D and manufacture of various valves in refrigerantion and air condition systom.
Hongsen Machinery covers a land area fo 50000 squeare meters. There are cover 300 staffs and workers in including a specialty team of ten techicians. Hongsen Machinery has a close cooperation with the professors and expert in Zhejiang University, Shanghai Jiao Tong univercity and several senior engineers of leading domestic OEMs are invited as the consultants of the company. A number of techinical talents are trained in production, development and quality control and grow up in the company. At present, Hongsen Machinery is capable to manufacture multiple categories of refrigeration and A/Caccessory parts such as solenoid valve, ball valve, sight glass, expansion valve series and shut off valve series. Hongsen Machinery becomes one company integrating R&D, production and marketing into one.
Certifications
FAQ
Q:Are you manufacturer?
A:Yes,we are professional manufacturer for refrigeration tools and A/C parts
Q:What is MOQ for this product in your company?
A:MOQ is 3000pcs, if less, please check with us firstly
Q:What delivery time in your company for this product?
A:Delivery time is 30days since order in general. If tight,please check us. We will arrange production for you as per mutual benefit.
Q:What payment is it in your company after order?
A:Payment is TT,Another payment can be accepted after confirm.
Q:We are one big company, and want to design our special package for this product, is it ok?
A:Another customized package is welcome.
Q:What shipment is it to our destination?
A:In general, we transfer goods by sea for save cost. If you urgent, we can consider by air.
