UUID программируемый nrf51822 Ble 4 0 температура влажности
- Категория: Bluetooth Modules & Adaptors >>>
- Поставщик: Shenzhen,AnkhMaway,Electronic,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 11.74 $* | 11.73 $* |
| Jul-18-2025 | 9.17 $* | 9.70 $* |
| Jun-18-2025 | 11.48 $* | 11.37 $* |
| May-18-2025 | 11.7 $* | 11.20 $* |
| Apr-18-2025 | 9.59 $* | 9.75 $* |
| Mar-18-2025 | 11.74 $* | 11.79 $* |
| Feb-18-2025 | 11.9 $* | 11.5 $* |
| Jan-18-2025 | 11.84 $* | 11.94 $* |
Характеристики
iBeacon Feature

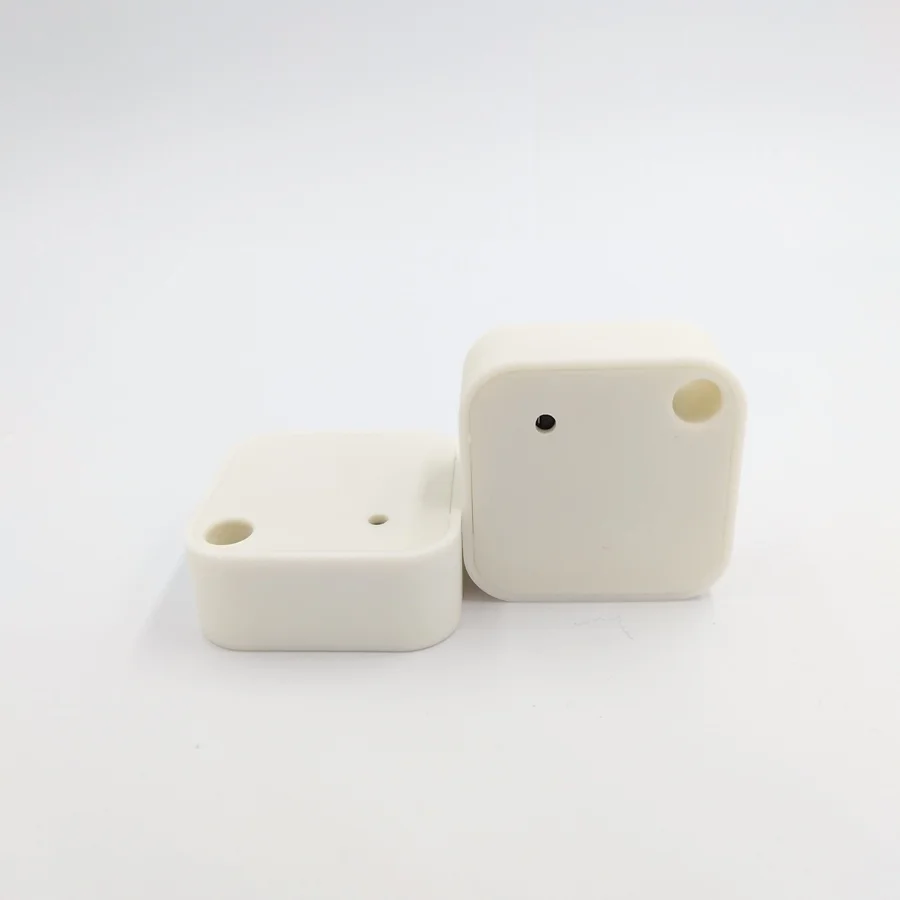

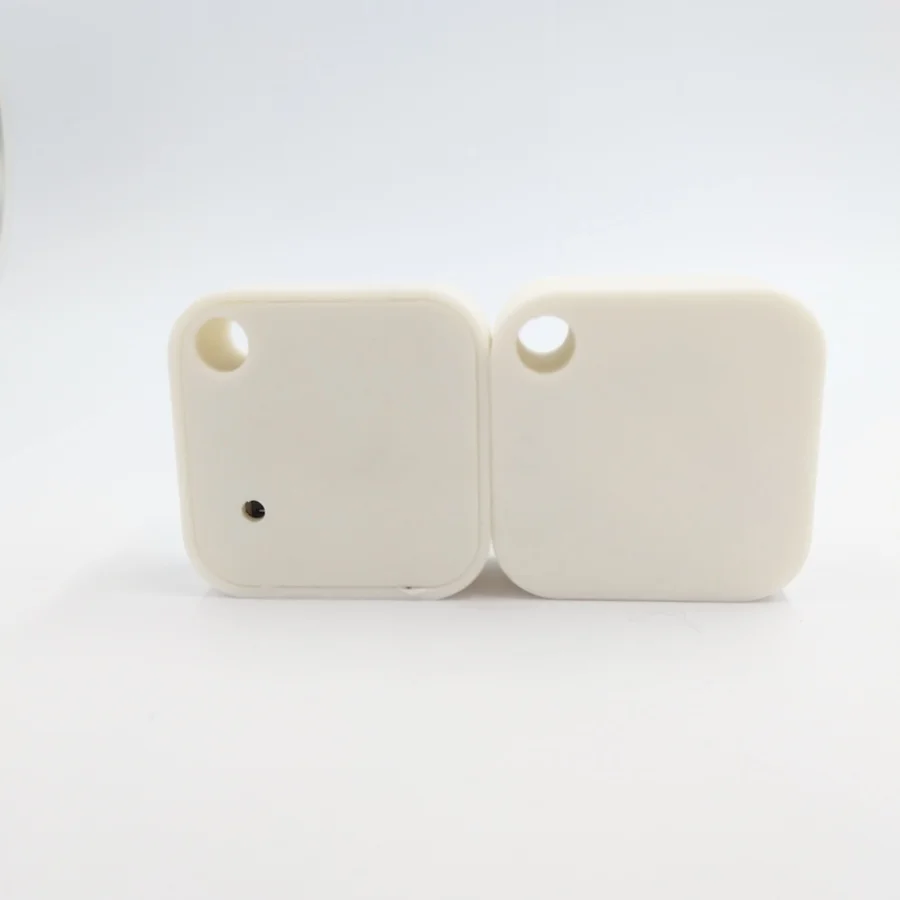

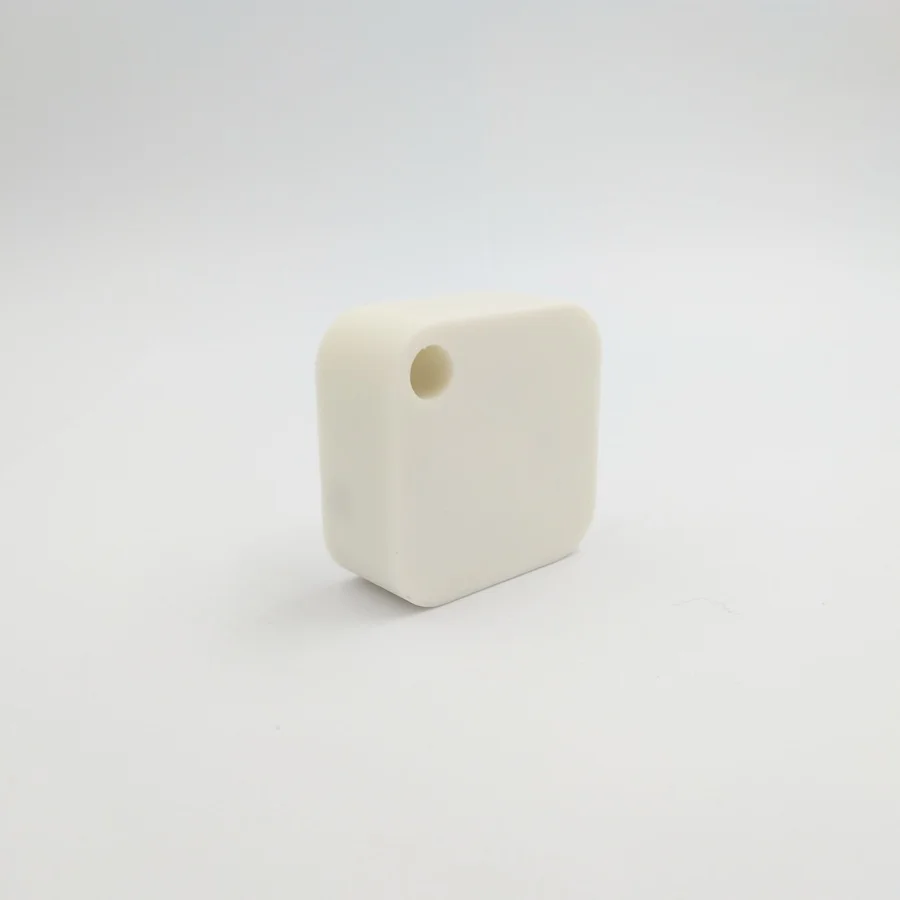

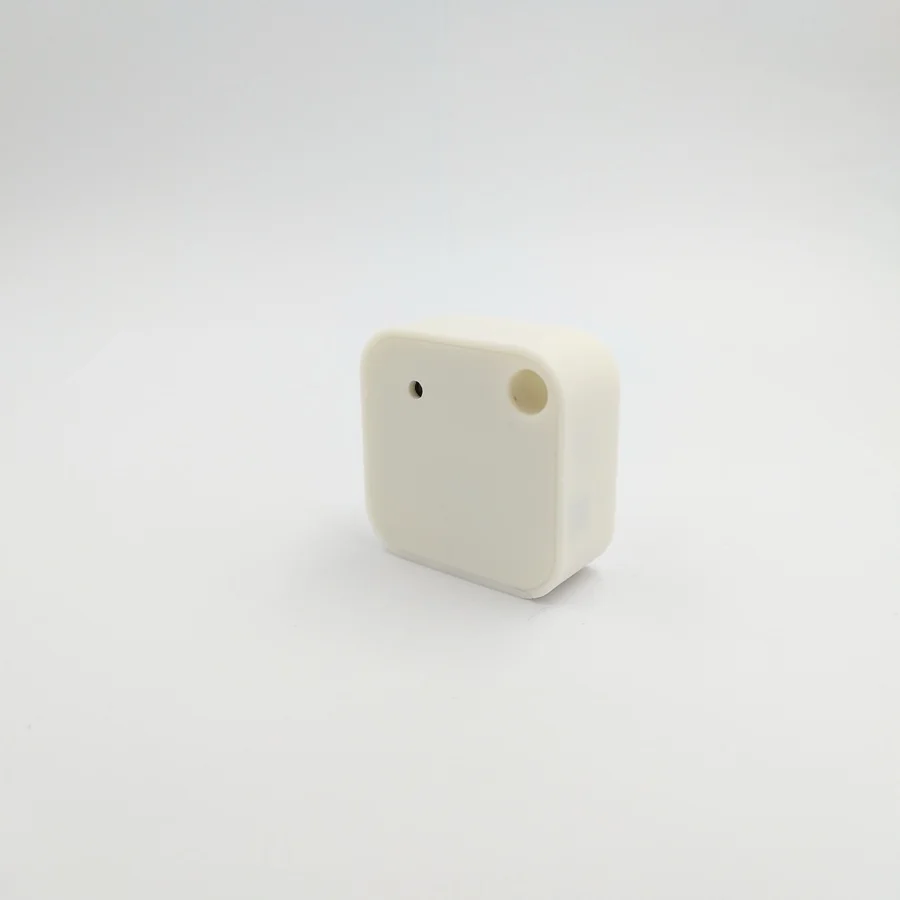

UUID Programmable nrf51822 Ble 4.0 Humitity and Temperature iBeacon
Feature: Support iBeacon and Eddystone.
Chipset: nRF 51
Battery type: Panasonic CR2477 battery
Ble range: 100 meters in open air
Battery life: 58 months based on broadcasting rate 1 second
Sensor: Humidity & Temperature Sensor
-It can store 200 lines humidity and temperature information
-All the parameters can be configured (UUID, Major, Minor, Measured Power, TX Power, etc.)
iBeacon Parameters
Item | Test Data | Remarks |
Chip | NRF51 | Nordic |
Battery model | CR2477 | Null |
Operation Voltage | 2.0-3.6V | DC |
Operation Frequency | 2400-2483.5MHz | Programmable |
Frequency Error | +/- 20KHz | Null |
Modulation | Q-QPSK | Null |
Standby current | 12uA | Null |
Output Power | 4 dBm - -40dBm | Programmable |
Receiving Sensitivity | -93dBm | High gain mode |
Transmission distance | 100m | BER<0.1%, Open space |
Antenna | 50ohm | Onboard |
State | Operation Current (uA) |
Sleeping Mode | 3.6 |
Connectable Mode | 142 |
Non-Connectable Mode | 22.5 |
Application
Our Company
Our Service
Case customization
For the bulk purchase consumer, we provide the case customization and even the hardware design just for your customized housing
Logo printing customization
We can print your own logo on the case in any color (Gradient color will relatively cost more).
Firmware customization
We provide the firmware customization.you can change the UUID, major, minor and other parameters.
