Poclain MS02 MSE02 MS05 MSE05 MS08 MSE08 MS11 MSE11 MS18 MSE18 MS25 MS35 MS50 MS83 MS125 hydraulic piston motors for

Poclain MS02 MSE02 MS05 MSE05 MS08 MSE08 MS11 MSE11 MS18 MSE18 MS25 MS35 MS50 MS83 MS125 hydraulic piston motors for

Категория: Hydraulic Parts >>>
Поставщик: Ningbo,Helm,Tower,Noda,Hydraulic,Co.,Ltd

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-18-2025	0.1 $*	0.64 $*
Aug-18-2025	0.52 $*	0.50 $*
Jul-18-2025	0.70 $*	0.43 $*
Jun-18-2025	0.58 $*	0.19 $*
May-18-2025	0.91 $*	0.91 $*
Apr-18-2025	0.67 $*	0.64 $*
Mar-18-2025	0.41 $*	0.25 $*
Feb-18-2025	0.51 $*	0.13 $*
Jan-18-2025	0.24 $*	0.75 $*

Характеристики

1. Product Features:

Incurve hydraulic motor
Designed in control modules,combine freely
High efficiency,High pressure,
Radial piston,Low speed,High torque

Model	displacement (ml/rpm)		rated pressure (MPa)	maximum pressure (MPa)	rated pitch of strand(N.m) (whole displacement)	speed range (rpm)	maximum power(kw) (whole displacement)
Model	whole displacement	semi-displacement	rated pressure (MPa)	maximum pressure (MPa)	rated pitch of strand(N.m) (whole displacement)	speed range (rpm)	maximum power(kw) (whole displacement)
MS02	213		25	40	796	0-310	16
MS05	468	234	25	40	1749	0-200	25
MS08	780	390	25	40	2914	0-170	36
MS11	1048	524	25	40	3916	0-160	44
MS18	1747	873	25	40	6528	0-150	62
MS25	2498	1249	25	40	9334	0-130	80
MS35	3494	1747	25	40	13055	0-100	97
MS50	4996	2498	25	40	18667	0-100	123
MS83	8328	4164	25	40	31098	0-80	176
MS125	12500	6250	25	40	19875	0-50	240

selection top side brake botton

2. Applications:

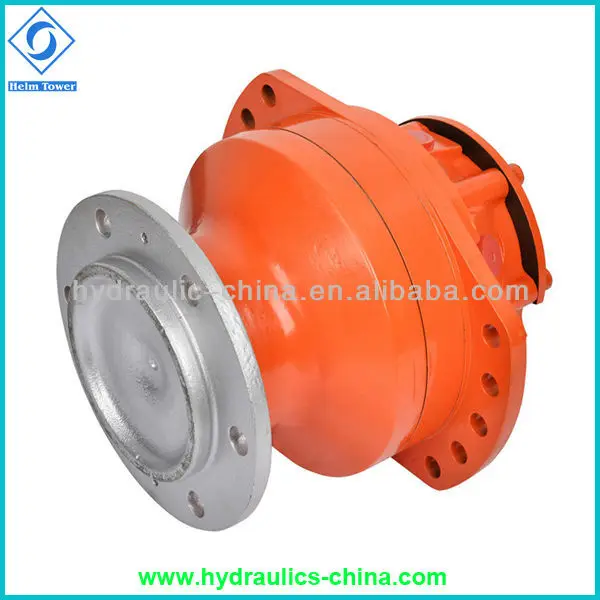

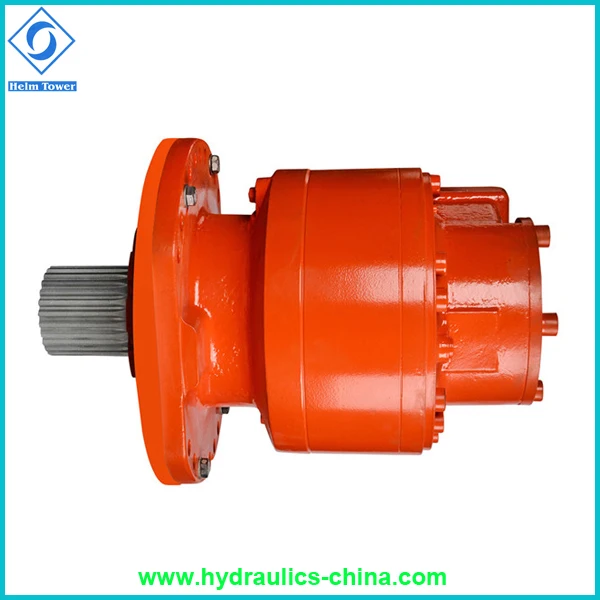

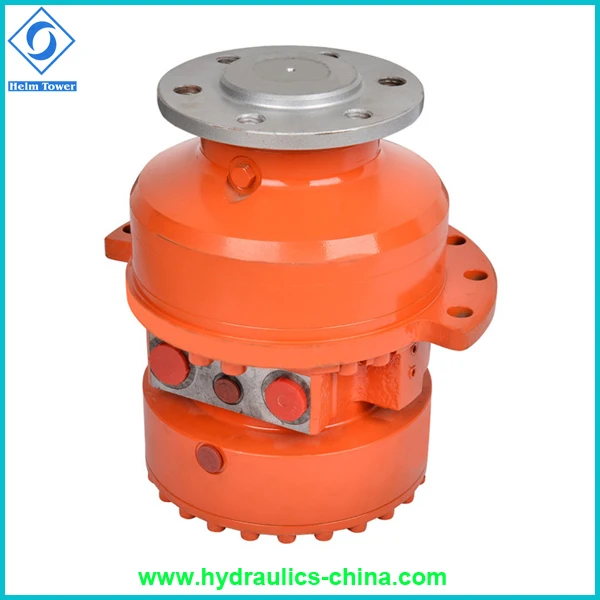

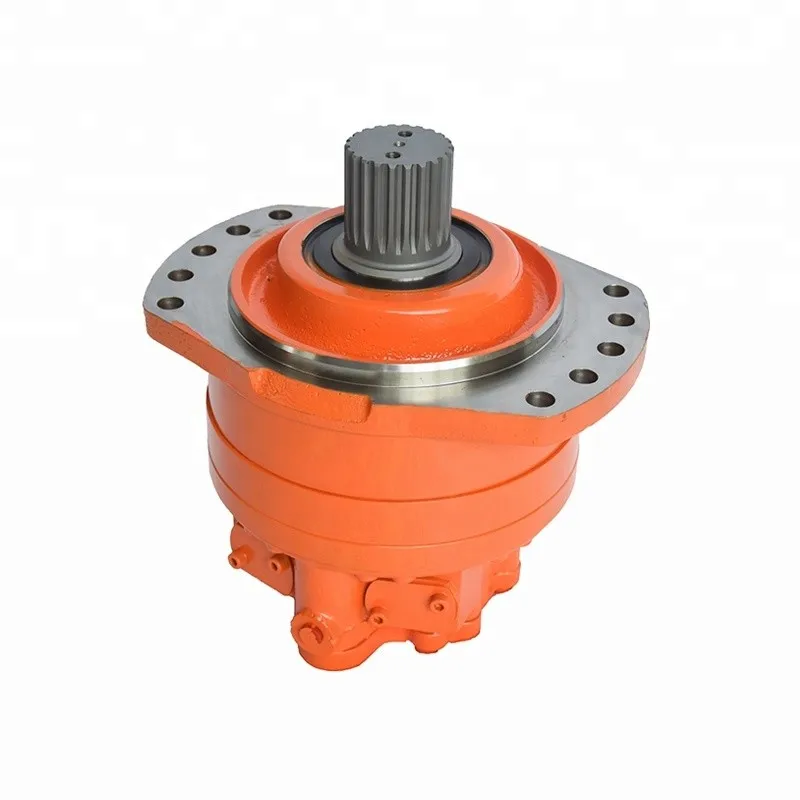

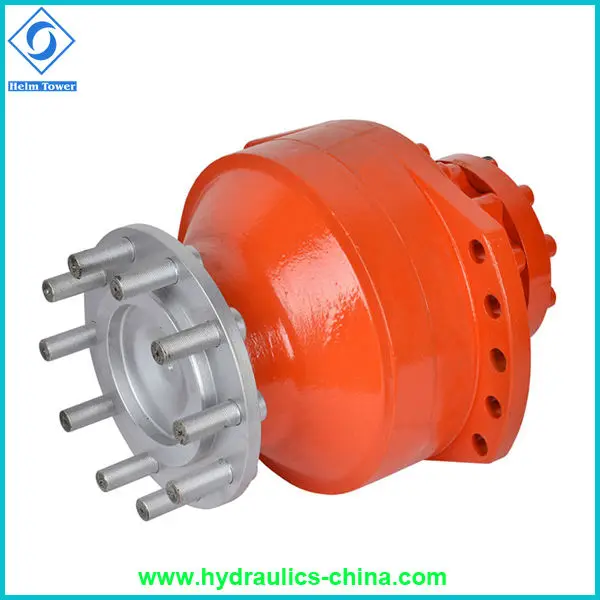

Poclain MS Hydraulic Motor:

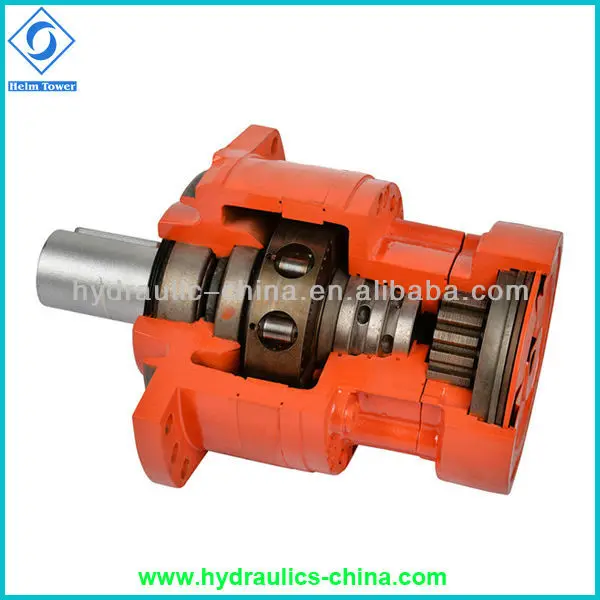

This Series Hydraulic Motor is one kind of low speed high torque radial piston motor with advanced design in disc distribution flow, piston structure, high pressure rating, smooth running at very low speeds, available with different valves, brakes.

It is widely applied in Construction Machinery( skid steer loader,down-the-hole drill,rotary drill,mini and midi excavator,mixer truck, cutting machine), Mining Machinery(road header, scraper, heavy duty handing car, coal mine drill), Marine Machinery(gantry crane), etc.

3. Packaging&Shipping:

Packaging

1) By air: Anti-rust treatment + suitable carton box + outer carton box + packing belt.

2) By sea: Anti-rust treatment + suitable carton box + wooden box + metal belt.
3) As the client's requirement.

Shipping

urgent & small gross weight by air

big gross weight by sea

delivery

4. Company Information:

About US
Ningbo Helm Tower Noda Hydraulic Co., Ltd is belong to Ningbo wenkui group. which is a professional manufacturer for hydraulic winches, motors, pumps and parts.
