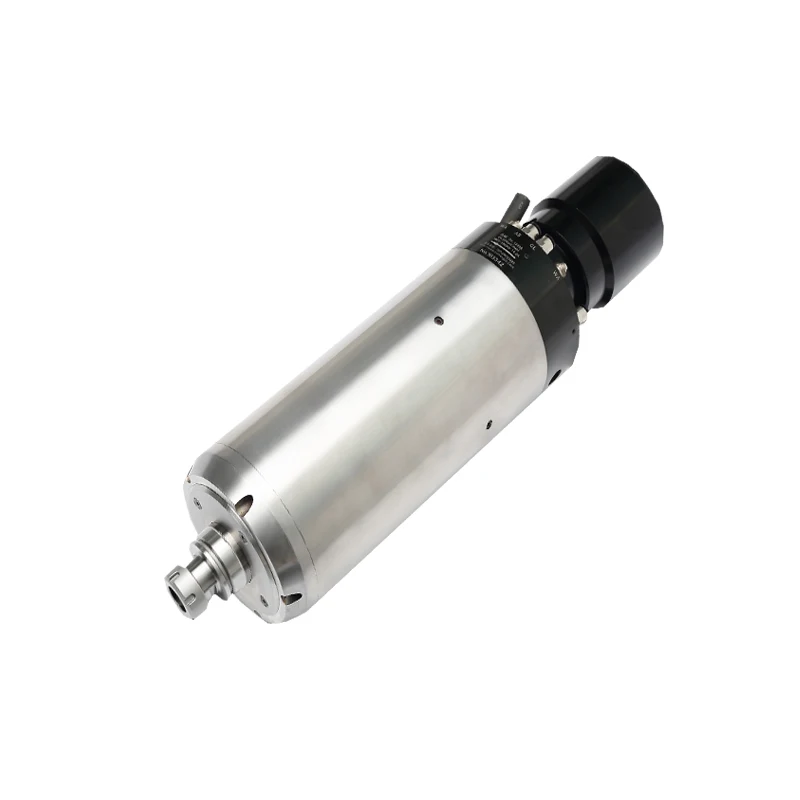

Лучшие продажи 30000 об/мин ЧПУ Фрезерный Шпиндельный мотор электрический шпинделя 7.5kw

Описание и отзывы

Трекер стоимости

Характеристики

Product Description



The serious products of the motor spindles has been developed and tested for over ten years.

The key design of the structure, electrical circuit, internal sealing, lubrication, motor and collets has been authorized with patents in China.



Features



♦ Reasonable structure desgin ,simple and compact configuration ,easy to take apart.

♦High precision.high inflexibility ,high efficiency,long operation life.

♦ With high grade size .shape,.position precision,and quality of surface .

♦ Enough abrasive resistance ,vibration resistance,stable size.

♦ Work stable ,low noise,enough fatigue strength



Application



CNC drilling and milling equipment

Precision carving, engraving

Milling machinery

Computer gongs, precision grinding machines

CD profiling batch flower machine

Optical processing equipment

Watches and equipment



Specification



Motor Power:	7.5KW	Rated voltage:	380v(3~)
Max rotate speed :	30000Rpm/min	Max currency:	25A
Max Frequency:	1000Hz	Torque:	5.73NM
Cone surface spring at shaft end:	≤0.001mm	Tooling Releasing  Air curtain:	5.6-6.0 Kgf/cm²
Tooling Exchange Method:	ATC	Air curtain pressure at front end:	2.5~3.0 Kgf/cm²
Tooling Pulling Force:	≥6800	Tooling Back Air Pressure:	5.6~6.0 Kgf/cm²
Tooling Connection:	HSK40E-ER25	Cooling:	Water
Encoder:	Sine-Cosine 1VPP(Optional)	Coolant Pressure:	≥2.5 Kgf/cm²
Approach Switch:	PNP On	Bearing Lubrication Method:	Grease
Balance Level :	G1	Tooling Instalation Method:	Flance
Vibration Value:	≤0.8	Weight:	26kg



Structure

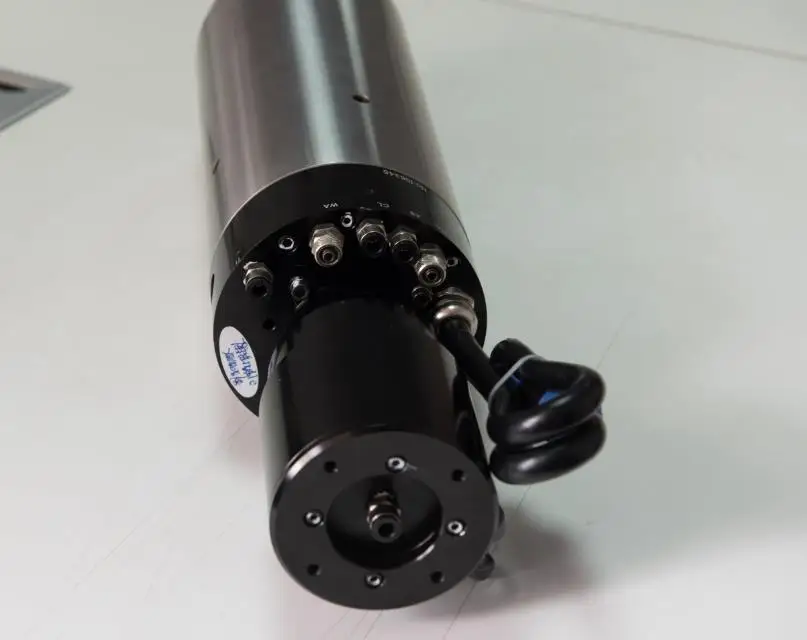

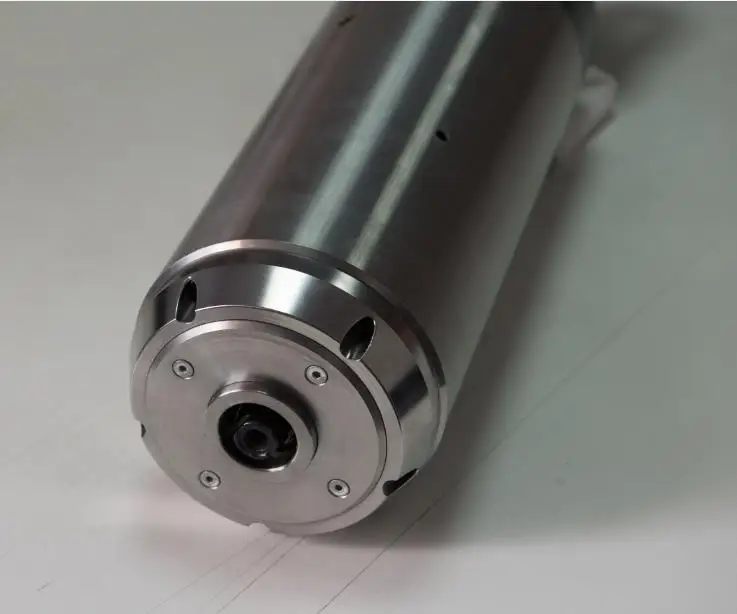

Photos



Packaging&Shipping





Company Information &Certifications





Why choose us
