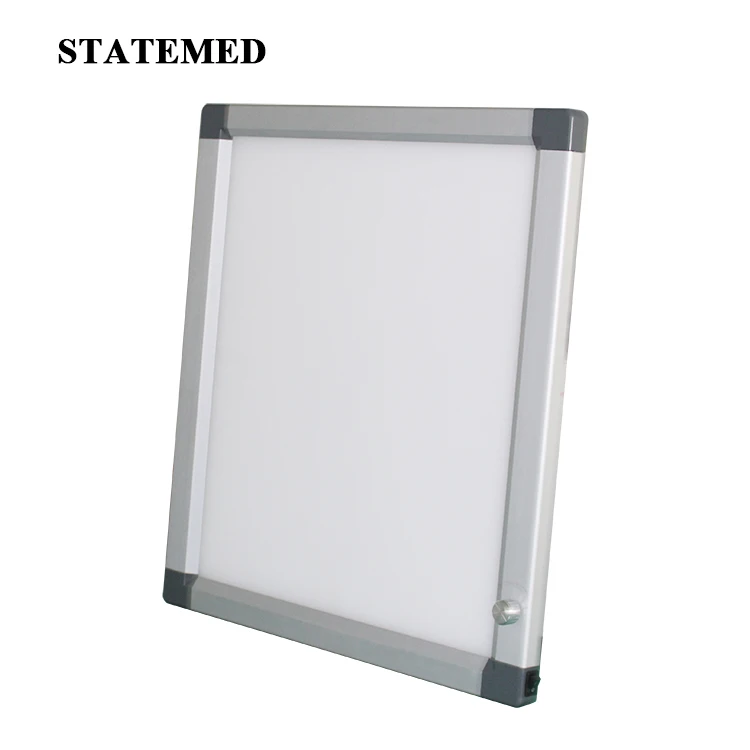

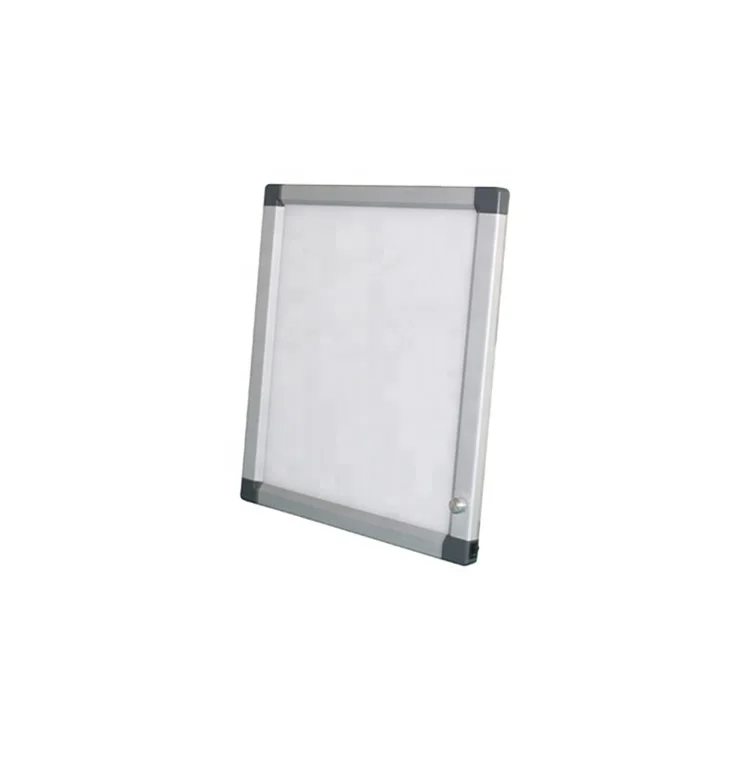

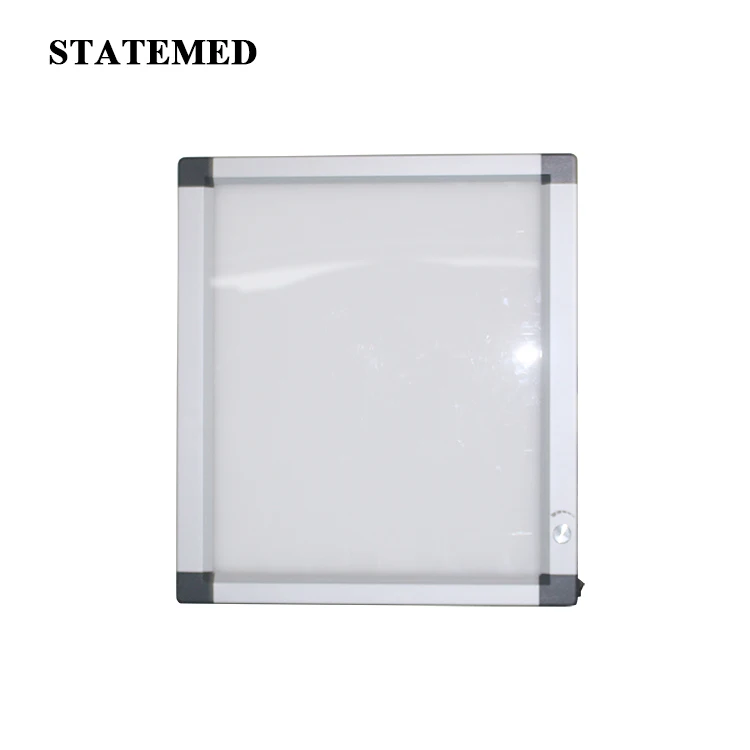

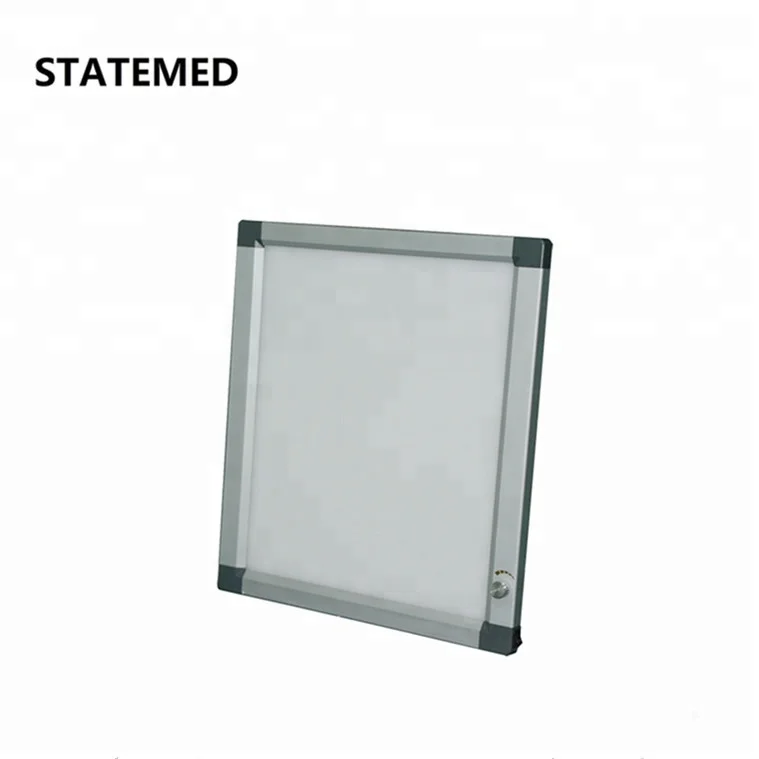

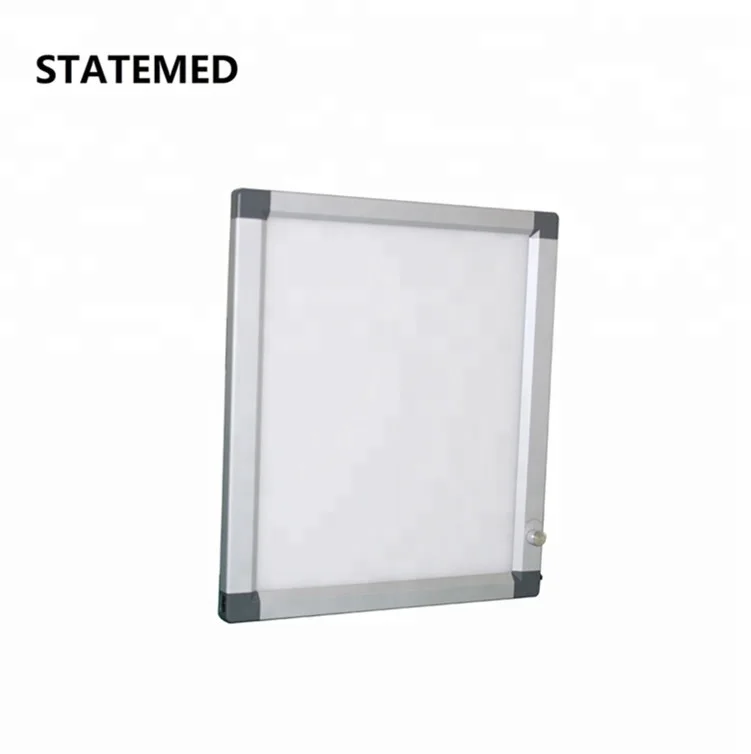

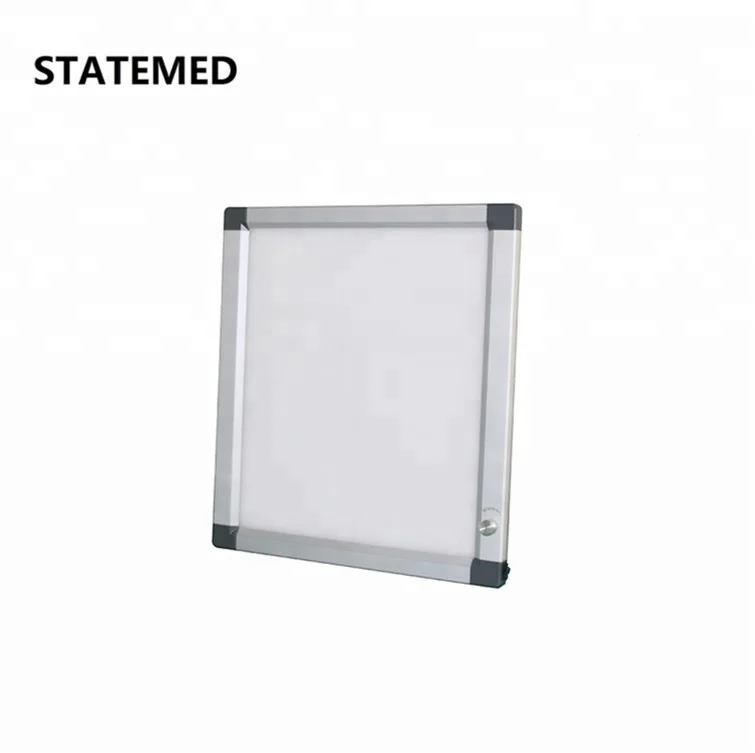

High Brightness Single Panel LED X-Ray Illuminator,LED Viewer Ultra Thin Led X Ray Film

 [ FACTORY DIRECT PRICE - QUICK SHIPPING - NICE QUALITY]



1. Product Introduction:



2. Technical parameters

A.Product Overview

STATEMED Series LED Film viewer (LED film viewer), adopting contemporary advanced LED solid-state light source and backlight source technology, is the new generation observation device for medical imaging films. As for the viewing screen, not only its brightness but also the uniformity and stability of brightness are high, without any dark spaces and flickers. The light source is characterized by rapid light-emitting, little color temperature attenuation and non- mercury. Therefore, the LED film viewer is of great value that can greatly enhanced the quality of observation device for medical imaging films and ensure the diagnostic quality of medical imaging.

Technology standard: Conform to YY/T 0610-2007 “General Specifications for Illuminators of Medical Image Film”

Product standard: “Standard for Enterprise of LED Film Viewer”

B.Use purpose

Used for observing medical imaging films.

C.Normal operating conditions

a) Environmental temperature: +5℃~+35℃;

b) Relative humidity: Not more than 75%;

c) Atmospheric pressure: 75KPa~106KPa;

d) Input voltage: AC220V±10%,  Frequency: 50/60Hz;

e) The equipment should be well earthed and the earth resistance should be not more than 0.1Ω.

D.Environmental conditions of storage and transportation

a) Environmental temperature: -40℃~+55℃;

b) Relative humidity: Not more than 93%;

c) Atmospheric pressure: 50KPa~106KPa;

e) Ventilated room without corrosive gas, and dust.



E.Main technical indicators



1.Optical parameters

1)Fixed brightness type: the max brightness ≥ 4000cd/m², or ≥ 6000 cd/m².

Adjustable brightness type:the max brightness ≥ 4000cd/m², or ≥ 6000 cd/m²; and the min brightness ≤ 300cd/m²;

2)Brightness uniformity of viewing screen ≥ 0.8;

3)Color temperature of light source > 6500K;

4)Brightness stability of viewing screen ≤ 2%;

5)Scattering coefficient of viewing screen > 0.9;

6) Starting time and flickers

  a) Once switch it on, the film viewer will become bright and reach the rated brightness within 1 second.

  b) No flickers.

2. Whole machine power consumption

Table 1:

Type	Single panel	Double panel	Three panel	Four panel
Max power (VA)	45	90	135	180



3. Appearance parameters

Table 2:



4. Service life of light source: 100000h.

5. Working noise:

6. Continuous working for 8 hours at room temperature; under formal use, the temperature of touchable frame and surface should be not higher than 60℃.



3. Certificate:





4. Company and Customer Visit:



5. Delivery

Statemed cooperate with DHL,FEDEX,UPS,EMS,TNT Etc.international shipping company,will make your goods arrive at destination safely and quickly.



6. FAQ



Q1. What is your package
A: Strong Brown box
Q2. What is your terms of payment?
    1.L/C at sight;
    2.T/T
    3.Alibaba Trade Assurance(mastercard,visa,e-checking)

Q3. What is your terms of delivery?
A: EXW, FOB, CIF
Q4. How about your delivery time?
A: Generally, it will take 3-5 days working days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and the most competitive price to ensure our customers benefit ;
A:2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.

7.Choose us :



We do serious to take care of your order and value every inquiry sent to us ,ensure quick competitive price .

Punctual deliver time :

--we put your order and deal  immediately  ,ensure your punctual deliver time

Check before ship :

--our inspection colleagues check the quality before pack to ship ,we do shipping notice as soon as your order is shipped

After sales service :

we welcome your enquiry about the goods ,and respect your feedback after receive the goods.
