Заводская распродажа Trade Assurance 8 pin-8 ядро 8p8c utp ftp cat6 cat5 экранированный разъем
- Категория: Разъемы и клеммы >>>
- Поставщик: COBTEL,PRECISION,ELECTRONICS,CO.,LTD.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.78 $* | 0.72 $* |
| Aug-16-2025 | 0.19 $* | 0.21 $* |
| Jul-16-2025 | 0.20 $* | 0.47 $* |
| Jun-16-2025 | 0.83 $* | 0.59 $* |
| May-16-2025 | 0.36 $* | 0.3 $* |
| Apr-16-2025 | 0.63 $* | 0.71 $* |
| Mar-16-2025 | 0.75 $* | 0.90 $* |
| Feb-16-2025 | 0.72 $* | 0.47 $* |
| Jan-16-2025 | 0.58 $* | 0.63 $* |
Характеристики
Product Description

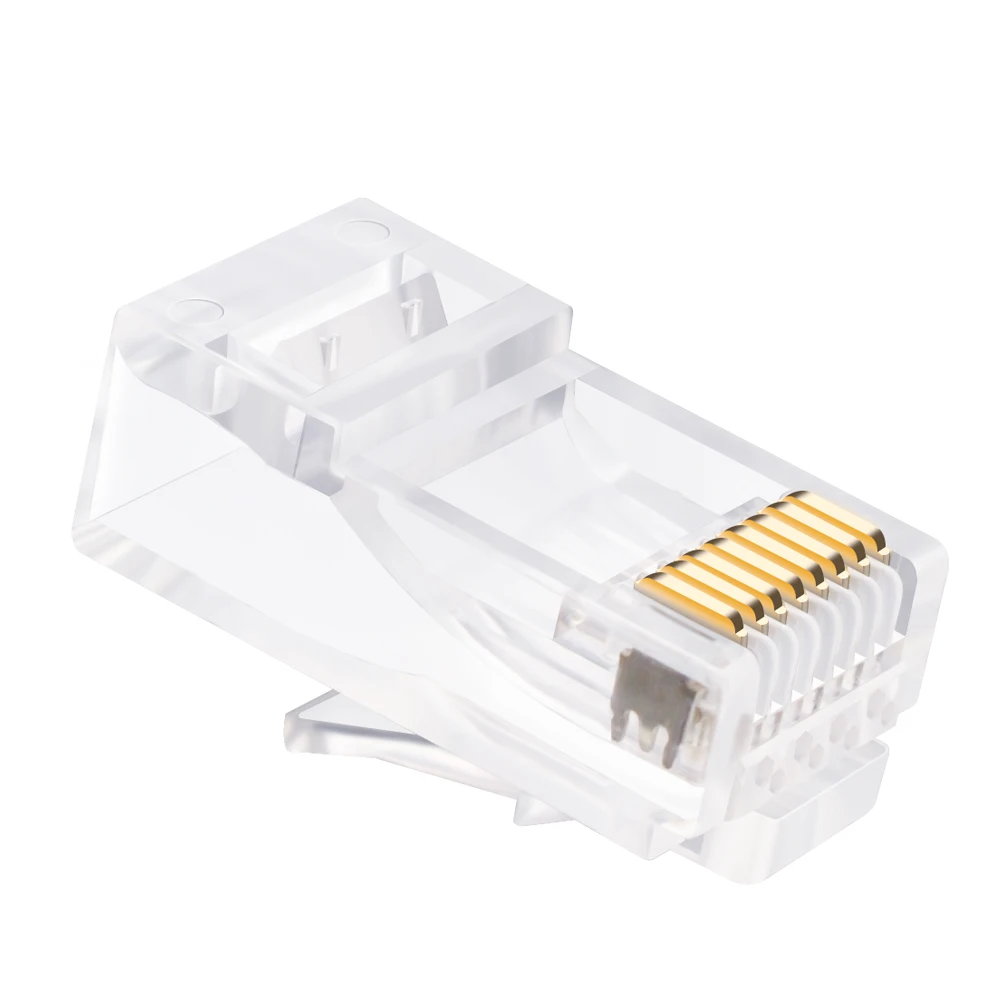

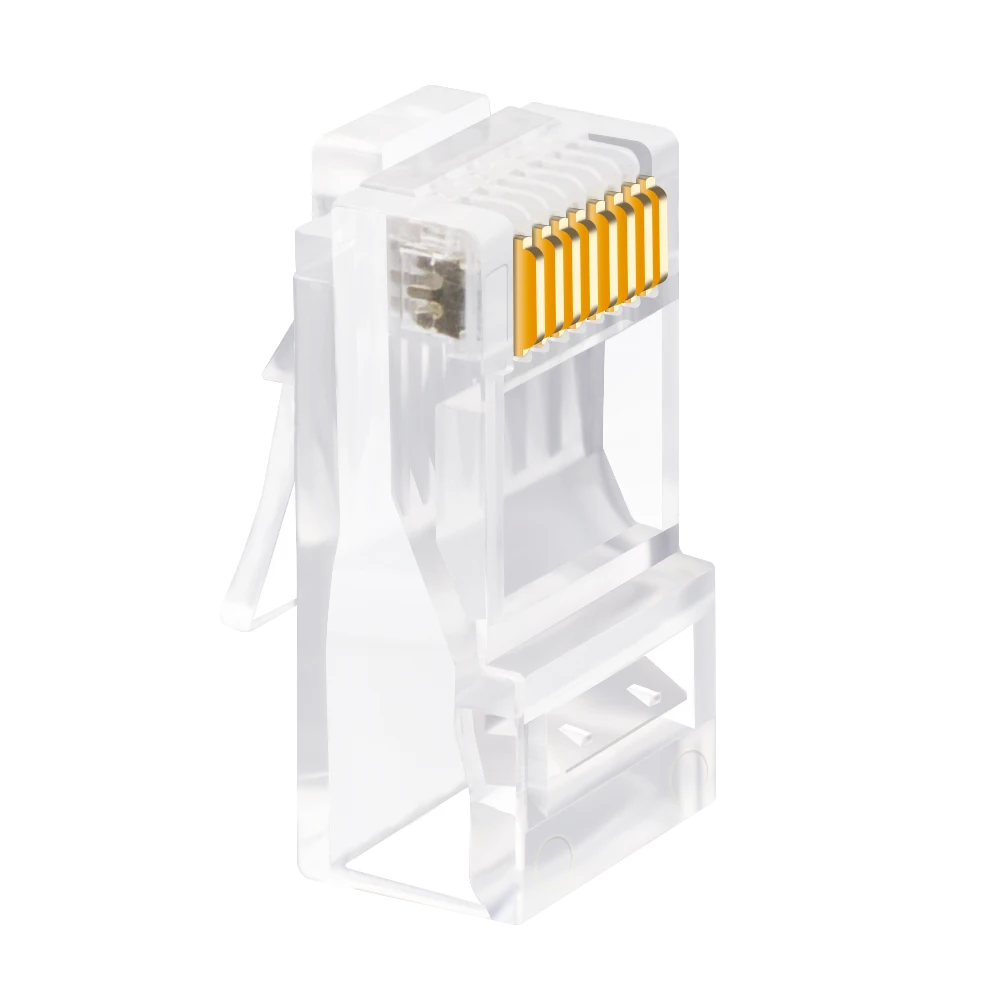

Trade Assurance 8 pin 8 core 8p8c cat6 unshielded plug connector
| PLUG SPECIFICATIONS *UL 1863 No. 137614(DUXR2), complies with FCC part 68 subpart F standards. | |
| Electrical Test | 1..Dielectric Withstanding Voltage test 1000V/DC |
| 2. Insulation Resistance: >500MΩ | |
| 3. Contact Resistance:<20MΩ | |
Gold Plate Inspection (Per MIL-G-45204C) | 1. TYPE II (99% pure gold minimum) |
| 2. Grade C+(KNOOP HARDNESS RANGE 130~250) | |
| 3. Class 1(50 microinches minimum thickness) | |
| Mechanical | 1. Cable-to-plug tensile strength-20LBs(89N) min. |
| 2. Durability:2000 mating cycles. | |

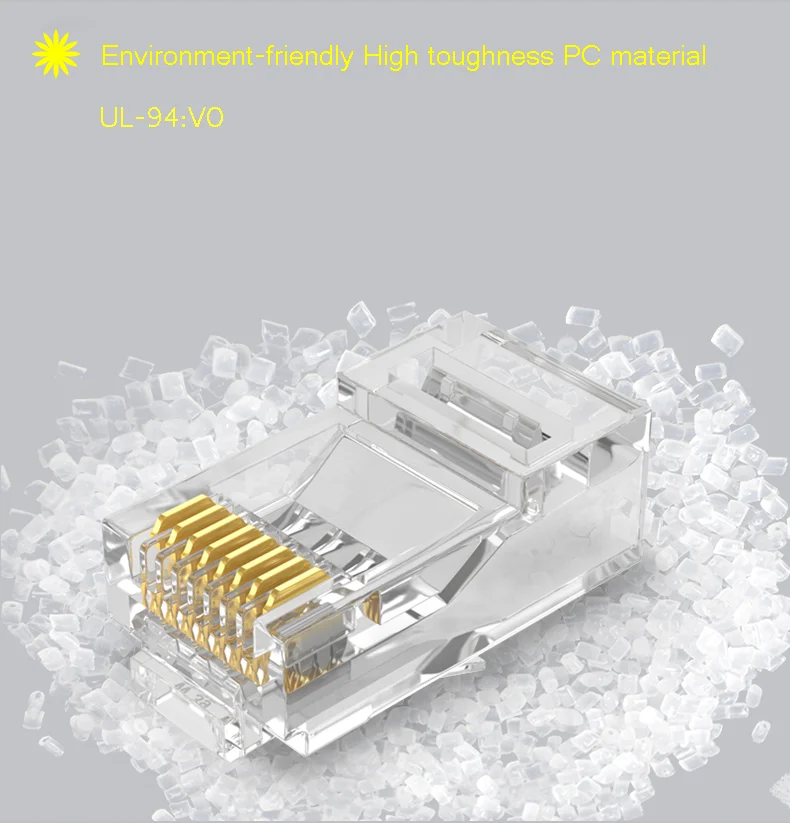

| Material & Finish | 1. Housing Material: Polycarbonate(PC.) 94V-2(For UL 1863 DUXR2) |

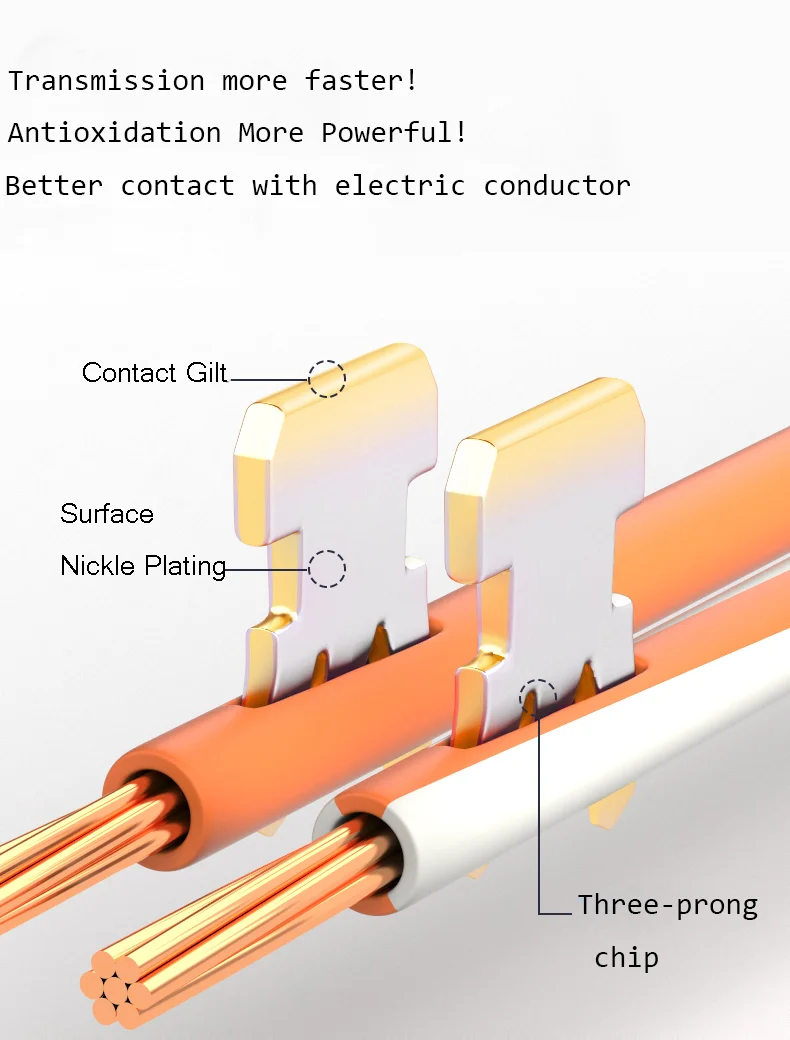

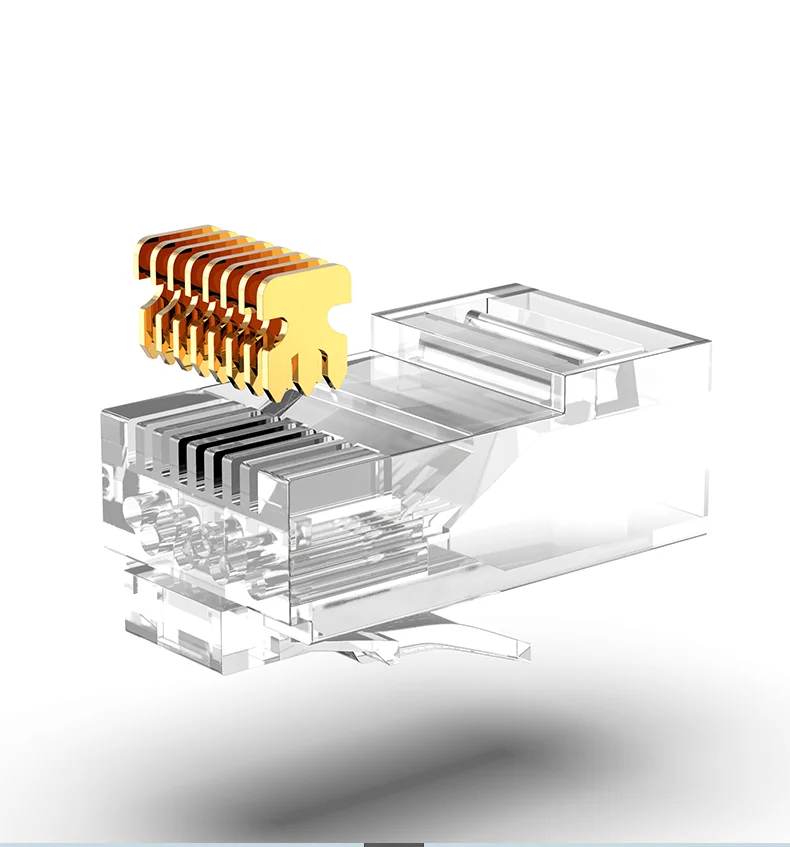

| 2. Contact blade: Phosphor Bronze | |
| a. High strength copper alloy [JIS C5191R-H(PBR-2)]. | |
| b.100 microinches nickel under plated & Gold selected. | |
Operating Temperature:-40 ℃~+125℃ | |
