Product Description

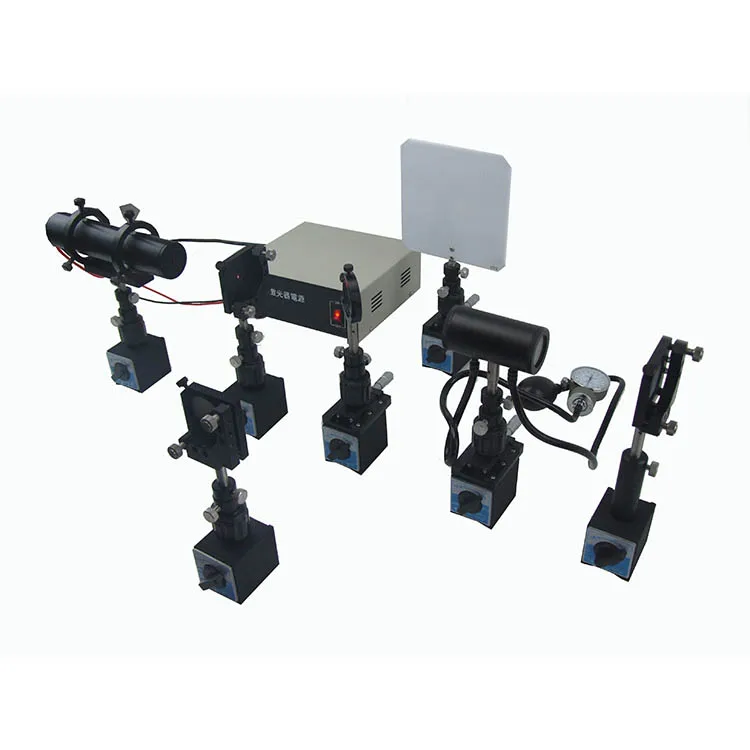

The LCP-26 Optics Experiment Kit has 26 fundamental and modern optics experiments, it is developed for general physics education at universities and colleges. It provides a complete set of optical and mechanical components as well as light sources. Most optics experiments required in general physics education can be constructed using these components, from the operation, students can enhance their experimental skills and problem solving ability.
Experiments

1. Measure lens focal length using auto-collimation
2. Measure lens focal length using displacement method
3. Measure the focal length of an eyepiece
4. Assemble a microscope
5. Assemble a telescope
6. Assemble a slide projector
7. Determine nodal points & focal length of a lens-group
8. Assemble an erect imaging telescope
9. Young's double-slit interference
10. Interference of Fresnel's biprism
11. Interference of double mirrors
12. Interference of a Lloyd's mirror
13. Interference-Newton's rings
14. Fraunhofer diffraction of a single slit
15. Fraunhofer diffraction of a circular aperture
16. Fresnel diffraction of a single slit
17. Fresnel diffraction of a circular aperture
18. Fresnel diffraction of a sharp edge
19. Analyze polarization status of light beams
20. Diffraction of a grating and dispersion of a prism
21. Assemble a Littrow-type grating spectrometer
22. Record and reconstruct holograms
23. Fabricate a holographic grating
24. Abbe imaging and optical spatial filtering
25. Pseudo-color encoding, theta modulation & color composition
26. Assemble a Michelson interferometer and measure the refractive index of air


Specifications
\t
Description
\t
Part No.
\t
Qty
\t
Three-Axis Stage on Magnetic Base
\t
LMP-01
\t
1
\t
Two-Axis Stage on Magnetic Base
\t
LMP-02
\t
2
\t
One-Axis Stage on Magnetic Base
\t
LMP-03
\t
2
\t
Magnetic Base with Post Holder
\t
LMP-04
\t
5
\t
Rotary Lens Holder
\t
LMP-06A
\t
2
\t
Two-Axis Mirror Holder
\t
LMP-07
\t
2
\t
Lens Holder
\t
LMP-08
\t
2
\t
Adapter Piece
\t
LMP-09
\t
1
\t
Grating/Prism Stage
\t
LMP-10
\t
1
\t
Plate Holder A
\t
LMP-12
\t
2
\t
White Screen
\t
LMP-13
\t
1
\t
Object Screen
\t
LMP-14
\t
1
\t
Sample Loading Table
\t
LMP-20
\t
1
\t
Single-Side Adjustable Slit
\t
LMP-27B
\t
2
\t
Lens Group Holder
\t
LMP-28
\t
1
\t
Erecting Prism
\t
LMP-30
\t
1
\t
Stand Ruler
\t
LMP-33
\t
1
\t
DMM Holder
\t
LMP-36
\t
1
\t
Biprism Holder
\t
LMP-41
\t
1
\t
Laser Holder
\t
LMP-42
\t
1
\t
Optical Goniometer
\t
LMP-47
\t
1
\t
Iceland Crystal
\t
LMP-48
\t
1
\t
Ground Glass Screen
\t
LMP-49
\t
1
\t
Paper Clip
\t
LMP-50
\t
1
\t
Air Chamber & Pump with Gauge
\t
\t
1
\t
Manual Counter
\t
\t
1
\t
Silver Salt Holographic Plates
\t
\t
1 Box
\t
Optical Components (See Brochure for List of Optical Components)
\t
\t
1 Box
\t
Mercury Lamp, Housing, and Power Supply
\t
LTS-5
\t
1 Set
\t
Sodium Lamp with Housing
\t
LTS-5A
\t
1 Set
\t
He-Ne Laser with Power Supply
\t
LTS-10
\t
1 Set
\t
White Light Source with Power Supply
\t
LTS-6
\t
1 Set
\t
Tripod
\t
\t
1
\t
Direct Reading Microscope (DMM)
\t
\t
1
\t
Power Cord
\t
\t
3
