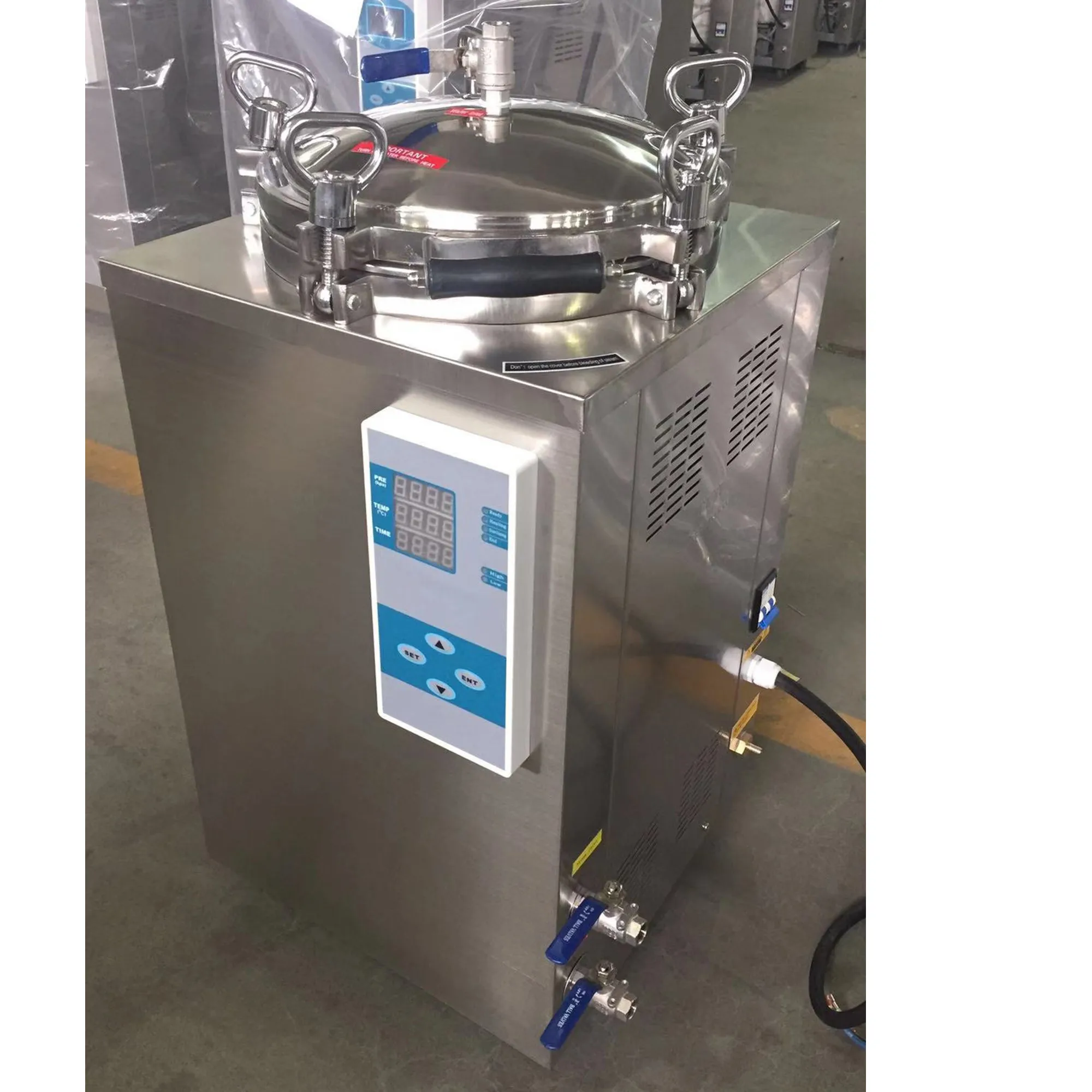

autoclave reactor for food with vacuum packaging film anti inflation bag



Model:LS-35/50/75/100/120/150LD

Volume:35L,50L,75L,100L,120L,150L









The baskets design is easy to lift.





MODEL	Chamber size(L)	Rating working pressure (MPa)	Rating working temperature (℃)	Rating input consumption (kW)	timer(min)	Pressure(mpa)/ Temperature(℃) range (MPa/℃)	DIMENSION (CM)	G.W/N.W(kg)
LS-35LD	35	0.22	134	1×2.5	0~99	0.07~0.22/ 105~134	48×46×85	56/42
LS-50LD	50			2×1.5			52×52×98	65/55
LS-75LD	75			3×1.5			56×56×98	90/70
LS-100LD	100						59×59×108	105/85
LS-120LD	120			3×2			60×64×114	125/100
LS-150LD	150						67×69×114	135/110





Application range

Working principle

1. Water filing
Prior to the start of the process, the retort is filled with a small volume of process water such that the water level is below the bottom of the baskets. This water can be used for successive cycles if desired, as it is sterilizer with each cycle.
2. Heating
Once the cycle is begins, the steam valve opens and the circulation pump is switched on. The mixture of steam and water spraying from top of the retort vessel creates highly turbulent convection currents that rapidly homogenizes the temperature at every point in the retort and between the containers.
3. Sterilization
Once the programmed sterilization temperature has been reached, it is held for the programmed time with +/-1 °F . Similarly, the pressure is kept with +/- 1 psi by adding and venting compressed air as needed.
4. Cooling
At the end of the sterilization step, the retort switches into cooling mode. As the process water continues to be circulated through the system, a portion of it is diverted through on side of a plate heat exchange. At the same time, cold water passes through the other side of plate heat exchange. This results in the process water inside the retort chamber being cooled in a controlled fashion.
5. End of cycle
Once the retort is cooled to the programmed temperature set point, the cold water inlet valve on the heat exchange closed and the pressure inside the retort is automatically relieved. The water level is lowered from the maximum down to the medium level. The door is equipped with a safety locking device which prevents the oping of the door in the



Main Features
1.Fully stainless steel structure
2.Indicator light indicates working state
3.Over temperature&over pressure auto-protection
4.Double scale indication pressure gauge
5.Safe protection of water lacking
6.Automatically shut off with beep reminding after sterilization
7.Easy to operate,safe and reliable
8.With two stainless steel sterilizing baskets
