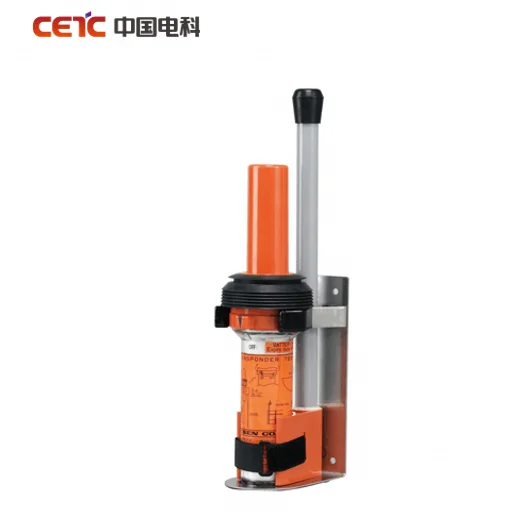

Поисково-спасательный радар sart транспондер (радар

Описание и отзывы

Трекер стоимости

Характеристики



Specification OF RADAR SART:

Frequency range: 9200MHz~9500MHz

Polarization: Horizontal polarization

Antenna: horizontal beam (omnidirectional) <±2dB; vertical beam ±12.5°

Scan rate: 7.5±1us (forward oblique rise)/ 0.4±0.1us (reverse recovery)

Radiation power: ≥27dBm

Response delay: ≤0.5us

Effective sensitivity: ≤-52dBm

Recovery time: ≤10us

Battery capacity: Standby time is not less than 96 hours and continuous operating time is 8 hours

Operating temperature: -20℃~+55℃

Dimensions: Φ120mm×345mm

Weight: Host:≤1kg

Accessories: 10m floatable cable,Support,Base,≥1m long bearing rod

.

Function:



It is capable of detecting the pulse action through the navigation radar installed on a search and rescue vessel or a helicopter. The signal from SART can indicate exact position of the SART on the fluorescent screen of navigation radar of the search and rescue vessel of the helicopter.



The survivor who holds a SART or a ship or boat in distress where a SART is equipped can discover the search and rescue vessel or helicopter that is approaching them.





Feature:



X-band small-signal detection technique, waveform generation technique, and high-efficiency power conversion technique are used to lower the power consumption. The product is characterized by good EMC, mature technology and reliable performance.
