Z28-80 трубы с резьбой чайник анкерный болт делая

Категория: Thread Rolling Machines >>>
Поставщик: Hebei,Xinggong,Machinery,Manufacturing,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	0.25 $*	0.87 $*
Aug-16-2025	0.23 $*	0.53 $*
Jul-16-2025	0.82 $*	0.16 $*
Jun-16-2025	0.83 $*	0.58 $*
May-16-2025	0.7 $*	0.44 $*
Apr-16-2025	0.44 $*	0.15 $*
Mar-16-2025	0.51 $*	0.59 $*
Feb-16-2025	0.76 $*	0.55 $*
Jan-16-2025	0.62 $*	0.63 $*

Характеристики

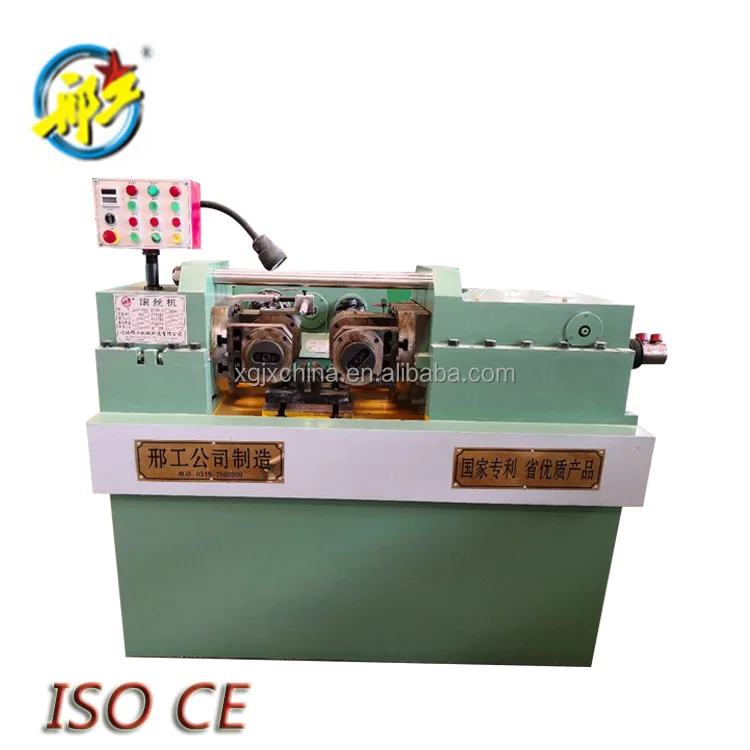

thread roller machine

this model is widely praised for its rational price,easy maintenance and hgih quality.besides axial and radial process it is used to process regular and irregular bolt,through screw etc.with optional embossing roller.the through screw made with this machine in zhejiang standard parts base has exported to US,Canada and Europe.

parameters:

Pressure of roller max	150KN	Rotary speed of main shaft	36,47,60,78(r/min)
Working dia	M4-M48	Feed speed of movable shaft	5mm/s
OD of roller	120-170mm	Thread length	no limited
BD of roller	54mm	Main power	4kw
Roller width max	100mm	Hydraulic power	2.2kw
Dip angle of main shaft	±5°	Weight	1700kg
Center distance of main shaft	120-240mm	Size	148013301440mm
