Адаптер питания ERP DOE VI 24 В 5 А адаптер постоянного и переменного тока 4-контактный разъем
- Категория: Power Adapters >>>
- Поставщик: Shenzhen,Win-Wing,Technology,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 17.23 $* | 17.91 $* |
| Jul-16-2025 | 13.77 $* | 13.92 $* |
| Jun-16-2025 | 16.71 $* | 16.54 $* |
| May-16-2025 | 16.97 $* | 16.24 $* |
| Apr-16-2025 | 13.89 $* | 13.56 $* |
| Mar-16-2025 | 16.0 $* | 16.0 $* |
| Feb-16-2025 | 16.1 $* | 16.52 $* |
| Jan-16-2025 | 16.65 $* | 16.51 $* |
Характеристики
Widely used for Toys, Small home appliance, Audio & Video Devices, LED lights, Smart Home,CCTV carmera, Printers etc.
Product Description
Main Feature
1. Universal AC input/full Range
2. 4hrs full burn-in Testing
3. Compliance with IEC60950/60065/61558/60335/61347
4. Doe Level VI, Energy Star, Erp Stage 2, NRcan&GEMS Level VI certified
5. Full enclosed plastic shell
6. 3 year warranty
Application:
LCD Monitor, LED Lights, HDD Enclosure, ADSL, DPF, Refrigerators, Portable DVD, Stereo, Radio, Security System Products Etc.
2. 4hrs full burn-in Testing
3. Compliance with IEC60950/60065/61558/60335/61347
4. Doe Level VI, Energy Star, Erp Stage 2, NRcan&GEMS Level VI certified
5. Full enclosed plastic shell
6. 3 year warranty
Application:
LCD Monitor, LED Lights, HDD Enclosure, ADSL, DPF, Refrigerators, Portable DVD, Stereo, Radio, Security System Products Etc.
Specs
Input | Voltage | AC 100V ~ 240V full range |
Frequency | 50-60Hz | |
Input Current | 120A/240VAC | |
Leakage Current | 50,000hrs | |
Output | DC | 24V 5A, 120W |
Other | Ripple & Noise | 120mV Max |
Protection | Over-Voltage, Over-Current, Short-Circuit | |
Hold Up Time | >5mS @115VAC | |
Cooling | Natural Cooling | |
MTBF | 50,000hrs/ MIL-HDBK-217F | |
Mechanical | AC Input Type | IEC C14 3PIN |
DC Output Type | Per Customer's requirement | |
Dimensions | 150mm(L)*60mm(W)*35mm(H) | |
Net Weight | 370-380G | |
Environment | Temperature | Operating 0 to 40C, Storage -25 to +85C |
Conducted EMI | FCC Part15 Class B , EN55022 class B | |
Safety Certificate | CUL/UL CE GS SAA PSE KC CCC |

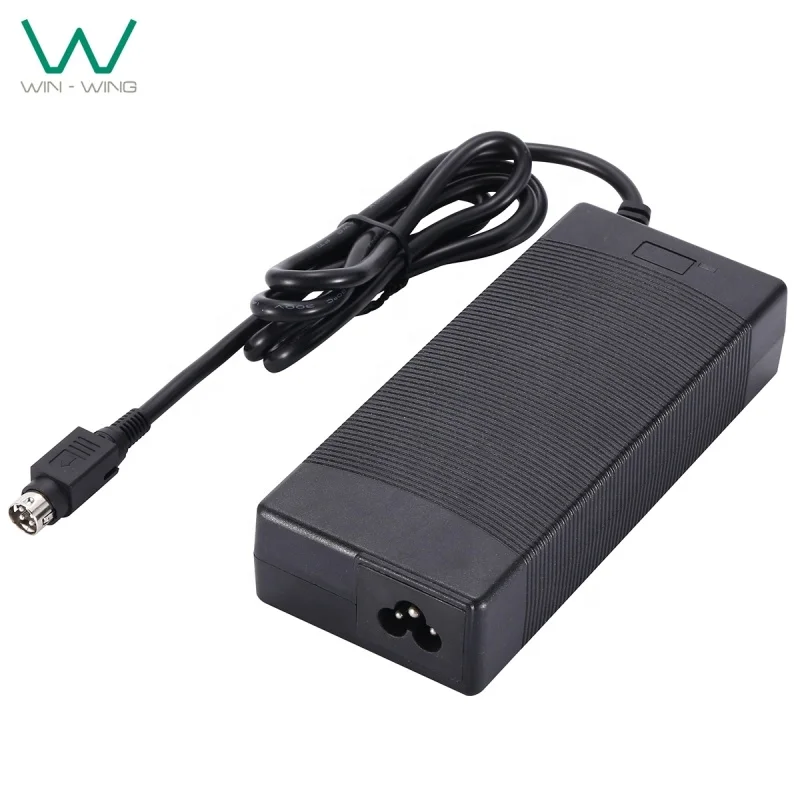

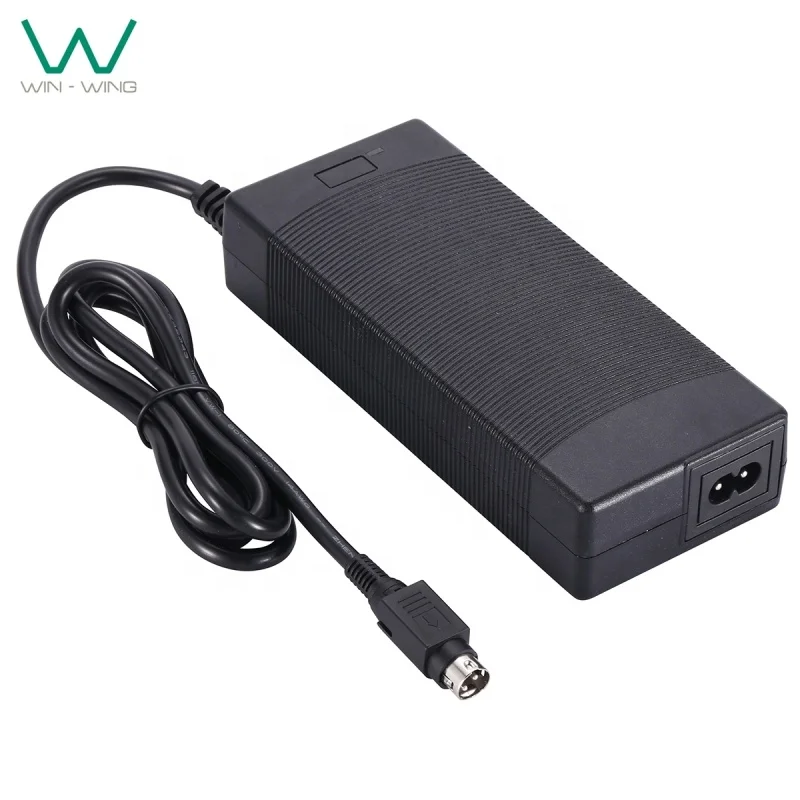

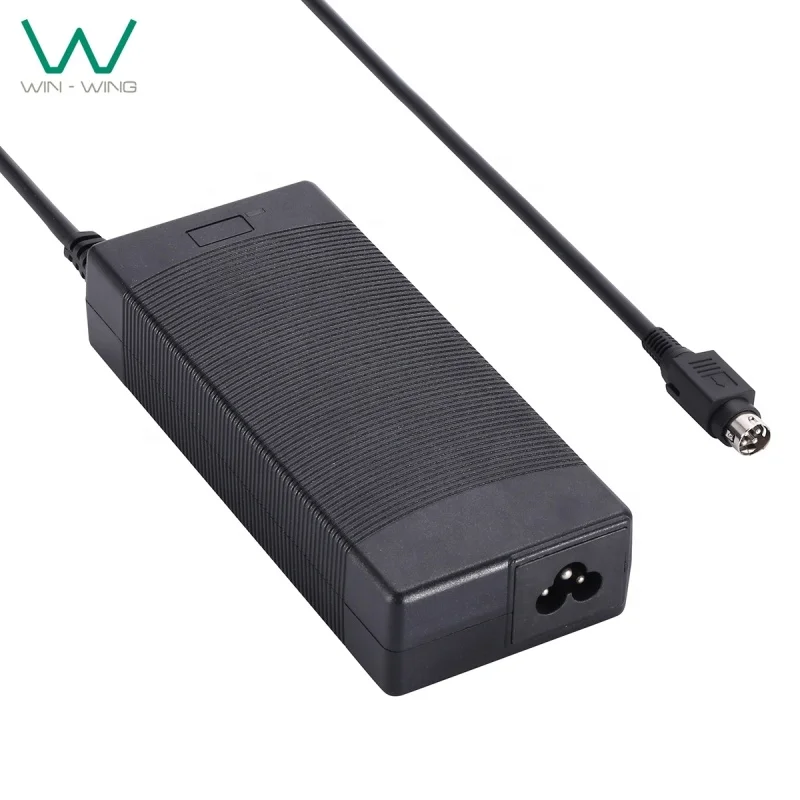

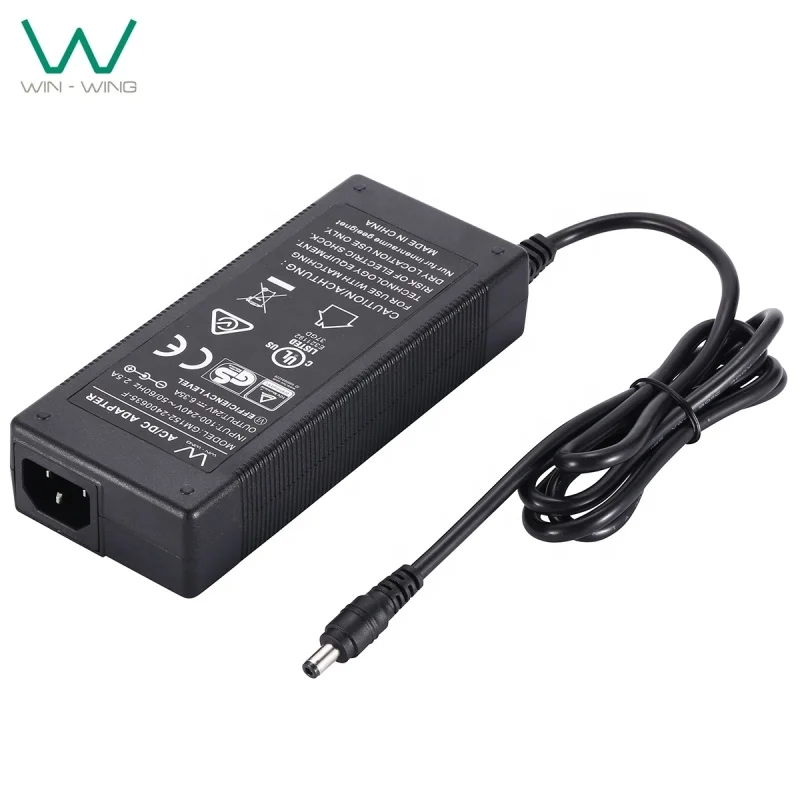

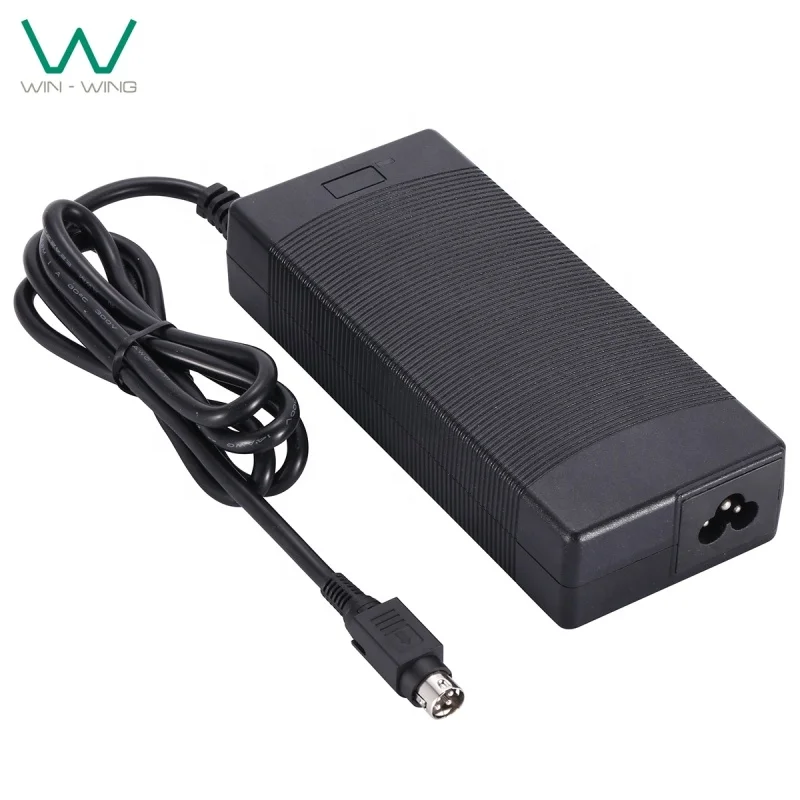

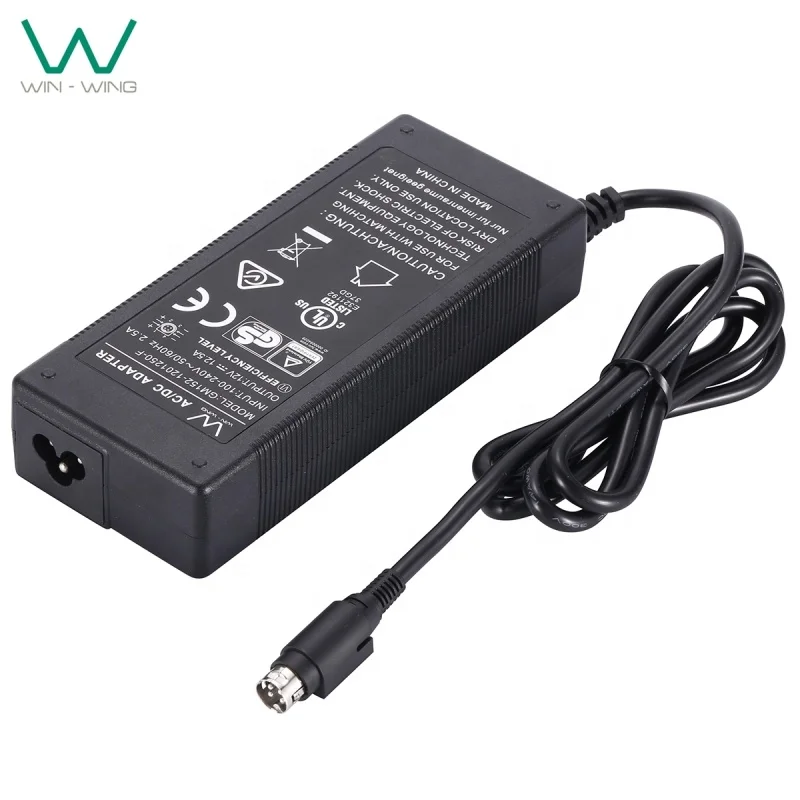

Detailed Images
Universal input voltage range 100~240VAC, easily used for anywhere.
The factory can do OEM/ODM products for a given brand and design all kinds of practical products as customers requests, and response to the rapidly changing market quickly. they products have passed most of safety approvals Also the factory pay much attention to management
The factory can do OEM/ODM products for a given brand and design all kinds of practical products as customers requests, and response to the rapidly changing market quickly. they products have passed most of safety approvals Also the factory pay much attention to management
Company Profile
Engineering research &development
Purpose to processing high quality product. Equipped with the international advanced testing equipment and adopt international advanced testing methods, various components of stress analysis, high and low temperature cycle test, vibration test, impact test, alternating hot and humid test, safety test, EMC test, MTBF analysis test, FMEA analysis test, accelerated aging test, etc., to ensure that all the high reliability of power supply products.
Production flow
Introduced automation transformer equipment, S M T, high speed AI machine, fully automatic production line, advanced
multi-function testing and aging equipment, with the machine substitutions meanwhile more than 8 engineers, 250 workers and 5 production lines with 30,000pcs daily capacity ensure customer get excellent quality products rapidly
multi-function testing and aging equipment, with the machine substitutions meanwhile more than 8 engineers, 250 workers and 5 production lines with 30,000pcs daily capacity ensure customer get excellent quality products rapidly
