Teren TR-MTR бензиновых воздушных металлическая трубка Ротаметр горячей воды интеллигентая (ый) передатчик цифрового магнитный расходомер
- Категория: Расходомер >>>
- Поставщик: Dalian,Teren,Instruments,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.37 $* | 0.30 $* |
| Aug-15-2025 | 0.59 $* | 0.67 $* |
| Jul-15-2025 | 0.65 $* | 0.71 $* |
| Jun-15-2025 | 0.5 $* | 0.36 $* |
| May-15-2025 | 0.19 $* | 0.98 $* |
| Apr-15-2025 | 0.73 $* | 0.77 $* |
| Mar-15-2025 | 0.9 $* | 0.59 $* |
| Feb-15-2025 | 0.91 $* | 0.1 $* |
| Jan-15-2025 | 0.78 $* | 0.50 $* |
Характеристики

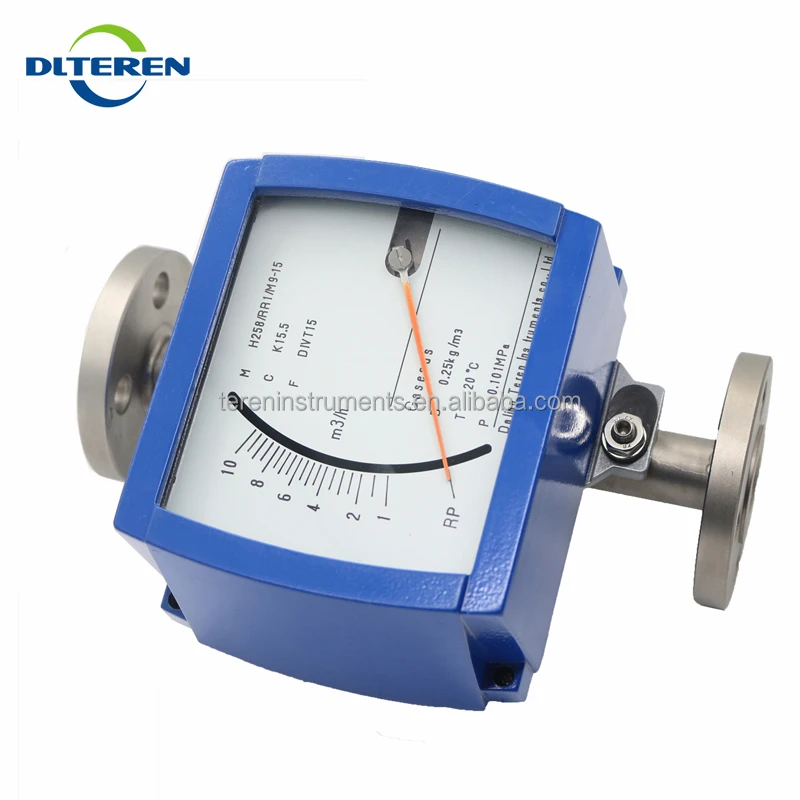

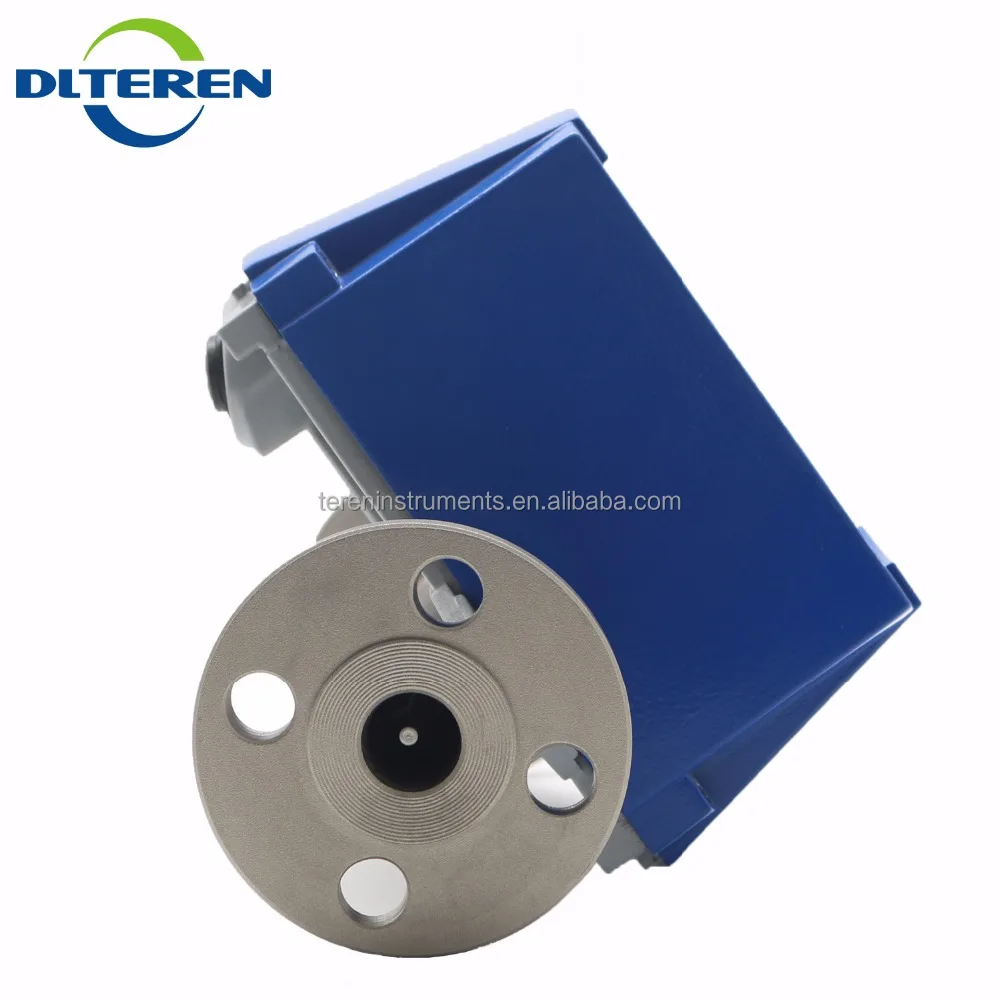

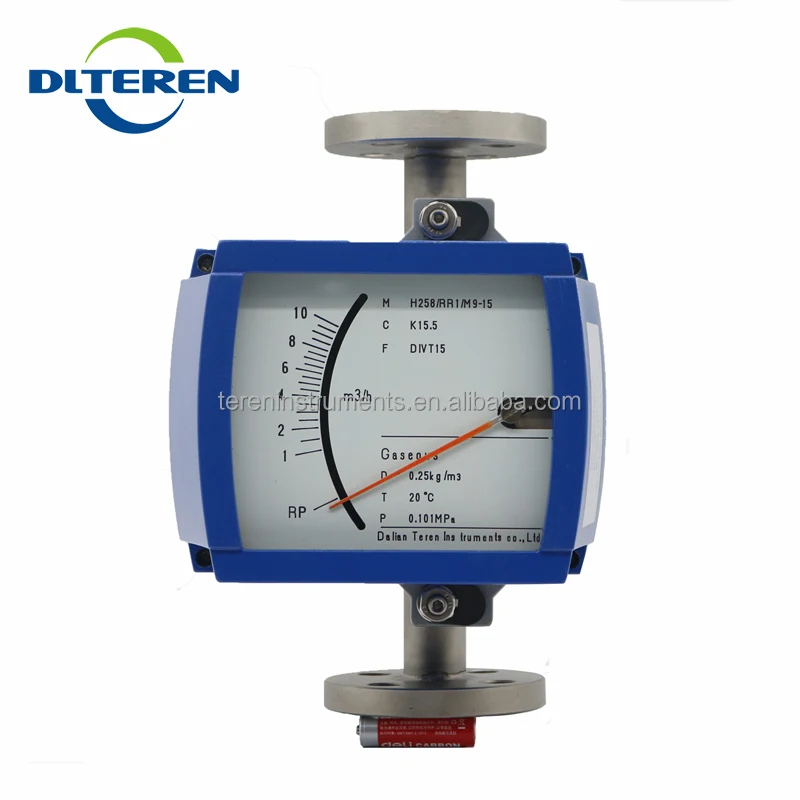

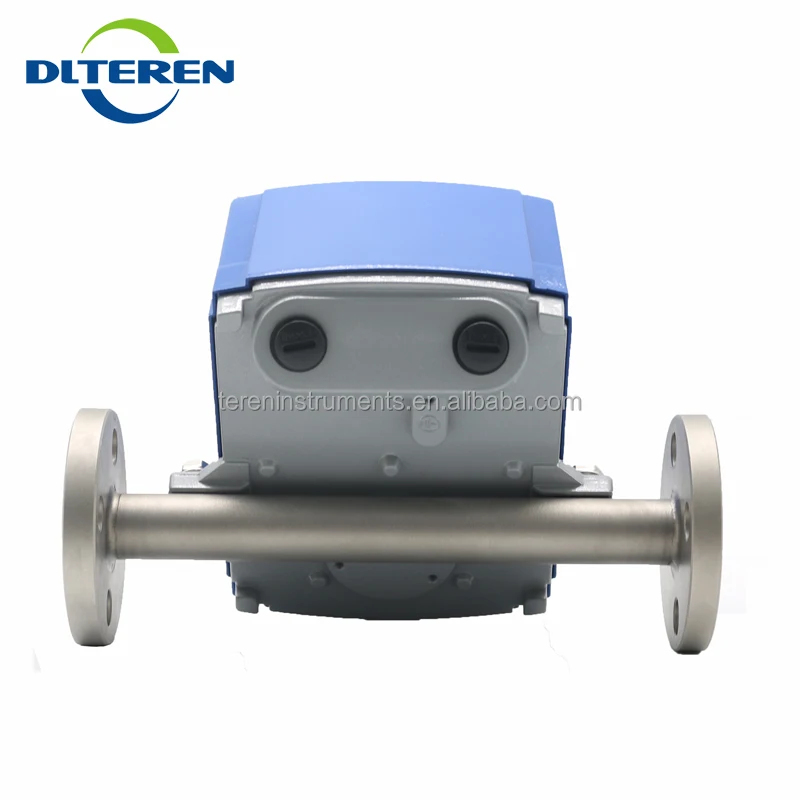

TR-MTR Gas air metal tube rotameter hot water intelligent transmitter digital magnetic flow meter sensor
Product Description
♦ GENERAL
TR-MTR series of metal tube rotameter intelligent transmitter based on MCU microprocessor. The use of magnetic sensor, The digital filter, Digital signal processing technology such as software correction, To detect the changes in the magnetic field, And through the liquid crystal display screen, Provide good man-machine interface, Can output 4-20mA current signal, A variety of signal alarm etc.. Display and accumulated flow and instant flow, To provide more convenience for the user, Widely used in national defense, chemical, petroleum, metallurgy,energy, medicine, light industry, food. Water treatment Traffic detection and process control industries.
Features
♦ SPECIFICATIONS
Measuring range | Water: 1.6-200000L/hr |
Air: 0.05-5000m3/h | |
Ratio range | 10:1 |
20:1 | |
Accuracy | Standard type: 1.5 grade 1.0 grade |
Maximum working pressure | DN15 DN20 DN40 DN50--4.0MPa |
DN80 DN100 DN200--1.6MPa | |
Medium temperature | Normal type: -40°C to +80°C |
High temp type:-80°C to +200°C | |
Environment temperature | Pointer type:-40°C to +120°C |
Connection method | Flange, thread, clamp-on |
Electricity connection | M20*1.5 |
Protect grade | IP65 |
Anti-explosion grade | ExibIICT5 |
Medium viscosity | DN15≤5MPa.s DN25-150≤250MPa.s |
Power supply | lithium battery |
DC24V Two wire,4-20mA | |
Measuring material | 304 Stainless Steel,316L Stainless Steel |
Float material | 304 or 316 stainless steel; PTFE or F46 |
Details
♦ FLOW RANGE
Packaging & Shipping
Whtever you want to use DHL, FEDEX, TNT, AIR FREIGHT OR SEA FREIGHT, we can get a cheaper unit price for you. And we promise to pack products seriously to ensure there will be no damage when it arrive at your door.
Our Services
Pre-sale: | after-sale: |
Confirm basic informations (DN,pressure,temp,output etc.) | 12months' quality guarantee |
| Choose the best option | All life maintain |
| OEM(Design and print your brand) | Technical support |
| Send you invitation | On time software upgrading |
| View factory with our free accompany | On time US |
| Ship chartering and space booking | 24 Hours online services |
Company Information
Dalain Teren instruments was established in 2007, located in the beautiful coastal city –Dalian, China.
We main focus on running of instruments, main cover ultrasonic flow meter, ultrasonic level meter,
ultrasonic water meter, electromagnetic, turbine, vortex, oval gear flow meter, radar Level meter
and other series industry instruments.
