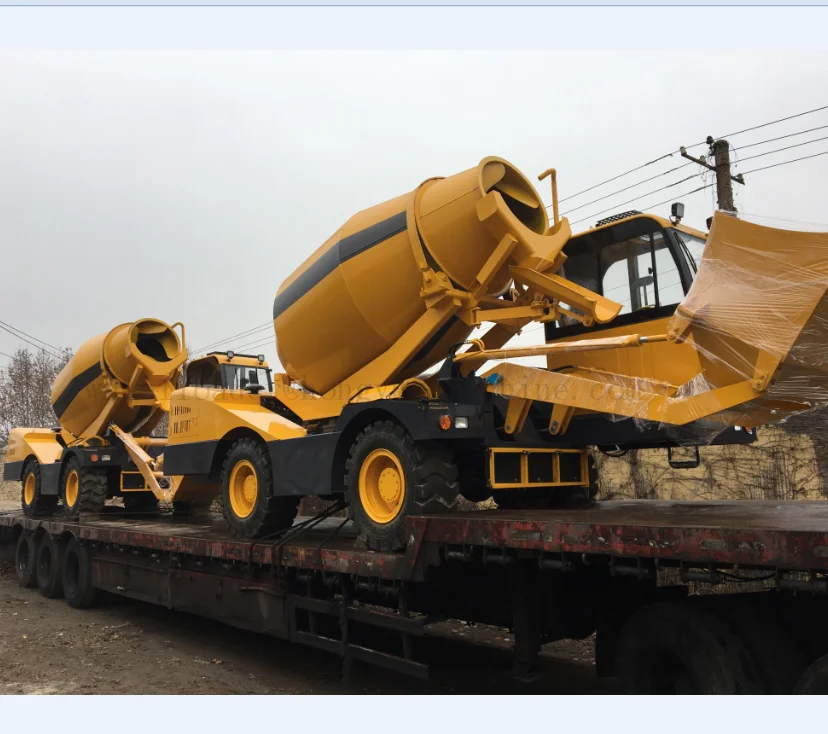

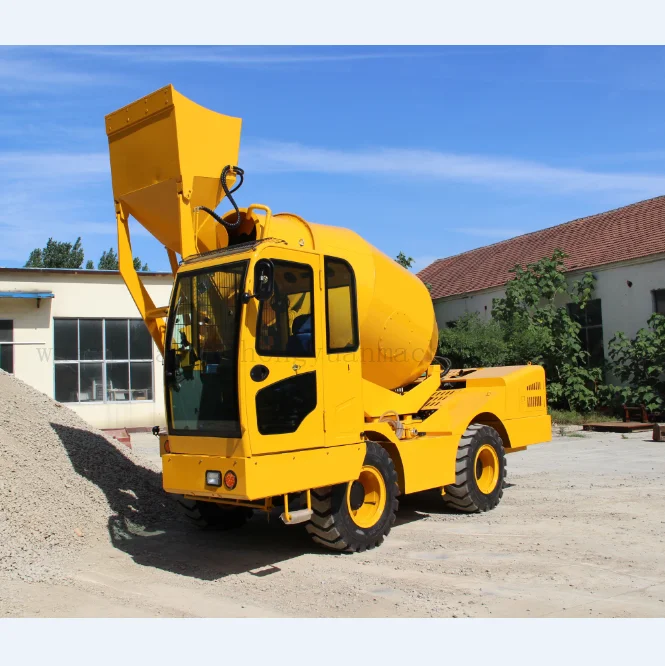

Self loading mobile concrete mixer

1.Stirring device is mainly composed of mixing drum and auxiliary support components.< Mixing drum of concrete loaded containers, rotates the concrete along the blade spiral direction, constantly in the process of ascension and turning by mixing and stirring. In the process of feeding and transport, mixing barrel forward, concrete, moving along the blade into the discharge, the mixing tube inversion, the concrete to discharge along the blade.

2.Blade is the main components in the mixing plant, serious wear and tear or damage can lead to concrete mixing unevenly. In addition, the Angle of the blade if the design is not reasonable, still can make concrete segregation.


3.Cleaning system is the main purpose of cleaning the mixing barrel, is also sometimes used to transport on the way to dry mixing drum. Cleaning system and cooling effect to the hydraulic system. Totally enclosed device adopts rotary sealing technology, sealed the mixers in and out of the mouth, to solve the traditional mixing heavy evaporation, stratification of mortar,concrete material spilled, the series of problems such as driving safety.


Mobile concrete mixing station feature combines self-loading, weighing, mixing and discharging. It can maximize and improve the job efficiency and reduce the production cost and time.

High Efficiency

Capacity:14 cubic meters(18.31 cubic yards)/hour;

110 cubic meters (143.87 cubic yards)/day;

33000 cubic meters(43,162.44 cubic yards)/year

Labor-saving

4 wheel drive, 4 wheels steering

Accurate Electric Weighing System

The mixing unit is slewing hydraulically through 270° for high discharge over 1.8m to the four sides of the vehicle

Combined the fountions of Loading, Weighing, Pumping, Mixing, Delivering and Discharging

Name: swing motor

Brand: DONGMING/DOOSAN

Original: KOREA

KOREA DONGMING OR DOOSAN brand swing motor to make sure better quality

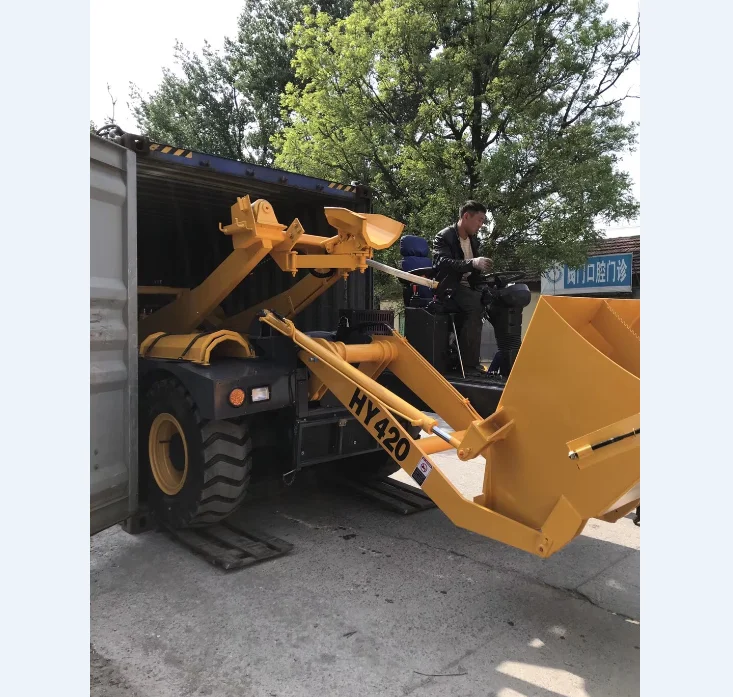

Name: Bigger Hopper
Bigger capacity hopper with blade and reinforced.Easy removed

Bigger water tank and hydraulic radiator

To make sure lower temperature in tropical and subtropical area.

Name: Single joystick operation

 Rear Reversing image

Front Reversing image

Auto add water

Multifunction steering wheel with instrument

Bigger model swing drum motor

detachable chute

Longger discharge and easy transportation

Separate oil pumps to make sure not influence each other

Lift

Easy to maintain

Auto weighting with English,Russian and Chinese

Safety cab with adjustable seat.
