Многожильный электрический провод кабель H07v-r одно ядро Pvc покрыл 1 5 кв миллиметр медного провода для домашней проводки утепленная IEC ГБ

Описание и отзывы

Трекер стоимости

Характеристики

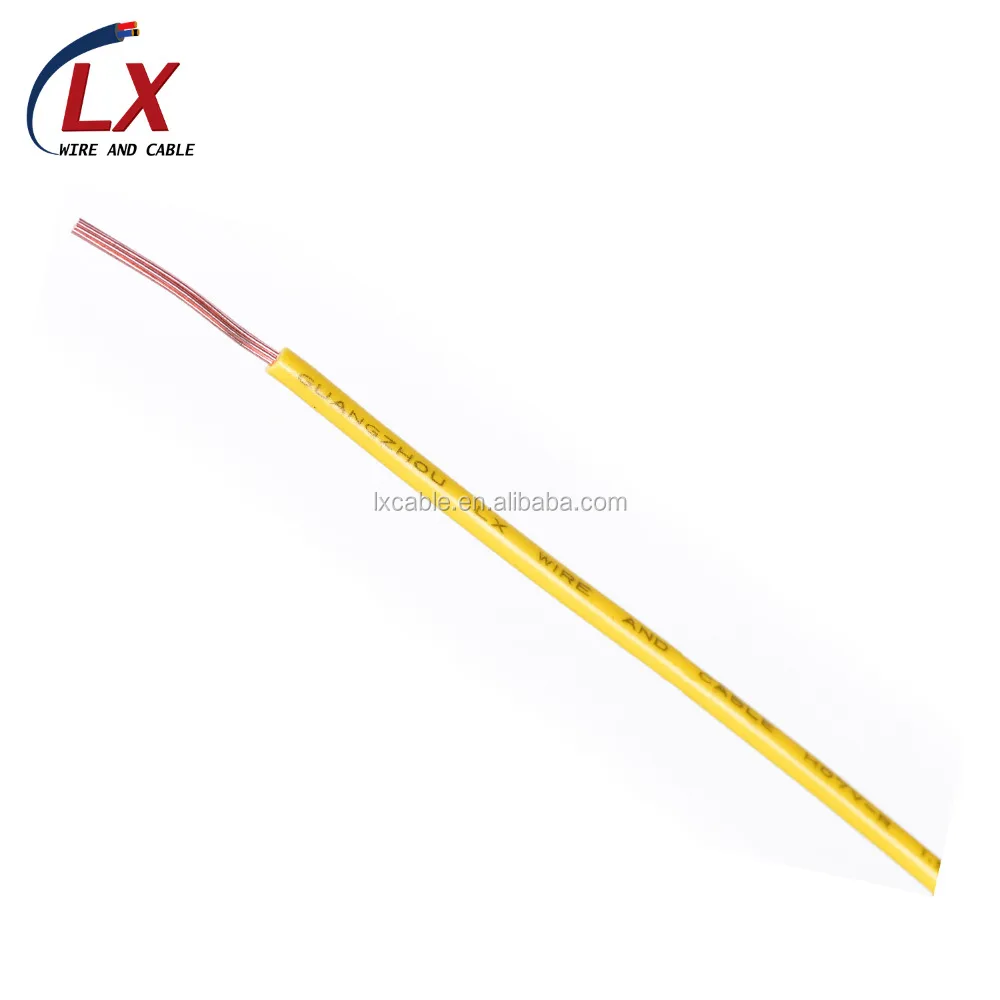

One core pvc covered 1.5 sq mm stranded electrical wire cable  h07V-R













Strict material control All the materials purchase from the suppliers which register in China Quality Certification Center.Our IQC system require suppliers submit self-inspection report for each batch materials,and require them submit the report from 3rd party regularly.In the meantime,we will test the material strictly base on GB standard.



Strict QC system
There are 4 processes to ensure quality during producing.
Self-inspection:the workers inspect the production process which they are responsible.
Mutual inspection:the workers,who is in next process, will inspect the semi-finished product which operated by last

process before they start their process.
Routing inspection:The quality inspectors will inspect the each production process during producing.
Special inspection:the inspectors will test the finished product.



Competitive prices and flexible payment term

We can offer good prices,and support T/T,L/C.O/A,D/P and Western Union





Product Description



Product Name	One core pvc covered 1.5 sq mm stranded electrical wire h07v-R
Conductor	1.5mm Stranded Copper
Insulation	PVC
Color	Blue,Green,Yellow or customized
Uo/U	450V/750V
Operating Temperature	0~70°C
Standard	GB IEC
OEM	available





Nominal  cross section   (mm²)	Upper limit of O.D. (mm)	Max D.C.resistance at 20deg.c (ohm/km)	Min insulation resistance at 70deg.c (Mohm*km)	Approx.ampacity (A)
1.5	3.3	12.1	0.010	25







Cable is packed with film and 100 meters in one roll,but customr's requestment is available



And you can have











Production System

Not only the materials are important ,but also the production term of cable  is very important.















About Us



Founded on 1990s, LX Cable currently has two factory with hundred stuffs, annual turnovers of 500 million yuan.

We are committed to meet the needs of the developing power industry,  construction, communications and

other industries, and providing our customers with multiple and professional wire and cable products and

services. Our major products include building wires, power cables, Internet cables, etc.

(1) Rich experience: 19 years cable manufacturing experience, 10 years cable export experience.

(2) Complete team management







FAQ



1.Can you provide free samples?

Yes ,we can provide free samples of our products,just contact us with the details of samples needed,

2.What’s the MOQ requirements of your products?

Our MOQ requirement depends on actual size and cable type, please see below chart:

Sr.Num	Cable Type Quantity	MOQ
1	1 ~2 Types	3000 Meters/Type
2	3~5 Types	2000 Meters/Type
3	Over 5 Types	1000 Meters/Type or based on actual order
Remarks: For same cable type, only if this cable type with same size and color can be defined as same product
