Универсальный удлинитель питания для IP-камеры 3 м 10 футов 5 в постоянного тока 1 35*3

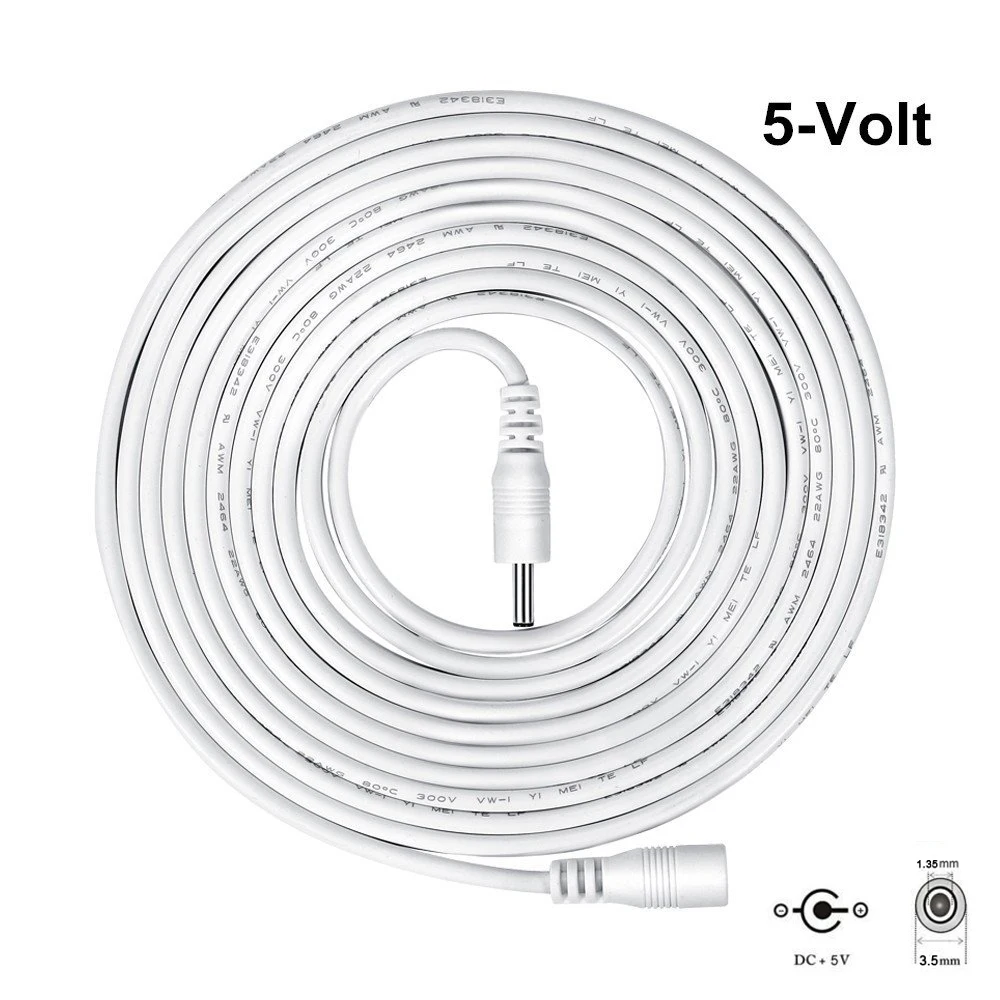

3m 10 Feet Universal DC 5V 1.35* 3.5mm Plug Power Adapter Extension Cable Compatible for 5-Volt IP Camera Power Adapter (white)

Model: PLS-DC012

1. 10 Feet Universal DC 5V 1.35* 3.5mm Plug Power Adapter Extension Cable Compatible for 5-Volt IP Camera Power Adapter,

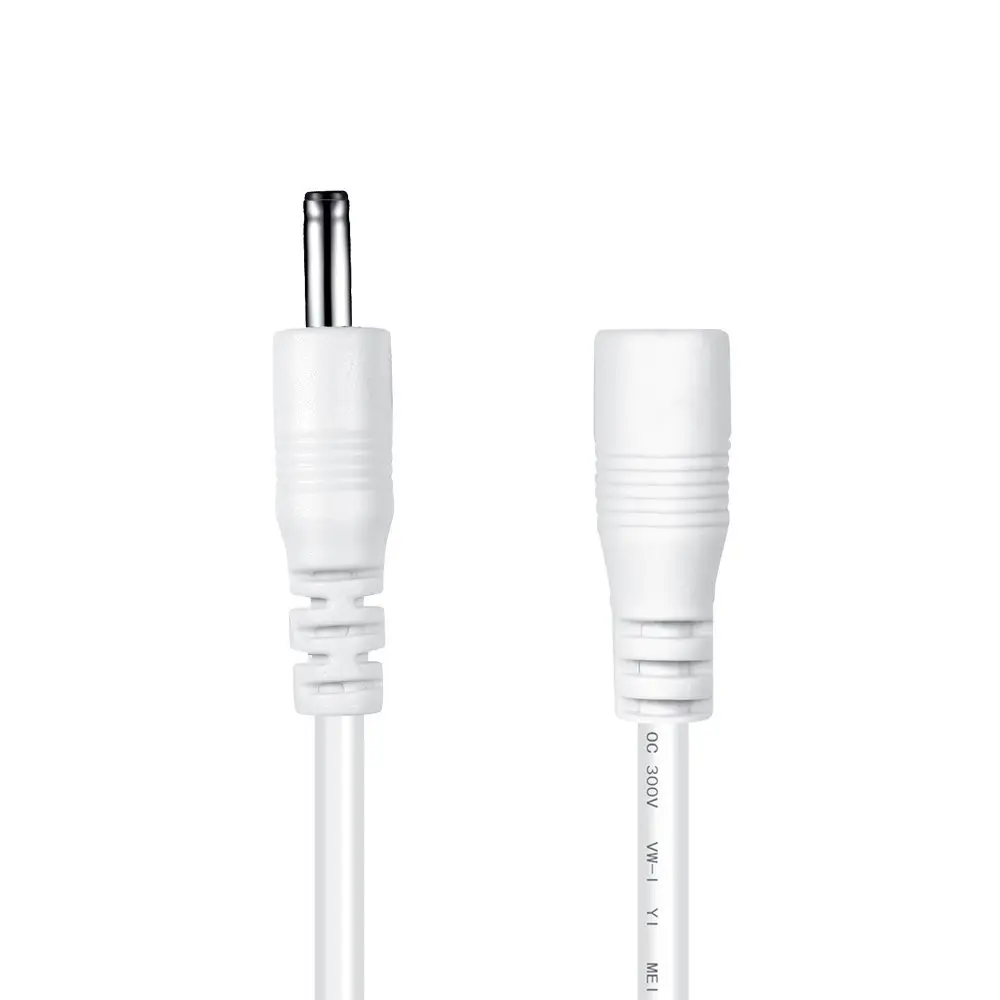

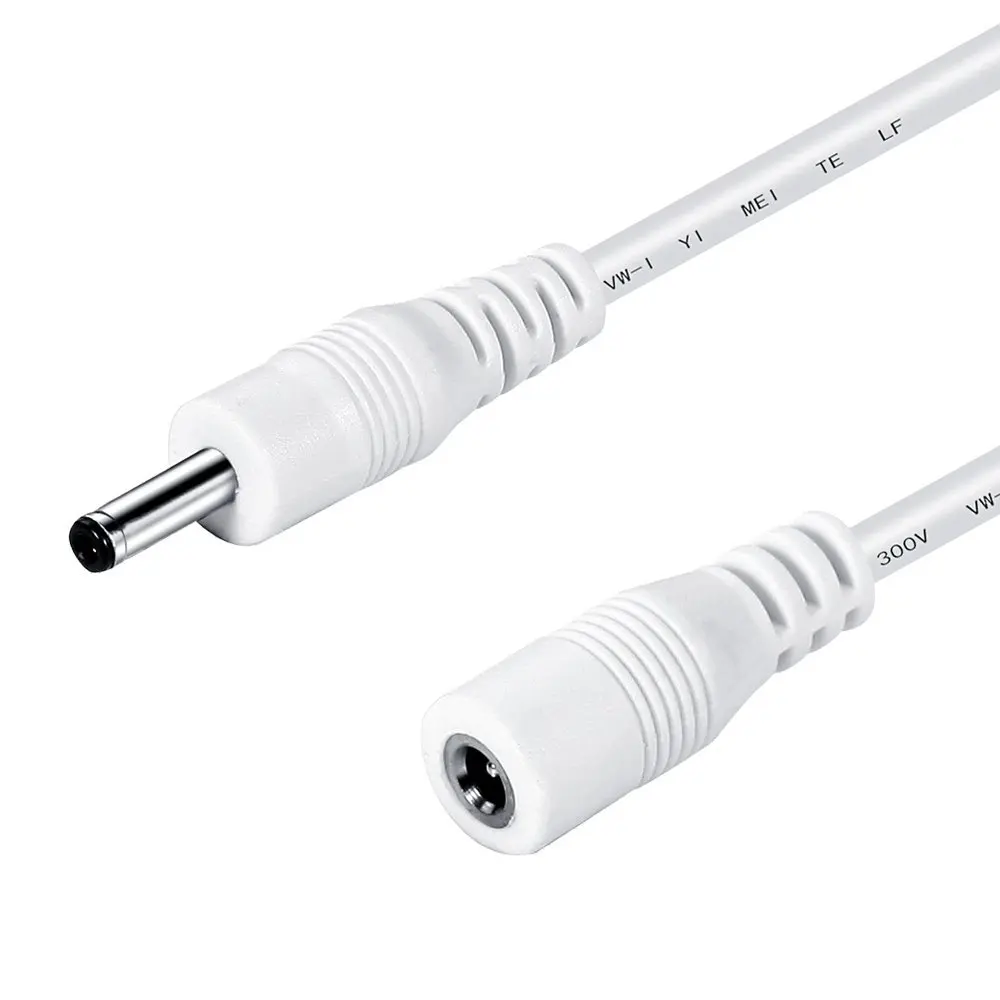

2.Connector 1: DC size 3.5*1.35mm Male,

Connector 2: DC size 3.5*1.35mm Female,
3. 10ft/3m (including 2 connectors),
4. 22AWG*2C, charging function only,
5. Nickel plated, pure copper conductor,
6. White color, PVC material, OD 3.5mm,

7.UL2464 wire, Voltage 5-18v,
8. Free poly bag packing.

>>>1.This cable specification is ok for me.

Just buy it!
Or you can contact us to chat more.

>>>2.We want custom DIY specificaton cable.

You need to confirm below specification, and contact us.
1. Connector---What connector do you want? (e.g. USB 2.0 A male+ DC plug)
2. DC size--What DC connector size do you want? (e.g. DC size 5.5*2.1mm)
3. Connector Direction:--Do you want straight one or 90 degree one?
4. Length---How long the cable do you want? (e.g. 1m)
5. AWG--- What's the wire AWG do you want? (e.g. 24awg), Or if you know the current, also is ok. (e.g. Max 2A current)
6. Color---Do you want black or white color?
7. QTY---How many pieces do you want?

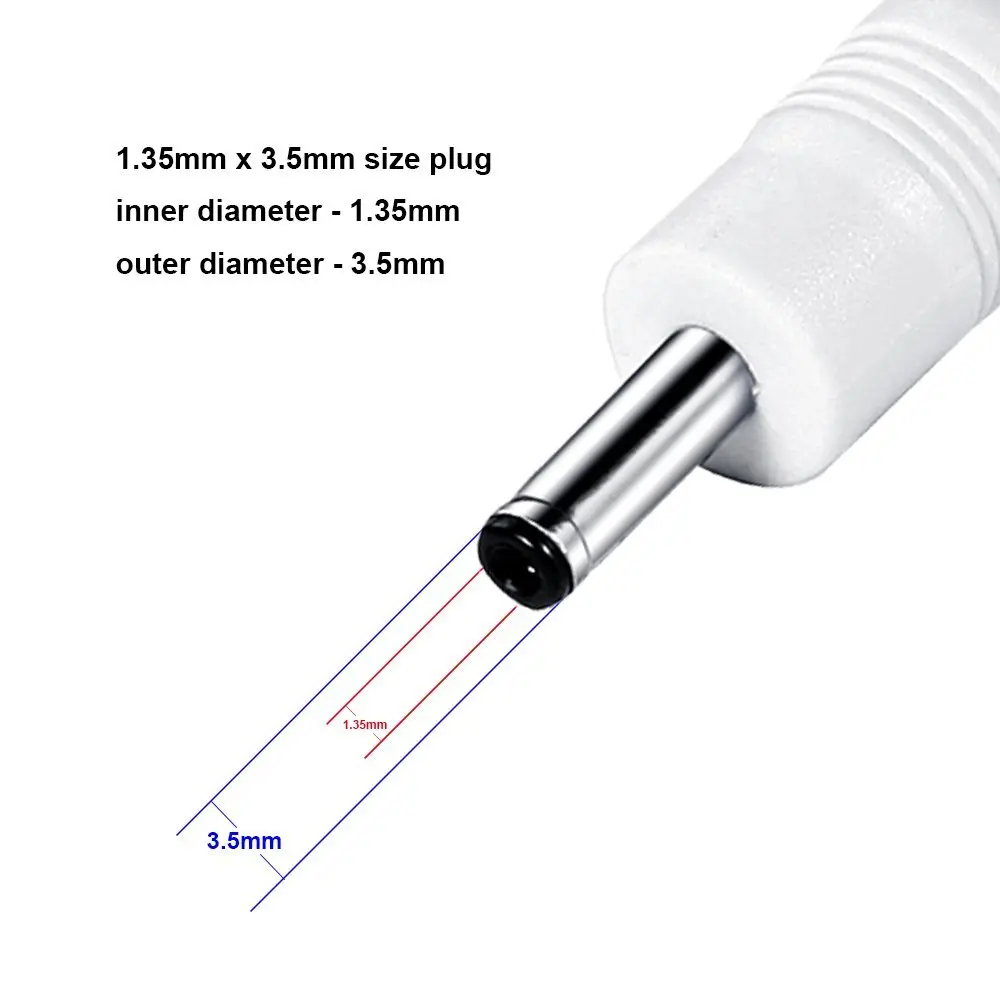

DC plug size :

You need to confirm the DC size to us.

For example: DC size 5.5*2.1mm       ------------>>>>

5.5mm is outer diameter of the plug barrel.

2.1mm is inner diameter of the plug barrel.

Note:

Rugular dc plug is inner center positive "+",  and  outer negitive "-".

Unless you want DIY this.

Application:

DC 5-Volt, Male to Female, DC size 3.5(outer dia.)*1.35(inner dia.)mm.
22AWG*2C, PVC Outer Jack, 10 Feet Length, White Color.

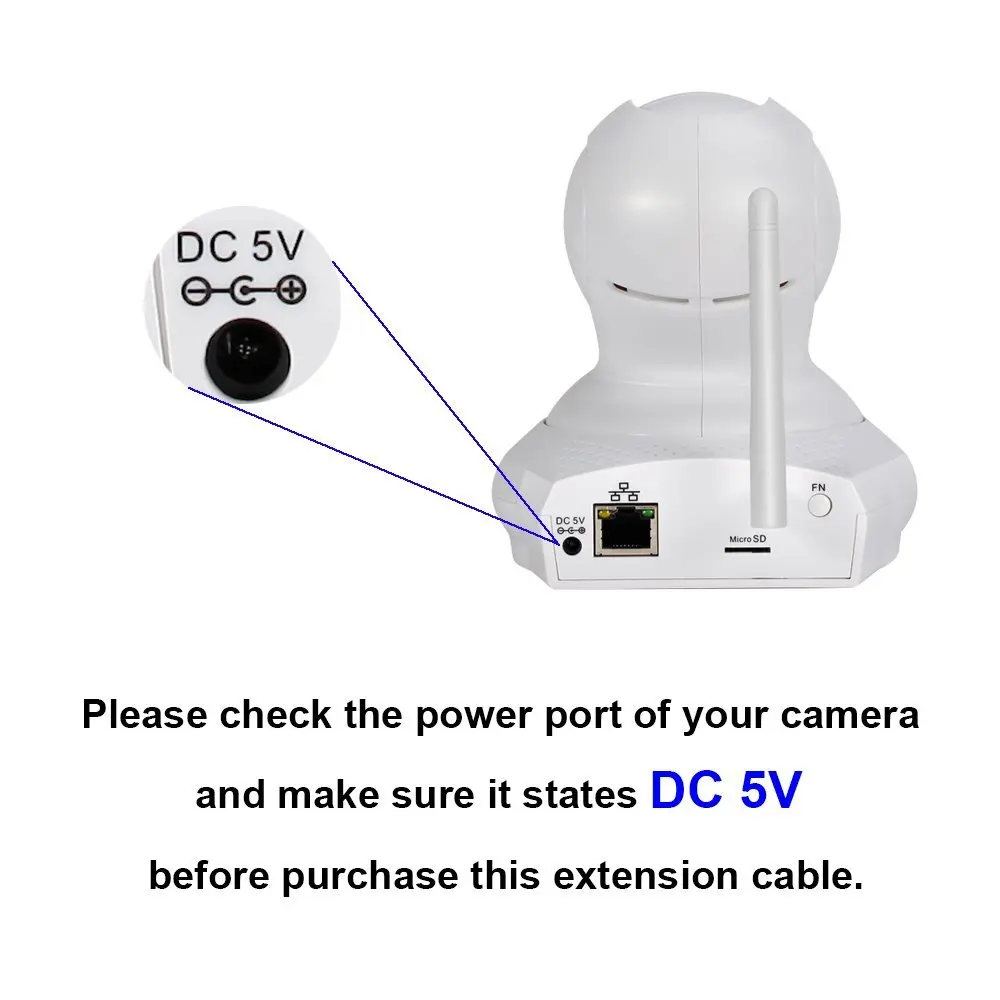

Work with most of IP Cameras running on DC 5-Volt power adapter.
NOT compatible with 12V IP Camera. NOT work with Micro USB power IP Camera.

Related Products

DC 12-Volt Power Adapter Extension Cord. 5.5mm(outer dia.)*2.1(inner dia.)mm.
Connectors. Male: 2.1mm x 5.5mm plug. Female: 2.1mm x 5.5,mm jack.
24AWG*2C, PVC Outer Jack, 10 Feet Length, Black Color.
Work with most of Outdoor IP Camera, CCTV camera running on DC 12-Volt power adapter.

Different direction USB 2.0 Cable Models which you can choosing .

You can choose below model number to combine your cable. (e.g. #1+#15,  it is usb 2.0 A male right angle to mini B male right angle)

Package:

50 or 100pcs/poly bag packing+ export carton box.

Delivery time.

7-9 working days upon the payment.

Warrangy Period.

1 year from you place order, excluding the artificial demage.

1.Online place order.

You can place order via Alibaba directly, click START ORDER and prepare the order information, we'll confirm the order to you.

2.Offline place order.

You can contact us via Email or Trademanager, we'll chat and finnal confirm the order. We support T/T, Western Union and Paypal payment.

1.Your own courier delivery account.

If you want ship via your own courier delivery account, please send it to us, we'll arrange the shipping for you.

2.Your own forwarder in China.

If you have own forwarder anent in China ship for you, please tell us their contact information, they can pick goods up from our factory, or we send goods to them.

3.We ship for you.

We can ship for you via courier like DHL, UPS, FedEx, TNT etc. with competitive price and 4-7 days fast delviery service.
