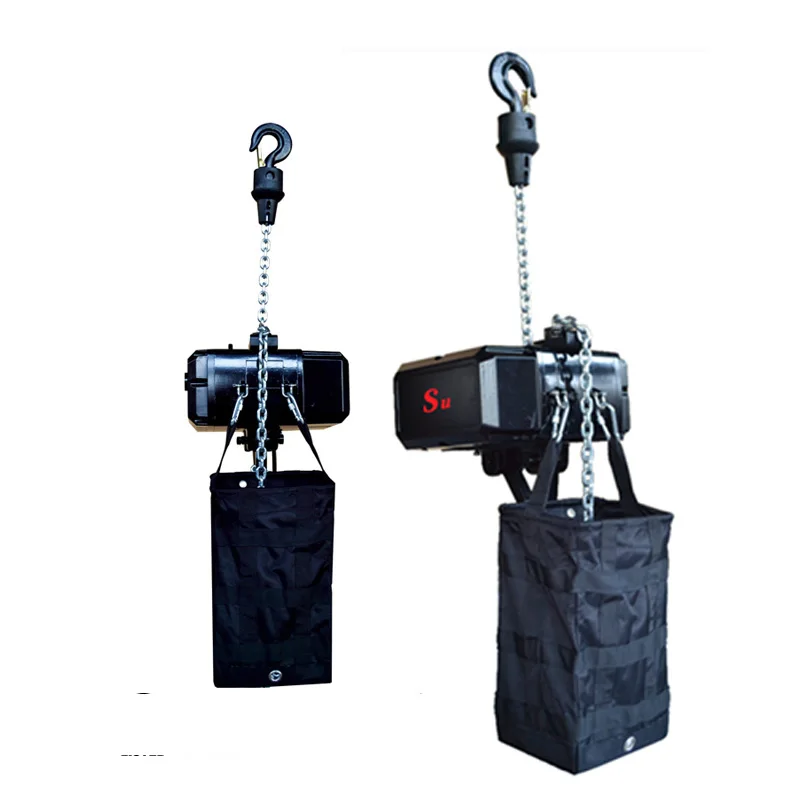

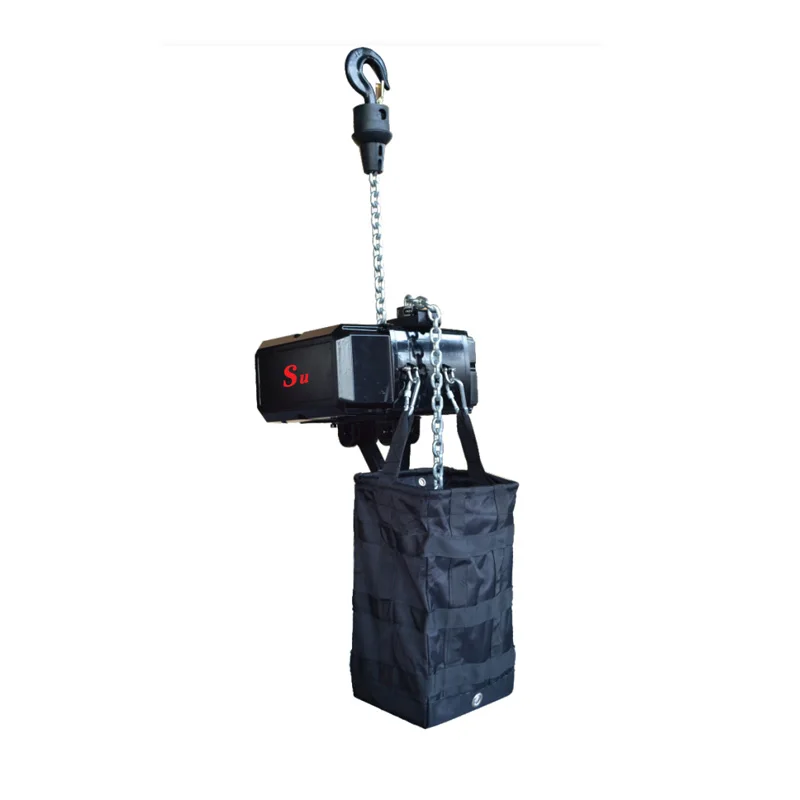

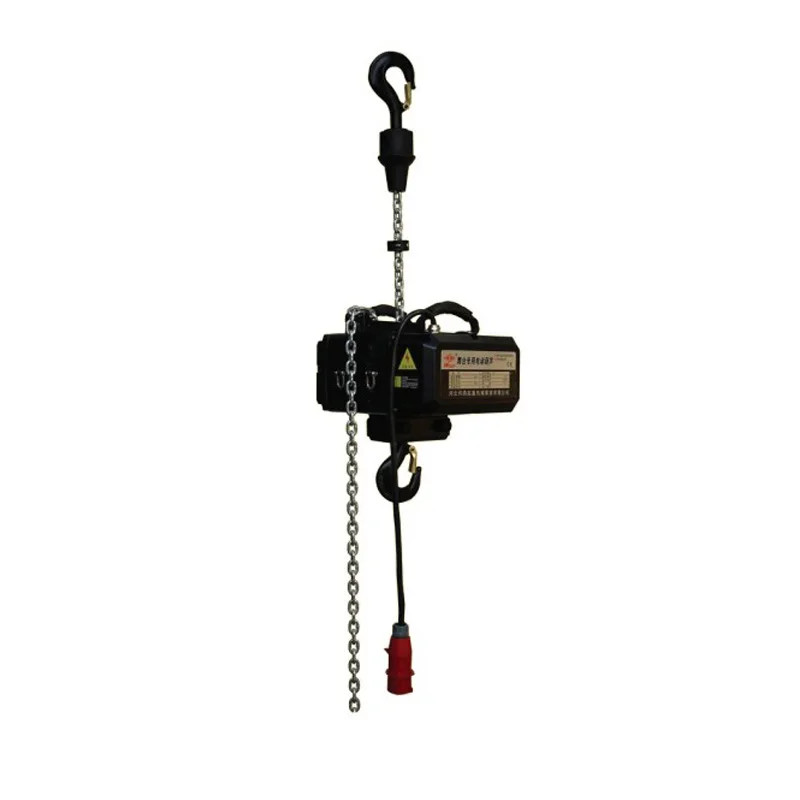

speaker truss electric chain hoist



The body is made in cast aluminium to be as light, yet as strong as possible. The matt black finish is corrosion resistant and non reflective.







Gear Box is manufactured with a thicker aluminum wall, comparing to the rest of the body, to respond to the very stringent mechanical requirements.



The chain bag bracket allows the hoist to be used motor up or down. The design ensures the bag is positioned correctly to accept chain without the need for any adjustment, reducing the chance of chain spills.



Fluid Bath, the dynamic fluid lubricant used for the gearbox, reduces friction and surface wear. As a direct result, noise level, reliability and durability are miximized while maintenance is minimized. The special type of dynamic fluid is high pressure resistant and keep its volume and lubrication capabilities up to 180 degree temperature.



Self climbing or standard suspension without any adjustments reqired. Swivel hooks on the chain and body reduces the risk of chain twist and allows easy positioning.



External chain guide made from a special PVC is used tp minimise the chance of chain jamming should the chain become twisted. This sacrificial plate helps protect both the chain and internal chain guides.



Iron and asbestos free brake shoes and stainless steel brake discs will not rust in the presence of moisture, preventing brake assemblies from seizing.



Cluth outside the load path positioned on the motor shaft in front of the motor assembly. With this arrangement, the brakes will hold the load in the unlikely event of a clutch failure.



Double brake. Model Su are supplied with double brake as standard. The brakes are supplied as complete units which allows for trouble free use and quick and ewasy inspection.



Model Su hoist are CE MARKED in acordance with the requirements of the MACHINERY DIRECTIVE 2006/42/EC.



Model	Capacity(kg)	Voltage(V/3P)	Lifting Height(m)	Chain Fall No.	Lifting Speed(m/min)	Power(kw)	Load Chain Dia(mm)
Su-0.5	500	220-440	25	1	4	1.5	5
Su-1.0	1000	220-440	25	1	4/8	1.5	7.1
Su-2.0-1	2000	220-440	25	1	4	2.2	9
Su-2.0-2	2000	220-440	25	2	2/4	1.5	7.1











CE BGV D8+ stage truss electric hoist 1 ton 25M
