Вакуумный мембранный пресс для ПВХ пленки с сертификатом CE машина ламинирования деревянного кухонного шкафа


Поделиться:


Цена:260 144,85 ₽*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-19-2025 309571.16 $* 325050.32 $*
Aug-19-2025 306970.75 $* 322319.61 $*
Jul-19-2025 257543.58 $* 270420.66 $*
Jun-19-2025 301767.93 $* 316855.59 $*
May-19-2025 262745.86 $* 275882.74 $*
Apr-19-2025 296564.11 $* 311392.89 $*
Mar-19-2025 293963.35 $* 308661.99 $*
Feb-19-2025 291361.6 $* 305929.31 $*
Jan-19-2025 288760.37 $* 303198.96 $*

Характеристики

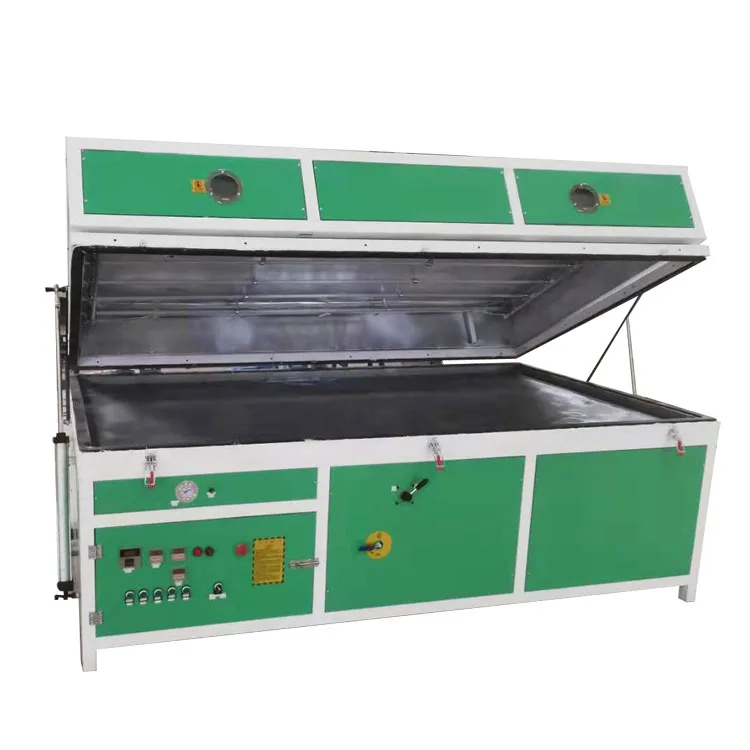

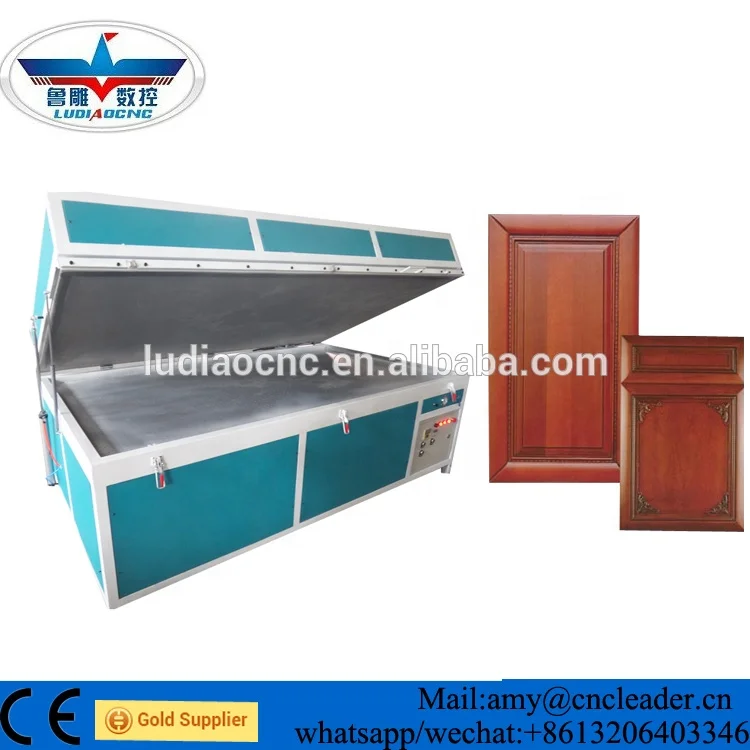

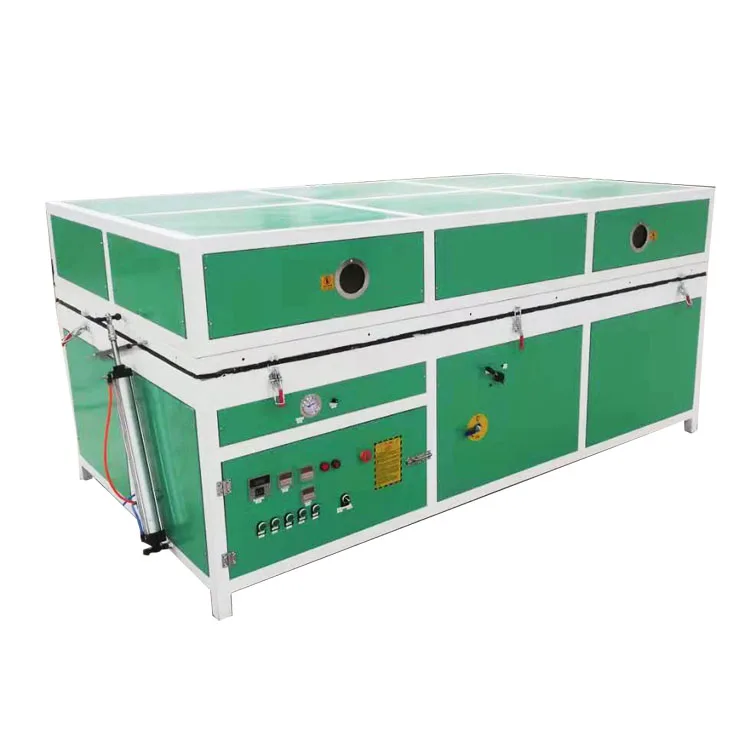

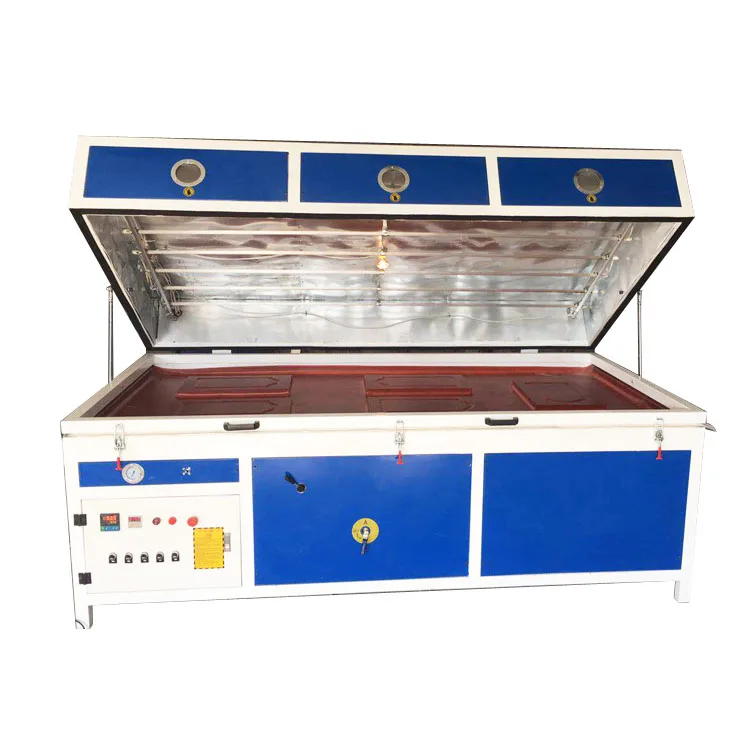

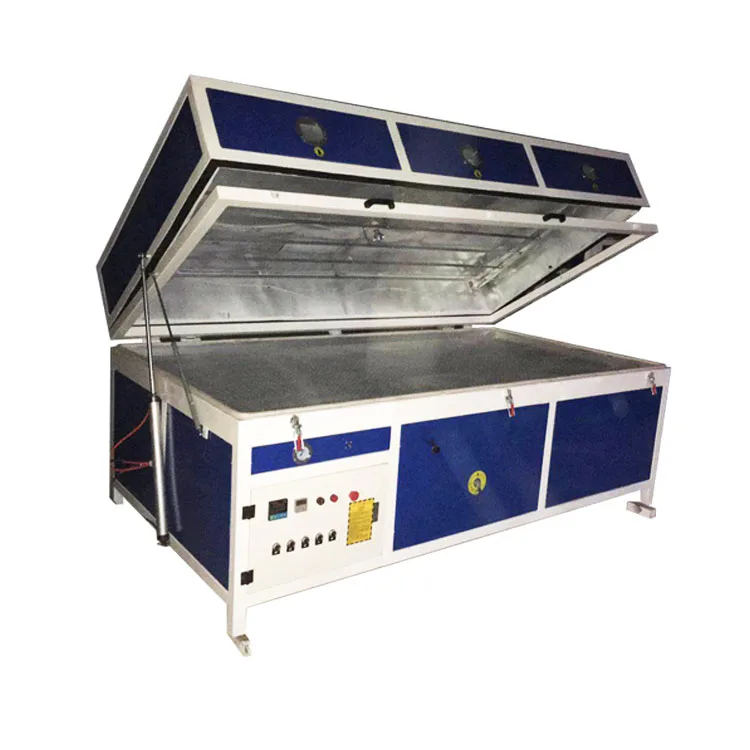

CE certificate PVC film vacuum membrane press machine wood kitchen cabinet PVC vacuum press laminating machine



Introduction



1. This machine has 1 work table ,working size is 1150*2500mm.(width can be 1300mm also)



2. The components are produced by famous domestic enterprises with good quality. The temperature is controlled by button so that the heating speed is adjustable and the temperature can be perfectly managed.



3. Use Aluminum sheet and  Quartz  heating tube heating system and high quality heat preservation material, which can ensure evenly heating and energy saving.



4. With alarm system.when air sight or accidence happen, we can stop in time and the light inside can be visiable for see the PVC film changing





Application



Wide application,material could be  wood veneer,heat transfer film,PVC film and etc.It is a professional membrane machine in making PVC wood door,cabinet,other wood furniture.



Machine details





Optional choice






PVC film vacuum pressing sample

.jpg





Specification

function



PVC forming and shaping



Working table size

1300*2500mm



Heating area size

1400*2600mm



Max forming height

80mm



Max pressire

-0.095 MPA



Heating oven lift



Auto Cylinder driving



Fixed tool



.Two types1.setting type

2.PVC film press frame





Air pump

40/63L

 heating power

15KW

 air pump power

2.2KW

 total power

20KW

voltage

AC 380V/50HZ 3P(customized)

L*W*H(mm)

Working size

3000*1600*1700mm

 L*W*H(mm)

          Packing size

 weight

3.2*1.8*1.9m

About 800KG




Company Information




.jpg



Packaging & Shipping






Contact me

.jpg

Данные ресурс не является интернет-магазином, а лишь содержит ссылки на международную торговую площадку Alibaba.com
