Description

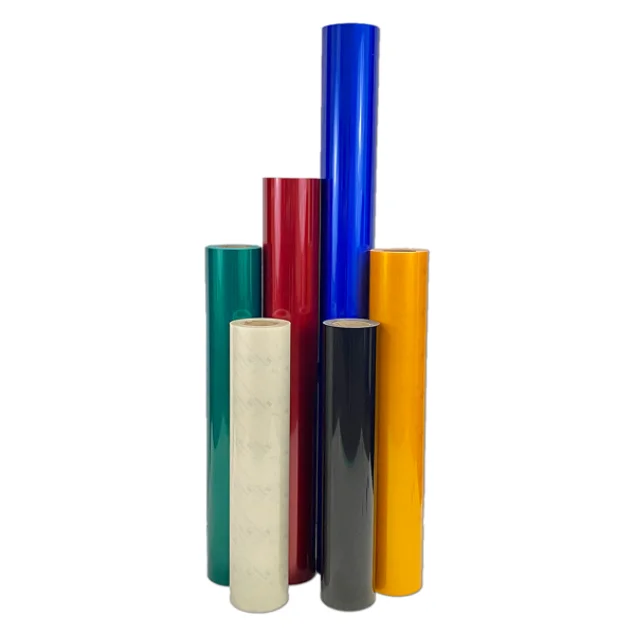

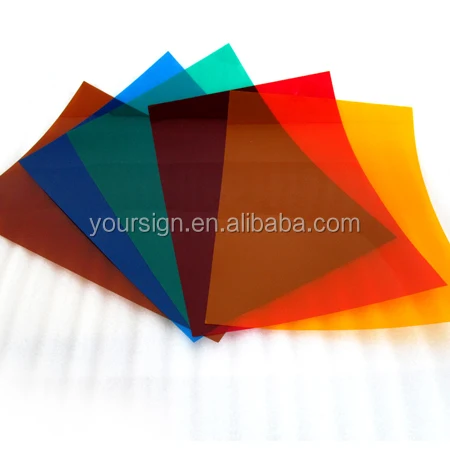

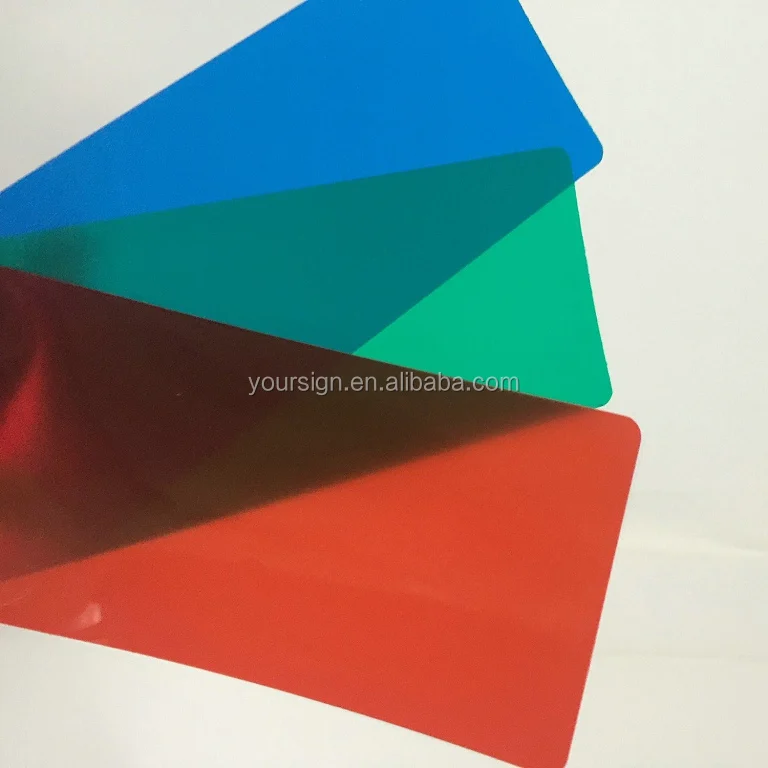

YS ElectroCut Film is a durable, transparent, acrylic colored film coated with a transparent,

pressure-sensitive adhesive that is protected by a removable liner available in the following colors.



Yellow 1171 Red ,1172 Orange ,1174 Blue 1175 ,,Green 1177, Black (Opaque) 1178, Brown 1179.



Series 1170 is intended for use on YS Reflective Sheeting for signing.Series 1170 E.C. Film has a

clear pressure-sensitive adhesive compatible with all the following YS reflective sheetings used in

permanent signing:

• Reflective Sheeting Engineer Grade Series T9300 and T9800

• High Intensity Grade Series T9500

• High Intensity Prismatic Series T9200

• Diamond Grade Series T9900

• Diamond Grade DG3 Series

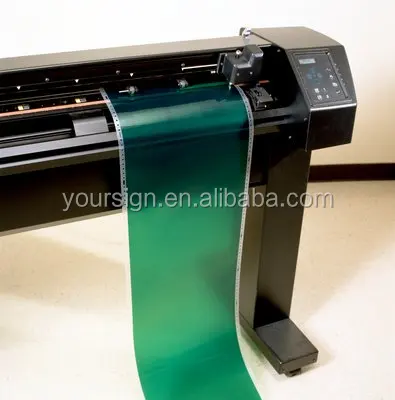

E.C. Film is designed with a special film liner for kiss-cutting on electronic cutting machines.

Rolls  are available prepunched for sprocket fed cutters or unpunched for flatbed or friction fed

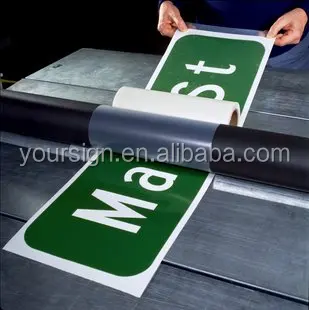

cutters. Colored E.C. Film is often used instead of silk screened inks to provided colored

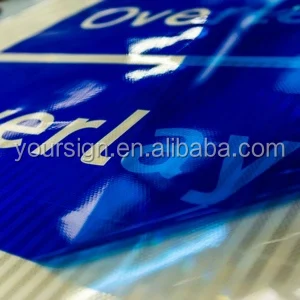

transparent background copy for retroreflective street name signs and other traffic control signs.

Various film  widths are available to fabricate single sign panels up to 48" wide. For single panel

signs requiring  more than a single piece of sheeting or for multipanel signs such as guide signs, be sure to follow color matching procedures in Information Folder 1.10 to achieve satisfactory

results. (For best color uniformity on a colored multipanel sign, make all panels from the same lot

of E.C. Film.

Specifications
• Adhesive Content‎: ‎ Solvent acrylic
• Adhesive Type‎: ‎ Pressure-sensitive
• Application Method‎: ‎ Dry,‎ Wet
• Applications‎ :‎ Buildings,‎ Cars & Vans,‎ Opaque signs,‎ Public transport,‎ Trucks,‎ Windows
• Application Temperature (C)‎: ‎ +4°C minimum (air and substrate)
• Film Type‎: ‎ Cast
• Max. Durability‎: ‎ 12 years
• Performance Level:‎ ‎ Premium
• Product Usage‎: ‎ Exterior,‎ Interior
• Service Temperature‎ ‎ -40°C to +110°C
• Size‎ ‎ 1.24 m x 45.7 m
• Substrate Type‎ ‎ ABS,‎ Aluminium,‎ Glass,‎ Paint,‎ PMMA,‎ Polycarbonate
• Surface Finish‎ ‎ Gloss
• Surface Type:‎ ‎ Flat,‎ Flat with rivets,‎ Simple curves
• Thickness (film)‎: ‎ 50 µm
