PGS-12/24/40.5 наружный выключатель разрыва нагрузки

Summary

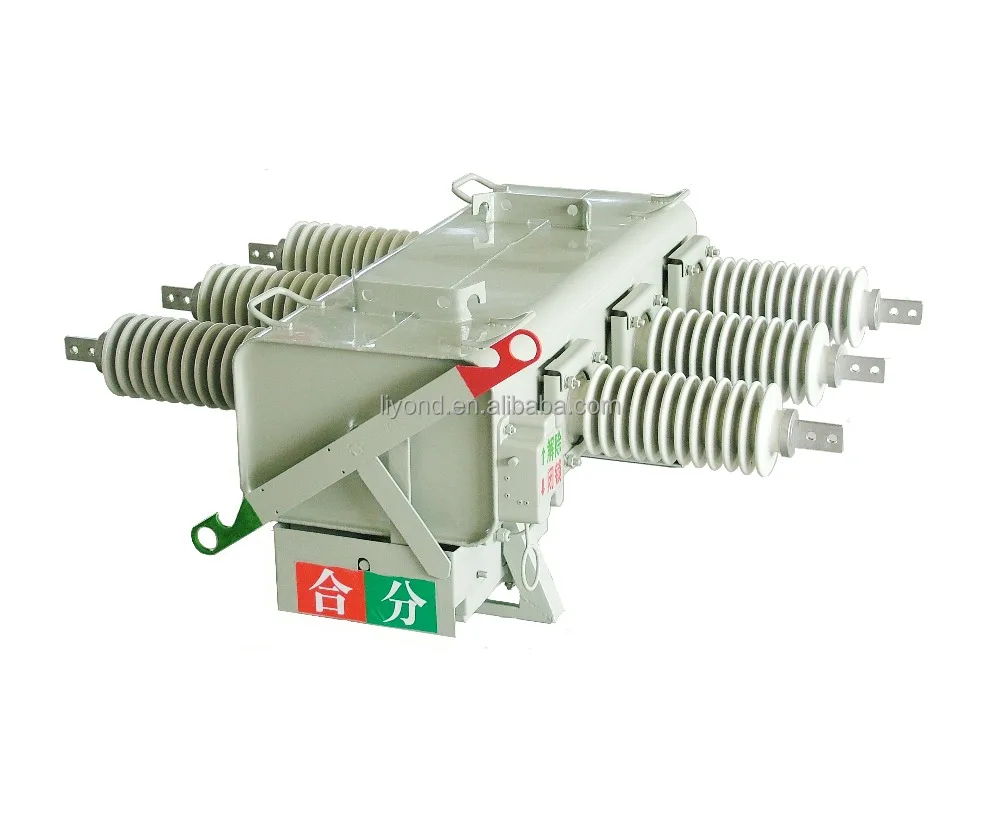

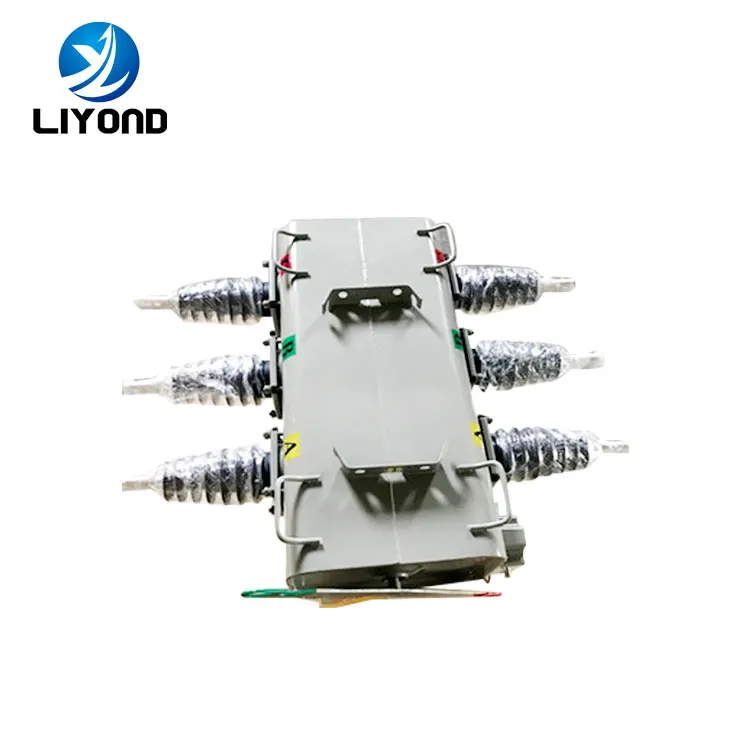

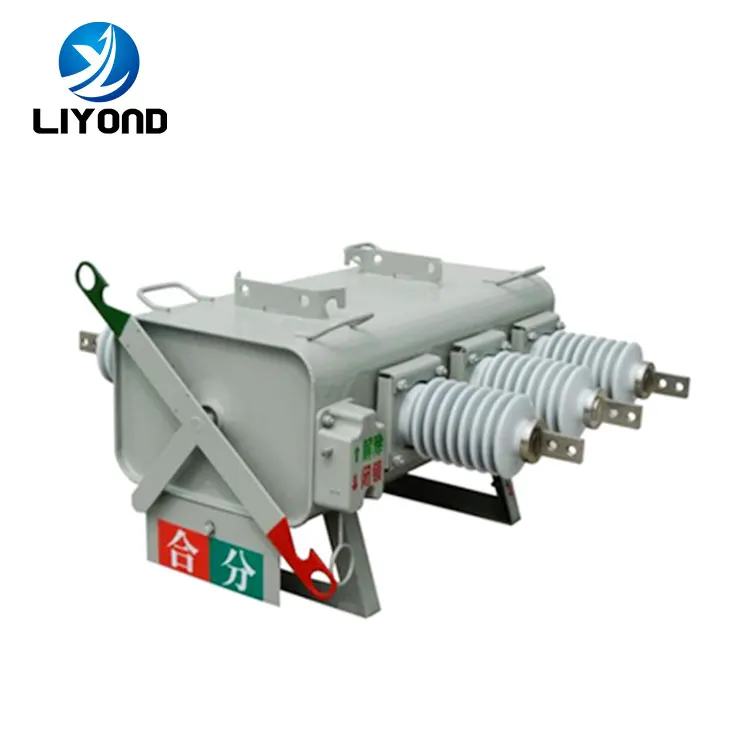

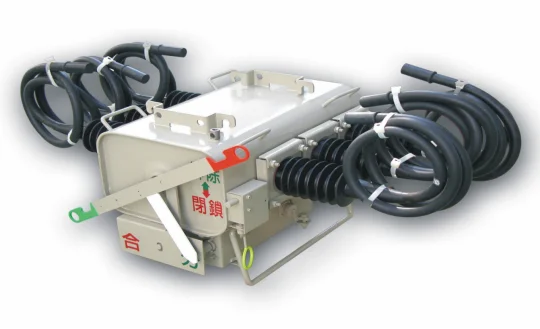

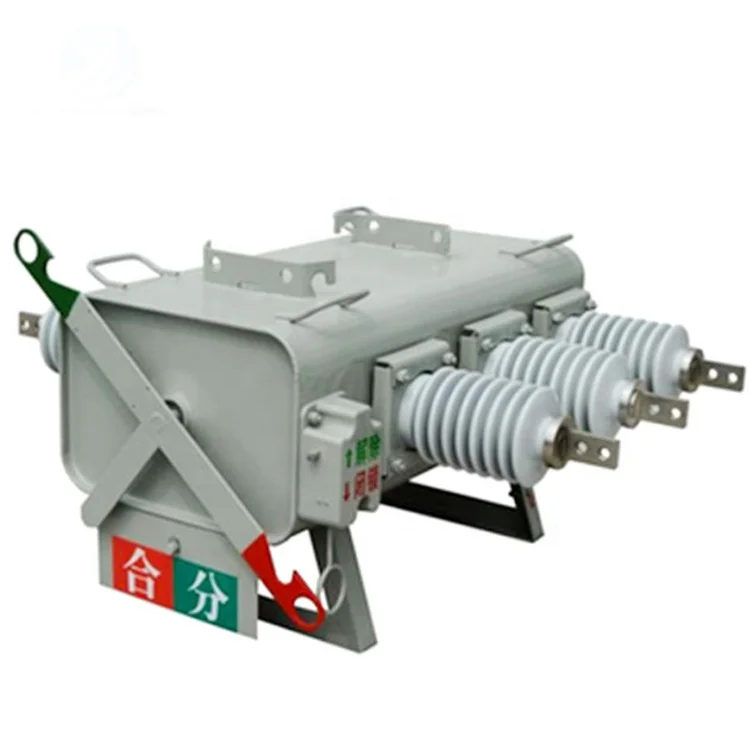

PGS-12/24/40.5 pole-mounted load breaking switch is used to rated voltage 24KV, rated current 400/630A, 50/60 Hz power grid open circuit, load current in closed power system, overload current. This load switch can separate those broken distribution line automatically. With the latest technology, it has the newest electronic controller. The switch can be used by manual operation, electric operation and operation from a long distance. Electric controller is installed in a stainless steel cabinet which is suitable for using under all kinds of climatic conditions. In addition, there are some wired and wireless modem installed in the cabinet through which it can realize the remote monitoring and control. Simple installation on column is convenient, fast, and also can reduce the construction cost.

Working conditions

1.Ambient air temperature: +50℃ to -40℃.
2 Relative humidity:100%
3.Elevation does not exceed 3000m.
4 The pressure does not exceed 700pa(wind speed of 34m/s).
5 Earthquake intensity:8 degrees.
6 Installation site:No fire, no explosion hazards, no chemical corrosion and recurrent severe vibration.

7 Pollution class: classⅢ .

Technical parameter
