Jinan Xieqi Mechanical Equipment Co., Ltd.

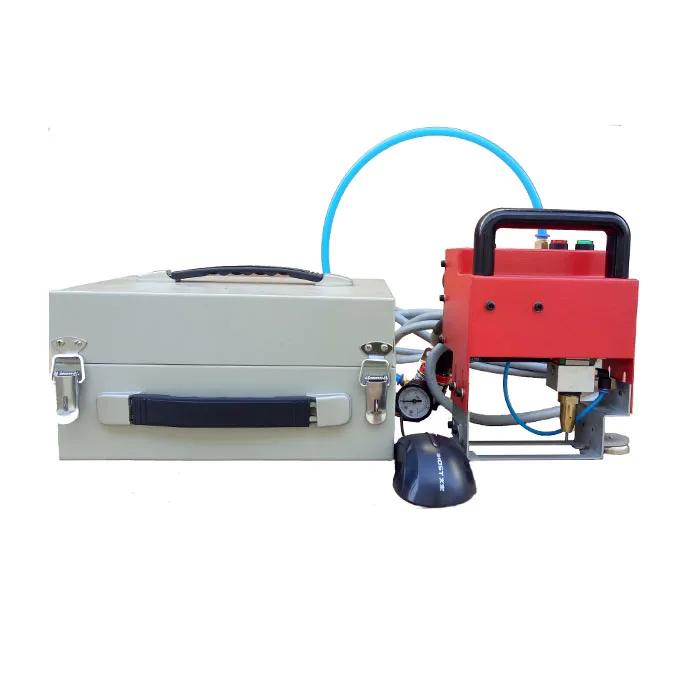

Handheld Chassis Number Pneumatic Dot Peen Metal Engraving Machinery
Product Description
Pneumatic Marking Machine Product introduction

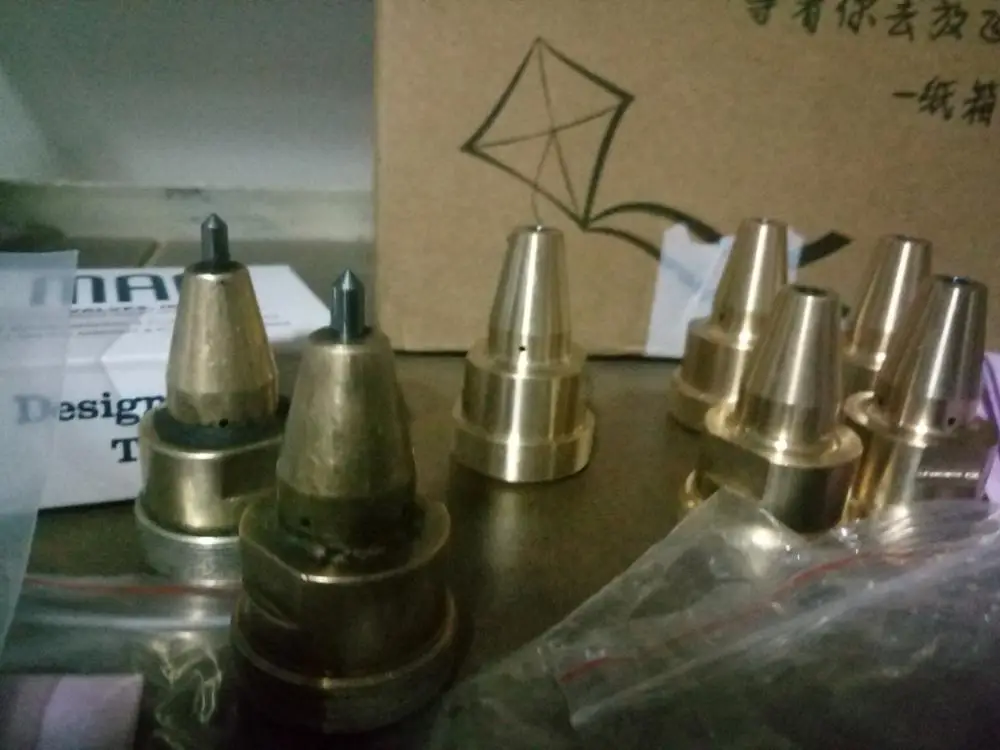

Jinan Xieqi pneumatic/Dot peen marking machine is develop special high-quality goods. Special design of the needle in the depression state needle cavity completed more than 300 HZ high frequency vibration, to ensure the smooth clear mark characters.
Pneumatic Marking Machine Product Application
Mainly for in all kinds of spare parts and nameplate and design, can in spare parts and nameplate surface character, graphics, Numbers, words, and content of the perfect printing. Printing speed and knead high, tidy and beautiful. Cooperate with special tooling can realize the automatic feeding nameplate print.
Technical Parameter
Pneumatic Marking Machine
Model | Pneumatic marking machine Dot peen marking machine |
Working Area | 80*30mm(L*W) |
Marking Speed Range | 10-100words/min(Adjustable) |
Marking Depth Range | 0.05-1.0mm(According to the materials) |
Unit power | ≤ 200W |
Power | 220V/50HZ/10A |
Compressed Air Pressure Required | 0.4-0.8Mpa
|
System Functions | Character inputting, editing ,marking. VIN code automatically calculating, set, marking. Serial number setting, automatically increasing,marking. Tag data query, reporting, printing. Characters, Graphics, Chinese characters editing. |
Marked Font Size | Arbitrary Adjustable |
The Content of Mark Character | 0-9 figures, A-Z large, lower case letters, graphics, characters ( Users can be random homemade) |
Working Voltage | 220V 50Hz ± 10 % |
Machine Consume Power | ≤ 200W |
Working Environment | Temperature: 0-45℃ Humidity: ≤ 80 % |
Safety | ≥ 5 MΩ /500V/Insulation resistance:normal atmospheric Pressure≥ 5M Ω /500V Electric strength: ~ 50HZ, 1500V, 1min |
Product Advantages
1---Pneumatic marking machine is automatically incremented and the value optional.
2---The software can be auto updated with auto adjustment and trace.
3---As the marking location changes,the marking needle can move to the new location.
4---Input methods using manual input,made by different contents of different type of print
documents.
5---This machine with graphics editor print function,the user can use AUTOCAD editing some
simple graphics.Many characters for optional,as more than 200 types English characters.It can mark different characters same time with the rotary angles.
6---There is external routine interface in the software.Through the SQL script,it can connect the
external database.
7---Automatically marking function after start without human intervention.

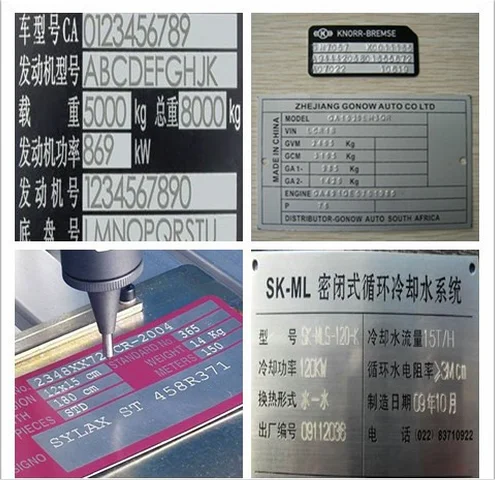

Samples
Packaging & Shipping
Packaging and delivery | |
Delivery | Within 7 working days for production, we will arrange delivery after received the total payment. |
Packing | Firstly, Packed the machine with plastic sheet for clearing and damp proofing. |
| Secondly, Then put the machine in the plywood case for safety and clashing. |
| Thirdly, Transport the plywood case into the container.
|
Shipping term | By sea, or by air, or by Internation Express |
Certifications
Why Choose XIEQI Products:
1. Xieqi company is specialized in manufacturing and selling CNC machine for many years . We have lots of experience.
2.Our worker have experience,they can produce machines professional and skilled,so make the machine with high quality and can work well.
3.All the parts of our machines are famous brand in China or in international,so it make sure our machine have high quality and long lifetime.
4. Our company has all kinds of machines in stock, so we can make sure deliver quickly.
5. Our company has international technical service team and provides 24 hours online services and technical supports for customers.
