3D автоматический вертикальный настенный принтер прямая машина для покраски

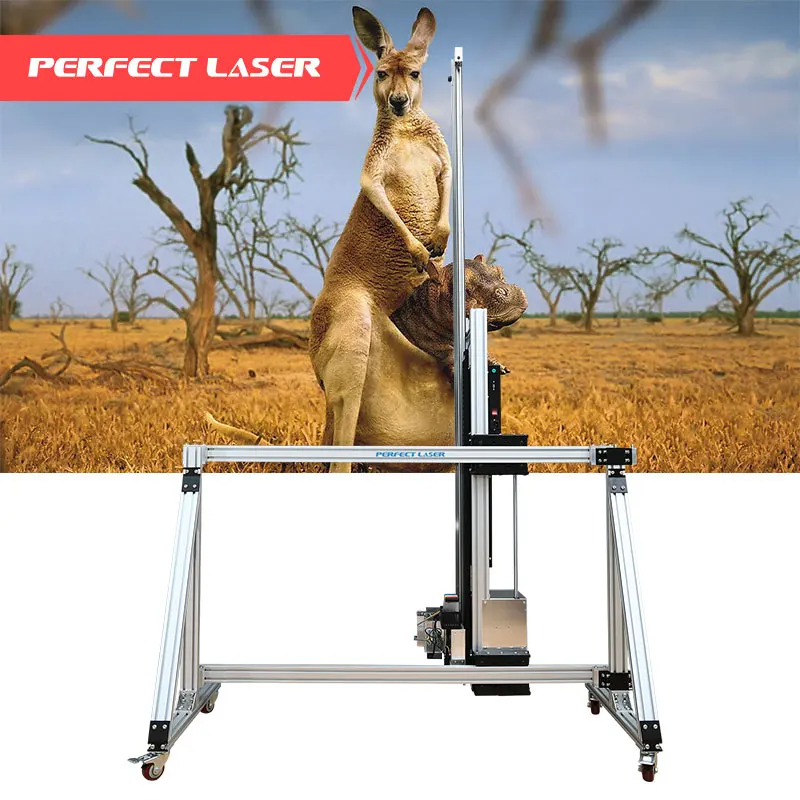

1. HD Version Vertical wall printing machine price PE-S70 is made of aluminum-magnesium alloy, high precision, the chassis is thin and durable, easy to carry.
2. The ink of  wall printing machine price using imported paste, no heating, minus 10 ℃ to zero 60 ℃ in the normal work environment, no ice, continuous ink, colorful, 3D sense of strong, do not fade, can not afford skin, three-dimensional sense of strong Scrub, green.
3. Large Photo size of wall printer: high 2000mm, width is not limited. Construction no need to move the machine halfway, no need to do stitching, large format painted at one go, beautiful picture.
4. The wall printing machine price adopts advanced ink droplet control system and high fault tolerance are feather technology combined. The output quality is more perfect.
5. The excellent definition 3D vertical adopts HD piezoelectric inkjet technology. Japan imported piezoelectric printing head, high precision, clear and bright picture, durable.
6. Variable droplet technology of the wall printing machine. Minimum ink droplets 3.5PL, the largest 27PL, indoor painting screen clear and delicate, outdoor painting color bright, fast.

7. With high-precision brushless servo motor control system, vector positioning, no grating, motor without carbon brush, eliminating the need for cleaning, maintenance, wear and tear after the map garbled, need to regularly replace and other issues, painting high precision, maintain.

8. Fuselage accessories of  unlimited width wall decal printing machine price for advertisement  are imported CNC equipment manufacturing, together with a professional mold parts manufacturing process to ensure that the wall printer and accessories better consistency and higher stability.

Product Application

Wall Printing Machine is suitable for a variety of special materials: painted inside and outside wall, wall putty, paint the walls, white porcelain, ceramic tile, walls, glass, paper, canvas, wall, colored glaze, shell powder, wall paint color tablets.

Machine Details

Machine Details:
1. High Precision Sensor
Adopt American import high precision sensor, small and compact, high-precision positioning function.
2. Machine Head
Separate structure, can be take-off from the machine easily. can avoid the damage caused by collision in movement effectively.
3.Ink Box
Support multi-color ink, can add ink at any time, very convenient.
4.Ink
Special synthetic pigment, won't fade and fall off, wear-resistance, green and environmental, Adopt imported color mill base, won't get icing even at -30 degrees, no need heating.
5.Wireless Remote Control Handle
Support remote control by using the wireless handle. Greatly improves working efficiency.

6. Printing Head
Famous brand single 4-color (special-design) piezoelectric printing head, fast speed, high precision, clear and bright color, durable.
7. Guide Rail
Split joint, professional fasteners, fast assemble and disassemble, smooth movement, can ensure the clear picture quality when output, easy to carry.
8. Ink Suction Device
It can absorb different color at the same time, multi-colors together, vivid and average.
9. Main Board
Adopt chip with high technology, delicate, sophisticated and exquisite.
10. The Cover
Small and delicate design, high hardness, high heat dissipation, dust-proof.

Technical Data

Model	PE-S70	PE-S80
Printing Head	Japan imported industrial grade printing head
		1 pc	2 pcs
Painting Speed	32㎡/h	64㎡/h
Main-board Configuration	6-core CPU, 2GB DDR memory	8-core CPU, 4GB DDR memory
UPS Battery Life	About 10 hours	About 12 hours
Pad Size	10.1 inch	11.6 inch
Rail Size(L×H)	4500mm×2500mm
Host Size (L×W×H)	400mm×320mm×2500mm
Sensor	Double
X Axis Effective Stroke	2000mm
Y Axis Effective Stroke	Unlimited
Z Axis Effective Stroke	150mm
Z Axis Guide	170mm
Z Axis Automatic	Have
Ink Consumption Per Square	6-10ML
Nozzle Protective Device	Have
Spirit Level	Have
Automatic White Jump	Have
Nozzle Cleaning	One Key Automatic
Painting Accuracy	9600DPI
Painting Direction	Vertical
Painted Mode	two-way
Ink Tank Capacity	400ML=100ML×4
Spray Distance	0.5-2.0cm
Ink Supply Method	Automatic ink supply under negative pressure
Data Transmission Method	USB2.0/3.0
Certification	CE/GB18582-2001/GBT9756-2001
Power Supply	AC110V (90-132V)/AC220V (180-264V) , 47-63HZ
Power Consumption	No load:20W, Generally:75W, MAX: 250W
Noise	Standby <20dBA, Drawing <50dBA
Working Temperature	-10°C-60°C (14°F-140°F) 10%-80% relative humidity, non-condensing
Storage Temperature	-30°C-60°C (-22°F-140°F) 10%-80% relative humidity, non-condensing
Language	Chinese and English (Customized)
Total Body Weight	30 kgs	32 kgs
Total Track Weight	26.5 kgs	38 kgs
Training	VCD training, Engineer overseas training is available (charged additionally)
Guarantee	12 months

Related Products

Packing & Delivery

Size	2610*450*560mm
Weight	61 kgs
Packaging Details	1. We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof. 2. Air-Worthy Packing or Sea Packing which comply with international standard.
