Ac Dc 90 градусов прямоугольный редукторный двигатель
US $22.50-$23.00
12 дюймов 2000 Вт Bldc Hub моторное колесо Электрический скутер электрический мотоцикл
- Категория: Motors >>>
- Поставщик: Wuxi,Yuma,Power,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 108.70 $* | 110.25 $* |
| Jul-18-2025 | 88.84 $* | 90.7 $* |
| Jun-18-2025 | 106.9 $* | 108.50 $* |
| May-18-2025 | 105.85 $* | 107.20 $* |
| Apr-18-2025 | 84.92 $* | 86.86 $* |
| Mar-18-2025 | 104.96 $* | 106.22 $* |
| Feb-18-2025 | 103.94 $* | 105.7 $* |
| Jan-18-2025 | 102.36 $* | 104.36 $* |
Характеристики

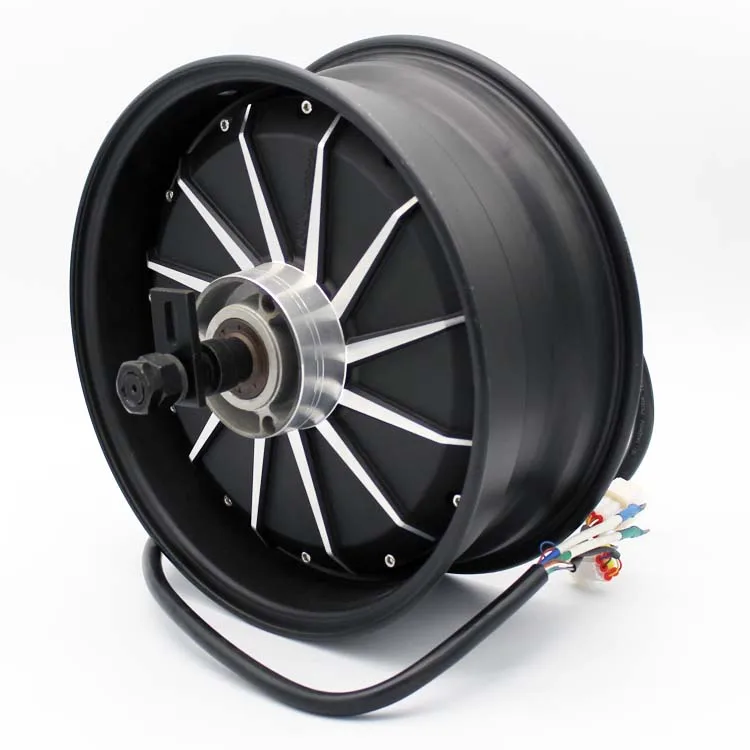

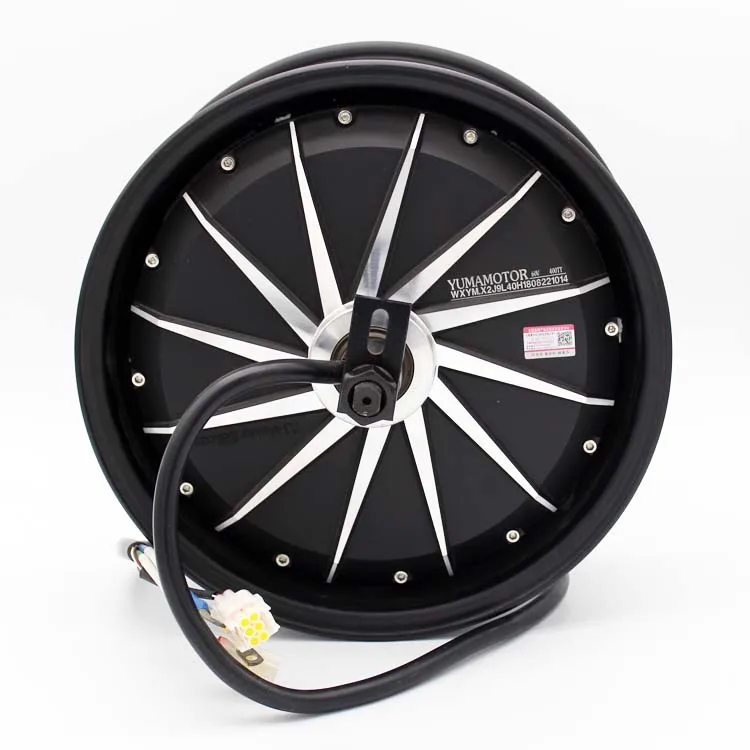

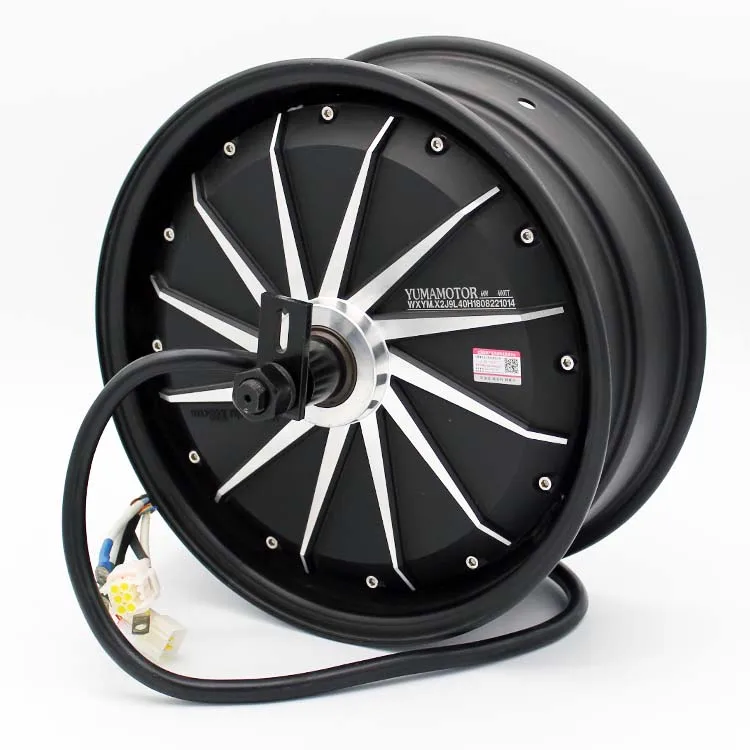

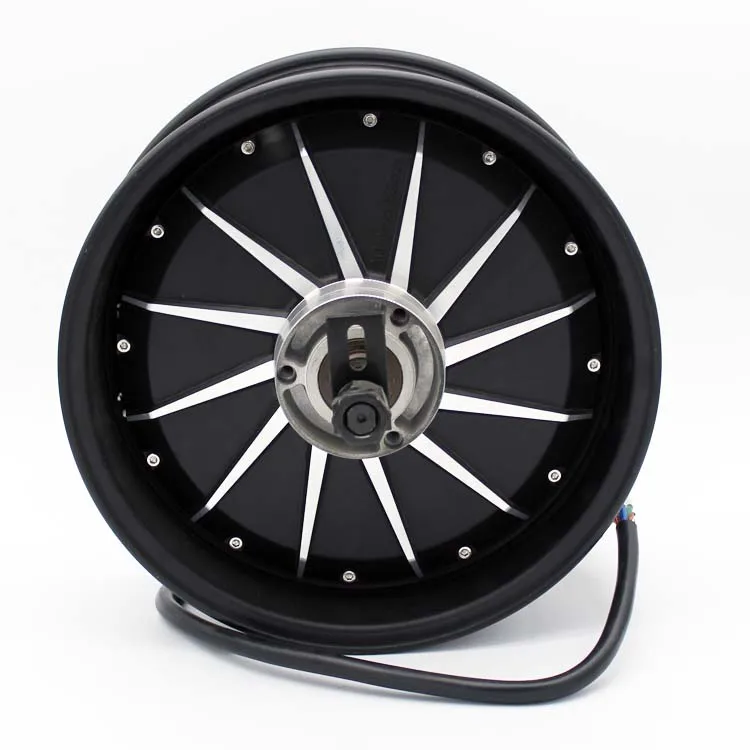

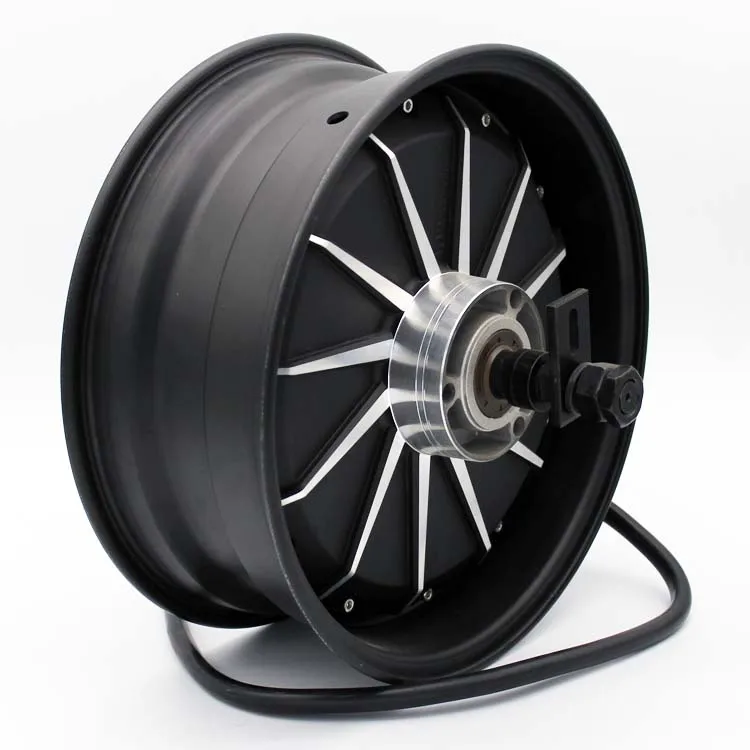

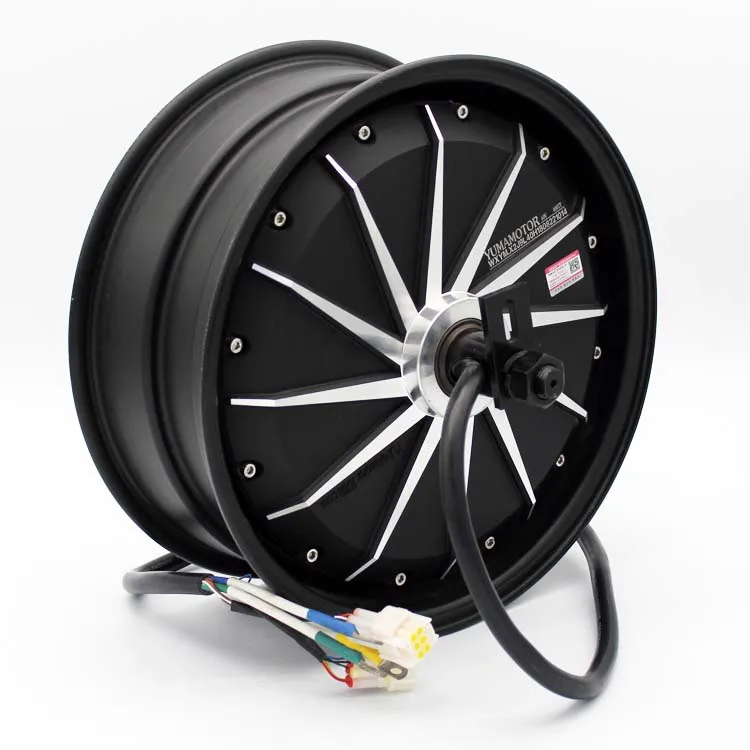

YM-12*4.5 2000W Brushless DC
Hub Motor For Two Wheel Electric Scooter
Products Display
Yuma Motor Specification:
Motor Type | Brushless Direct Current Motor(BLDC Motor) |
Axle Configuration | Double |
Wheel Rim | 12 inch |
Rated Speed | 70km/h |
Voltage | 72V |
Magnet Height | 35mm |
RPM | 850 |
Brake System | Disc Brake |
Hall Sensors | 1/2 |
Hall Sensor Phasing | 120° |
Number of motor phases | 3 |
Max Efficiency | 90% |
Rated Out Power | 2000w |
Number of Pole Pairs | 24 |
Cross Section of Phase Wire | 6 square |
Waterproof Grade | IP65 |
Color | Black/white etc. |
Package | Carton |
Notice:
Yuma Motor could work 120 ℃ in half an hour without damage.
Suggestion (Setting of Controller)
When it's 130 ℃ inside of motor (in 30s), the current should be limited 50%.
When it's 150 ℃, the controller shut down. When it drop down to 110℃, the controller work again.
More Yuma Motor Informaiton:
Optional Appearance
Motor Details, drawing, performance curve (refer to attachment in PDF).
For more information, please feel free to contact with us.
