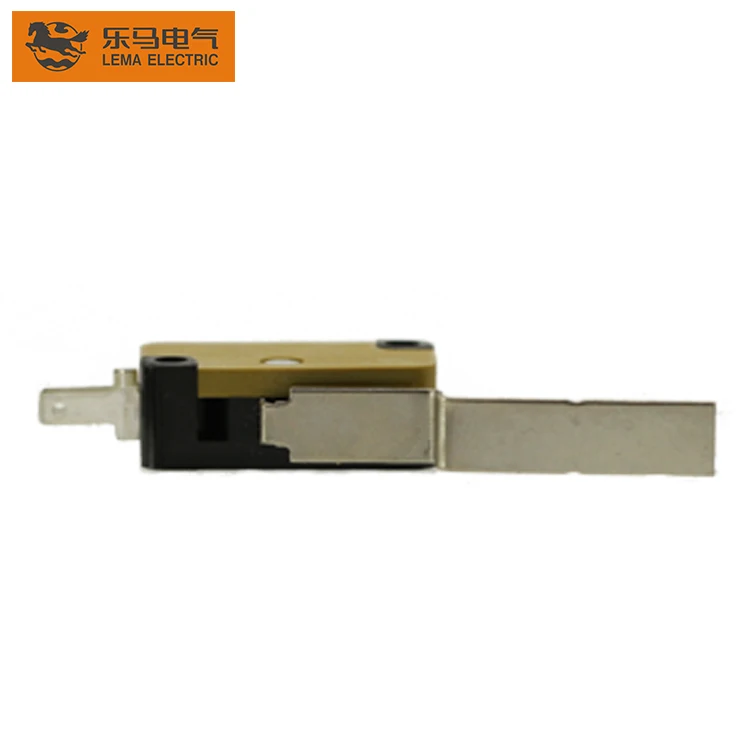

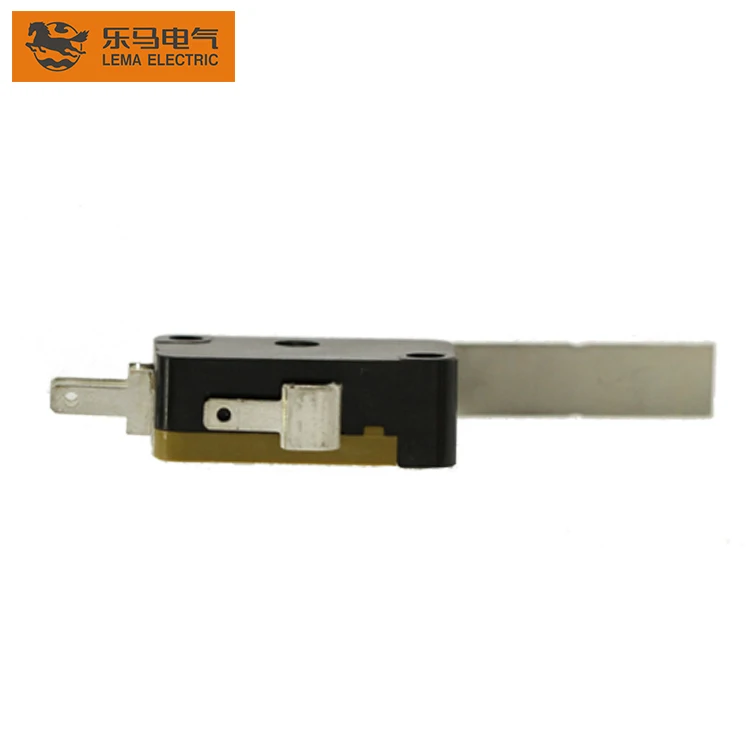

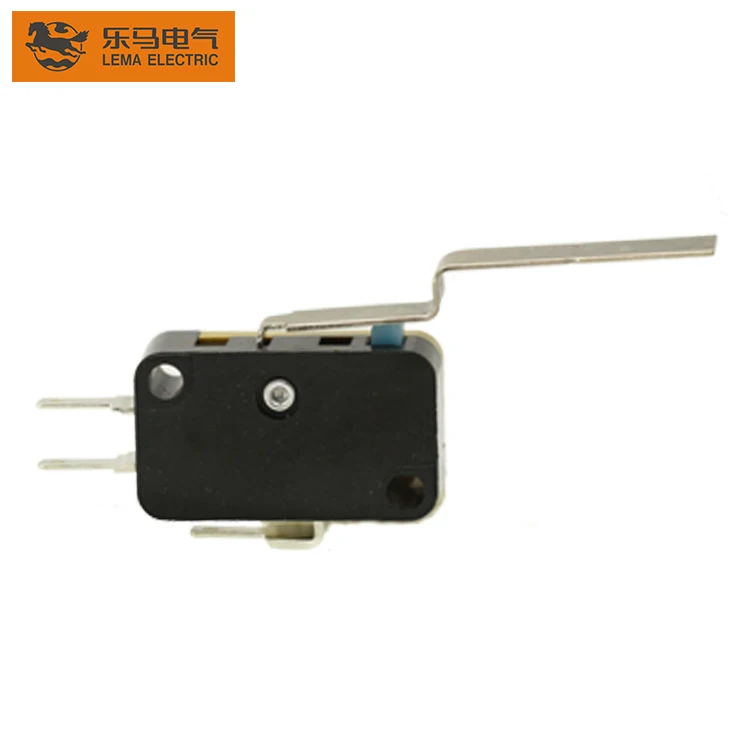

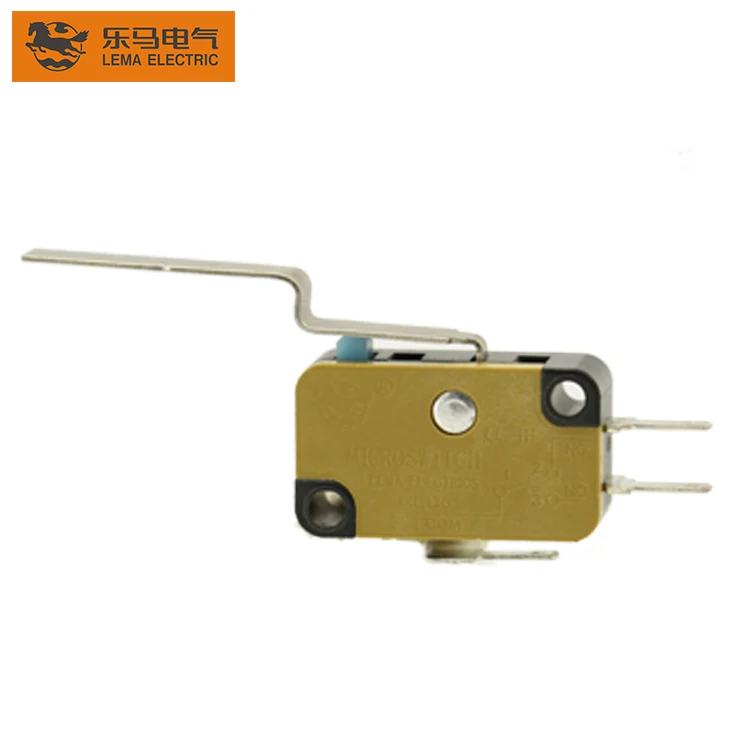

High Quality KW7N-9I2R SPDT Sensitive 16A 250VAC Microswitch for Door
- Категория: Микро переключатели >>>
- Поставщик: Zhejiang,Lema,Electrics,Co.,Ltd.,[Zhejiang,China]Zhejiang
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 52.19 $* | 55.60 $* |
| Aug-20-2025 | 52.30 $* | 55.78 $* |
| Jul-20-2025 | 44.5 $* | 46.75 $* |
| Jun-20-2025 | 51.17 $* | 54.30 $* |
| May-20-2025 | 44.32 $* | 46.80 $* |
| Apr-20-2025 | 50.59 $* | 53.26 $* |
| Mar-20-2025 | 50.35 $* | 53.99 $* |
| Feb-20-2025 | 49.96 $* | 51.37 $* |
| Jan-20-2025 | 49.10 $* | 51.34 $* |
Характеристики
High Quality KW7N-9I2R SPDT Sensitive 16A 250VAC Microswitch for Door Cabinet
| Operating speed | 0.1mm-1m/s | |
| Operating frequency | Mechanical:60 times/min | |
| Electrical:25 times/min | ||
| Initial insulation resistance | 100MΩmin.(at 500VDC) | |
| Initial contact resistance | 25MΩmax. | |
| Dielectric strength |
Between non-consecutive terminals |
1,000Vrms, 50/60Hz for 1 min |
| Between non-current carrying metal parts and each terminal |
1,500Vrms, 50/60Hz for 1 min | |
| Between ground and each terminal |
1,500Vrms, 50/60Hz for 1 min | |
| Vibration resistance | 10-55Hz,1.5mm double amplitude | |
| Shock resistance | Destruction | O.F.>0.5N:1000m/s2(Approx.100G)max. O.F.≤0.5N:400m/s2(Approx.40G)max. |
| Malfunction | O.F.>0.5N:200m/s2(Approx.20G)max. O.F.≤0.5N:100m/s2(Approx.10G)max. |
|
| Operating life |
Mechanical life | 1,000,000 operations min. |
| Electrical life | 50,000 operations min. | |
| Weight | Approx.6.2g (no lever) | |
