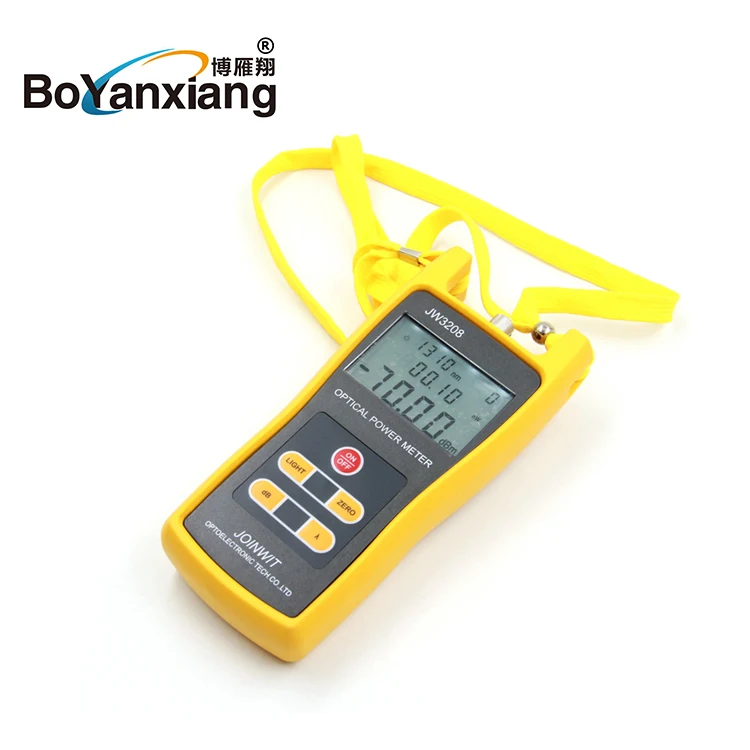

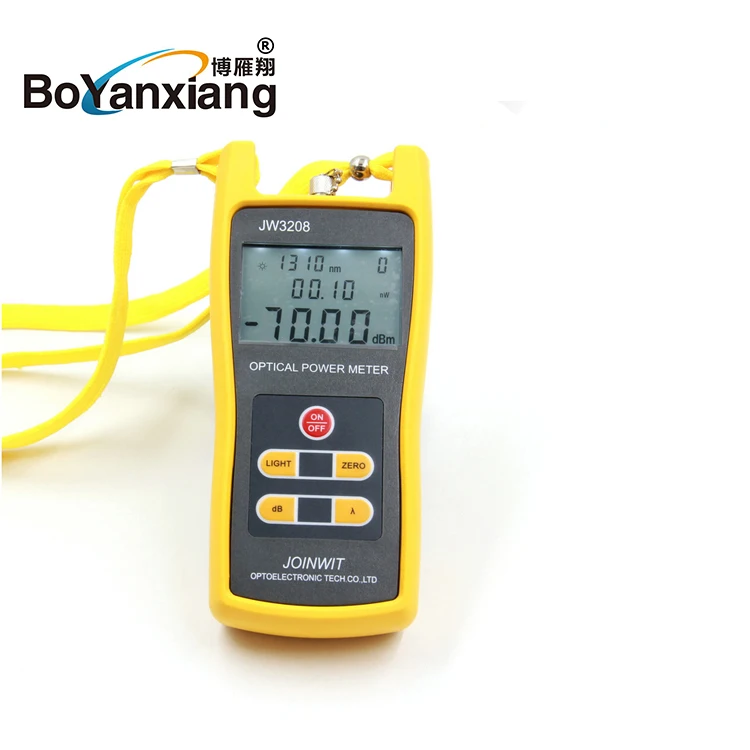

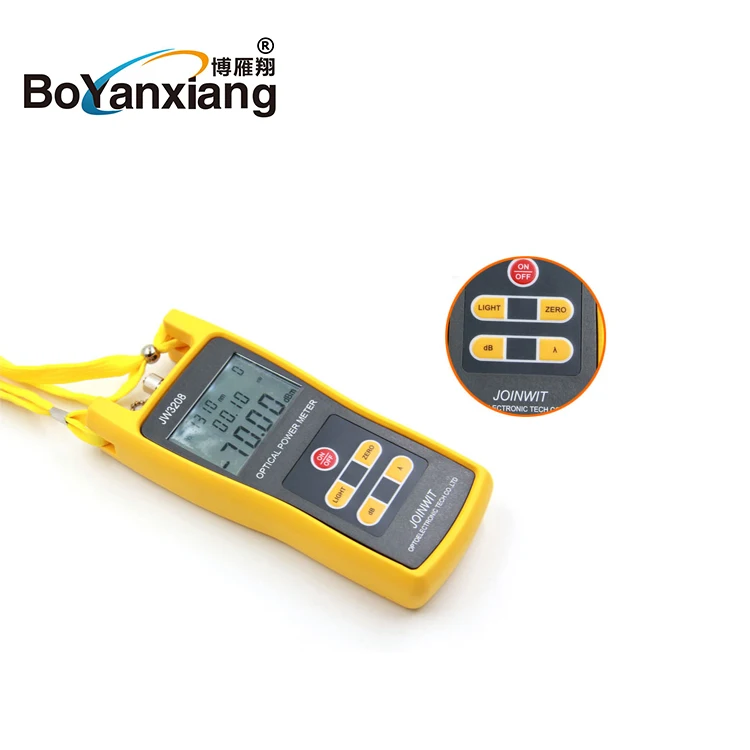

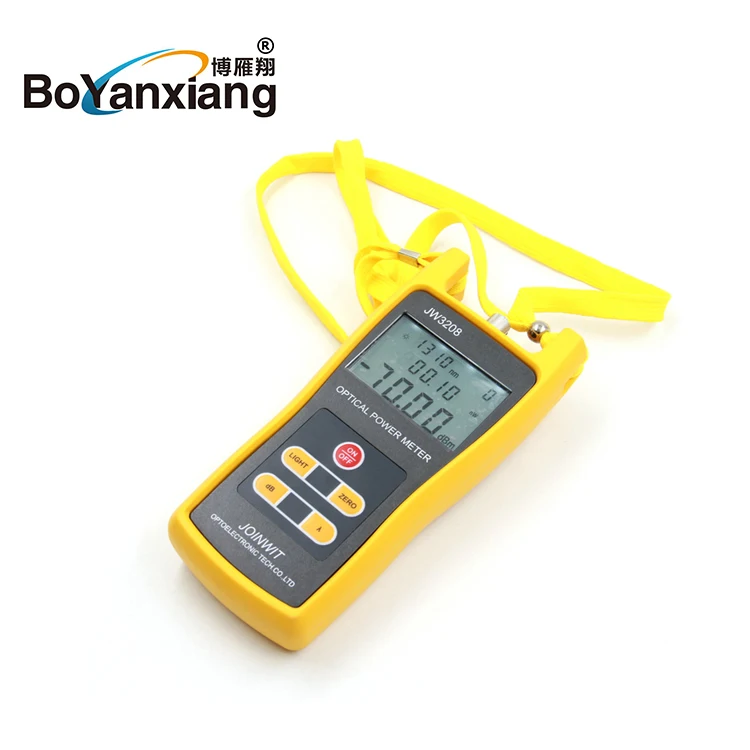

Китай Лидер продаж высококачественный ручной волоконно-оптический измеритель мощности JW3208 800-1700
- Категория: Power Meters >>>
- Поставщик: Beijing,Byx,Optical,Fiber,Cable,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.82 $* | 0.45 $* |
| Aug-18-2025 | 0.29 $* | 0.22 $* |
| Jul-18-2025 | 0.5 $* | 0.59 $* |
| Jun-18-2025 | 0.52 $* | 0.12 $* |
| May-18-2025 | 0.36 $* | 0.57 $* |
| Apr-18-2025 | 0.61 $* | 0.86 $* |
| Mar-18-2025 | 0.17 $* | 0.33 $* |
| Feb-18-2025 | 0.55 $* | 0.95 $* |
| Jan-18-2025 | 0.80 $* | 0.82 $* |
Характеристики
Features:
- User self calibration function
- Comfortable LCD display and optional backlight LCD display supports night operation
- Power measurements in dBm or mw and insertion loss in dB
- Low battery consumption, more than 240 hours continual operation time
- for three 1.5V alkaline batteries
- Optional 10 minutes Auto-off function
Application:
- Maintenance in Telecom
- Maintenance CATV
- Test Lab of optical fibers
- Other Fiber Optic Measurements
Specification:
Type | WF3208 | WF3208H |
Wavelength(nm) | 800~1700nm | |
Detector | InGaAs | |
Measurement Range(dBm) | -70~+3 | -50~+26 |
Uncertainty | ±5% | |
Calibrated Wavelength(nm) | 850,980,1300,1310,1490,1550 | |
Resolution(dB) | 0.01 | |

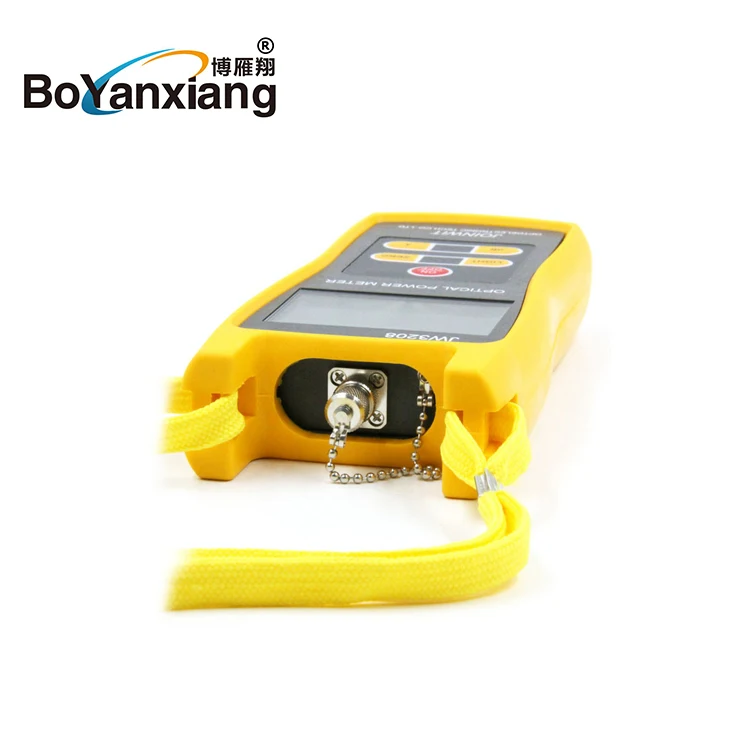

Optical Connector
| FC(interchangeable SC,ST) / as well as 2.5mm universal | |
Power Supply | Alkaline Battery(3 AA 1.5V batteries) | |
Battery Operating Time | 240 h with 1.5V Battery(3) | |
Operating Temperature | -10 ~ +60 | |
Storage Temperature | -25 ~ +70 | |
Relative Humidity | 0 to 95% (non-condensing) | |
Dimension(mm) | 175x82x33 | |
Weight(g) | 310 | |

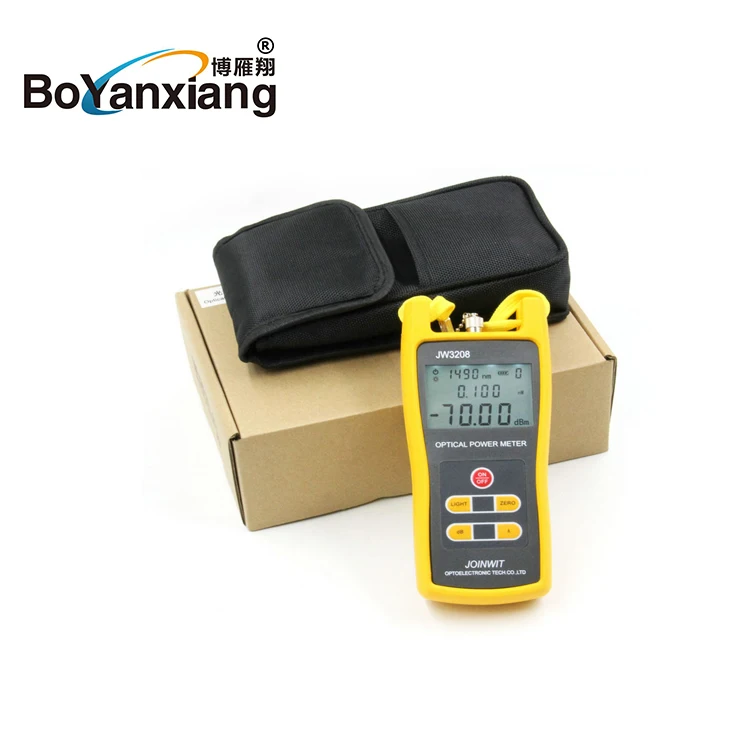

All WF3208 Models Standard package | WF3208 Optical Power Meter, Protective Rubber Boot, 3pcs 1.5V batteries, User Manual, Cotton swabs and Soft carrying case. | |
