QOTOM 4 LAN Мини ПК Q350G4Y-S06 с Core i5 процессором и сетевым адаптером на Гбит гигабитный сетевой адаптер поддержка AES-NI серийный без вентилятора
- Категория: Mini PC >>>
- Поставщик: Shenzhen,Qotom,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 245.56 $* | 250.46 $* |
| Jul-18-2025 | 199.77 $* | 203.16 $* |
| Jun-18-2025 | 241.21 $* | 246.43 $* |
| May-18-2025 | 239.83 $* | 244.83 $* |
| Apr-18-2025 | 191.60 $* | 195.32 $* |
| Mar-18-2025 | 235.24 $* | 240.32 $* |
| Feb-18-2025 | 234.69 $* | 239.44 $* |
| Jan-18-2025 | 232.27 $* | 237.85 $* |
Характеристики
Product Description
Dimension | 187*111*37mm(L*H*W) |
Packaging dimension: | 270*230*90mm |
Weight | 2Kg ( Reference ) |
Power Consumption | TDP 11.5W |
Onboard CPU | Intel Core i5-4200Y Processor 3M Cache, up to 1.90 GHz |
Memory | Support DDR3L 1333/1600 MHz,1.35V 1 x DDR3 DIMM Memory Slot Max. Support up to 8GB Memory |
Hard Disk | - support SSD ( MSATA) |
Onboard VGA | Intel® HD4200 Graphics |
Onboard LAN | 4 x Intel I211-AT- 10/100/1000 Controller |
Audio Solution | Realtek ALC662 6-Channel HD Audio |

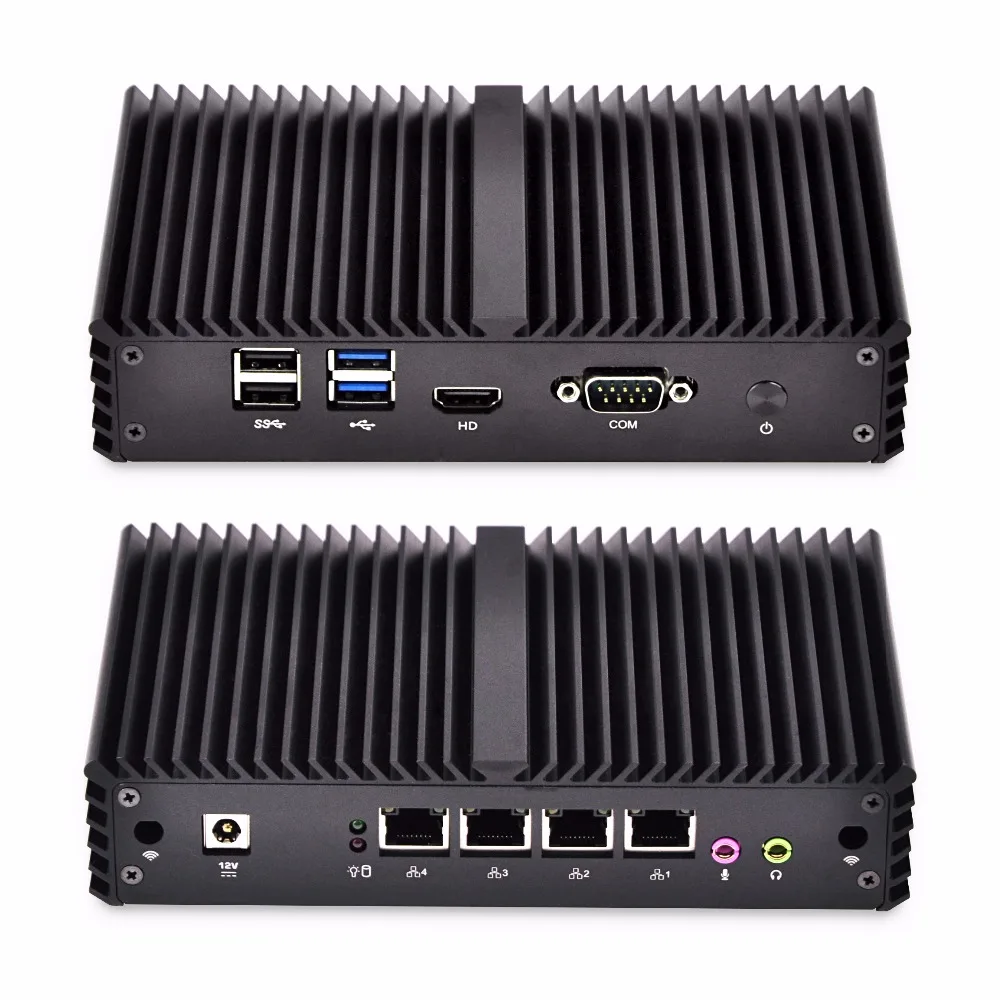

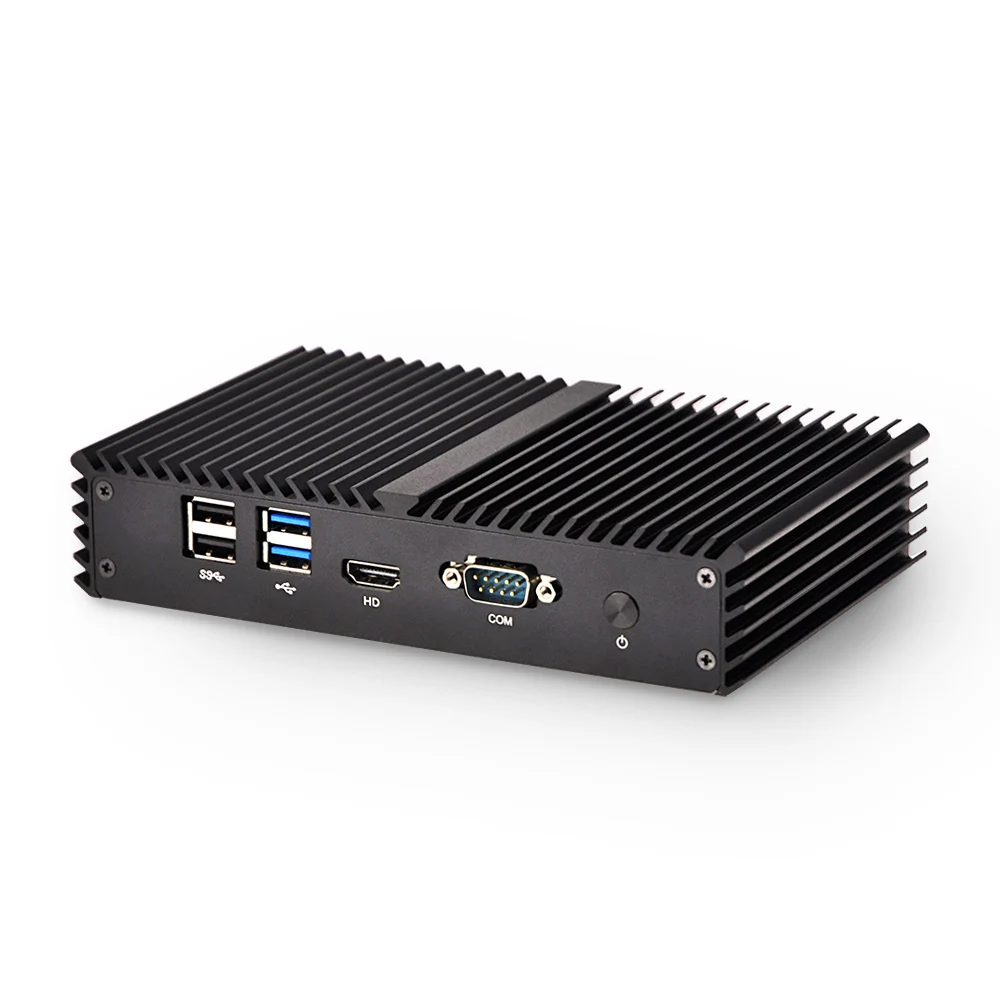

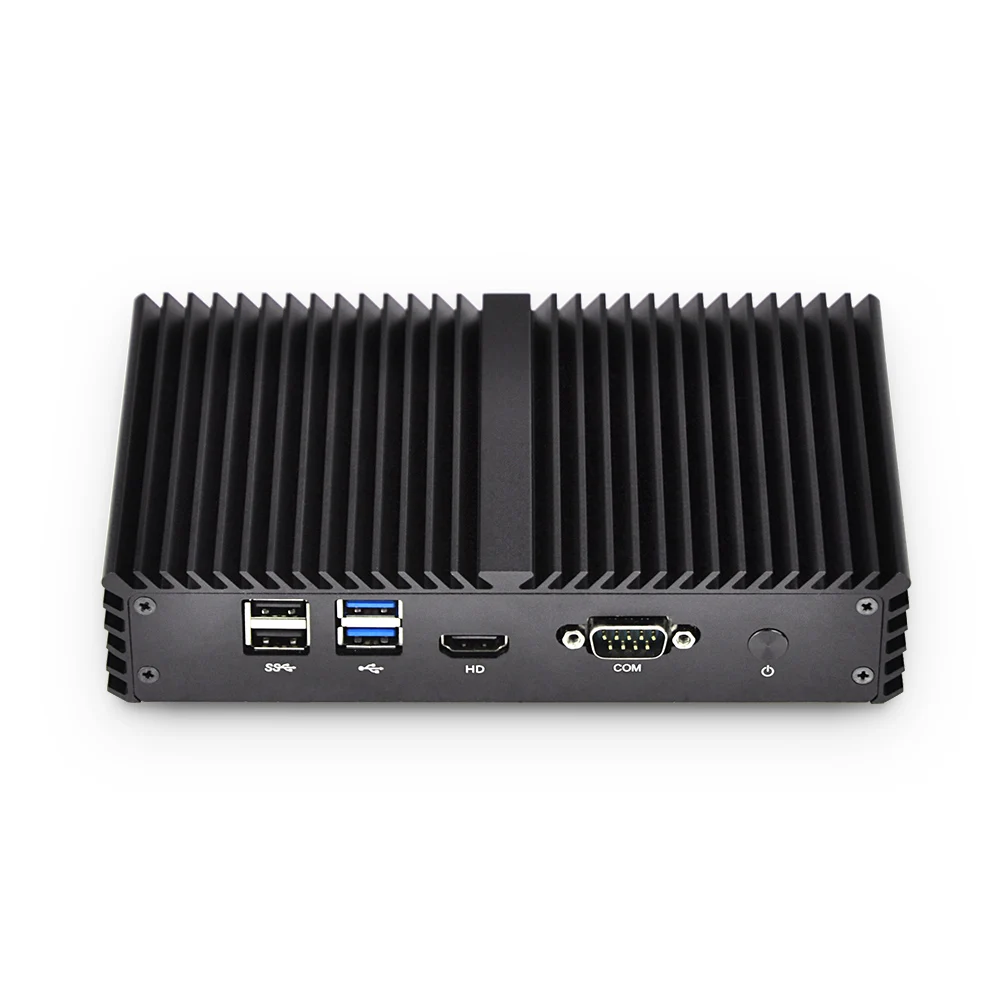

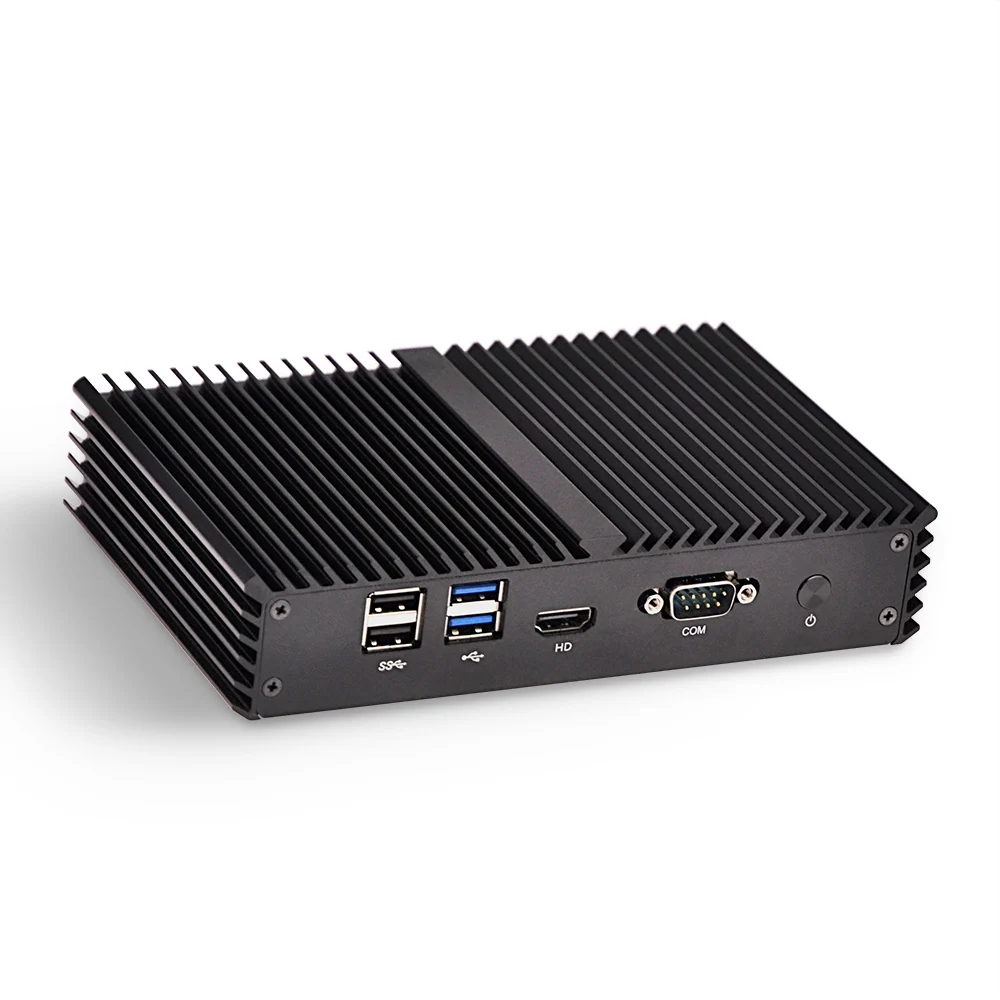

Front-Panel Connectors | • power on/off button • 2 x USB 3.0 Ports • 2 x USB 2.0 Ports • 1 x HD Video Connector • 1 × Serial port |
Internal Connectors | • 1 x Minipcie port (for mSATA SSD) • 1 x Minipcie port (for WIFI/BLUETOOT Module) • 1 x DDR3L SO-DIMM Memory Slot • 1 x SATA Port • 1 x SATA power connector • 1 x Automatically boot jumper • 1 x GPIO header (optional) • 1 x SIM Card slot (optional) |

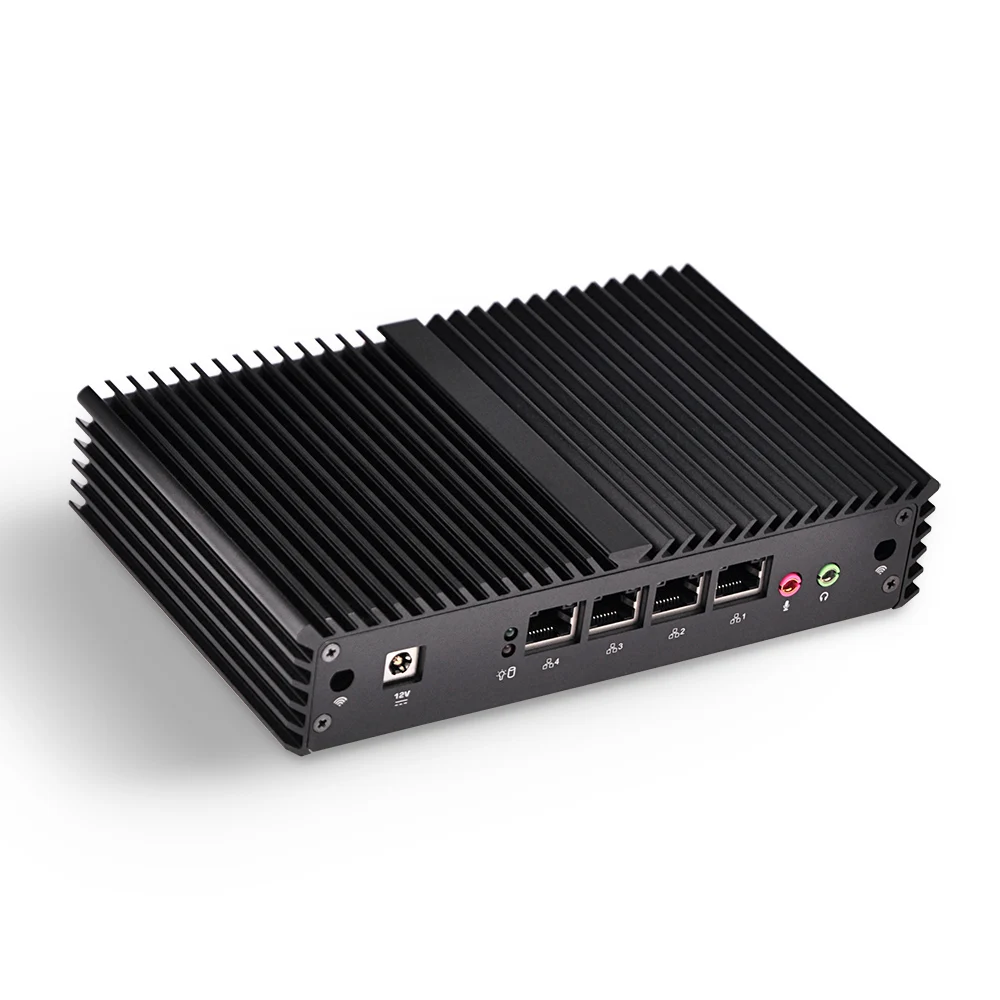

Back-Panel Connectors | • 1 ×DV 12V DC input • HDD LED, Power LEDs • 4 x Intel RJ-45 Ports • 1 x Speak Out Connector • 1 x Mic In Connector |
Operating System | Support Windows 7 / Windows 8 / Windows 10 / Linux .etc |
Configuration for Selection:
Memory | 2G, 4G , 8G DDR3 RAM |
Hard Disk | 8G/16G/24G/32G/64G/128G/240G/512G Msata SSD or 500G/1Tb 2.5" HDD |
WIFI | Optional |
Quotation
What size Memory and Hard Disk do you need?
Please choose Memory, Hard disk and contact Cherry Ni to get the latest price.
Q350G4Y MINI PC
Palm Size: 187*111*50mm(L*H*W)
Material: aluminium alloy ,Metal wire drawing process.
Weight: 2.0kg (WITH PACKAGE)
For Q350G4Y Firewall, you will get the mini pc with:
4*Intel RJ-45 LAN +2*USB2.0 +2*USB3.0+ 1* HD Video+1*COM + 1*DV 12V DC INPUT
1)Great reliability
With the adoption of the Intel i5-4200Y ultra power consumption processor and switching mode power supply, Q350G4Y can provide stable, sufficient and efficient power. The stability of the Q350G4Y is further guaranteed with the switching mode of power supply applied in memory, too. All of the external devices of the motherboard is composed of some anti-static and jam-proof components which ensured the operation of a stable and efficient system.
2)Working Condition
Working Temperature：-10℃～50℃
Working Humidity：5%～95%（Non-gel）
Fanless, zero noise, cheap, small, with four Intel Gigabit ethernet interfaces, Mini PC Q350G4Y is a perfect fit for or advanced Firewall / Router distros. The construction is nice and compact, rock solid. You can install your favorite Operating System and software package to Build Your Own Firewall / Router.
VESA bracket
It comes with a VESA mounting kit so that you can put it on the backside of a monitor to save space.
WIFI
If you order WIFI, the package box will include 2 pcs antennas.
F11 key boot from USB Drive. Delete key enter into BIOS.
It can support Watch Dog,Wake up on Alarm,Wank on Lan, Restore From AC power loss.
test
It support supports Windows, Linux, , Sophos, VyOS, Linux iptables, Untangle, ect.
Related Products
Application Field
1,It can act as a host, applying to home, office, library, hospital, restaurant, bank and almost of where need a computer.
2,This Mini Pc can be configured as a firewall, LAN or WAN router, VPN appliance, DHCP Server, DNS Server, and IDS/IPS with optional packages to deliver a high performance, high throughput front-line security
Our Company
With years of export experience along with excellent quality, advanced services and competitive prices, Qotom has won numerous customers' trust and support.With years of export experience along with excellent quality, advanced services and competitive prices, Qotom has won numerous customers' trust and support.

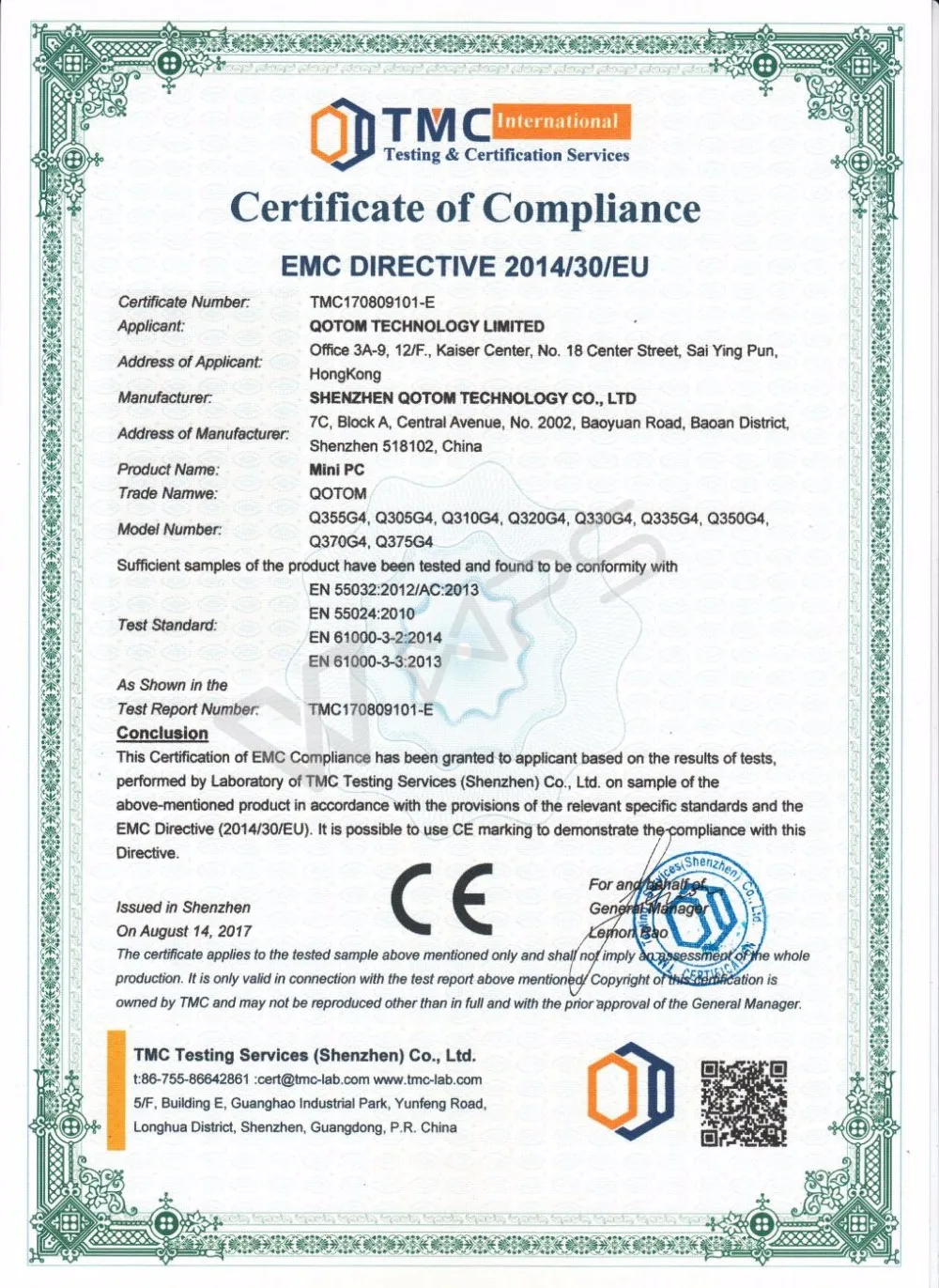

Certifications
Contact Us
Packing & Delivery
What's in the Package box?
1* mini pc
1* the holder
2* antenna (if you order wifi)
1* package box
1*12V 5A Power adapter and power plug.
There are 5 kinds of plug: Chinese standard/European standard / British standard / Australian standard / American standard)
Delivery
1. DHL/UPS/FEDEX EXPRESS and EMS are workable, and DHL would be preferred as the first choice. If you’d like other shipment terms, contact us, pls!
2. The goods will be sent out within 3 working days after the full payment has been confirmed.
3. It usually takes 3 to 5 working days to the destination by DHL/UPS and FEDEX EXPRESS. And it’s about 8 to 14 working days by EMS.
PAYMENT
1.T/T, Moneygram, paypal and Western Union are acceptable and optional. If you ‘d like other payment terms, contact us, pls!
2. Full payment must be made within 7 days after placing the order. If not, the order will be invalid and canceld by the system.
3. Make sure all the detailed buyer information have been correctly and completely filled in.
WARRANTY
1.For all the mini pcs you bought from us, we provide a full one-year warranty.
2.We assure you that all the mini pc and accessories have been tested before delivery.
3.If the products do not work well, contact us, pls! We will try to figure out workable solutions with our professional team.
FAQ
Q1. What's your MOQ?
A:The MOQ will be 1 sets for each order.
Q2: What's the lead time?
A: It will be 1-2 days for samples and 2-12 days for bulk order, depends on your required.
Q3. Can I print my logo on the mini computer?
A:Yes, we can print your logo on the Qotom mini computers /package box by silk print , as you required. MOQ:50 pcs
Q4:Can your device work 24h*7 days? And what about the temperature range it can operate in?
A:Yes, our computers can work 24h* 7 days. The working temperature is -10°-55°.
Q4. Can you provide OEM/ODM service?
A:Sure, you can customized the package box, housing(outer shell), interface port, GPS module,3G/4G module and the function of motherboard as you want,the unit price will be different depends on the specification, please contact us Qotom group for more details !
Q5: Can I arrange the shipment by myself ? I have forwarder in China.
A: No problem, we can delivery in China for free. Please inform your forwarder that our products have lithium metal battery on motherboard, that is very important.
