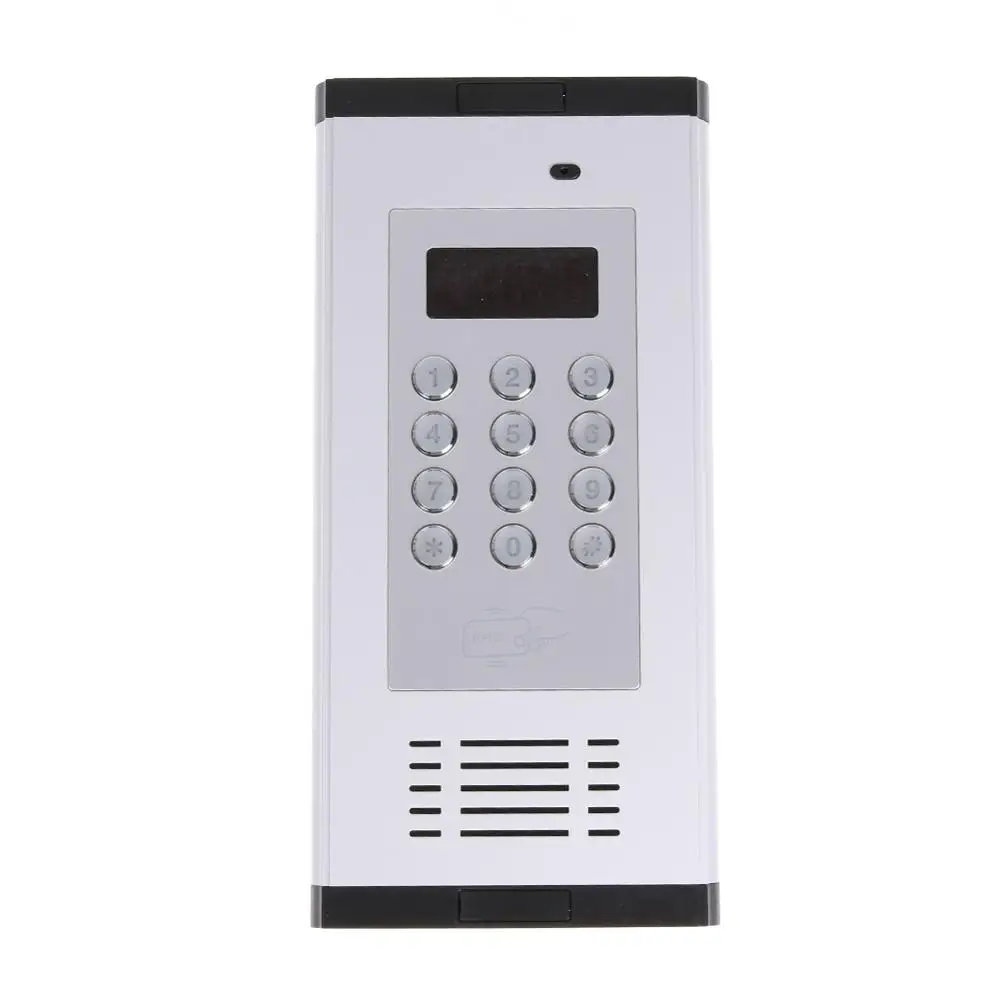

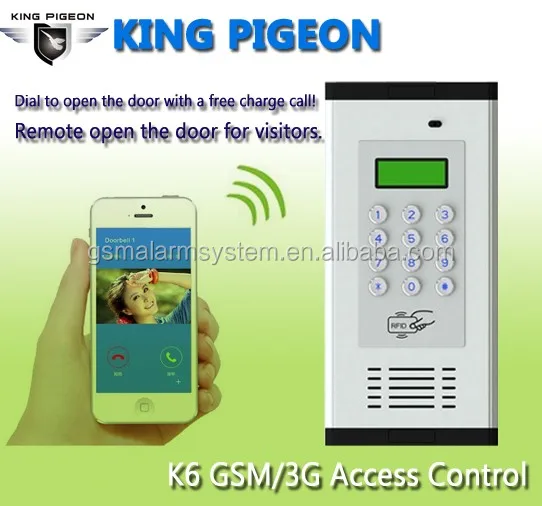

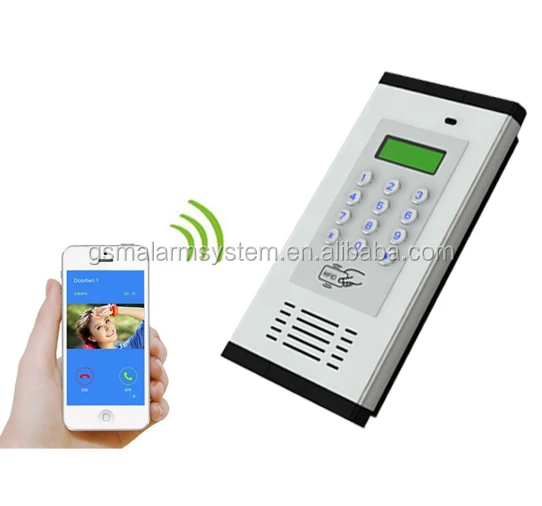

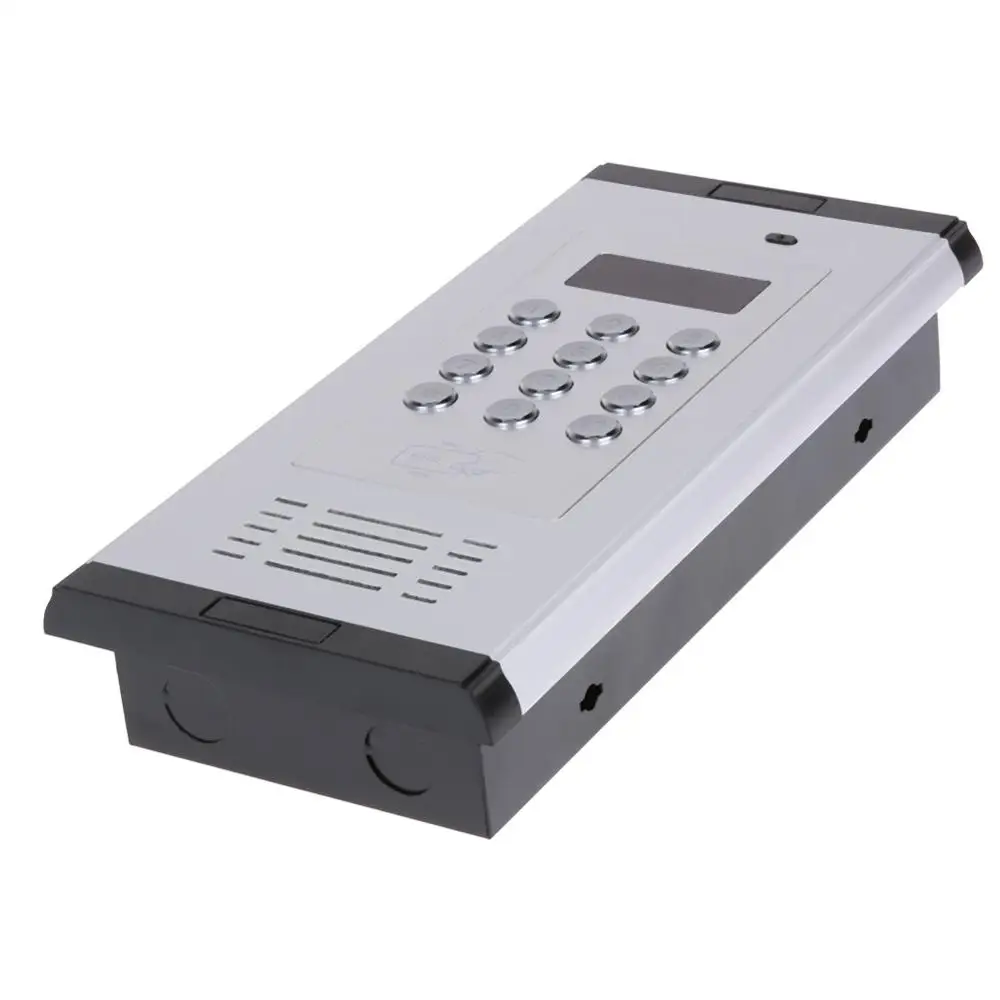

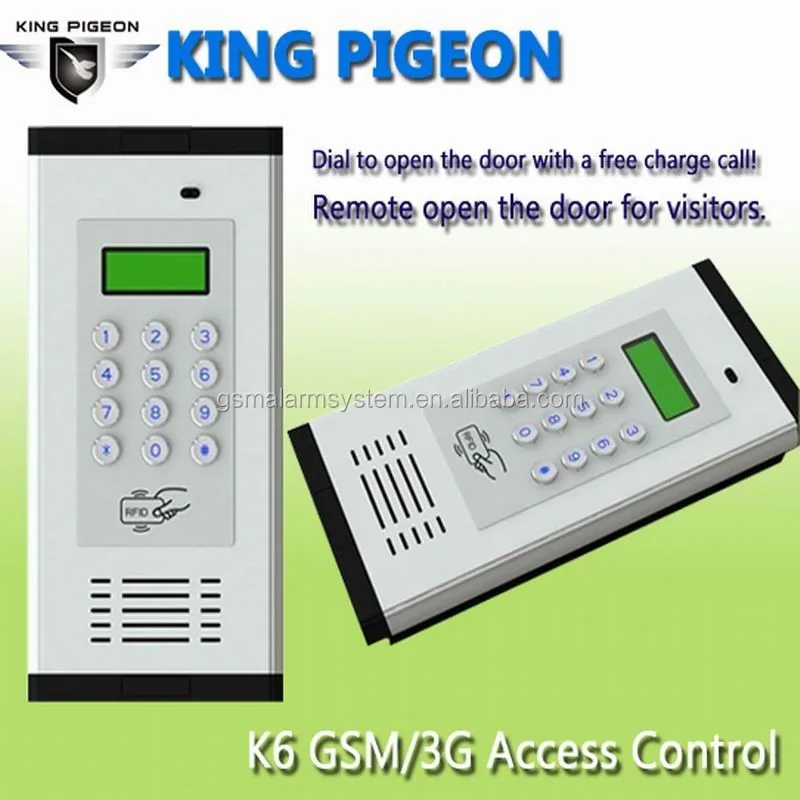

The GSM Access Control is a new type advanced Access Control system, it supports dial to open the door for user or visitors. By this new type access control system, no need to install indoor intercom any more to save wiring and indoor intercom cost.
The GSM Access Control inbuilt an industrial quad band 850/900/1800/1900Mhz GSM Module (3G Module is optional), supports up to 1000 authorized phone numbers for maximum 200 room numbers, it is special for apartment access control.
For authorized users, the GSM Access Control will reject the call from authorized number then carries out the open door action on the first 'ring', no call charges. Also, the user can use RFID card to open the door.
For visitors, dial the room number on the GSM Access Control keypad, the GSM Access Control will dial the room owner’s phone automatically, the owner can open the door remotely or reject to open the door.
For administers, can manage the room owner phone numbers remotely by SMS or by keypad.
Mainly Features of access control :
1.Inbuilt Quad-band 850/900/1800/1900Mhz GSM module, 3G is optional;
2.Secure - Using caller ID for identification, unknown callers are ignored;
3.No need to install indoor intercoms, no need wiring and indoor intercom cost;
4.No call charges. the GSM Access Control rejects the call from authorized number then carries out the open door action on the first 'ring';
5.Can open the door for visitors from anywhere, no distance limit;
6.No need to provide a remote control or keys or RFID card for different users;
7.Up to1000 authorized phone numbers for maximum 200 room owners;
8.Each Room has an Admin Password and 5 authorized Phone Numbers and 5 RFID Card;
9.Supports RFID Card to open the door;
10..Administer can add or remove authorized users by SMS Text commands;
11.2 Relay Outputs (NC/NO), Relay close time is programmable (1~300 seconds), compatible with Electronic Locks and CCTV Camera;
12.User Friendly Design, LED Screen, Alloy Shell and keypad , Easy for installation;
Technical Specification of access control :
Item
Reference Scope
DC Power supply
Standard adapter: DC 12V/1.5A
Power consumption
Standby:12V/70mA; Working Max.: 12V/300mA
GSM Frequency
850/900/1800/1900Mhz/ 3G WCDMA/3G CDMA2000
Transmit power
Class 4 (2W) at EGSM 900 and EGSM 850
Class 1 (1W) at GSM 1800 and GSM 1900
SIM interface
Supporting 3V SIM Card
External antenna
SMA Antenna interface, 50 Ohm
Max.Autorized Number
1000
Max. Room Number
200
Max. RFID Card
1000, non-contact RFID Card(M1 S50)
Relay Outputs
2, Rated: 5A/30VDC,5A/250VAC
Temperature range
-10-+70 °C
Humidity range
Relative humidity 95% (condensation free)
Exterior dimension
273mm*130mm*50mm
Install Dimension
252mm*113mm*33mm
Wall-mount Dimension
252mm*113mm*33mm
Net Weight
1000 g
