Система Опалубки из алюминиевого сплава для домашнего

Описание и отзывы

Трекер стоимости

Характеристики

aluminium alloy formwork system for home construction

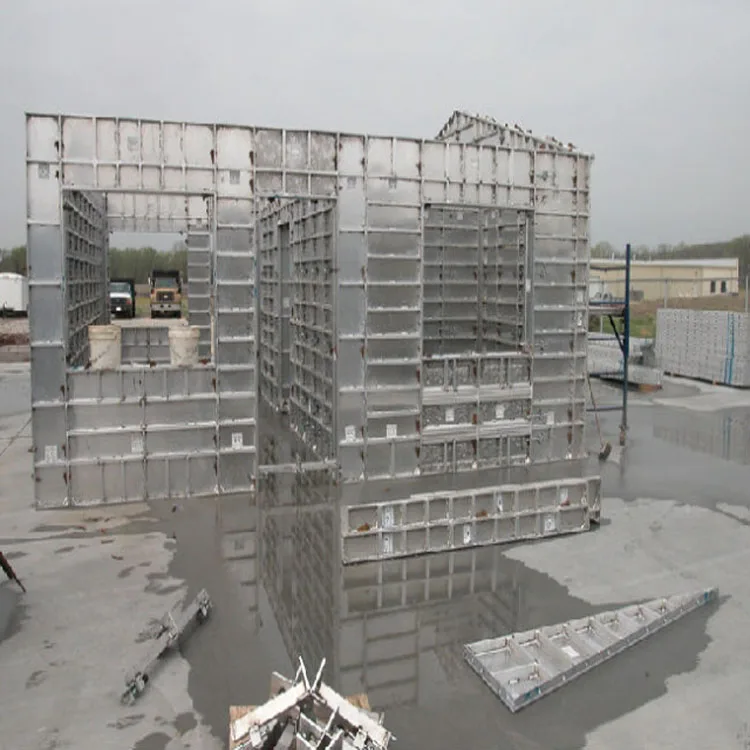

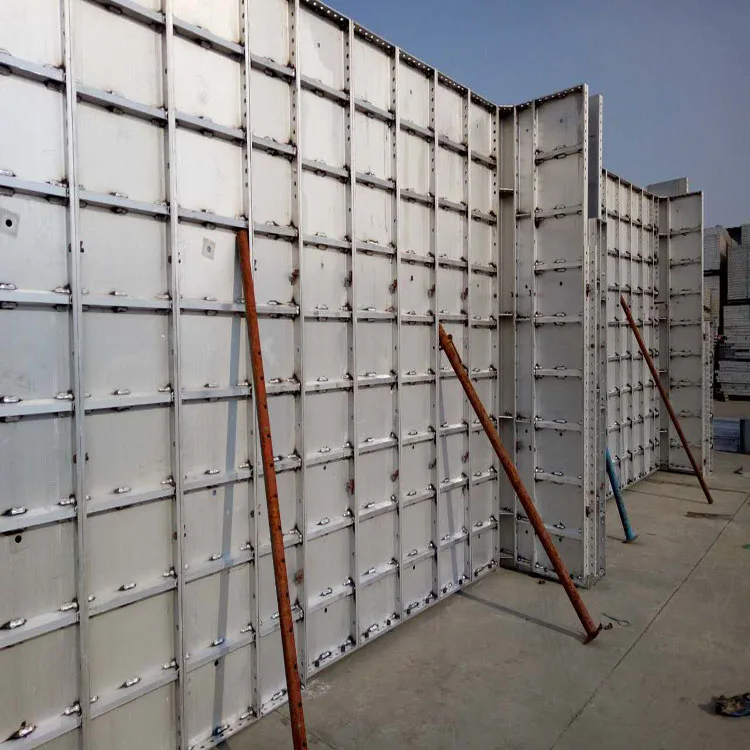

Aluminum Formwork
Material	6061-T6 Aluminium alloy
Main Components	Beam,Column,Wall,Prop,Others
Safe Working Load	60KN/m2
Size	Non-standard: custom-made as per buy’s requirements
Capacity	20000 sqm per month
Applications	Exhibition setup
	Interior refurbishing
	All the towers can be connected together for multi-purpose

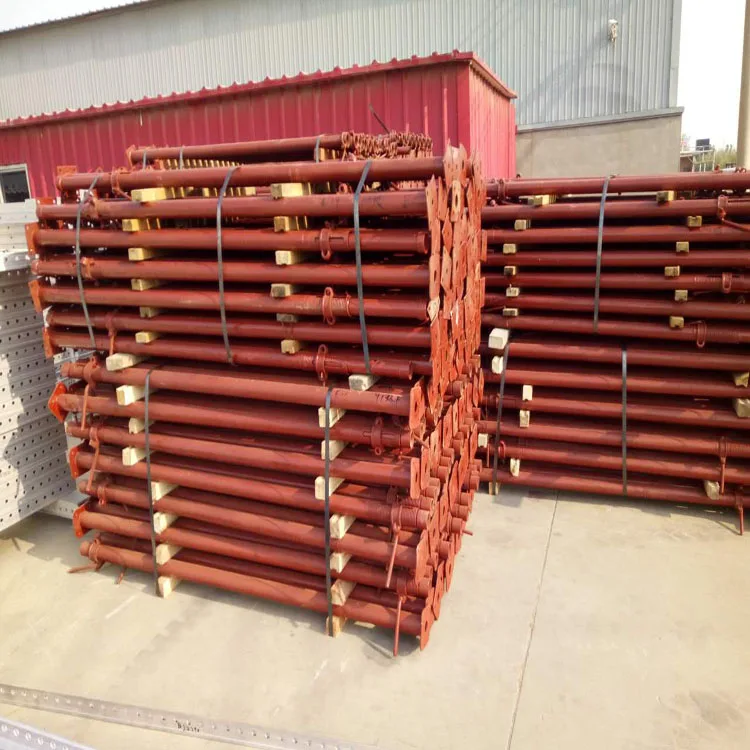

Prop Of Aluminum Formwork
Material	Q235  Q275   Q345
Usage	To support aluminum formwork firmly and safely (Concrete Construction Works)
Type	Heavy / light duty
Surface Treatment	Painted varnish / pre-galvanized / Hot dip galvanized

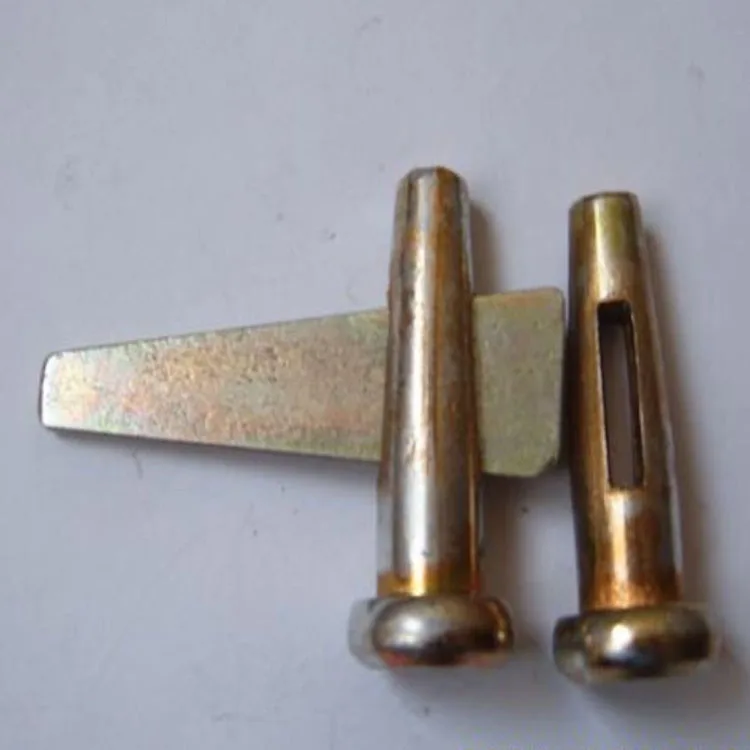

Fixed Pin	Straight or Hook
Common Height(m)	1.6 - 2.9	1.7 - 3.0	1.8 - 3.2	2.0 - 3.6	2.2 - 4.0
	2.4 - 3.9	2.5 - 4.5	2.6 - 5.0	3.0 - 5.0	3.2 - 6.0
Diameter(mm)	40/48mm  48/56mm   48/60mm
Thickness(mm)	1.6	1.8	2.0	2.5	3.0







FAQ

FREQUENTLY ASK QUESTIONS:(If your questions are unlisted on below, pls Click here to let us know.)

-Q-: Do I use this set of formwork to another project?

A: There are nearly 70% standard panels can be common use.

-Q-:What's your packing methods?

A:  protection foam+heat contracted plastic film. / wooden packing / Metal pallet or depend on clients special requirement.

-Q-:What's your payment terms?

A: T/T 30% in advance & T/T 70% upon sending the copy of Bill of Lading, L/ C  100%, or negotiate according to the order status

-Q-:Are you manufacturer or trader?

A: We are the munafacturer of aluminum formwork system. Our group company has 4 factories, coveraged every scaffolding systems.

-Q-:If I don't have people know well about your forwmork system?

A: We will send 2 or more technicists to your construction site for guidance.

-Q-:Do I use this set of formwork to another project?

A: There are nearly 70% standard panels can be common use.
