Meanwell понижающий din-рейку источник питания 30W 24V 1.5A
- Категория: Источники питания >>>
- Поставщик: Hangzhou,Jiang,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.63 $* | 0.28 $* |
| Aug-15-2025 | 0.55 $* | 0.78 $* |
| Jul-15-2025 | 0.44 $* | 0.51 $* |
| Jun-15-2025 | 0.35 $* | 0.89 $* |
| May-15-2025 | 0.40 $* | 0.33 $* |
| Apr-15-2025 | 0.84 $* | 0.16 $* |
| Mar-15-2025 | 0.54 $* | 0.25 $* |
| Feb-15-2025 | 0.20 $* | 0.80 $* |
| Jan-15-2025 | 0.32 $* | 0.94 $* |
Характеристики

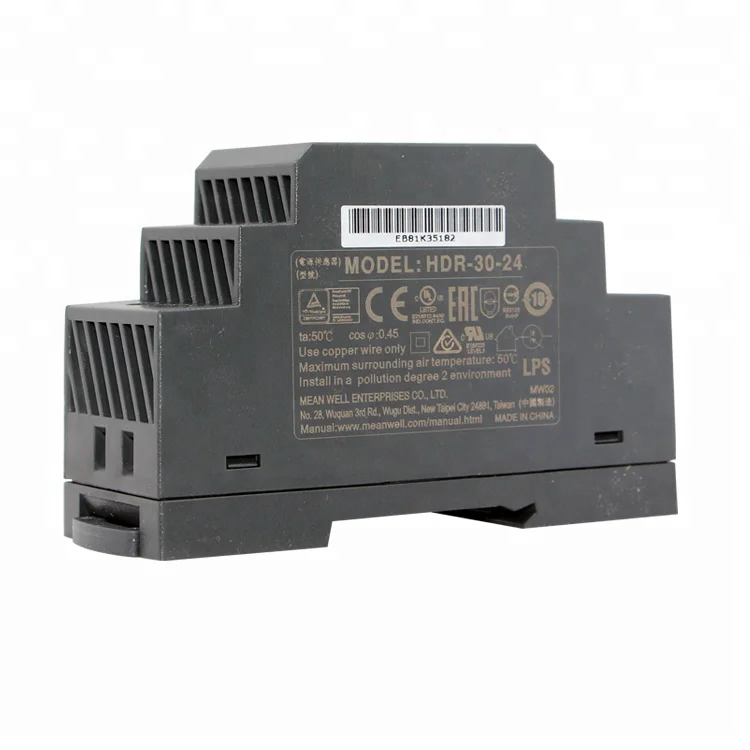

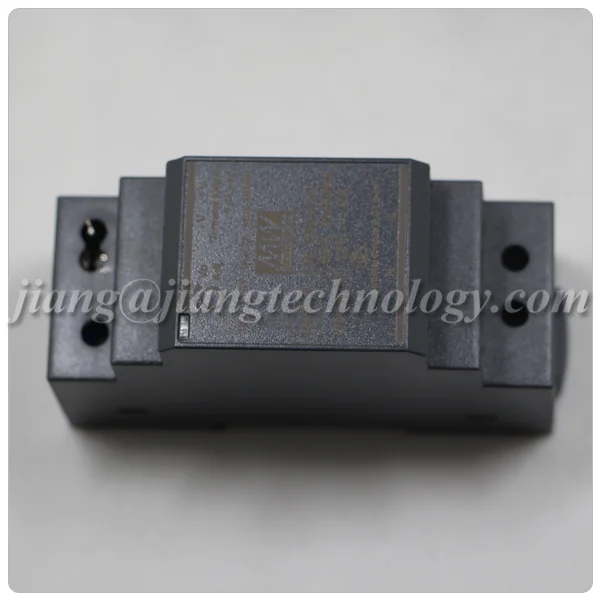

Meanwell Step Down Din Rail Power Supply 30W 24V 1.5A HDR-30-24
Product Overviews
Features:
- Meanwell 24V 1.5A Power Supply
- Ultra slim design with 35mm(2SU) width
- Universal input 85~264VAC(277VAC operational)
- No load power consumption<0.3W
- Isolation class II
- Pass LPS (Limited power source)
- DC output voltage adjustable
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection (working temperature: -30~+70℃)
- DIN rail TS-35 / 7.5 or 15 mountable
- LED indicator for power on
- 3 years warranty
Applications:
- Household control system
- Building automation
- Industrial control system
- Factory automation
- Electro-mechanical apparatus
Model Series:

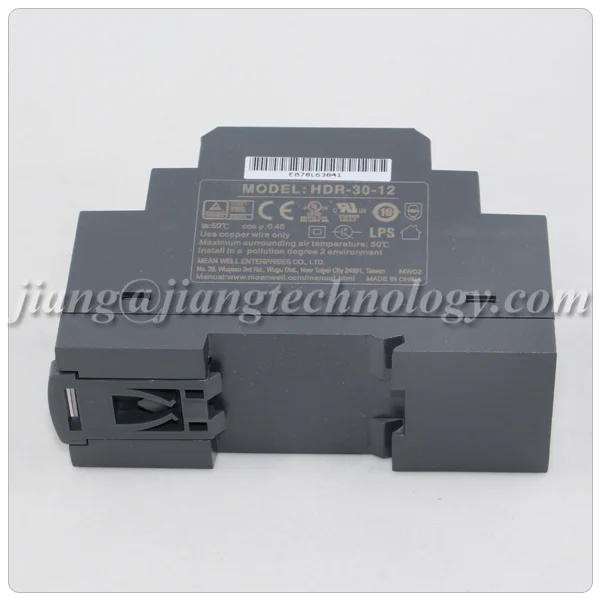

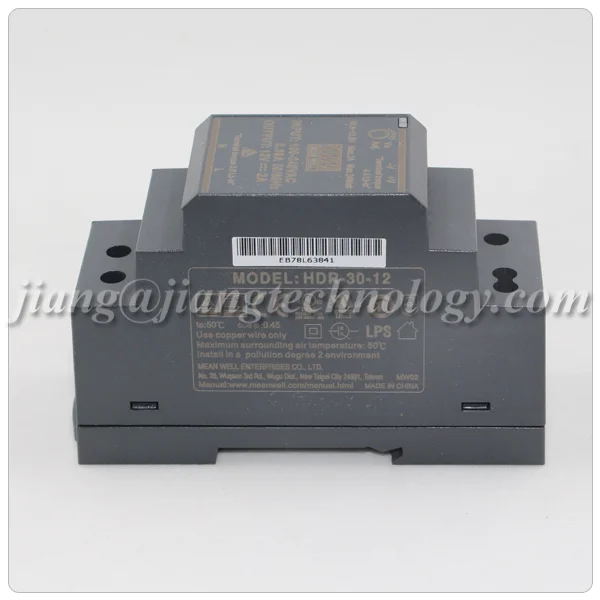

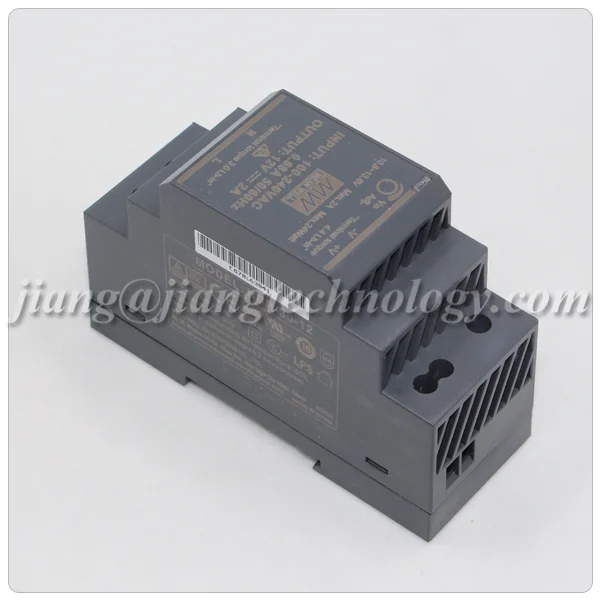

HDR-30-5 / HDR-30-12 / HDR-30-15 / DR-30-24 / HDR-30-48
Details:
| MODEL | HDR-30-5 | HDR-30-12 | HDR-30-15 | HDR-30-24 | HDR-30-48 | |
| OUTPUT | DC VOLTAGE | 5V | 12V | 15V | 24V | 48V |
| RATED CURRENT | 3A | 2A | 2A | 1.5A | 0.75A | |
| CURRENT RANGE | 0 ~ 3A | 0 ~ 2A | 0 ~ 2A | 0 ~ 1.5A | 0 ~ 0.75A | |
| RATED POWER | 15W | 24W | 30W | 36W | 36W | |
| RIPPLE & NOISE | 80mVp-p | 120mVp-p | 120mVp-p | 150mVp-p | 2450mVp-p | |
| VOLTAGE ADJ. RANGE | 4.75 ~ 5.5V | 10.8 ~ 13.2V | 13.5 ~ 18V | 21.6 ~ 29V | 43.2 ~ 55.2V | |
| VOLTAGE TOLERANCE | ±2.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| LINE REGULATION | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| LOAD REGULATION | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| SETUP, RISE TIME | 500ms, 50ms/230VAC 500ms, 50ms/115VAC at full load | |||||
| HOLD UP TIME | 30ms/230VAC 12ms/115VAC at full load | |||||
| INPUT | VOLTAGE RANGE | 85 ~ 264VAC (277VAC operational ) 120 ~ 370VDC 390VDC operational ) | ||||
| FREQUENCY RANGE | 47 ~ 63Hz | |||||
| EFFICIENCY | 82% | 88% | 89% | 89% | 90% | |
| AC CURRENT | 0.88A/115VAC 0.48A/230VAC | |||||
| INRUSH CURRENT | COLD START 25A/115VAC 45A/230VAC | |||||
| PROTECTION | OVERLOAD | 105 ~ 160% rated output power | ||||
| Protection type : Constant current limiting, recovers automatically after fault condition is removed | ||||||
| OVER VOLTAGE | 5.75 ~ 7.5V | |||||
| Protection type : Shut down o/p voltage, re-power on to recover | ||||||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70°C (Refer to "Derating Curve") | ||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85°C , 10 ~ 95% RH | |||||
| TEMP. COEFFICIENT | ±0.03%/°C (0 ~ 50°C) | |||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6 | |||||
| OPERATING ALTITUDE | 2000 meters | |||||
| SAFETY & EMC | SAFETY STANDARDS | UL60950-1, UL508, TUV EN61558-2-16, IEC60950-1 approved; Design refer to EN50178,TUV EN60950-1 | ||||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC | |||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25°C / 70% RH | |||||
| EMC EMMISION | Parameter | Standard | Test Level / Note | |||
| Conducted | EN55032(CISPR32) | Class B | ||||
| Radiated | EN55032(CISPR32) | Class B | ||||
| Harmonic Current | EN61000-3-2 | Class A | ||||
| Voltage Flicker | EN61000-3-2 | --- | ||||
| EMC IMMUNITY | EN55024, EN55035, EN61000-6-2, EN61204-3 | |||||
| Parameter | Standard | Test Level /Note | ||||
| ESD | EN61000-4-2 | Level 3, 8KV air; Level 2, 4KV contact, criteria A | ||||
| Radiated Susceptibility | EN61000-4-3 | Level 3, criteria A | ||||
| EFT/Burest | EN61000-4-4 | Level 3, criteria A | ||||
| Surge | EN61000-4-5 | Level 4,2KV/L-N, criteria A | ||||
| Conducted | EN61000-4-6 | Level 3, criteria A | ||||
| Magnetic Field | EN61000-4-8 | Level 4, criteria A | ||||
| Voltage Dips and interruptions EN61000-4-11 | EN61000-4-11 | >95% dip 0.5 periods, 30% dip 25 periods, | ||||
| >95% interruptions 250 periods | ||||||
| Compliance to EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024, EN61000-6-2, EN61204-3, heavy industry level, criteria A | ||||||
| OTHERS | MTBF | 968.1K hrs min. MIL-HDBK-217F (25℃) | ||||
| DIMENSION | 35*90*54.5mm (W*H*D) | |||||
| PACKING | 0.12Kg;96pcs/12.5Kg/1.04CUFT | |||||
Mechanical Specification:
Other Series for Choose:
More Products for Choose:
Meanwell Step Down Din Rail Power Supply 30W 24V 1.5A HDR-30-24
Warehouse & Shipping
Applications
Certifications
What Certification do we have?
FAQ
Q1. Are you original Mean Well Power Supply?
A: Yes, We sell 100% Genuine Mean Well. And there are 2 method to identify:
Method 1: The Original Brand Logo is 'Mean Well', not 'MiWi' 'MeanWell' or 'MingWei' etc.
Method 2: Each product has an unique Serial No. on it, which can be checked in Mean Well official website. (For more information, please contact our sales. )
Q2: Do you offer guarantee for the products?
A: Yes, we offer 2 ~ 7 years warranty.
If the goods have quality problem during warranty period, we provide maintenance service.
If you have using problem, welcome to contact us for help.
Q3. Can I have a sample order firstly? What is your MOQ limit?
A: Yes, sample order is acceptable. And we do not have MOQ limit. Welcome to inquiry.
Q4. What about the lead time and shippment?
A: For common type like APV, LPV, ELG, LRS, DR, MDR series, we have enough stock. Sample Order can be delivered within 3 days, Bulk Order can be delivered within 3~7 days after payment, not common type need 10~35 days after payment, for detail lead time, please contact our sales.
For shipping, we often use DHL, FedEx, UPS, and TNT. And they take 3-5 days to arrive. For bulk order, we recommend to send goods by Air or by Sea to save your transportation cost.
Q5: What is your payment terms?
A: We accept pay via Bank Transfer, Paypal and Western Union.
For bulk order, if the lead time is long, we also accept 30% in advance, and 70% balance before shipping.
We also accept Trade Assurance online to get 100% guarantee for your orders.
(For more details, please contact us)
Q6. How to proceed an order ?
A: 1. Inquiry: Tell us your requirements, such as model No, Quantity and delivery address...
2. Quotation: We will quote you soon according to your requirements.
3. Confirmation: If quotation is OK, we will send PI to you for payment.
4. Payment: After your payment, please give us your bank slip, then we can arrange goods for you soon.
5. Delivery: Once get your payment and goods all ready, we will delivery goods soon, and tell you the tracking number or Vessel No. then (For more details, please contact us.)
