Инструмент для подвязки арматуры Surspider/стальная

"Surspider" Intelligent Rebar Tier Make the Rebar Tying Easier, Stronger & Faster.

Rebar tier can be widely used in buidings, bridges, roads, railways, heat floor, swinning pool and even other special projects. the rebar tier take place of manual rebar tying, it imporoves the work effiency and save labor cost.

Surspider rebar tying gun/steel rebar tying machine tool Parameter
Item No.	ZKZ-40A	ZKZ-25A
Dimension(mm):	315x225x68	300x225x68
Weight(kg):	1.45	1.45
Voltage (V):	14.4	14.4
Tying range(mm):	26-40	12-24
Tying speed(s):	0.8	0.8
Tying wraps :	3	2
Ties per full standard battery(pcs):	1100	2000
Ties per full advanced battery(pcs):	3500	6200

Battery
Item	Standard Battery	Advanced Battery
Voltage(V):	14.4	14.4
Battery Capacity(Ah):	2.0	6.0
Charging Time(H):	2.8	2.7

Other Accessories
Double Charge		Wire Coil
Model No.:	HY-CH-14.4V2.9A-1	Diameter(mm):	0.8
Input Voltage/Current:	100-240VAC 50/60HZ 0.8A	Length(Meter):	100
		Net Weight:	390
Output Voltage/Current:	16.8V DC 2.9A	Ties/Scroll:	ZKZ-40A    147 ZKZ-25A    283

Advantages

21 Certificates & Patents

Invention Patent:

         1. on wire Twisting mechanism of rebar tying tool. the certificate No. in China is ZL 2014 1 0787970.0.

         2. on Wire sending mechanism of rebar tying tool. the certificate No. in China is ZL 2014 1 0788235.1.



Utility Moder Patent:

        1. on wire scroll locking mechanism of rebar tying tool, the certificate No in China is ZL 2015 2 0248889.5.



Appearance Design patent:

         1.  about the portable battery pack. the certificate No. in China is Zl 2015 3 0333052.6.

      2. about the rebar tying tool. the certificate No. in China is ZL 2015 5 0332805.1.

Rebar Tier certificate:  CE + RoHS



Li-polymer Battery Certificate: CE + RoHS





Double Charger for Li-ion Batery: CE

        1. Content is about the LVD Directive 2014/35/EU. the certificate is HY-CH-12V3A-1.

         2. The content is about the EMC Directive 2014/30/EU. the charge model is HY-CH-12V3A-1.

Packing List 1

Packing List

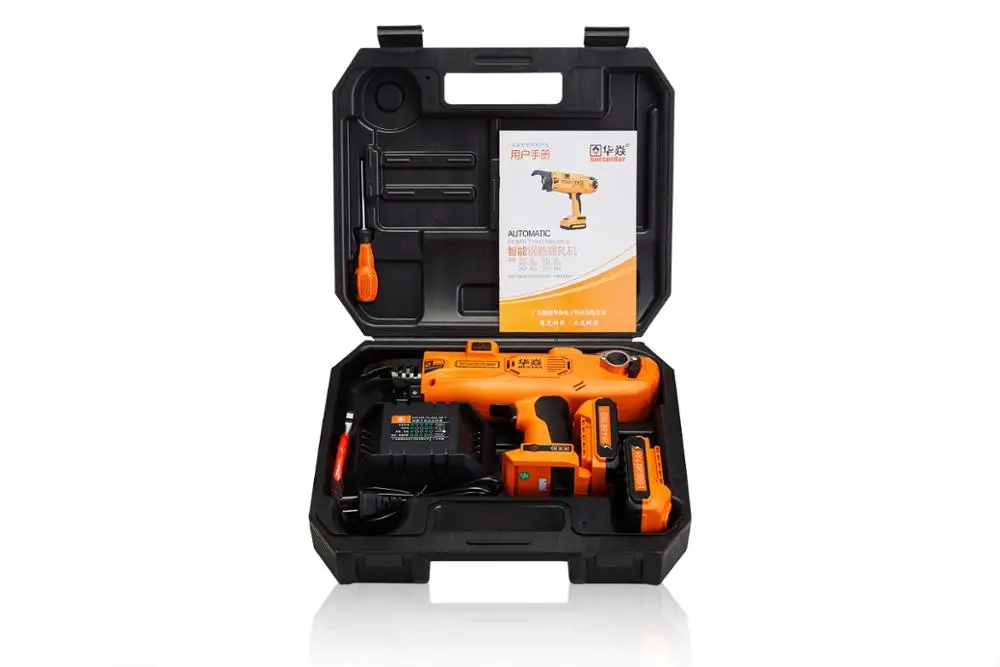

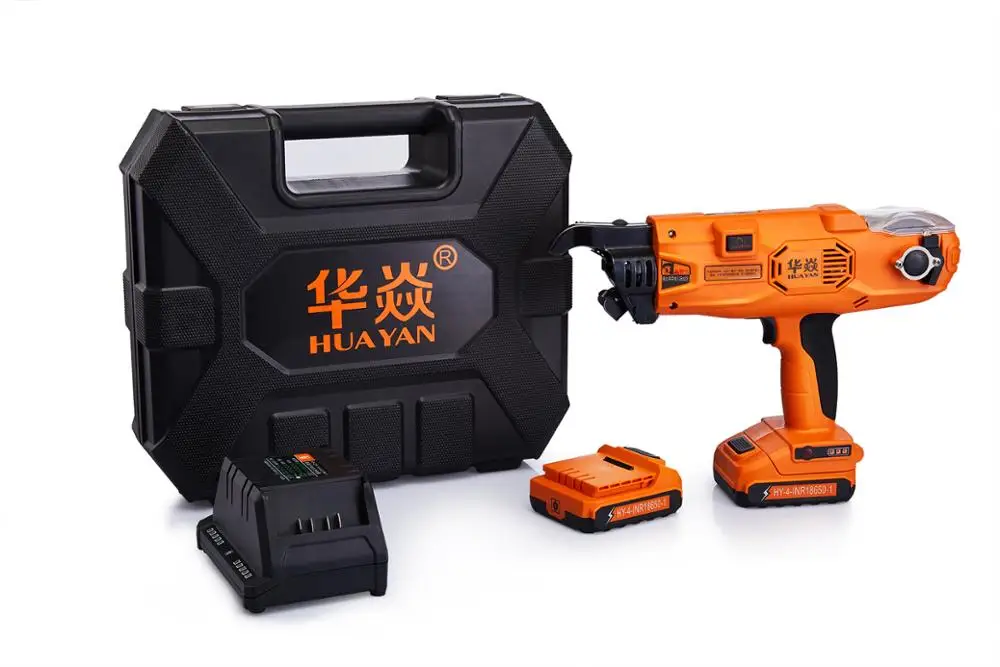

Intelligent Rebar Tying Machine Tool Standard Kit
Name	QTY
Intelligent Rebar Tier	1 pcs
Double Charger	1 pcs
Standard Battery	2 pcs
Wire Coil	1 pcs
Cutter	1 pcs
Allen Key	1 pcs
Tool Box	1 pcs
User Manual	1 pcs







OPtional Parts
Advanced Battery (Include Battery Adapter)
Tools Belt
Pry Hook

Shipping-2

Packaging--Wire Coil	Pcs/ Box	Packing Size (CM)	CBM	GW (kgs)
	20 pcs/  Box	14x14x22	0.005	8.4
	3 Boxes / Carton Box	23x15x45 60 Pcs	0.016	25.5
	44 Cartons / Pallet	110x110x134 11 Carton Boxes / Layer Total 4 Layers 2640 pcs	1.45	1135

Delivery  Info

Delivery time:

Within 7 days for sample order if we have in stock.

30 days after 30% deposit for bulk order.



Delivery Methed:

Sample normally by express.

Bulk order by Sea.
