TK-7Y регулятор солнечного нагрева воды под давлением
US $10.00-$30.00
JDL Солнечный водонагреватель с прямым подключением вакуумный компактная солнечная система отопления нагреватель
- Категория: Solar Water Heaters >>>
- Поставщик: Zhejiang,Jiadele,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 119.59 $* | 125.68 $* |
| Aug-15-2025 | 118.82 $* | 124.67 $* |
| Jul-15-2025 | 99.59 $* | 104.82 $* |
| Jun-15-2025 | 116.11 $* | 122.0 $* |
| May-15-2025 | 101.40 $* | 106.32 $* |
| Apr-15-2025 | 114.56 $* | 120.7 $* |
| Mar-15-2025 | 113.14 $* | 119.76 $* |
| Feb-15-2025 | 112.19 $* | 118.71 $* |
| Jan-15-2025 | 111.95 $* | 117.28 $* |
Характеристики
Products Description
CHARACTERISTICS

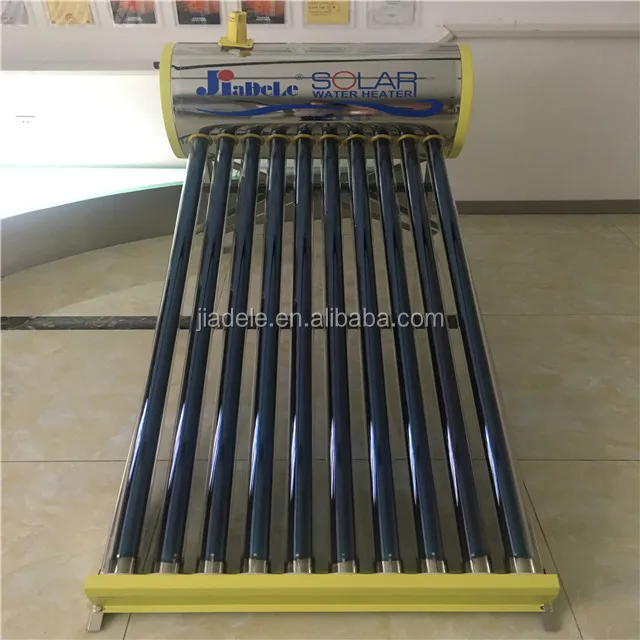

This type uses the all glass evacuated solar collector tubes as the heat-absorbing element.
The high vacuum degree of the clearance between the outer and inner tube reduces the heat emission which is caused by convectionand conduction.
The layer films(coating) of the all-glass evacuated tubes transfer the sun energy into heat energy.
The high absorption and low emittance rate of Jiadele's layer films is unique.
Depending on the different density between hot water and cold water,a water flowing cycle is created in the tube.
Hot water flows automatically upwards while the cold water flows downward.
The water in the storage tank will be heated from this natural circulation.
MATERIAL
*Inner tank:stainless steel SUS304-0.5mm

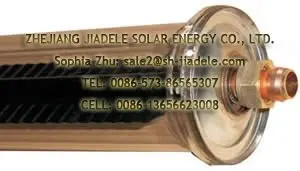

*Vacuum tube:QB-AL-N/AL-47-1500/58-1800;AL-CU/SS;AL-N/AL
*DIA:47X1500/58X1800mm

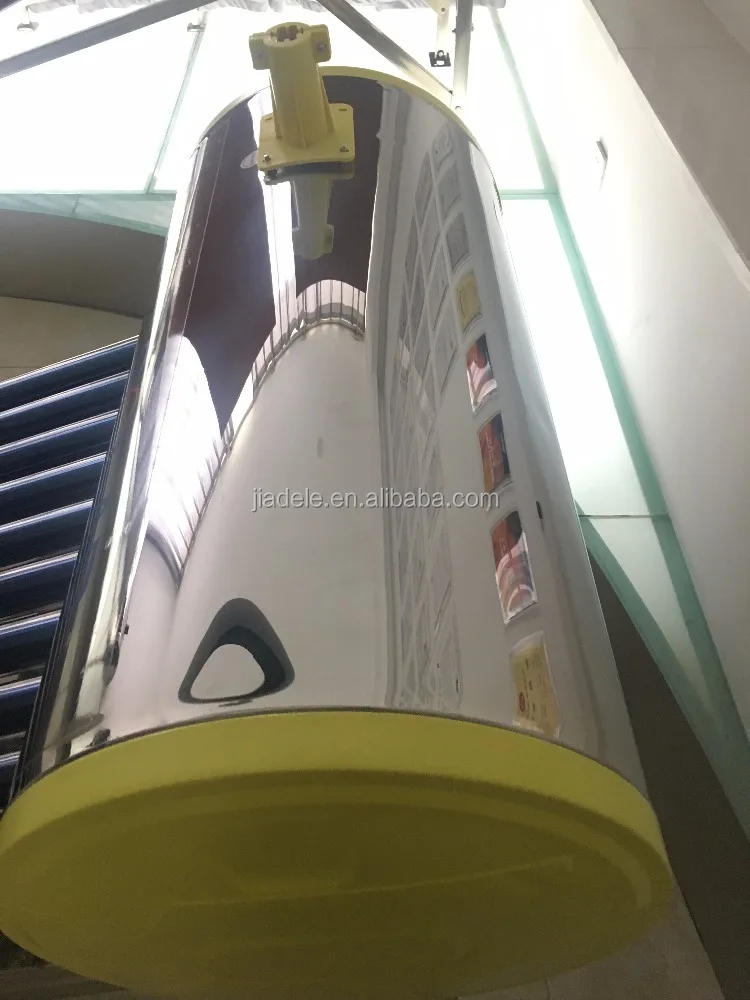

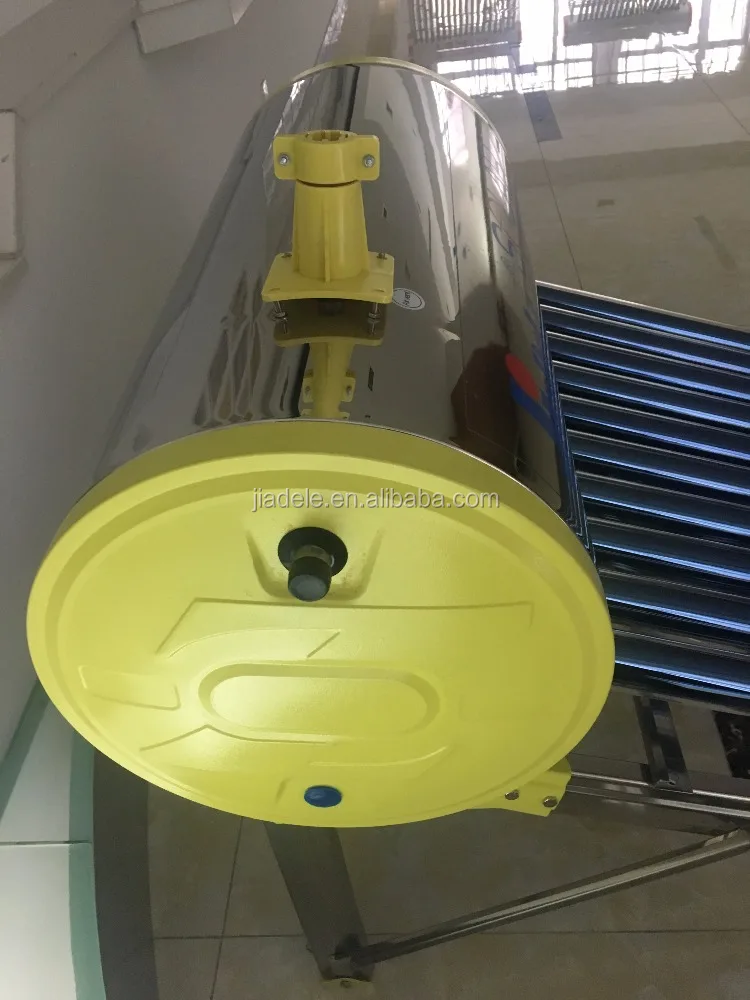

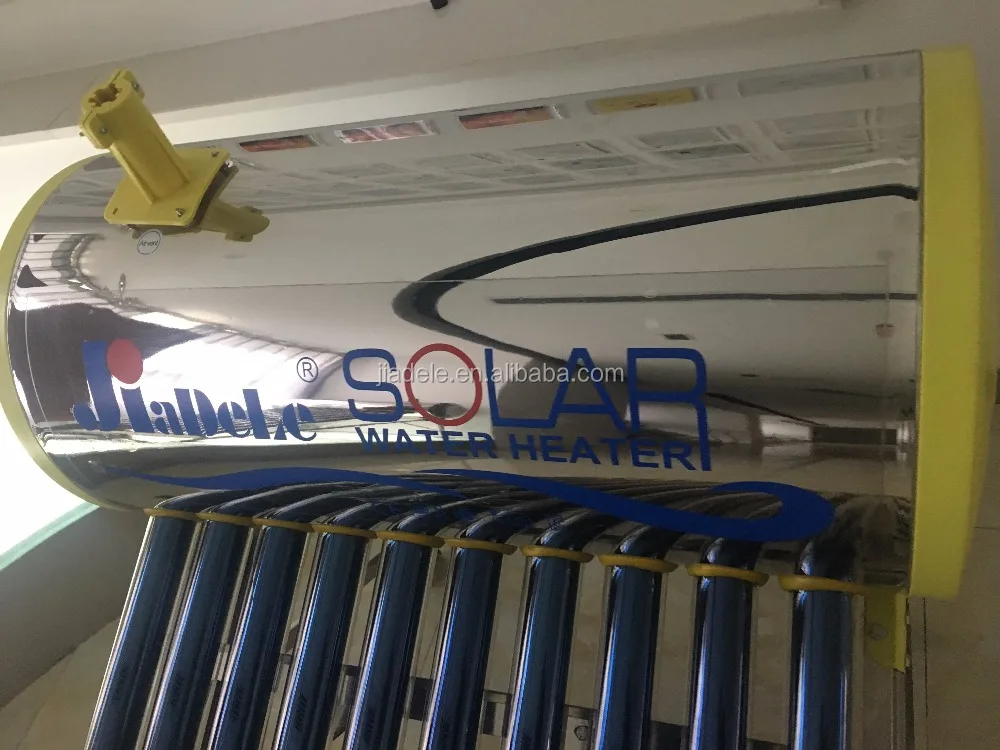

*Outer tank:painted steel-0.4mm/aluminum-zinc coated steel-0.4mm;stainless steel SUS201/304
*Frame:coated galvanized steel-1.5mm;stainless steel SUS430-1.5mm
*Material of insulation:polyurethane
*Reflector:aluminum
This type uses the all glass evacuated solar collector tubes as the heat-absorbing element.
The high vacuum degree of the clearance between the outer and inner tube reduces the heat emission which is caused by convectionand conduction.
The layer films(coating) of the all-glass evacuated tubes transfer the sun energy into heat energy.
The high absorption and low emittance rate of Jiadele's layer films is unique.
Depending on the different density between hot water and cold water,a water flowing cycle is created in the tube.
Hot water flows automatically upwards while the cold water flows downward.
The water in the storage tank will be heated from this natural circulation.
MATERIAL
*Inner tank:stainless steel SUS304-0.5mm
*Vacuum tube:QB-AL-N/AL-47-1500/58-1800;AL-CU/SS;AL-N/AL
*DIA:47X1500/58X1800mm
*Outer tank:painted steel-0.4mm/aluminum-zinc coated steel-0.4mm;stainless steel SUS201/304
*Frame:coated galvanized steel-1.5mm;stainless steel SUS430-1.5mm
*Material of insulation:polyurethane
*Reflector:aluminum
Type (one) | Area(m2) | Vacuum tube | Volume (Liters) | Gross wet(kg) | Volume/set (Cubic meter) | ||||
Length(mm) | DIA(mm) | Qty(pcs) | |||||||
JDL-FL15-47/1.5 | 1.48 | 1500 | 47 | 15 | 92 | 53 | 0.37 | ||
JDL-FL18-47/1.5 | 1.77 | 1500 | 47 | 18 | 108 | 59 | 0.43 | ||
JDL-FL20-47/1.5 | 1.98 | 1500 | 47 | 20 | 120 | 64 | 0.47 | ||
JDL-FL24-47/1.5 | 2.36 | 1500 | 47 | 24 | 145 | 75 | 0.54 | ||
JDL-FL30-47/1.5 | 2.95 | 1500 | 47 | 30 | 180 | 91 | 0.67 | ||
JDL-FL15-58/1.8 | 1.92 | 1800 | 58 | 15 | 135 | 65 | 0.53 | ||
JDL-FL18-58/1.8 | 2.3 | 1800 | 58 | 18 | 156 | 74 | 0.63 | ||
JDL-FL20-58/1.8 | 2.55 | 1800 | 58 | 20 | 172 | 79 | 0.68 | ||
JDL-FL24-58/1.8 | 3.06 | 1800 | 58 | 24 | 206 | 93 | 0.79 | ||
JDL-FL30-58/1.8 | 3.82 | 1800 | 58 | 30 | 260 | 113 | 0.96 | ||
remark
Solar heat storage tank diameter(mm):310/410
Thickness,insulated(mm):50
Vent connection(inch):3/4
Electric heater connection(inch):1
Water connections(inch):3/4

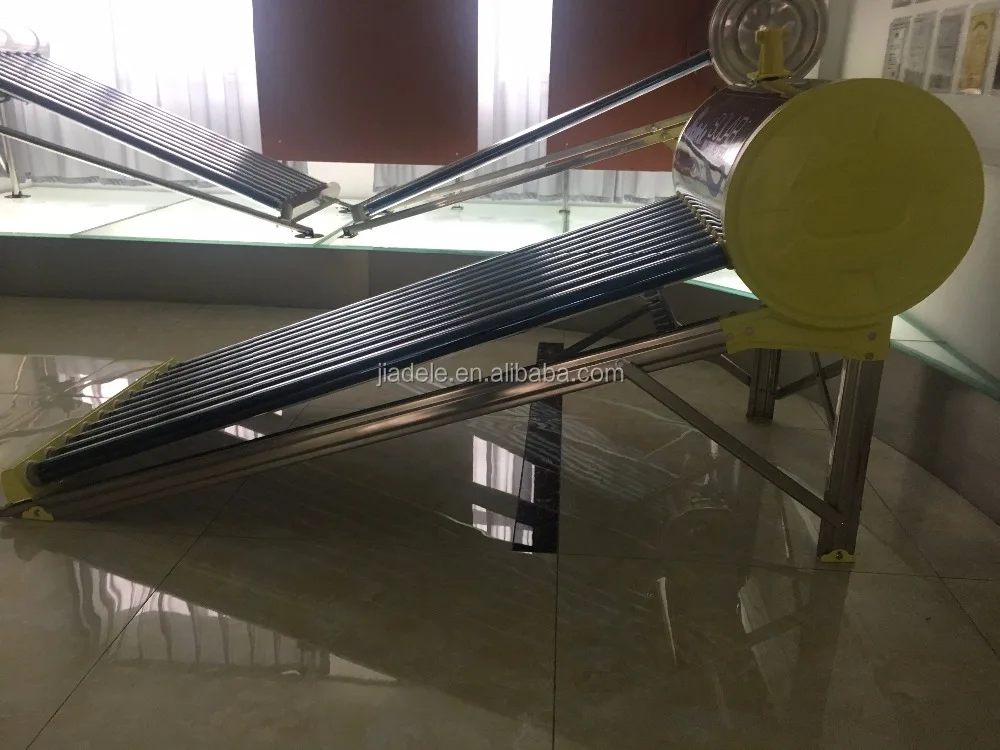

Collector angle(degree):30/45
Solar heat storage tank diameter(mm):310/410
Thickness,insulated(mm):50
Vent connection(inch):3/4
Electric heater connection(inch):1
Water connections(inch):3/4
Collector angle(degree):30/45
