Высокопроизводительный 1u стеллаж 4 секции корпус сервера hotswap с sata задней планой для облачного

Высокопроизводительный 1u стеллаж 4 секции корпус сервера hotswap с sata задней планой для облачного

Цена:*

Количество:

Product Description

Spotlight Features
• All rack server case OEM / ODM Available

• Optimized 1U rackmount hot swap server chassis

• Super Anti-finger ROHs SGCC & Plastic Material

• With 3 Hot-swap 40mm PWM cooling fans (6*Fan bays)
• Various Kinds of high-quality stable hot-swap backplanes

• 6gbps SATA / 12gbps MiniHD SGPIO hotswap backplane option

• 4*Hot-swap 3.5"/2.5" SAS /SATA drive bays, 2*2.5" drive bays (Inner)

• S16504 Compatible with MAX 12" *13" motherboard,S15604 MAX 12" *10.5" MB

• Flexible expansion slot 1x PCI/PCIe expansion slot

• Support 1U single/redundant powersupply,Recommend 400W,500W Single PSU or 450W,650W RPSU

• Application For the Corporate Database, Data Center, Database Processing & Storage, Enterprise Server, HPC, iSCSI SAN

Specifications

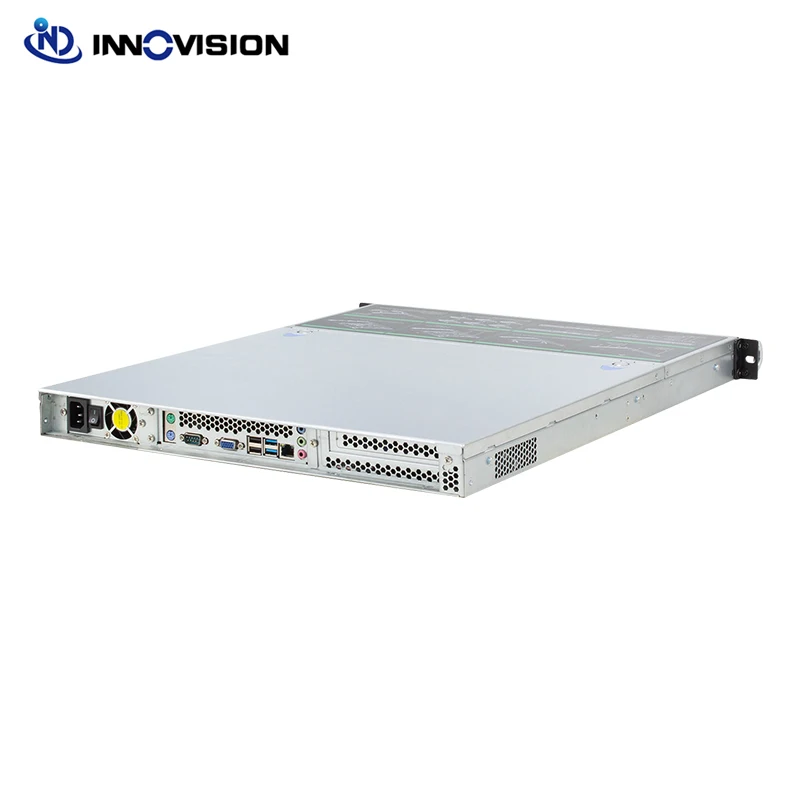

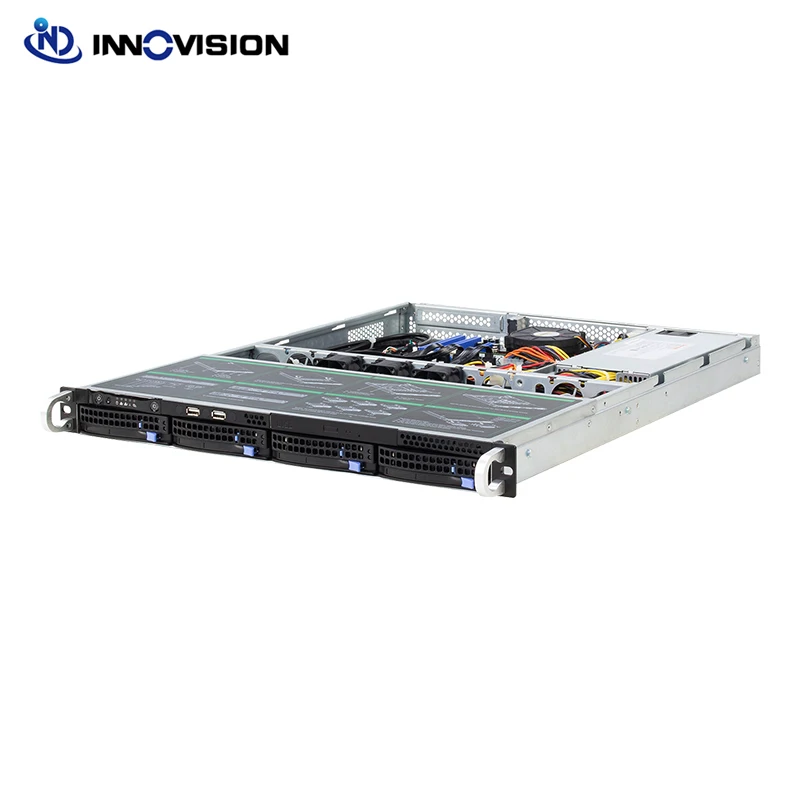

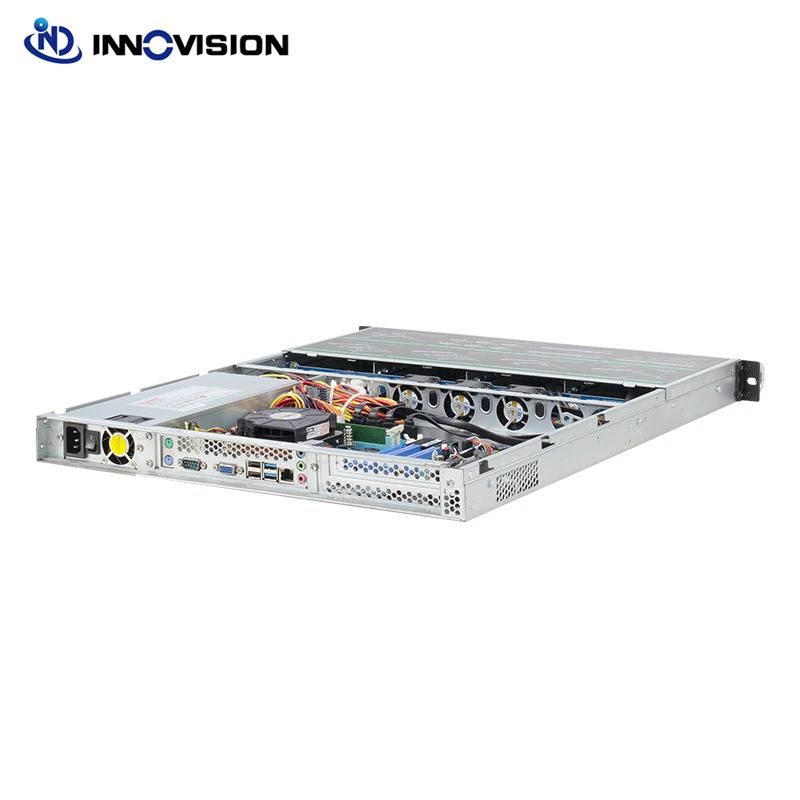

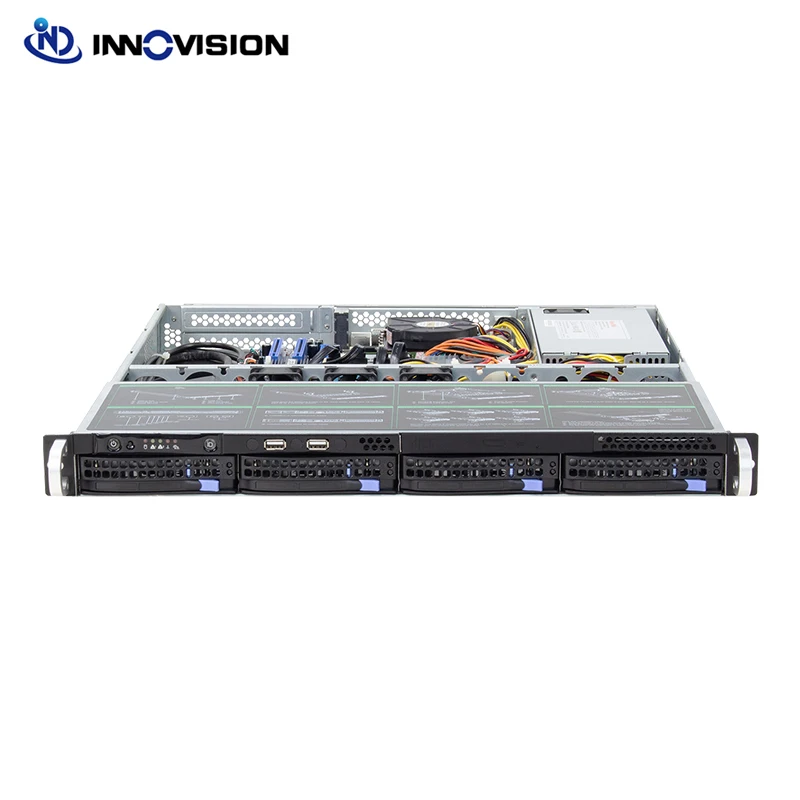

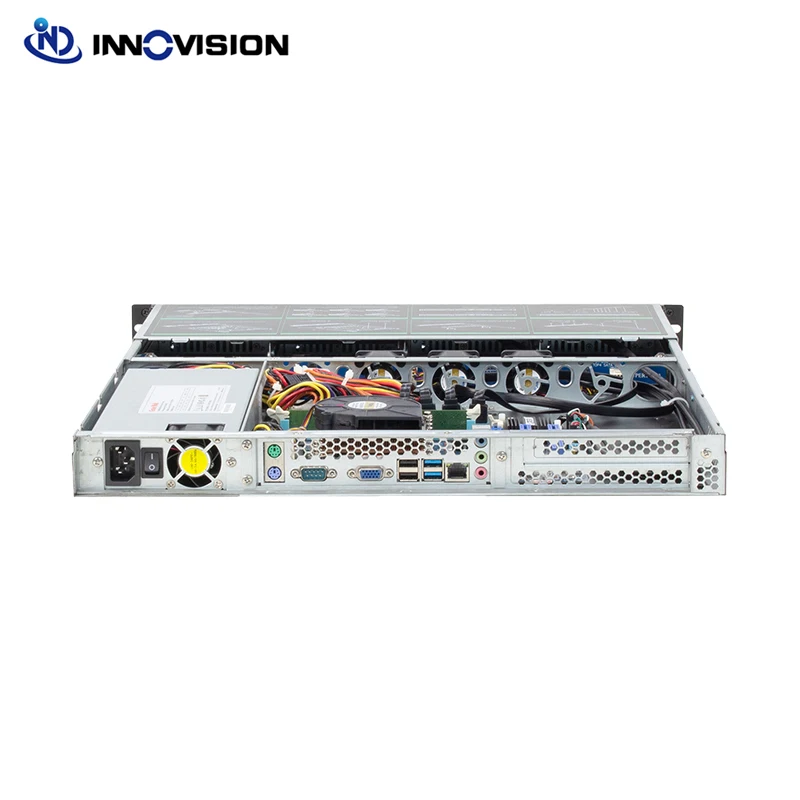

Item Name	1u rack 4 bays hotswap server case with backplane for cloud storage
Item NO.	S16504 / S15604
Motherboard Support	S16504 Motherboard Size-MAX12 "13" and below sizes etc. S15604 Motherboard Size-MAX12 "10.5" and below sizes etc.
Processor Support	Single/Dual Intel® and AMD processors
Dimensions	L650 /L560 W437.5H44mm,1U Rack
Material	1.0mm SGCC(Super Coating fingerprint resistant film)&Super ABS ROSHs
Available Color	Front Panel coated Black (Others optional)
Expansion Slots	1 standard PCI/PCIE expansion slots
Hot-swap Drive Disk Bays	43.5"/2.5" SATA Hot-swap drive bays,2built-in 2.5" HDD
Hot-swap Backplane	1)6gbps SATA Backplane 2)12gbps Mini SAS HD SGPIO Backplane
Peripheral Drive Bays	1x Slim CD-ROM drive (Optional, Compatible with 1x 2.5" drive)
Front Panel Control	Power On/Off button,System Reset button,Unit Identification (UID) button Power LED1,HDD LED1 NIC LED2,UID LED1 ,OH/FAN Fail LED1 , PWR Fail LED1
System Cooling	6x 4cm Fan Bay(s) S16504 Standard With 4-pin 4 x 4056mm high-performance PWM fan(s) S16504 Standard With 4-pin 4 x 4056mm high-performance PWM fan(s)
Operating Environment (System)
Operating Temperature Range	10 - 35°C (50° - 95°F)
Non-Operating Temperature Range	-40 - 70°C (-40° - 158°F)
Humidity Range	8 - 90% non-condensing
Non-Operating Humidity Range	5 - 95% non-condensing
Power Supply Support	Standard 1U power compatible with sizes 225mm and below
