45 тонн штабелер для контейнеров одноразового
- Категория: Укладчик и разборщик >>>
- Поставщик: Fujian,Southchina,Heavy,Machinery,Manufacture,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-20-2025 | 33085688.39 $* | 33747402.76 $* |
| Jul-20-2025 | 26833275.32 $* | 27369941.69 $* |
| Jun-20-2025 | 32564654.86 $* | 33215947.53 $* |
| May-20-2025 | 32304137.28 $* | 32950220.92 $* |
| Apr-20-2025 | 25791206.22 $* | 26307030.42 $* |
| Mar-20-2025 | 31783102.20 $* | 32418764.91 $* |
| Feb-20-2025 | 31522585.61 $* | 32153037.72 $* |
| Jan-20-2025 | 31262068.15 $* | 31887309.52 $* |
Характеристики

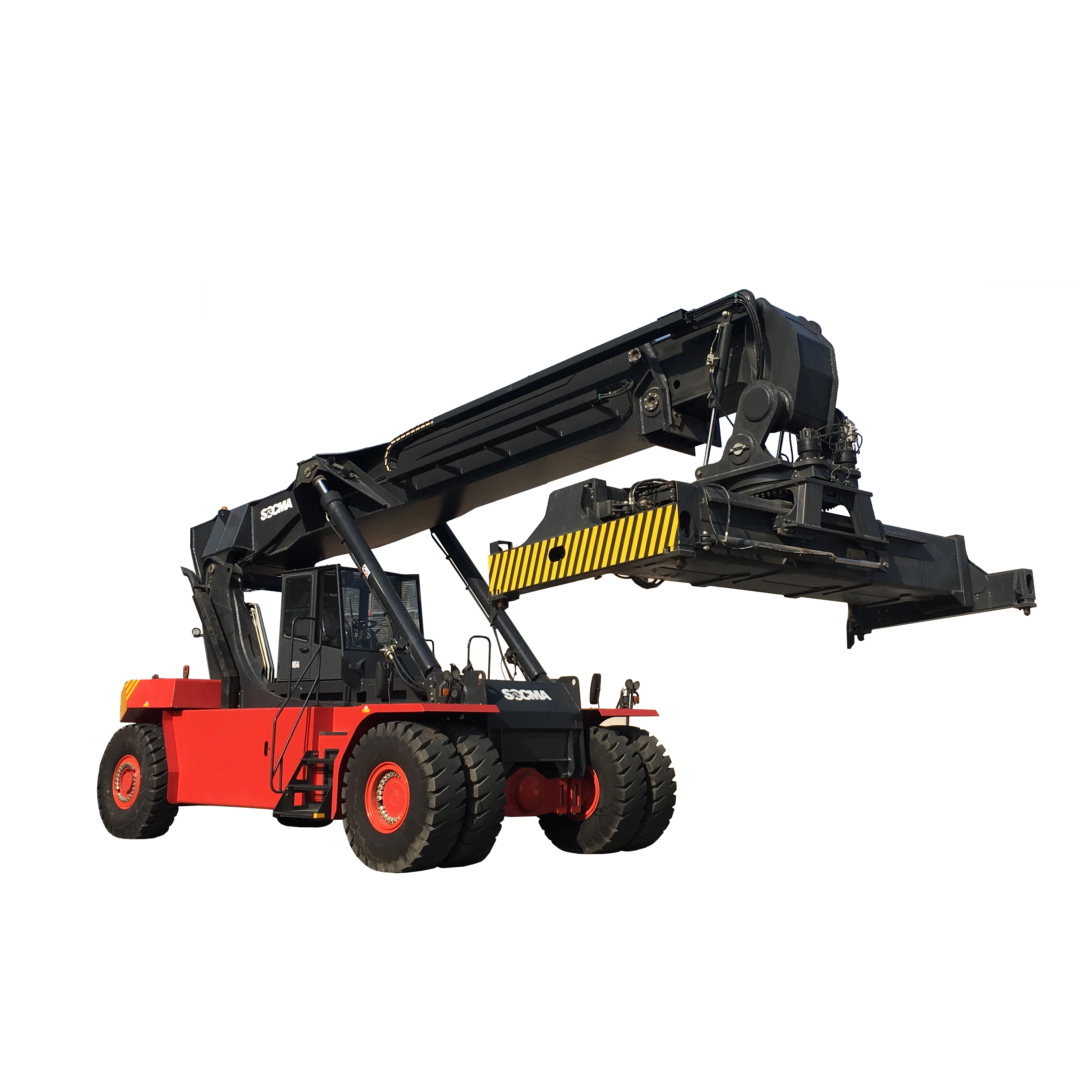

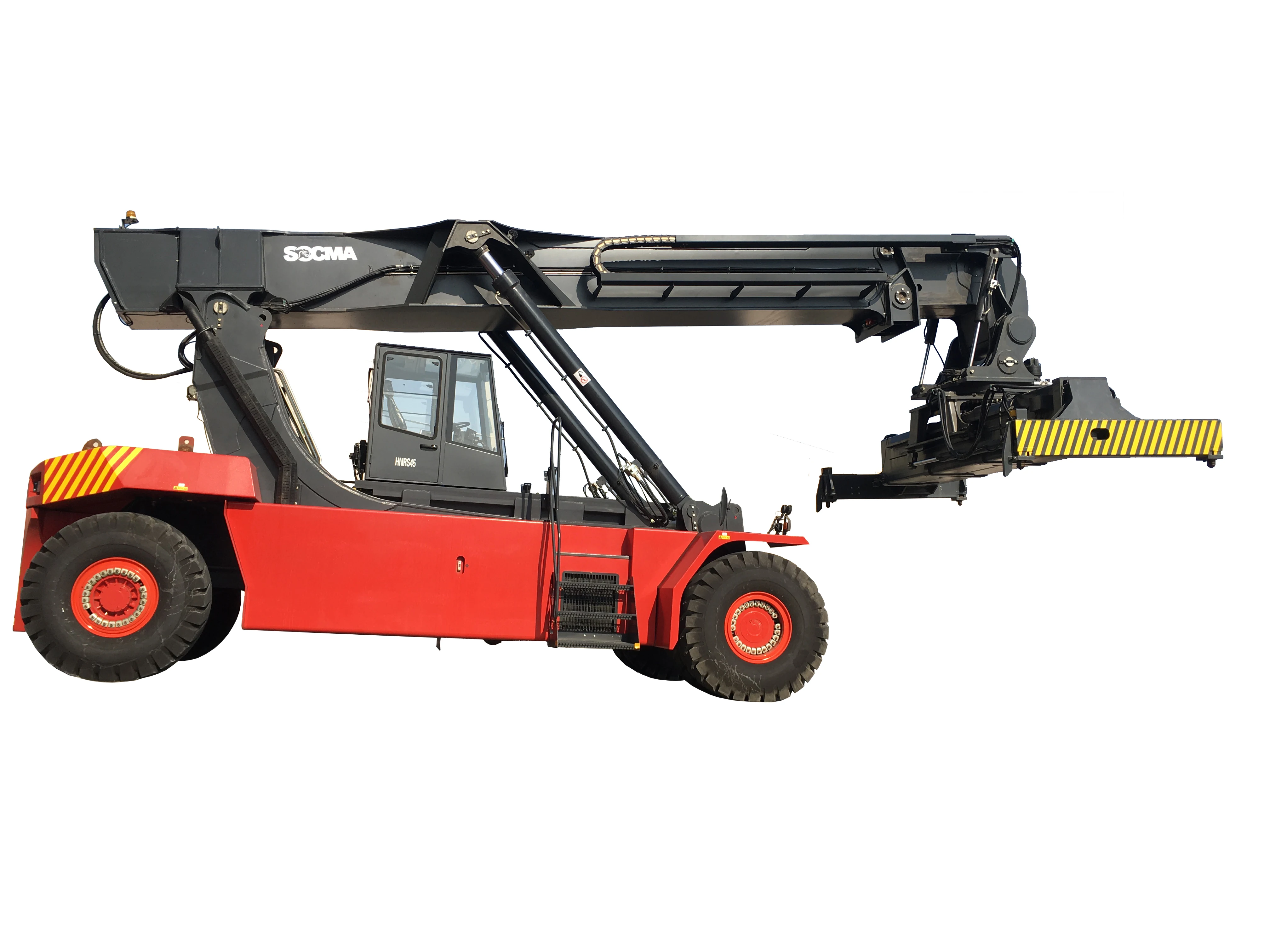

45 Ton Reach Stacker for Containers
Product Description
| Truck Model | HNR450CCZ5 |
| Equipment Code | CCZ5 |
| Rated capacity(Kg) | 31000(Front Distance1900mm)(5-HIGH) |
| 45000(Front Distance1900mm)(4-HIGH) | |
| 31000(Front Distance3850mm)(4-HIGH) | |
| 15000(Front Distance6350mm)(3-HIGH) | |
| Maximum lift height(mm) | 14850 |
| Load centre distance(mm): | |
| Maximum lift speed(mm/s): | 380/240 |
| Maximum lower speed(mm/s): | 300/250 |
| Travel speed(Km/h) | 1st 4/4 |
| 2nd 9/9 | |
| 3rd 16/16 | |
| 4th 25/25 | |
| Gradeability (%) | 30/15 |
| Under clearance(mm) | 400 |
| Minimum turning radius(mm): | 8200 |
| Brake stopping distance (m): | <=7 |
| Overall length(mm) | 11350 |
| Overall width(mm) | 6042 |
| Overall height(mm) | 4600 |
| Wheel base(mm) | 6000 |
| Tread(mm) | FRONT 3033 |
| REVERSE 2750 | |
| Spreader | SPREADER ELME 817 |
| Service weight(Kg) | 73000 |
| Engine | Model M11-C330 |
| Displacement 10800cc | |
| Rate Power/SPEED 246 Kw /2100 rpm | |
| MAX.TORQUE/ SPEED 1458/1300 rpm | |
| Tyre | Front 4X18.00-25-40PR |
| Rear 2X18.00-25-40PR |
Our factory had more than 50years forklift manufacturing experience.The products,after the combination of professional
technology,introduced technology and innovative technology,have obtained the national special equipment manufacturing
permit and become China Mechanical Industry Satisfied Products and China Mechanical Industry Famous Brand.The com
pany has passed the certifications of ISO9001:2000 Quality Management System and CE, also won the titles of 'National
First Contract-honoring and Pormise-keeping Units', 'AAA Credit Enterprise', and 'China Mechanical Industry Top 500
Enterprises'.
Company Information
After-sales Service
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
