Программатор иммобилайзера Xhorse VVDI PROG с функцией
- Категория: Центральный замок >>>
- Поставщик: Shenzhen,JIUSHU,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.97 $* | 0.30 $* |
| Aug-17-2025 | 0.47 $* | 0.79 $* |
| Jul-17-2025 | 0.23 $* | 0.37 $* |
| Jun-17-2025 | 0.77 $* | 0.64 $* |
| May-17-2025 | 0.25 $* | 0.78 $* |
| Apr-17-2025 | 0.47 $* | 0.34 $* |
| Mar-17-2025 | 0.72 $* | 0.24 $* |
| Feb-17-2025 | 0.24 $* | 0.38 $* |
| Jan-17-2025 | 0.89 $* | 0.32 $* |
Характеристики
Xhorse VVDI PROG Programmer immobilizer programmer with ECU Function
Top 7 Reasons to Get VVDI Prog V4.6.5:
1. Support R&W lots of chips, include MC9S08 series, MC68HC(9)12 series,MC9S12 series, V850 series, H8X series, R8C series, PCF79XX series and most eeprom chips
2. Support chip data verify, check blank function
3. Support data file compare function
4. Support R&W BM -W N20, N55 ECU ( show ISN directly )
5. Stable R&W MC9S12XE series chips (5M48H/1N35H/2M53J/3M25J etc.)
6. Support renew PCF79XX remote, currently support BM -W E/F series
7. Lots of connection diagram

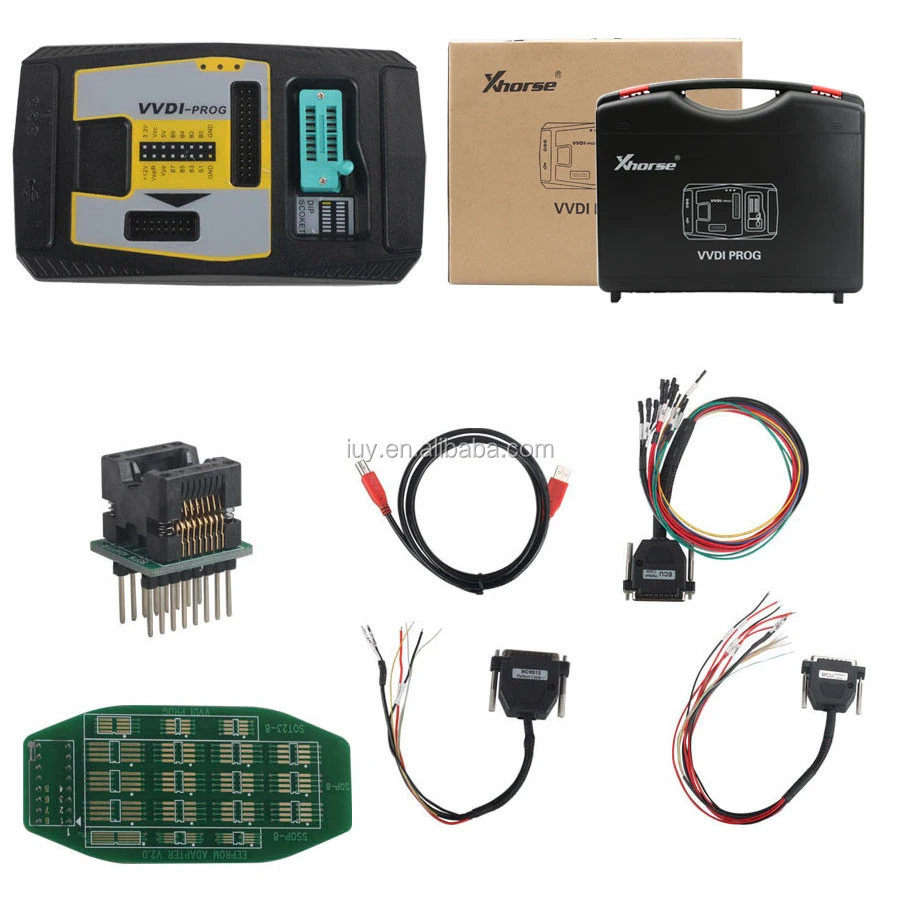

Packing List:
1. VVDI Prog device
2. EEPROM Socket
3. EEPROM Adapter
4. MC9S12 Reflash Cable V1
5. MCU Reflash Cable
6. ECU Reflash Cable
7. USB B-Tyte Cable
8. TB28FXXX Adapter (Optional)
9. PCF79XX Adapter (Optional)
10. New M35080/D80 Adapter (Optional)
11. New EWS3 Adapter (Optional)
12. New EEPROM CLIP Adapter (Optional)
13. New EWS4 Adapter (Optional)
VVDI Prog Programmer Unit Description:
1.16 Pin DIP socket Function:
Read EEPROM chips Use method: Follow the image direction when insert the DIP chip (PIN1 as yellow point show as the picture);
SOP chip need soldering on 16Pin adaptor first, then insert the chip follow the image direction
2. MCU Reflash Cable
Function: Read & Write MC68HC(9)12, V850, H8X, R5C series chips,current version is V2
Use method: Soldering the line on pin of chip before read & write
Notes:
(1) Please check all connection lines,ensure correct and reliable connection
(2) Please Don’t lengthen CLK and GND-C line, maybe cause read data failed.
3. ECU Reflash Cable
Function: Read & Write engine ECU
Use method: Connect the ECU and R&W
Notes: Please check all connection lines, ensure correct and reliable connection
4.MC9S12 Reflash Cable
Function: Read & Write MC9S08, MC9S12 series chips, current version is V1
Use method: Soldering the line on pin of chip before read & write
Notes:
(1) Please check all connection lines,ensure correct and reliable connection.
(2) Please Don’t lengthen CLK and GND-C line, maybe cause read data failed.

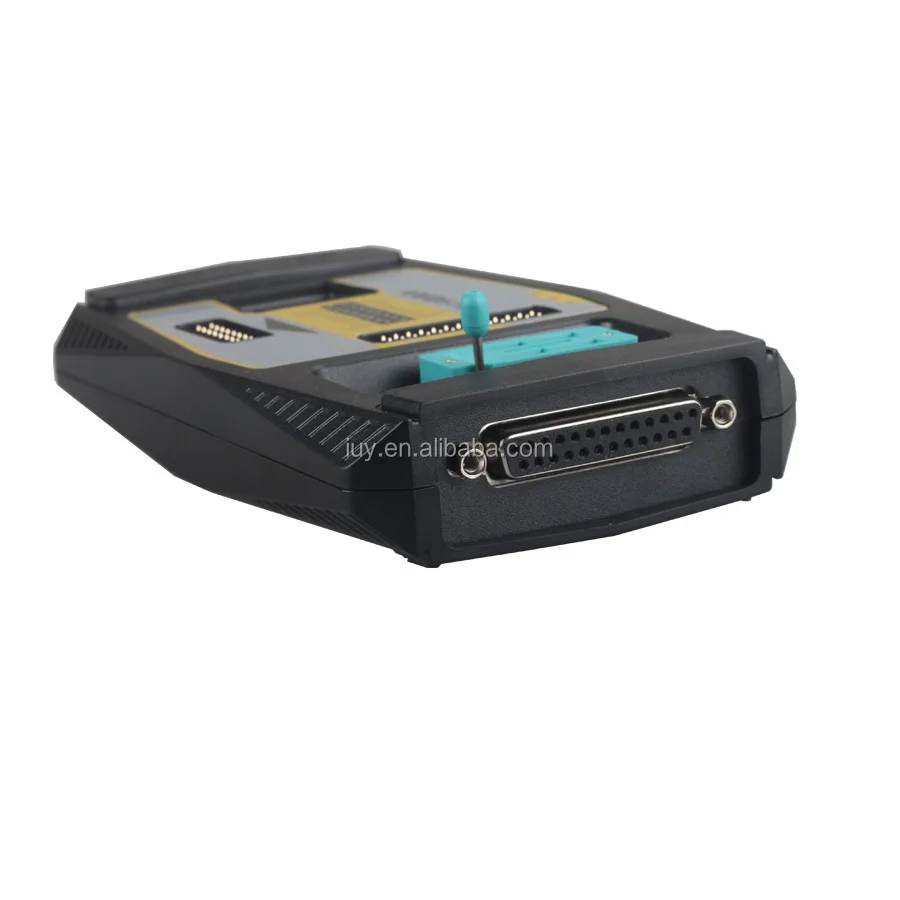

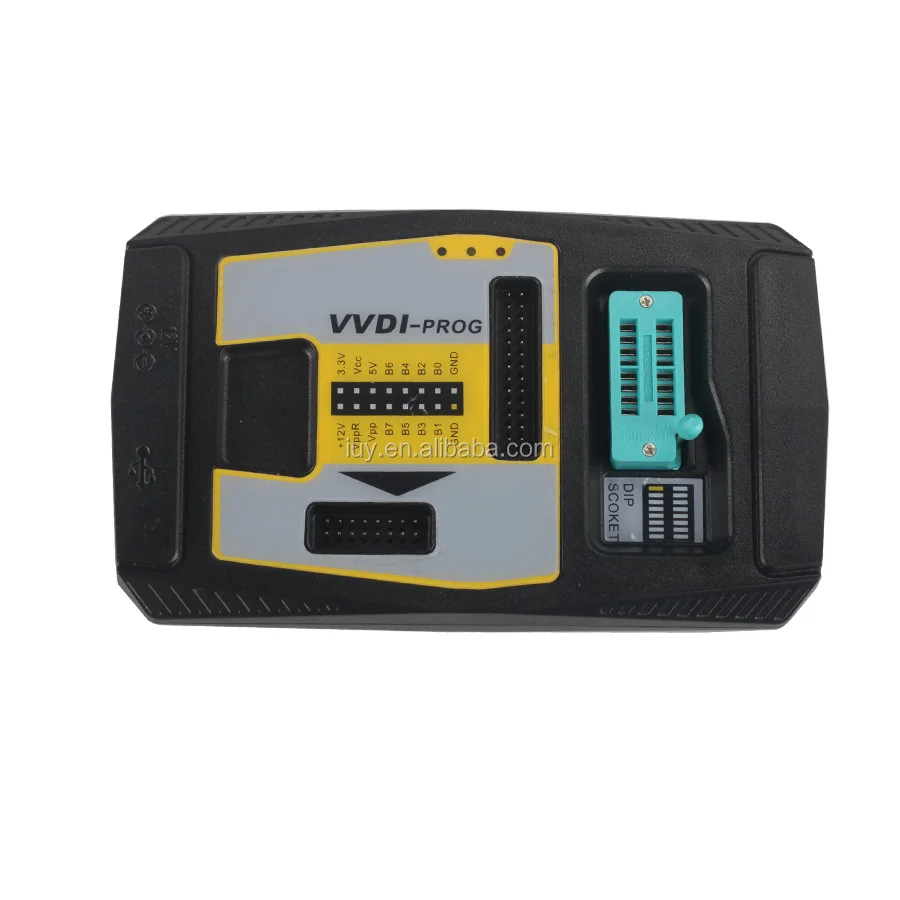

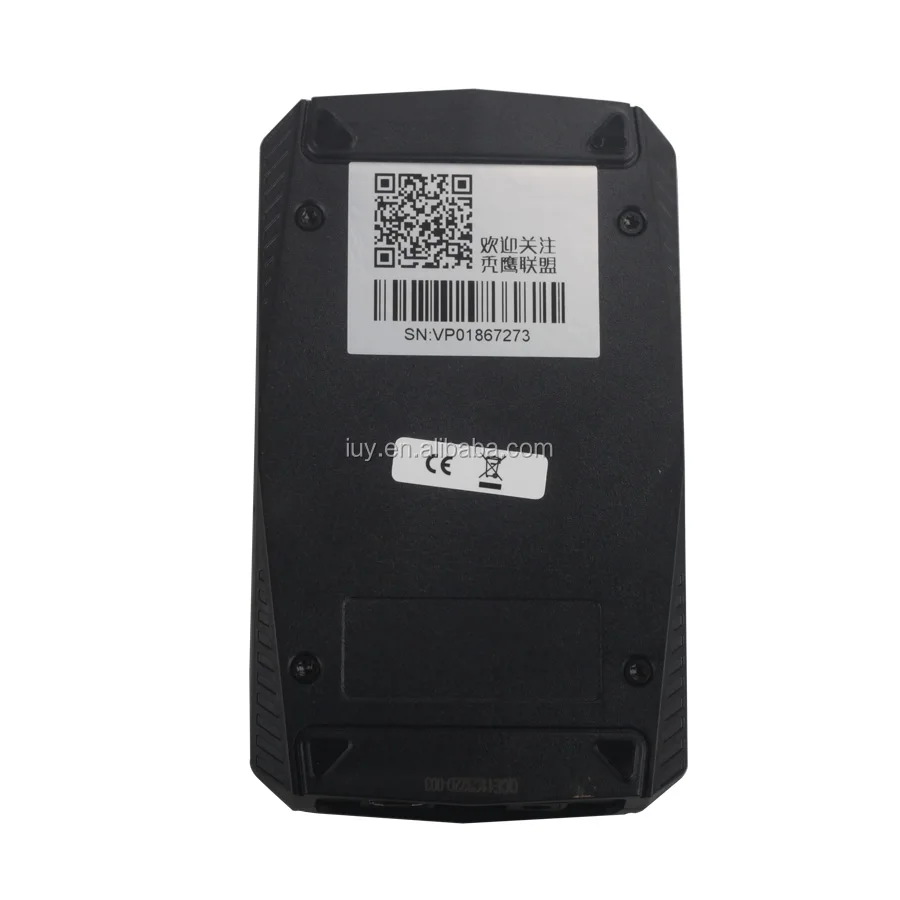

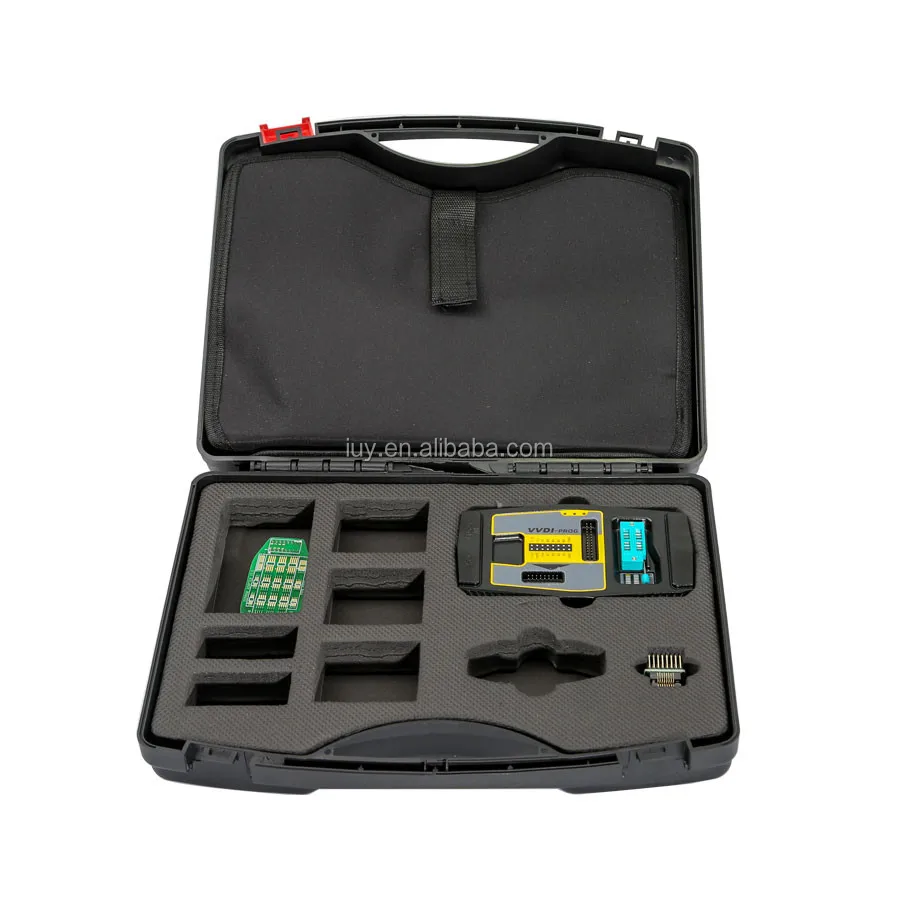

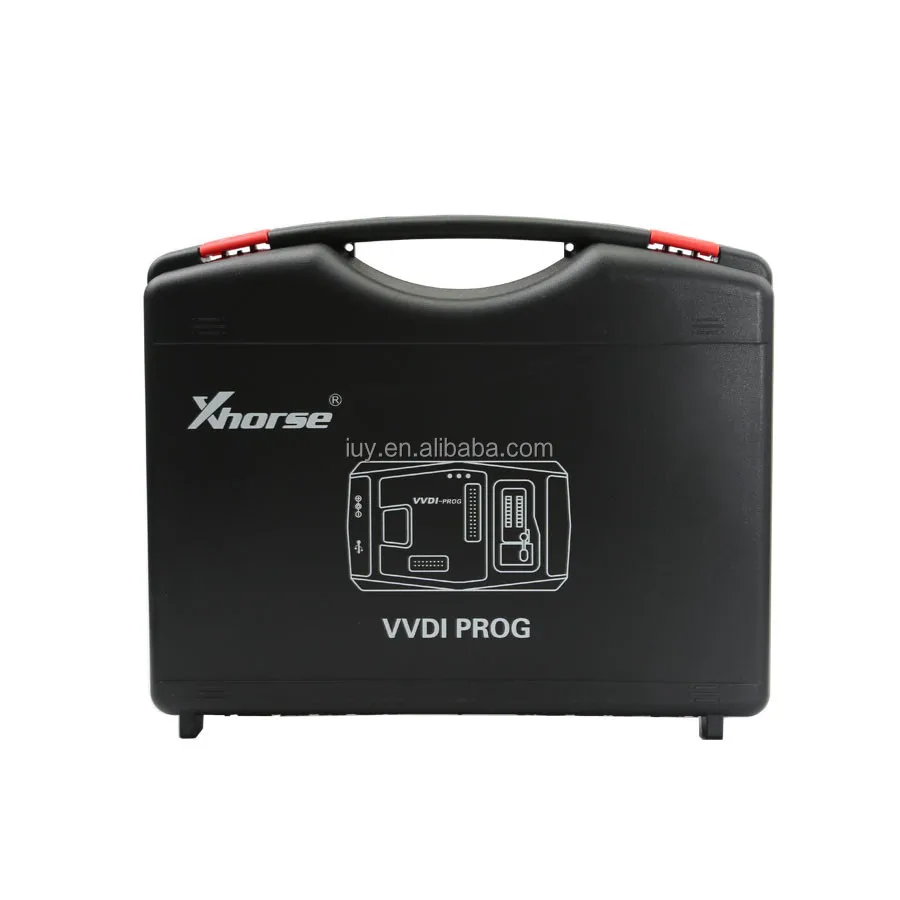

Product Photos:
