Сахарная мельница высокой

Product Application

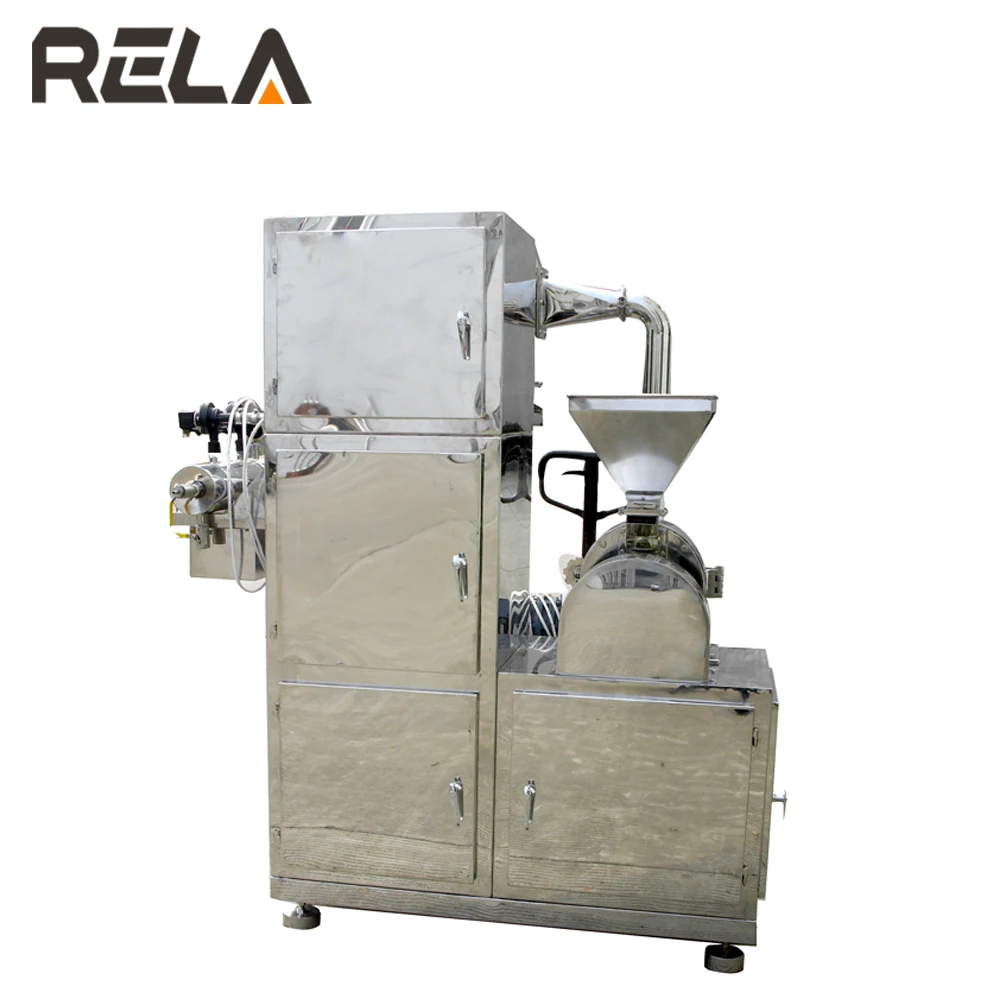

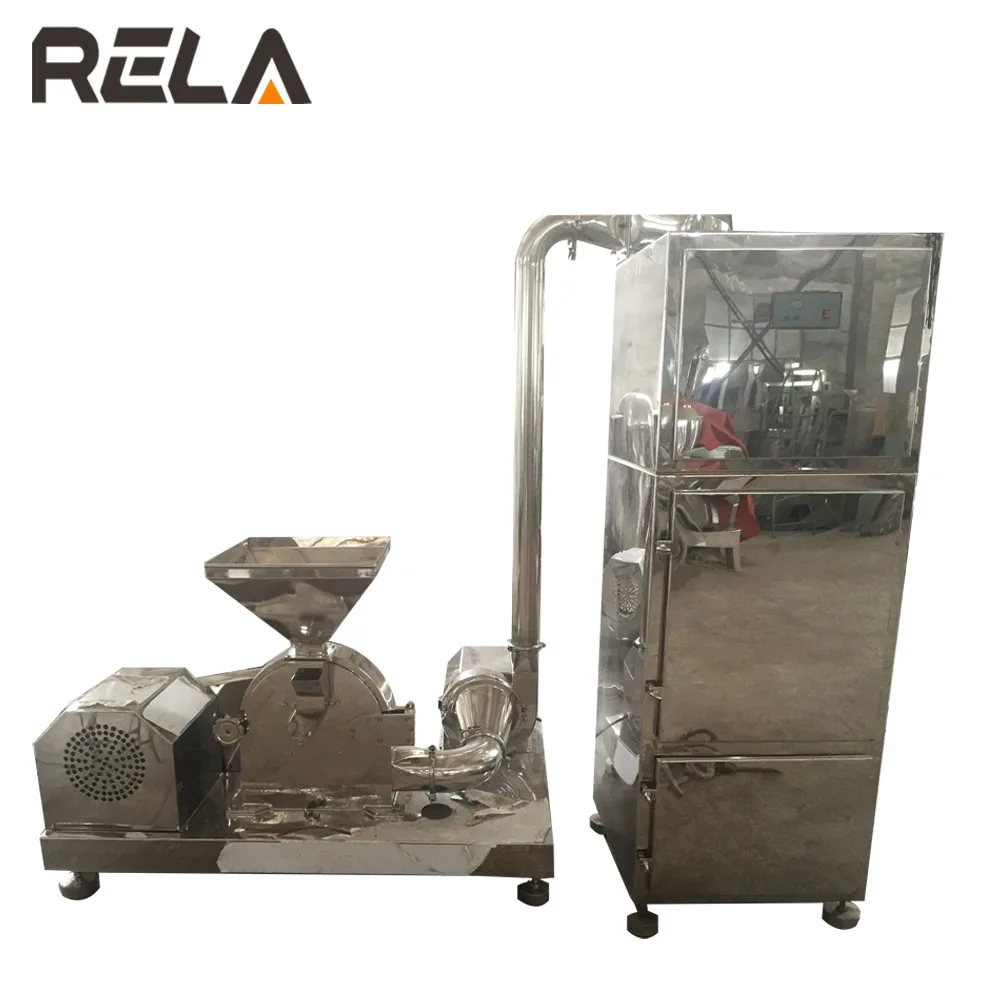

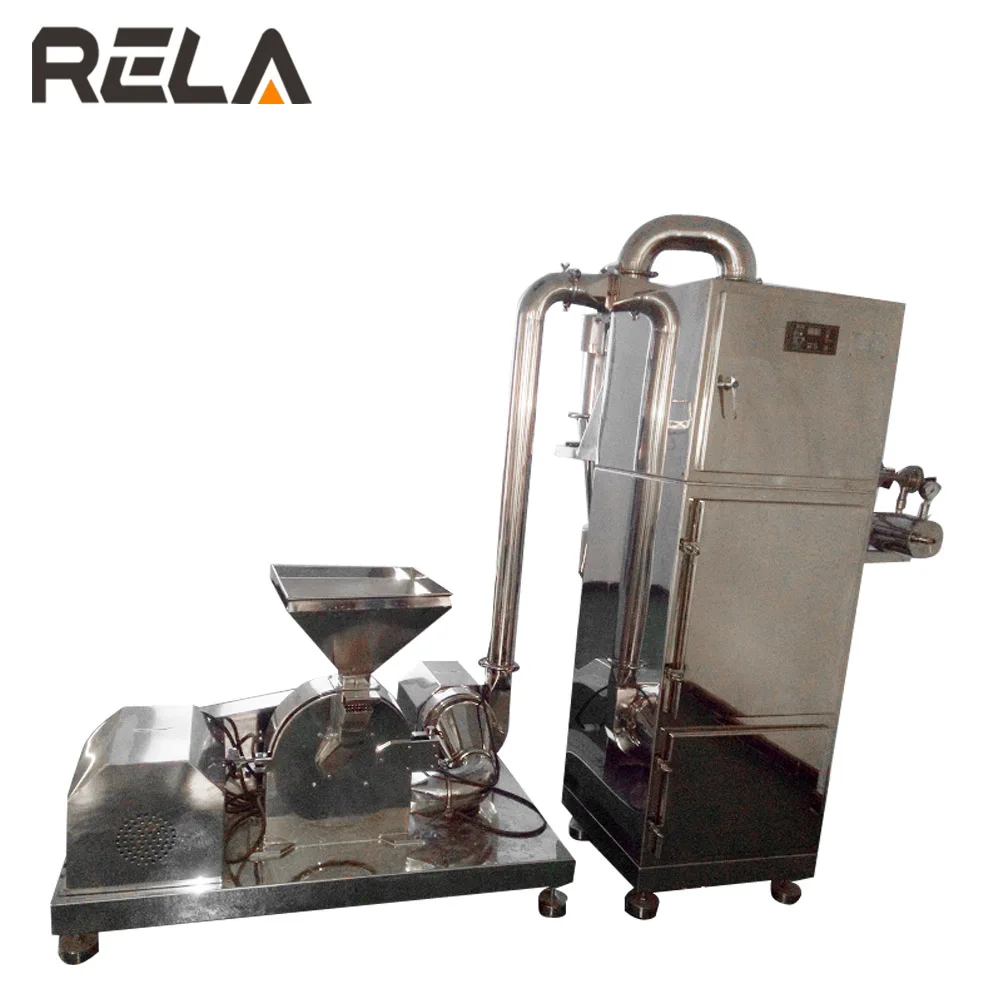

High Capacity Sugar Mill Machinery is a new designed grinding machine with air-cooling system. It can grind powder at 20-120mesh with cyclone and dust collector system. It is widely application for pharmaceutical industry, chemical industry, foodstuff industry, etc. such as sugar, salt, crystal material; chili, pepper, pimento, coriander, cumin, cinnamon, cardamom, star anise, celery seed, ginger, licorice; rice, chaff, corn, sweet potato bran, cocoa bean, coffee, etc.

Working Principle

The raw material enters into the grinding chamber through the feed hopper. The material, impacted by the high-speed rotary cutters, is thrown to the fixed liners, then is bounced and sheared. Meanwhile, under the impact, cut, rubbing force by turns, the material is micronized well. Under the pull force, the finished product is absorbed into the cyclone through the sieve and discharged from the rotary valve. A little of superfine powder is collected by the filter pockets.
It is designed according to cGMP standard and made of stainless steel. With the features of simple structure, easy cleaning, low noise, etc.．

Main Feature

1. In the behind of machine chamber, there is a propeller structure. During operation, the heat in the grinding chamber is sucked out with air quickly by the rotary propeller; therefore, there is no much heat in the chamber to keep the characteristic of the material.
2. During operation, the strong air flow can expel the material out quickly. So the capacity is high and it can grind the heat sensitive and sticky material with good effect.

Working Video

1.\tKFL-400 Sugar Grinding: https://youtu.be/dJw43jdQbeA

Machine Parts

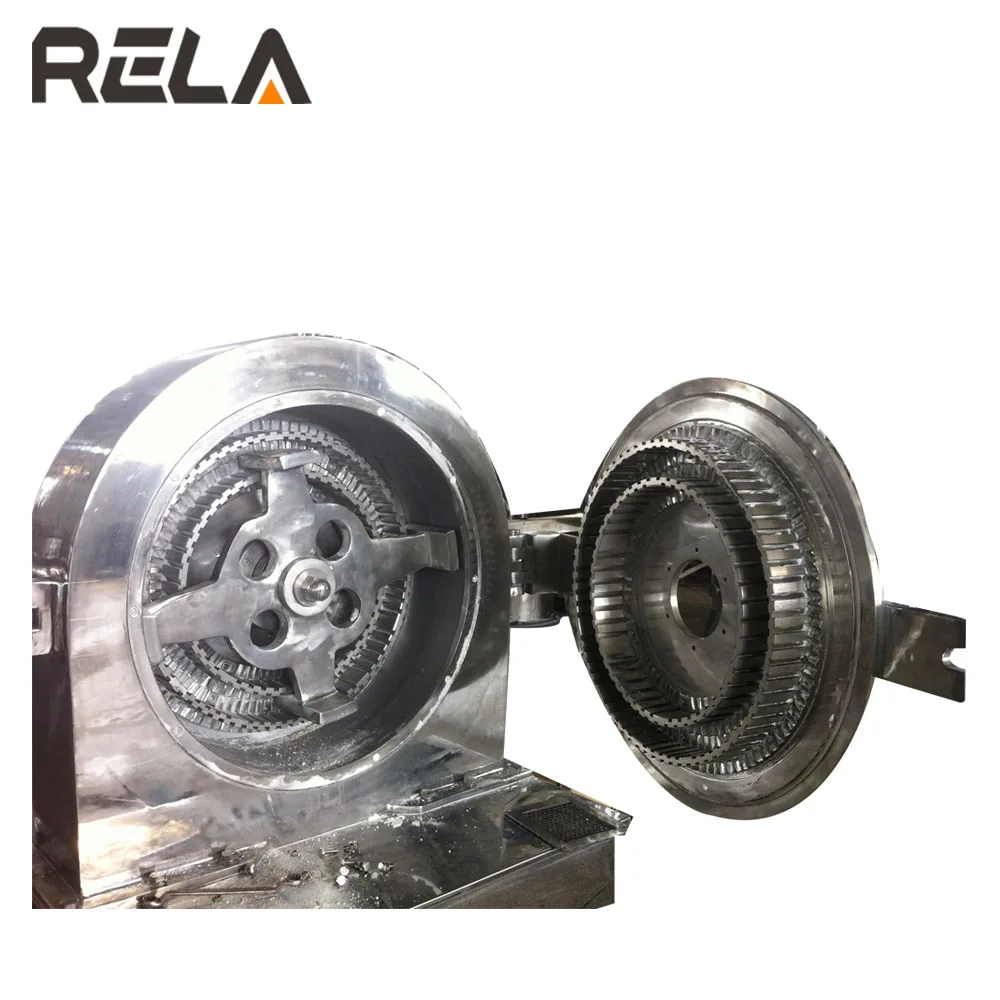

Name: Rotor & Stator

Material: Stainless Steel

The hammer type rotor with several levels of stators can grind the product into powder quickly and easily.

The final particle size is determined by the sieve size.

Machine Parts

Name: Inline Blower
Material: Stainless Steel

The inline blower is placed between the main machine and cyclone to enhance the airflow in the system. Thus the powder can be sucked out the grinding chamber through the sieve quickly. So the capacity is much higher and the temperature in the chamber is low.
The fan is made by Stainless Steel to meet Food standard.

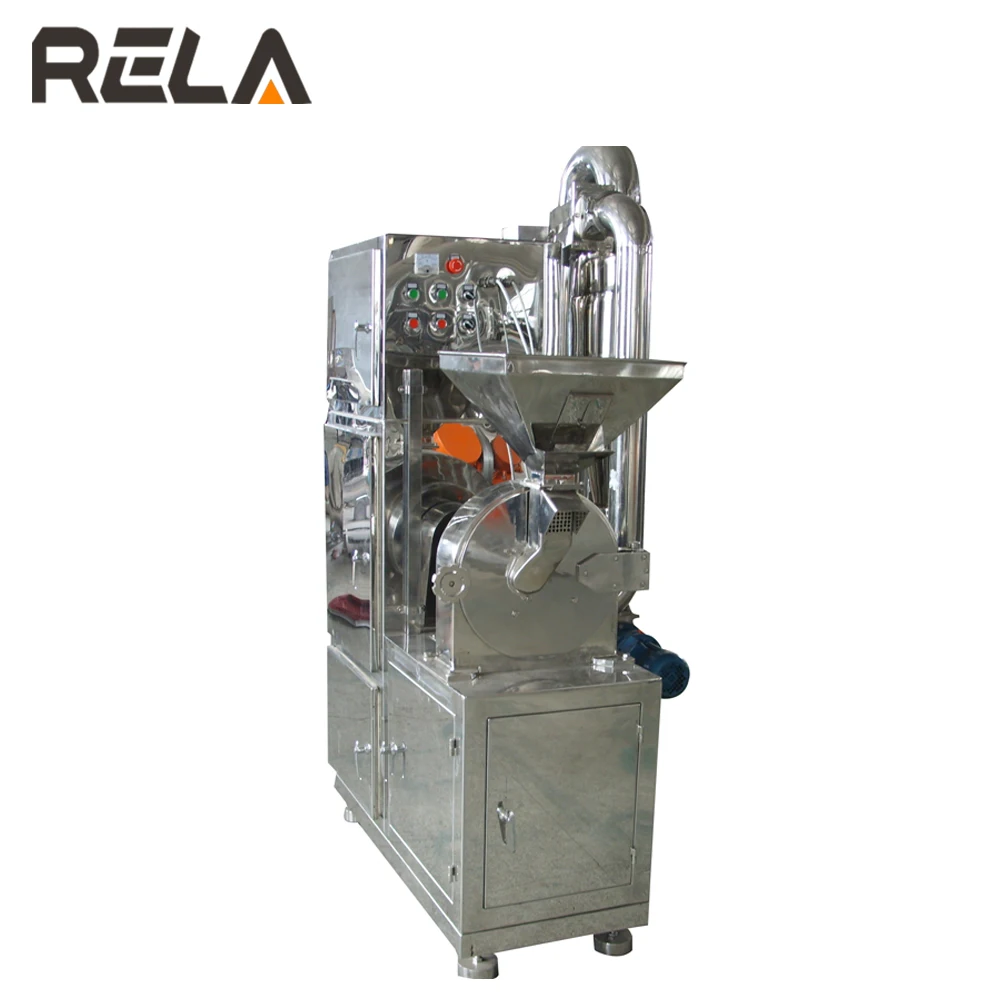

Control Cabinet

Material: Stainless Steel

Independent control cabinet for easy operation.

Electric components are famous local brand CHNT. Other famous brand such as Siemens, Schneider, etc. are available.
