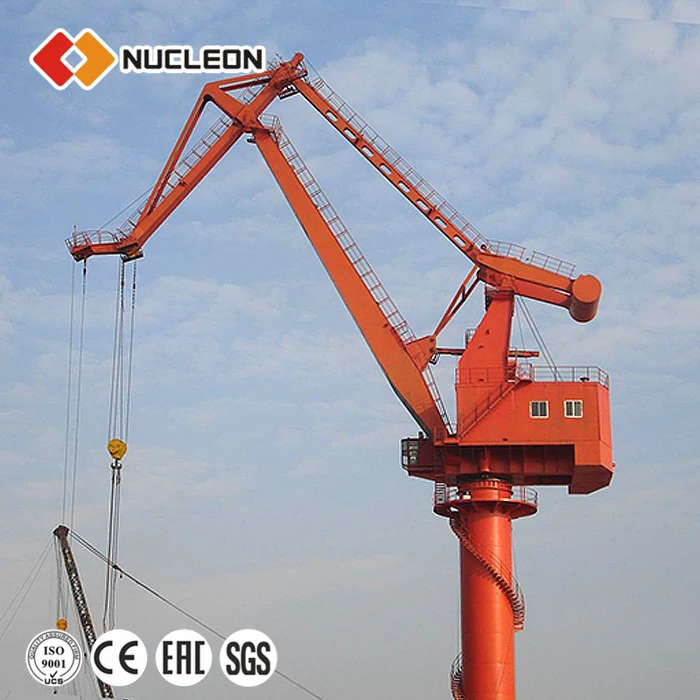

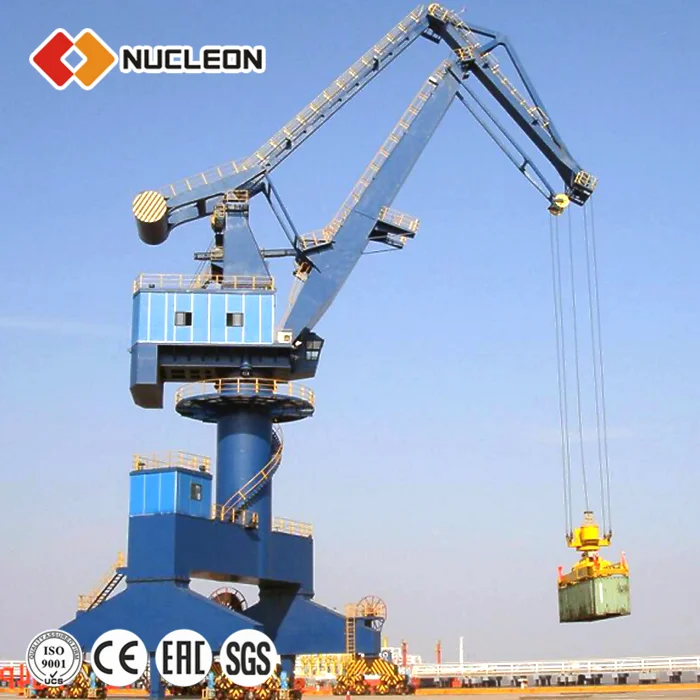

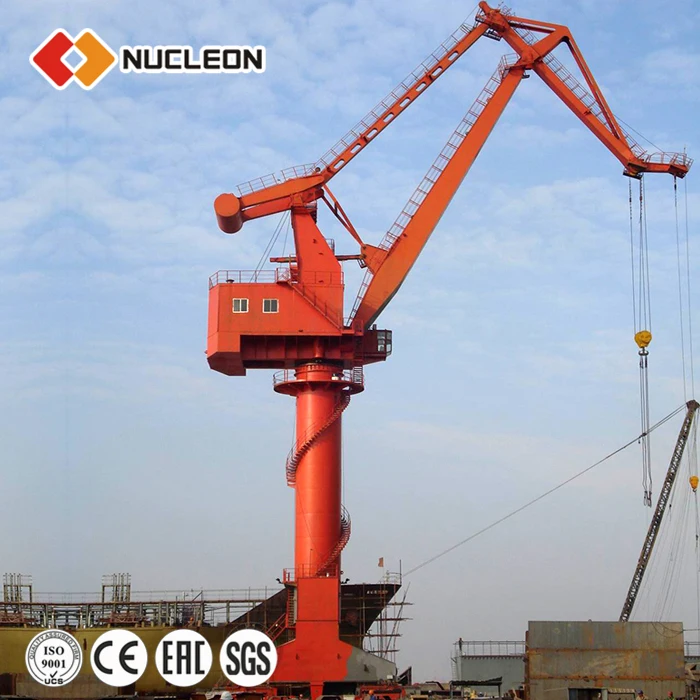

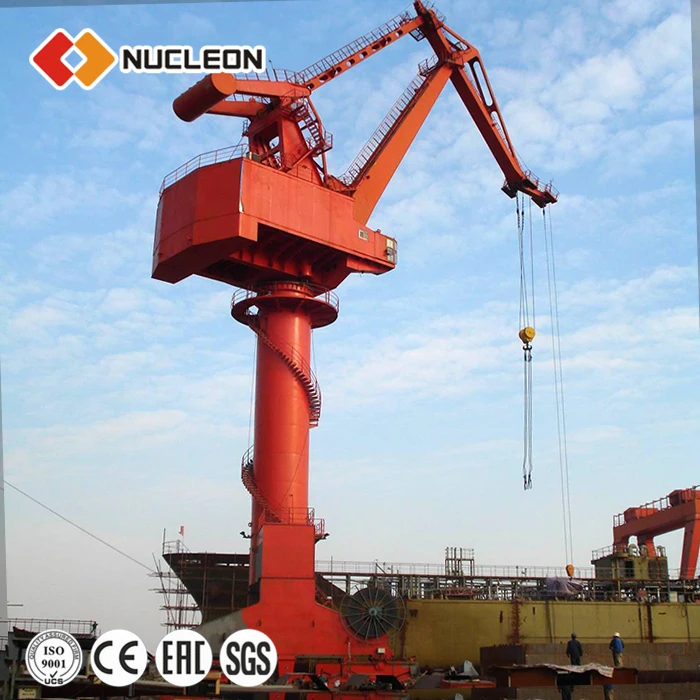

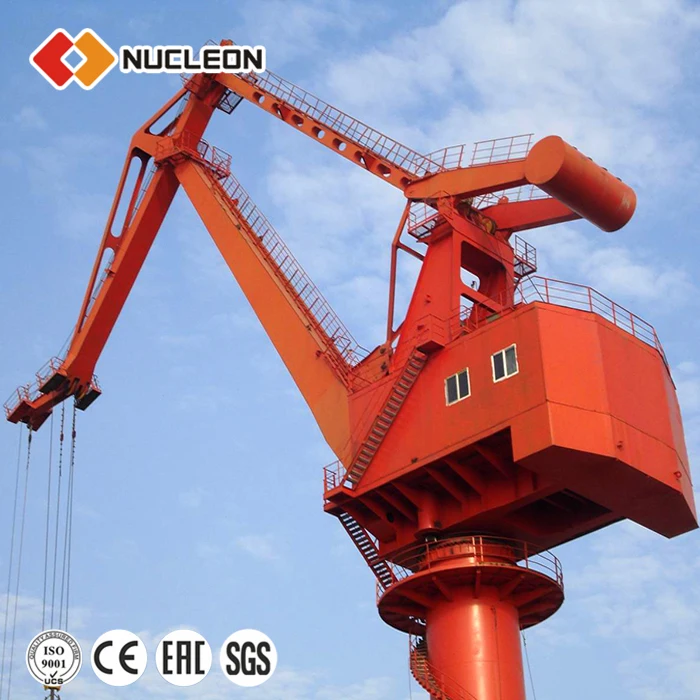

CE Certificated four link type shipyard portal crane has various applications, such as loading and unloading at port, materual handing at dockyard, ship building and repairing yard, metalluygy industry. The four link type shipyard portal crane is composed of frame, lifting mechanism, luffing mechanism, slewing mechanism, traveling mechanism, spreader device (grab, container spreader, hook), electrical equipment and other aiding devices for safety
Four link type shipyard portal crane design and manufacturing standards: Specification for the harbor portal crane (GB/T17495-1998), Safety rules for lifting appliances (GB/T14406-1993); ISO standards, FEMstandards and JIS standards
One is single-link portal crane, and the other is four-link portal crane.

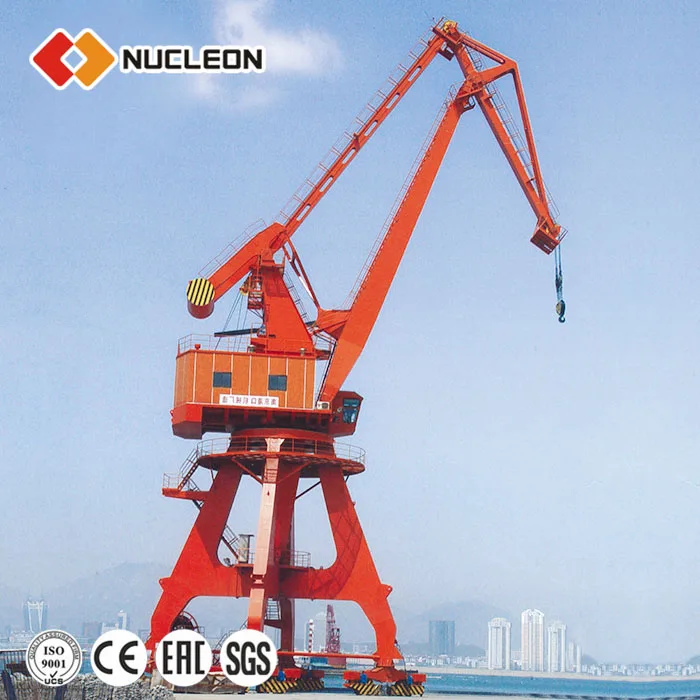

Four-link portal crane
Four-link portal crane has been extensively applied to loading and unloading at port and materiel handing at dockyard and metallurgy industry, the mainstructures are composedof steel frame, lifting mechanism, luffing mechanism, slewing mechanism, traveling mechanism,spreader device (grab, container spreader, and hook and electric dist), electrical equipment and other accessory equipments for safety.
Single-link portal crane
Single-link portal crane is a kind of hoisting machine especially used inport,harbour, dock, shipyard with small investment for loading and unloading front apron container, sundries and bulk cargo.It mainly includes the following units: crane strong steel frame, lifting mechanism,luffing mechanism, slewing mechanism, traveling mechanism .
1. Quickened the turnover and the operation of loading and unloading. 2. High working efficiency, compact frame, 3. Calm movement, comfortable operation, safety and reliable. 4. Convenience maintenance, nice appearance and so on 5. Crane drive: IP54 or IP44, level F insulation 6. Especially suitable for the port lifting. 8. Designed according to your request.
Application
Four link type shipyard portal crane is a kind of hoisting machine especially used in port, with small investment and swiftness benefit for loading and unloading front apron container, sundries and bulk cargo, also used in materual handing dockyard, ship building and repairing yard, metalluygy industry.
Safety Device
To guarantee the normal operation of crane and avoid the personal casualty and mechanical damage, the safety device we provide are not only the electric protective devices or alarm bell but also other equipments as follows :
♦ Overload Limit Switch ♦ Rubber Buffers ♦ Electric Protective Devices ♦ Emergency Stop System ♦ Voltage Lower Protection Function ♦ Current Overload Protection System ♦ Rail Anchoring ♦ Lifting Height Limit Device
NUCLEON meets the factory, workshop, port, mining, waste disposal, goods scattered, petrochemical, aerospace, military and other industries of universal bridge crane, overhead crane, eot crane, door crane, universal gantry crane, rubber tyre and rail mounted container gantry crane four link type portal crane, quayside container crane, crane, crane hook, mining grab crane, gantry crane, ship loader, grab bucket ship unloader, stacker reclaimer, dredger, mobile platforms and other types of hydraulic crane technical requirements. Achieves great achievements especially in European Style Light Weight Cranes and KBK Flexible Beam Crane System.
Nucleon (Xinxiang) Crane co., ltd., founded in 2005, the registered capital of 270,000,000 CNY, covers an area of 450000 square meters, staff 1700 people. Achieves ISO production system certification and europe standards like DIN & FEM.Nucleon is a bridge, gantry crane, coal series hoisting equipment, small light lifting equipment and other products of research and development, manufacture, installation, sales and service as one of the Sino-foreign joint ventures. The ND, NH model wire rope electric hoist, NL type chain electric hoist, mine explosion-proof hoist, HD type electric single-girder, NLH type electric hoist bridge crane in the domestic leading level, the electric hoist production for many years ranking second in the country.
Packaging & Shipping
1. Electric parts are packed by high quality plywood crate, to reduce distortion in conveying. 2. Main beams, end beams and trolly/winch are packed by plastic woven cloth. It can reduce abrasion during the transportation. 3. If the size are suitable for container ship, usually by container. 4. Big size, usually by bulk ship or by container after truncation. 5. Transport ways are based on reducing cost & keep safety.
Rave Reviews
Company main products has been widely used in metallurgy, electric power, petrochemical, military industry, coal, aerospace, construction, railway and other national economic pillar industries. Products are exported to Europe, Africa, Southeast Asia, more than countries and regions. Customers are satisfied with the products quality and service. They comment NUCLEON?a supplier worthy of cooperation!
