HSK ATC Шпиндельный двигатель для гравировки по дереву ЧПУ маршрутизатор 12 кВт 24000RMP воздушное
- Категория: Шпиндель для станка >>>
- Поставщик: Guangdong,Xingtuo,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 2856.87 $* | 2999.95 $* |
| Aug-18-2025 | 2832.39 $* | 2974.79 $* |
| Jul-18-2025 | 2376.89 $* | 2495.77 $* |
| Jun-18-2025 | 2784.42 $* | 2923.56 $* |
| May-18-2025 | 2424.11 $* | 2545.72 $* |
| Apr-18-2025 | 2736.87 $* | 2873.2 $* |
| Mar-18-2025 | 2712.82 $* | 2848.60 $* |
| Feb-18-2025 | 2688.65 $* | 2822.15 $* |
| Jan-18-2025 | 2664.28 $* | 2797.40 $* |
Характеристики
HSK ATC spindle motor for Wood Engraving CNC router| 12KW 24000RMP air cooling
145 series spindle motors is specially design to meet the less cost but high precision wood router machinery needed. EEJA refer to Italy design, and improve the spring structure, in case to get more force and higher speed . With low cost and high precision ,the square engraving spindle motor widely applied to CNC machines with engraving function.
Product Description

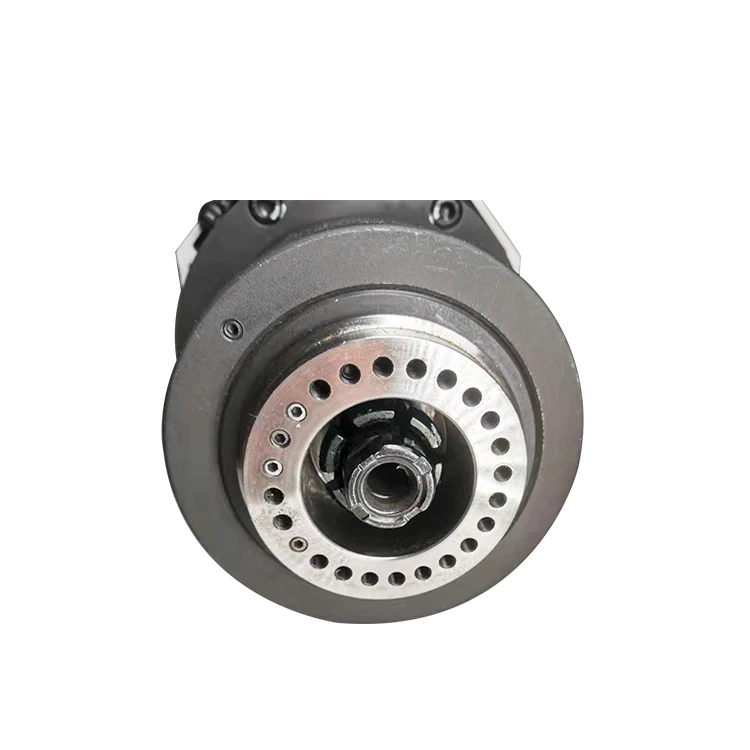

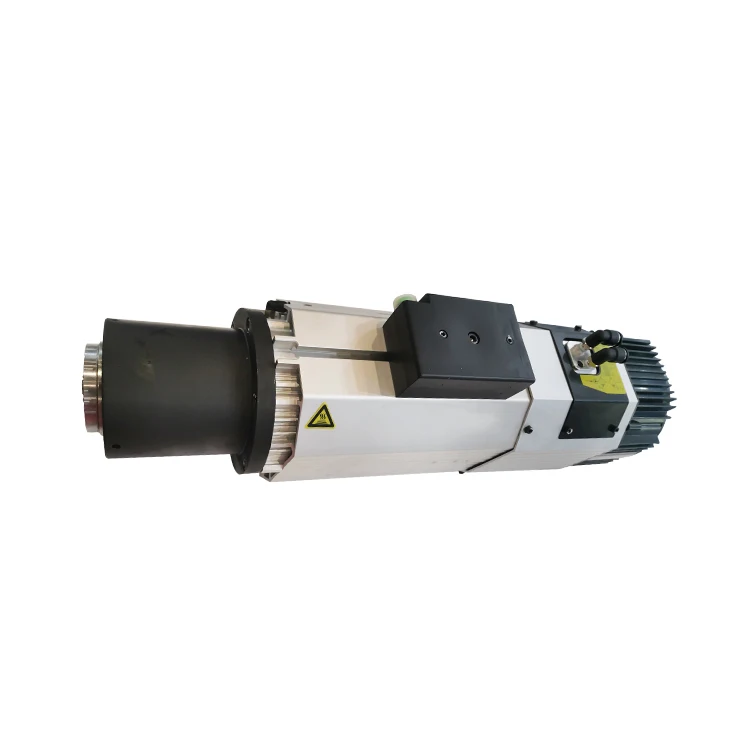

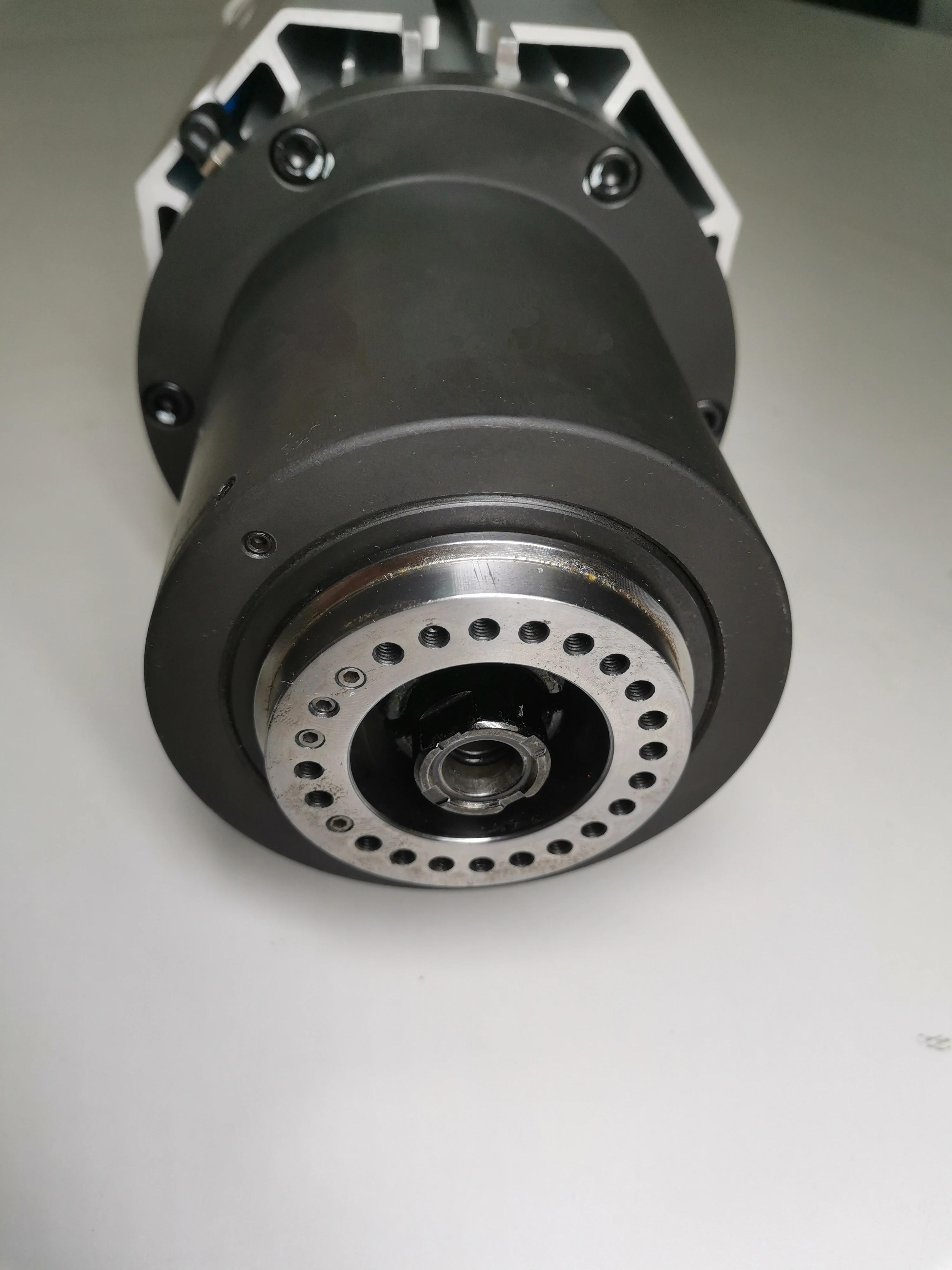

HSK ATC spindle motor for Wood Engraving CNC router| 12KW 24000RMP air cooling.
ATC Square Engraving CNC machine Spindle motor is to meet high rapid wood, plastic engraving developing and requirements . With loss cost and high precision ,the square engraving spindle motor widely applied to CNC machines with engraving function.
Advance/Features :
· Reasonable structure desgin ,simple and compact configuration ,easy to take apart.
· High precision.high inflexibility ,high efficiency,long operation life.
· With high grade size .shape,.position precision,and quality of surface .
· Enough abrasive resistance ,vibration resistance,stable size.
· Work stable ,low noise,enough fatigue strength
· Special design for wood engraving.
· Easy to install and less maintance.
Specificiations
EEJA WP145B-HSK63F Specification
| Parameters | |||
| Motor Power: | 12.0KW | Rated voltage: | 380v(3~) |
| Max rotate speed : | 24000Rpm/min | Max currency: | 23A |
| Max Frequency: | 800Hz | Torque: | 9.55NM |
| Specification | |||
| Cone surface spring at shaft end: | ≤0.001mm | Tooling Releasing Air curtain: | 5.6-6.0 Kgf/cm² |
| Tooling Exchange Method: | ATC | Air curtain pressure at front end: | 2.5~3.0 Kgf/cm² |
| Tooling Pulling Force: | ≥2900 | Tooling Back Air Pressure: | - |
| Tooling Connection: | ISO30 | Cooling: | Water air cooling optional |
| Encoder: | Sine-Cosine 1VPP(Optional) | Coolant Pressure: | 2.5~3.0 Kgf/cm² |
| Approach Switch: | PNP On | Bearing Lubrication Method: | Grease |
| Balance Level : | G1 | Tooling Instalation Method: | T slot |
| Vibration Value: | ≤0.8 | Weight: | 28.2kg |
| Structure | |||
 | |||
| Motor property curves | |||
 | |||
| Applications | |||
 | |||
Why Choose Us
Why choose EEJA
100% REFUND IF SPINDLE MOTOR NOT WORK
ALIBABA TRADE ASSURANCE
AVAILABLE EUROPE QUALITY
CHINA PRICE Studer,TAKISAWA,DOOSAN,
SUNNEN CNC machines,
precision ±0.002mm professional team provide
one stop solution
help you reduce time All main parts come
from famous suppliers
FAG,GMN,SKF TOP 500 company supplier,
strong quality control
good cooperation service sense
EEJA spindle motor Properties  | |||
EEJA Patents & Certifications  | |||
Company Information
EEJA Company Information
| Factory Profile | |||
 | |||
| Machinery In EEJA | |||
 |
Contact With us
Contact With EEJA
Want to locate EEJA ?
NO.1/2 LianHe Rood ,Luo Cun town,
Nanhai District, Foshan City, guangDong,china
- Tel: +86 757 81263106
- Mobile/Whatsapp/Wechat: +86 18038825870
- Name: Caroline,Ding
CLICK OUR SPINDLE LIST
