H060 паяный пластинчатый теплообменник воды в воду
US $80.00-$120.00
Медная трубка алюминиевого Ребристого теплообменника принимаем индивидуальный
- Категория: >>>
- Поставщик: Changzhou,Aidear,Refrigeration,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 100.93 $* | 102.80 $* |
| Jul-19-2025 | 81.28 $* | 83.40 $* |
| Jun-19-2025 | 99.47 $* | 101.38 $* |
| May-19-2025 | 98.92 $* | 100.80 $* |
| Apr-19-2025 | 78.33 $* | 80.41 $* |
| Mar-19-2025 | 96.63 $* | 98.45 $* |
| Feb-19-2025 | 96.99 $* | 98.61 $* |
| Jan-19-2025 | 95.57 $* | 97.92 $* |
Характеристики
Product Overview

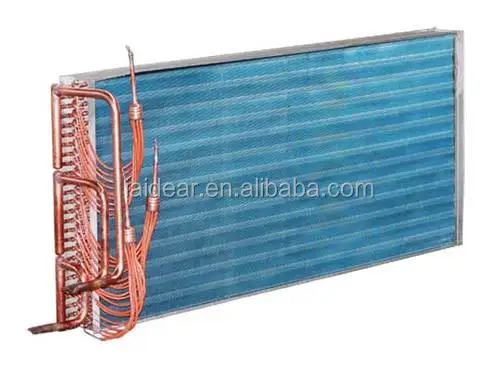

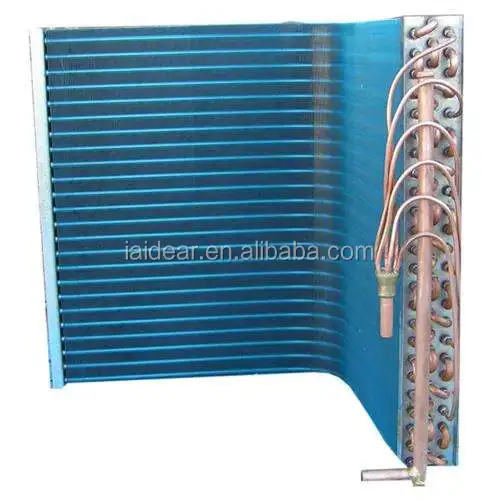

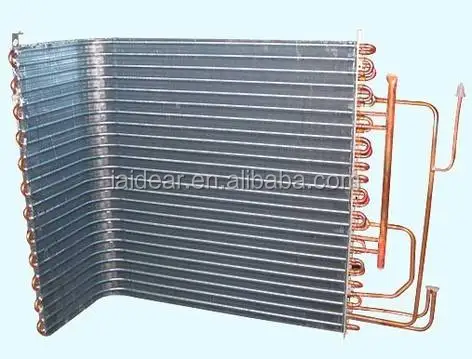

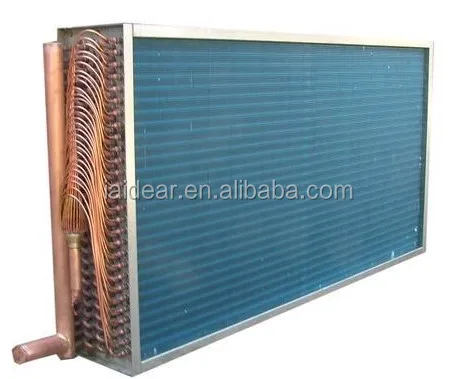

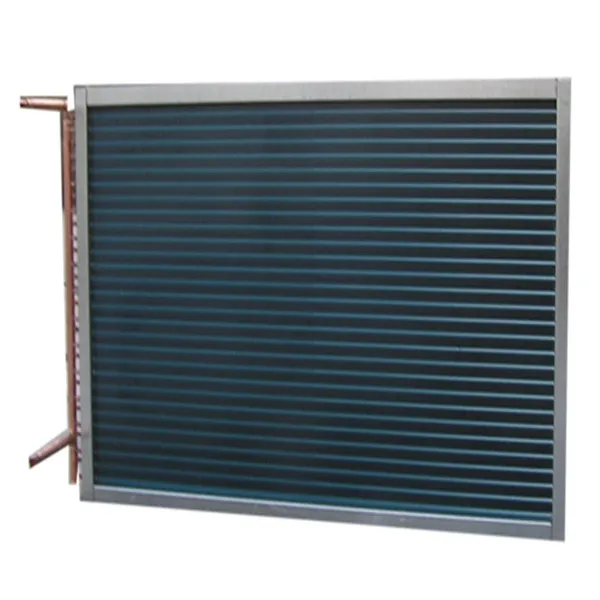

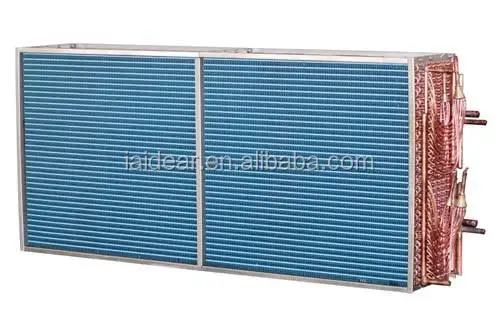

copper tube & Fin heat exchanger
1. Tube material: carbon steel/ copper tube
2. Fin material: Hydrophilic, bare, black foil, copperfoil, gold foil
3. Frame material: galvanizedsteel/Zinc galvanized steel/Stainless steel
4. Fin type: Flat fin, Corrugated fin, Louvered / Lanced fin
5. Tube: diameter 7mm, 7.94mm, 9.52mm, 12.7mm, 15.88mm. internal thread or smooth tube.
6. Use media: water/steam/refrigeration
7. Tube rows:2rows, 3rows, 4rows, 6rows, 8rows,
8. Widely used in refrigeration industry, cold room and other cooling system.
2. Fin material: Hydrophilic, bare, black foil, copperfoil, gold foil
3. Frame material: galvanizedsteel/Zinc galvanized steel/Stainless steel
4. Fin type: Flat fin, Corrugated fin, Louvered / Lanced fin
5. Tube: diameter 7mm, 7.94mm, 9.52mm, 12.7mm, 15.88mm. internal thread or smooth tube.
6. Use media: water/steam/refrigeration
7. Tube rows:2rows, 3rows, 4rows, 6rows, 8rows,
8. Widely used in refrigeration industry, cold room and other cooling system.
We produce tube fin heat exchangers not only for home applicants, such as refrigerator, freezer, show case, washing Dryer, Spilt A/C for house hold.
but also customized all kinds of the copper tube & fin heat exchangers, which including the Copper tube & Al fin type and copper tube & copper fin type.
FEATURES AT A GLANCE
Materials of the heat exchanger
Ø Tube Φ9.52(3/8”), Φ12.7(1/2”), Φ15.88(5/8”),
Ø Wall thickness: smooth tube t0.30/0.41/0.50; inner grooved:
Φ9.52(3/8”)t (0.27+0.16)& t (0.30+0.17)/ Φ12.7(1/2”)& Φ15.88(5/8”)t (0.40+0.25)
Ø Fins: Aluminum, bare or hydrophilic coated, t0.15～0.30; Copper t0.12～0.30
Ø Fin pitch: Φ9.52 (3/8”) and Φ12.7 (1/2”)tube, F.P1.8～6.35mm; Φ15.88 (5/8”) F.P2.5～12.0mm
Ø Fin shape: surface sine wave/V-wave/Plat, edge shape: straight or Corrugated Wave
Ø Metal sheet: Galvanized steel plate, Al alloy plate, Stainless steel plate
Ø Surface: bare fin/blue hydrophilic coated fin/black E-coated fin, metal sheet with Epoxy powder coating.
Ø More details according to the drawing or specifics of customer.
Ø Tube Φ9.52(3/8”), Φ12.7(1/2”), Φ15.88(5/8”),
Ø Wall thickness: smooth tube t0.30/0.41/0.50; inner grooved:
Φ9.52(3/8”)t (0.27+0.16)& t (0.30+0.17)/ Φ12.7(1/2”)& Φ15.88(5/8”)t (0.40+0.25)
Ø Fins: Aluminum, bare or hydrophilic coated, t0.15～0.30; Copper t0.12～0.30
Ø Fin pitch: Φ9.52 (3/8”) and Φ12.7 (1/2”)tube, F.P1.8～6.35mm; Φ15.88 (5/8”) F.P2.5～12.0mm
Ø Fin shape: surface sine wave/V-wave/Plat, edge shape: straight or Corrugated Wave
Ø Metal sheet: Galvanized steel plate, Al alloy plate, Stainless steel plate
Ø Surface: bare fin/blue hydrophilic coated fin/black E-coated fin, metal sheet with Epoxy powder coating.
Ø More details according to the drawing or specifics of customer.
Specification and function of the heat exchanger
Ø Fin die specifics of the products refer to sheet1-1.
Ø Dimension of the coils: Lmax10m*Hmax2.0m, it can be customized accordingly.
Ø Leakage test pressure≥3.0 MPa, Burst pressure≥10.0Mpa
Ø Cooling capacity: 5～500KW, it can be customized accordingly.
Ø Fin die specifics of the products refer to sheet1-1.
Ø Dimension of the coils: Lmax10m*Hmax2.0m, it can be customized accordingly.
Ø Leakage test pressure≥3.0 MPa, Burst pressure≥10.0Mpa
Ø Cooling capacity: 5～500KW, it can be customized accordingly.
PRODUCT SPECIFICATIONS
TUBE | Copper | Titanium | Aluminum | Carbon steel |
Stainless steel 304 | Stainless steel 316 | Cu-Ni(90/10) | Cu-Ni(70/30) | |
FIN | Copper | Aluminum | Stainless steel | |
Carbon steel | Titanium | |||
FRAME | Galvanized | Titanium | Stainless steel |
About Aidear
Aidear
An excellent, specialized refrigeration system solutions provider.
Main products are tube and fin heat exchangers, Microchannel heat exchanger, air cooler, condenser and units, raw materials and the components for heat exchangers, automatic machines for heat exchangers, and the complete solutions for customer.
Main products are tube and fin heat exchangers, Microchannel heat exchanger, air cooler, condenser and units, raw materials and the components for heat exchangers, automatic machines for heat exchangers, and the complete solutions for customer.
Aidear
Based on Honesty, Responsible, Technology and continuous Innovation.
Work on refrigeration resource integration & solutions, one station service for customer Persist in customer first, always think for customer Focus on create Maximum value for customer
Work on refrigeration resource integration & solutions, one station service for customer Persist in customer first, always think for customer Focus on create Maximum value for customer
Aidear, your idea!
Factory Tour
FAQ
1. Q: I haven't done business with you guys before,how can I trust your company?
A: Our company has been in Alibaba.com for 5 years, which is longer than most of our fellow suppliers, we've been golden suppliers for years. What's more, we've got quite a lot authority certificates, for example, CE, ISO9001, Alibaba onsite check certificate. I hope those above will be persuasive enough.
2. Q: What is the minimum order?
A: Yes, our company mainly deals with wholesale deals, but if you insist buying one piece, or you just need one piece, we would be very likely to make the MOQ as 1 piece for you though.
3. Q: How can I get a sample to check your quality? How long can I get the sample?
A: After price confirmed, FREE SAMPLE could be provided for your evaluation.After you confirm the sample details, the samples will be ready for delivery in 3-7days,and will be sent to you via express and arrive in 3-5days.
4. Q: What payment methods your company accept?
A: We accept T/T, L/C, Western Union, Paypal.
5. Q: What's the shipment terms and delivery time of your company?
A: FOB,CFR,CIF,15-50days
6. Q: Do you give any discount ?
A: We'll surely try our best to help you get those by the best price and good service at the same time.
A: Our company has been in Alibaba.com for 5 years, which is longer than most of our fellow suppliers, we've been golden suppliers for years. What's more, we've got quite a lot authority certificates, for example, CE, ISO9001, Alibaba onsite check certificate. I hope those above will be persuasive enough.
2. Q: What is the minimum order?
A: Yes, our company mainly deals with wholesale deals, but if you insist buying one piece, or you just need one piece, we would be very likely to make the MOQ as 1 piece for you though.
3. Q: How can I get a sample to check your quality? How long can I get the sample?
A: After price confirmed, FREE SAMPLE could be provided for your evaluation.After you confirm the sample details, the samples will be ready for delivery in 3-7days,and will be sent to you via express and arrive in 3-5days.
4. Q: What payment methods your company accept?
A: We accept T/T, L/C, Western Union, Paypal.
5. Q: What's the shipment terms and delivery time of your company?
A: FOB,CFR,CIF,15-50days
6. Q: Do you give any discount ?
A: We'll surely try our best to help you get those by the best price and good service at the same time.
