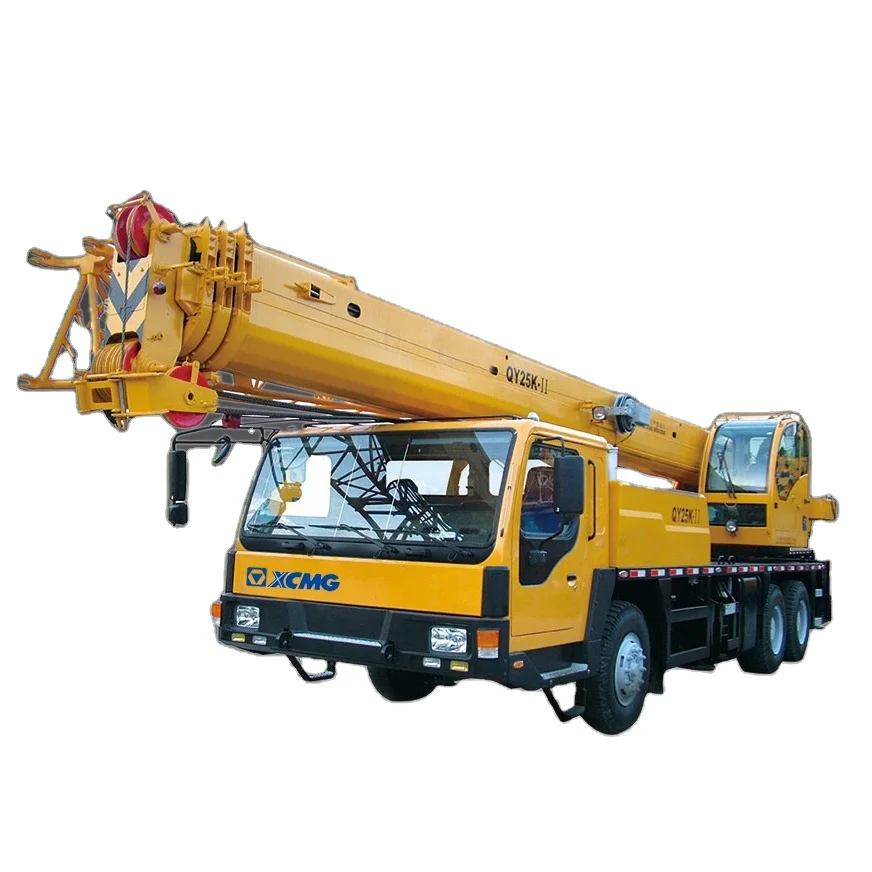

XCM QY25K-II Main Boom 34.2m 25 ton Truck Crane for Sale









Main parameters:

Max. rated total lifting capacity: 25T

Fully extended boom:34.2M

Fully extended boom+jib:42.3M



Main configuration:

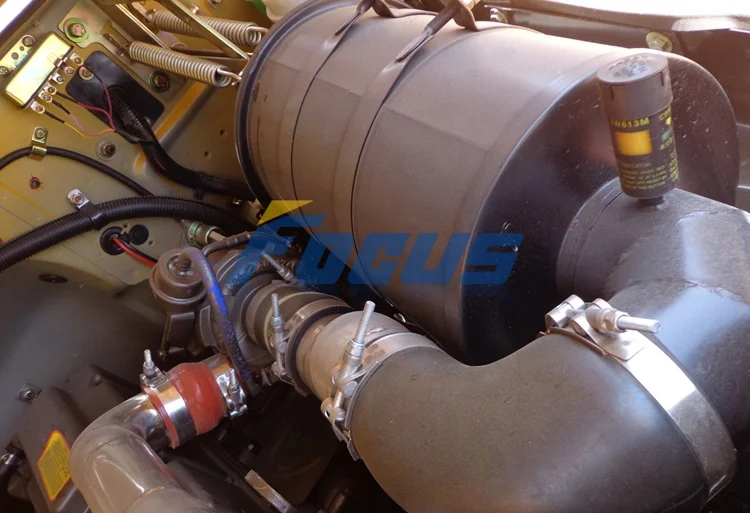

* WeiChai engine/ShangChai engine WD615.329/SC8DK280Q3  213/2200/206/2200

* Wire rope

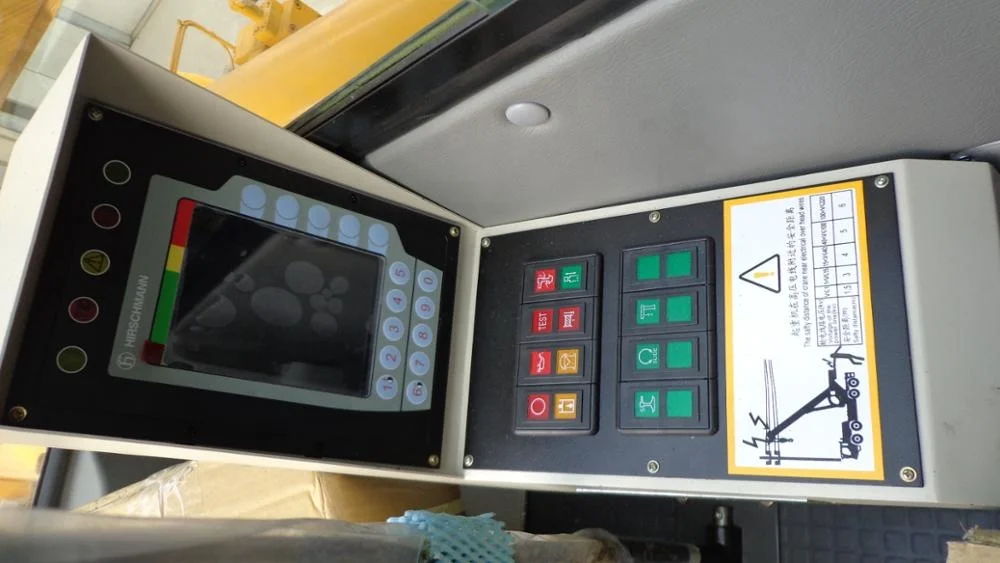

* Hirschmann PAT

*Heater





QY25K-II is technology crystallization which our company applies for many years manufacturing experience,bases on the mature technology.Using full cover to take the platform; using high lift balance weight, greatly improving the ease of use of the product;classic K series appearance; full hydraulic drive, easy to operate, flexible.





OUR SERVICE:

* Warranty: We supply one year warranty for all the machines we exported, during the warranty, if there is problem caused by machine quality without improper operation, we will supply the replace genuine parts by DHL to clients freely to keep the machine in high efficiency work.

* Spare Parts: We have 7years experience on machine and spare parts supplying, we are efforts to supply Genuine brand spare parts with good prices, quick response and professional service.







Dimension	Unit	QY25K-II
Overall length	mm	12650
Overall width	mm	2500
Overall height	mm	3380/3290
Weight
Total weight in travel	kg	29400
Front axle load	kg	6200
Rear axle load	kg	23200
Power
Engine model		WD615.329SC8DK280Q3
Engine rated power	kW/(r/min)	213/2200206/2200
Engine rated torque	N.m/(r/min)	1160/1100-16001112/1400
Travel
Max. travel speed	km/h	75
Min. turning diameter	mm	21500
Min. ground clearance	mm	275
Approach angle	°	16
Departure angle	°	13
Max. grade ability	%	30
Fuel consumption for 100km	L	37
Main performance
Max. rated total lifting capacity	t	25
Min. rated working radius	m	3
Turning radius at turntable tail	mm	3065
Max. lifting torque	KN.m	961
Base boom	m	10.8
Fully extended boom	m	34.2
Fully extended boom+jib	m	42.3
