Правоохранительных органов алкотестер тестер алкоголя с топливных элементов

1.       Electrochemical / Fuel Cell Sensor:

The fuel cell is a porous disk with a thin layer of platinum black on both faces and any alcohol that comes in contact with the cell's surface is broken down chemically. For each molecule of alcohol that is broken down a given number of electrons are freed during the process. The numbers of electrons generated are in proportion to the amount of alcohol.

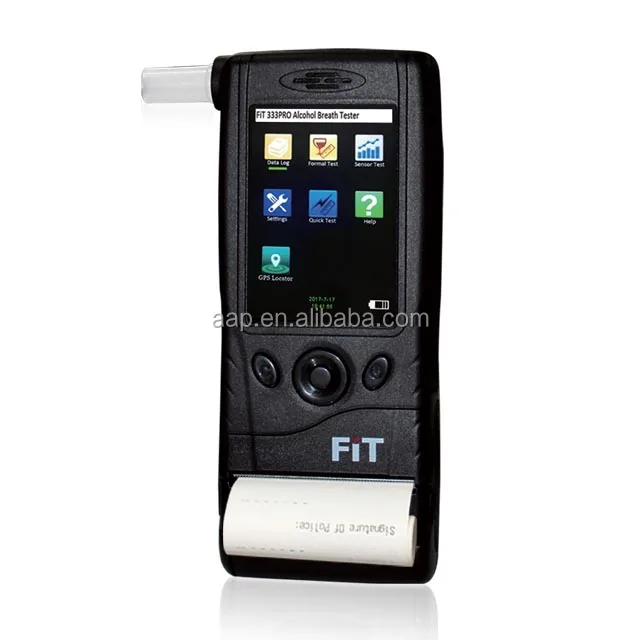

2.       Built-in / detachable Wireless Printer:

Can be detached from alcohol analyzer and become a stand alone wireless printer.

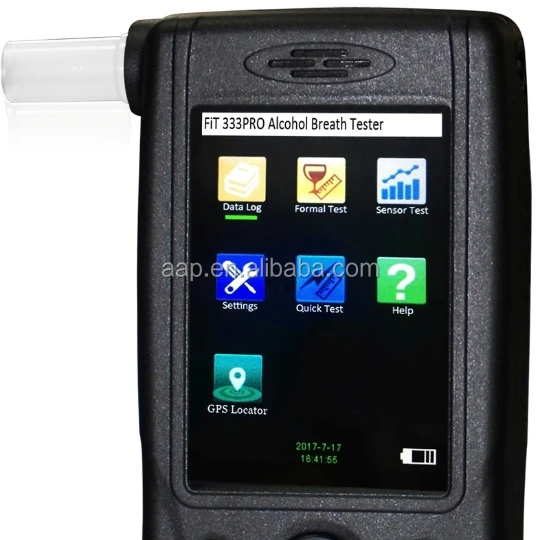

3. Display:

Color 3.5" iPS TFT LCD whit touch screen with graphic waveform (as oscilloscope)

4. Navigating key input:

Navigating key input with Touch Panel

5. Quick and precise analysis:

Ensure a high sensitivity to alcohol and stable & reliable working life.

6. Easy to read:

Waveform graphic display and make the analyzer more fancy and clear

7. Data download:

PC down via USB

8. Mouthpiece:

Easy to replace a new mouthpiece by pressing a key

9. Power Supply:

Rechargeable 7.4V Li-ion battery.

10. Heat warm up:

Chamber & Sensor warm up automatically

11. Auto flow monitoring:

Flow detect automatically

12. Display range:

0~0.4% BAC or 0~4.0‰BAC or 0~2.0mg/l

13. Long Term Storage condition:

Temperature: 0 Degree C to +55 Degree C.

Humidity:  30 to 90% RH

14. Temperature Range:

From -20℃ to +45 ℃, ( 5 Degree C to +40 Degree C for optimum operation)

15. Memories:

Min. 50,000 memories with full information: Drive name, vehicle no., inspector name, test result with time stamp, date and time, location, instrument no., Calibration date, test no. etc…

16. Measurement precision:

Standard deviation +/–0.025 mg/L or +/–5 % of the measurement
Drift: typically < 0.8 % of the measurement value/month

17. Standard:

Certified GB/T 21254-2007; CE

Compile with S&E, AS , NF, DOT, OIML126
