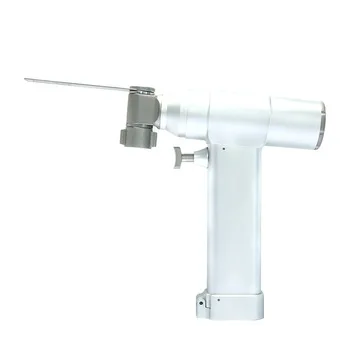

orthopedic instrument  electric connector blade sagittal saw (NS-1011)

Application

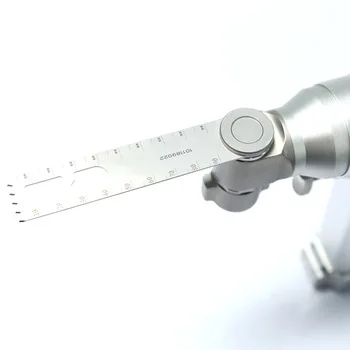

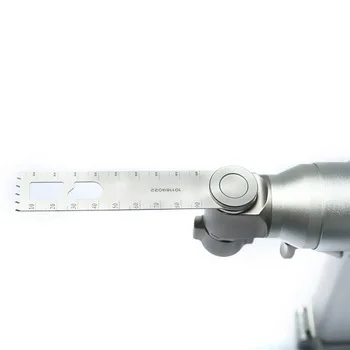

 Cutting bone during joint surgery , human-machine unity design , whole unit is autoclavable ,motor is imported ,low noise , steadily and quality cutting , no damage for soft issue , long service life. A variety of different thickness or the length of the saw blade for your selection.Common length are 70mm ,90mm , 100mm and 110mm , thickness are 0.8mm, 1.0mm, 1.2mm, and 1.27mm . Also the saw blade can be also customized according to your need.



Specificaitons :



Output power	more than 95 w
Oscillations (osc/min)	0-18000rpm
Sterilization	135 degree centigrade
Temp rise	less than 25 degree centigrade
Noise	63db

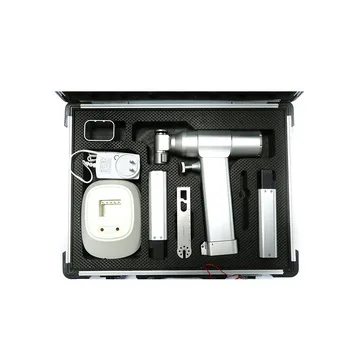

Standard configuration :



1. One oscillating saw handpiece

2. Two saw blades

3. Two batteries and sterilization channles

4. One charger

5. One aluminum case





Product show :





















Warranty :



The handpiece of oscillating saw is for one year , and the other accessories are for half a year.







Advantages :



1.The whole set can be autoclavable and we also has its sterilization box

2. Strong power in cutting bones and long working time, very safe in the operation.

3. saw blade connect with the handpiece of oscillating saw is very tightly.

4. Low noise , stable power and improve the efficient in the surgery





Notes :



1.  The battery can not be sterilizated .

2.  Sterilized temperaturer less than 135 degree centigrade, if more than 135 degree centigrade , the motor will be damaged.

3. The battery need to get out of the handpiece of machine , other wise small automatic discharge will make the battery life short.

4. The battery space should be dry after sterilization

5. The saw blade should be washed by purger and keep it dry after operation







Factory photos :





Transporation :



Certificate :







FAQ :



1.We are professional manufacturer of orthopedic drill and saw since 2007 , not a trading company

2. OEM servie is also available

3. My phone numer is +8618356973201 ,  you can contact with me directly.
