Погружной насос для сточных вод 22 м 30 35
- Категория: Насосы и запчасти >>>
- Поставщик: Zhengzhou,Shenlong,Pump,Industry,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-17-2025 | 1147.2 $* | 1170.72 $* |
| Jul-17-2025 | 930.55 $* | 949.49 $* |
| Jun-17-2025 | 1129.9 $* | 1152.47 $* |
| May-17-2025 | 1120.70 $* | 1142.28 $* |
| Apr-17-2025 | 894.13 $* | 912.63 $* |
| Mar-17-2025 | 1102.33 $* | 1124.62 $* |
| Feb-17-2025 | 1093.30 $* | 1115.86 $* |
| Jan-17-2025 | 1084.8 $* | 1106.70 $* |
Характеристики
Products Description
Submersible sewage pump parameters:
(cast iron or SS304/SS316/SS316L and 380v/440v/480v. If you are interested, please kindly contact by Alibaba or Whatsapp: +86 17537187726)
Outlet diameter | Model | Discharge flow | Head | Power | ||
mm | WQ type | m3/h | m | kw | hp | |
50 | 50WQ15-20-2.2 | 15 | 20 | 2.2 | 3 | |
65 | 65WQ25-20-3 | 25 | 20 | 3 | 4 | |
80 | 80WQ50-13-4 | 50 | 13 | 4 | 5 | |
80 | 80WQ45-22-7.5 | 45 | 22 | 7.5 | 10 | |
100 | 100WQ65-15-5.5 | 65 | 15 | 5.5 | 7 | |
100 | 100WQ100-15-7.5 | 100 | 15 | 7.5 | 10 | |
150 | 150WQ145-9-7.5 | 145 | 9 | 7.5 | 10 | |
100 | 100WQ100-25-11 | 100 | 25 | 11 | 15 | |
150 | 150WQ130-15-11 | 130 | 15 | 11 | 15 | |
200 | 200WQ300-7-11 | 300 | 7 | 11 | 15 | |
100 | 100WQ100-30-15 | 100 | 30 | 15 | 20 | |
150 | 150WQ100-30-15 | 100 | 30 | 15 | 20 | |
200 | 200WQ220-12-15 | 220 | 12 | 15 | 20 | |
100 | 100WQ100-35-18.5 | 100 | 35 | 18.5 | 25 | |
150 | 150WQ180-20-18.5 | 180 | 20 | 18.5 | 25 | |
200 | 200WQ250-15-18.5 | 250 | 15 | 18.5 | 25 | |
250 | 250WQ400-7-18.5 | 400 | 7 | 18.5 | 25 | |
100 | 100WQ100-40-22 | 100 | 40 | 22 | 30 | |
150 | 150WQ180-25-22 | 180 | 25 | 22 | 30 | |
200 | 200WQ300-15-22 | 300 | 15 | 22 | 30 | |
250 | 250WQ450-7-22 | 450 | 7 | 22 | 30 | |
150 | 150WQ160-45-30 | 160 | 45 | 30 | 40 | |
200 | 200WQ400-13-30 | 400 | 13 | 30 | 40 | |
250 | 250WQ600-9-30 | 600 | 9 | 30 | 40 | |
300 | 300WQ850-7-30 | 850 | 7 | 30 | 40 | |
150 | 150WQ180-45-45 | 180 | 45 | 45 | 60 | |
200 | 200WQ400-25-45 | 400 | 25 | 45 | 60 | |
250 | 250WQ600-20-55 | 600 | 20 | 55 | 75 | |
350 | 350WQ1300-12-75 | 1300 | 12 | 75 | 100 | |
Submersible sewage pump type:
1. Flow rate: 100m3/h 150m3/h 250m3/h 400m3/h 600m3/h 1300m3/h sewage submersible pump
2. Head: 7m 20m 25m 30m 45m sewage submersible pump
2. Head: 7m 20m 25m 30m 45m sewage submersible pump
3. Voltage: 380v/420v/440v or as per request
4. Material: Cast iron/stainless steel 304/316/316L
5. Speed: 1450r/min, 2900r/min, 3450r/min
6. Motor: copper wire
4. Material: Cast iron/stainless steel 304/316/316L
5. Speed: 1450r/min, 2900r/min, 3450r/min
6. Motor: copper wire
non clogging submersible sewage pump

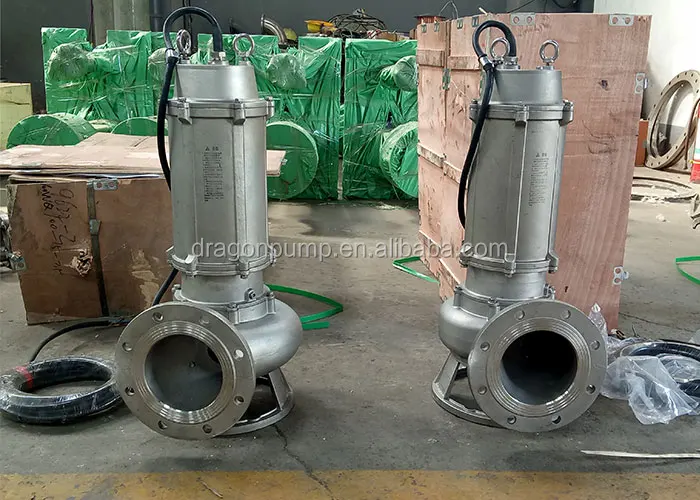

Stainless Steel Sewage Pump
Slurry Submersible Pump
Bottom Suction Submersible Pump
Pump Accessories
control cabinet, frequency converter, valve, cable, coupling
Testing&Package
Testing: We test each submersible water pump before delivery, such as dynamic and static balance testing, material analysis testing, casting testing, and submersible pump submerged in water for 48 hours to test leaking or not.Also we could send testing video, testing pictures, testing report, etc.
Package: the well pump has 3 layers of packaging with 8mm special export wooden box.
Package: the well pump has 3 layers of packaging with 8mm special export wooden box.
Related Pumps
Shenlong (APK) pump factory mainly manufactures submersible water pump and centrifugal water surface pump, drawing sea water, salt water, clean water, sewage water, hot water. Vertical or horizontal install.
Special Order
larger capacity, higher power and special local site, please contact us.
Shenlong Factory
Shenlong pump factory is a competitive reputable OEM&ODM submersible pump manufacturer
1. 3 types main casting technique: EPC Process (Expendable pattern casting); Precoated sand casting; Wax precision casting.
2. Fully automated pressing stamping And punching lines with ultimate levels of quality. Production and assembly departments based on German engineering. Be spoke CNC machining department utilizing 3D/2D technology and high precision tools; Professional test stations. R&D department for our continuous drive for perfection of products.
3. We have 36 sole duty quality control staffs. Among processional staffs are put in charge of Rotor dynamic balancing/Impeller static balance /Motor winding withstand voltage test /Hydrostatic pressure test of pressure bearing parts.
2. Fully automated pressing stamping And punching lines with ultimate levels of quality. Production and assembly departments based on German engineering. Be spoke CNC machining department utilizing 3D/2D technology and high precision tools; Professional test stations. R&D department for our continuous drive for perfection of products.
3. We have 36 sole duty quality control staffs. Among processional staffs are put in charge of Rotor dynamic balancing/Impeller static balance /Motor winding withstand voltage test /Hydrostatic pressure test of pressure bearing parts.
4.Certificates: ISO;CE; ABS. We are also Trade Assurance Guarantee Supplier in Alibaba and Gold Supplier in China.
Employees in Each Production Line | ||||||||
Production Line | Supervisor | No.of Operators | No. of In-line QC/QA | |||||
Workshop | 12 | 248 | 12 | |||||
Production Capacity | ||||||||
Product name | Production Line Capacity | Actual Units Produced (Previous Year) | ||||||
Submersible pump, Centrifugal pump | USD 40,000,000.00 Per Year | Confidential | ||||||
Production Machinery | ||||||||
Machine Name | Brand&Model No. | Quantity | Number of Years Used | Condition | ||||
Grinding machine | N7163 | 3 | 6 | Acceptable | ||||
CNC center | YJK150130 | 3 | 6 | Acceptable | ||||
Lathe | CW6263B,CD6140A | 43 | 10 | Acceptable | ||||
Miling machine | X2012C | 1 | 5 | Acceptable | ||||
Boring machine | PX611B | 4 | 10 | Acceptable | ||||
Vertical lathe | CA5112E | 2 | 11 | Acceptable | ||||
Drilling machine | Z3030, Z3032 | 5 | 11 | Acceptable | ||||
Slotting machine | B5032 | 4 | 8 | Acceptable | ||||
High speed punch press machine | J76-300, J21-160 | 2 | 6 | Acceptable | ||||
Casting electrolytic furnace | ---------------- | 5 | 10 | Acceptable | ||||
Testing Machinery | ||||||||
Machine Name | Brand&Model No. | Quantity | Number of Years Used | Condition | ||||
Pump microcomputer test bench | MPT-Ⅱ | 4 | 10 | Acceptable | ||||
Contact Us
This is Destiny from Shenlong pump factory, please kindly contact us at any time. We will reply within in 5 minutes in working time.
