Автоматическая установка труб для линии по

pipe fabrication cutting station.

1. Horizontal and with two post and Especial roller
2. Feeding speed: stepless variable speed adjustment
3. Speed of the band saw: 17-85 m / min (infinitely variable speeds)
4. Control System: PLC Controling
5. Size of the band saw : 8880*67*1.6mm
6. Clamping mode: Both sides centering clamping automatically by hydraulic cylinder.
7. Band saw tension: tensioning & loosen automatically by hydraulic
8. The power of motor: 8.5 KW
9. The power of hydraulic motor: 1.5kw
10. Cooling system: Built in coolant pump
11. Autommatic Length measuring System : 1 m/times as per datas 12. Input the datas of you want to cutt off pcs then to carry out it one by one. 13. H.S Code: 8456909000 / 8461500090

Chuck type CNC profiling machine

Chuck Type CNC Pipe Profile Cutting Machine more suitable for various of pipe profile bevel cutting with high efficiency by multiple axis controlling.(Optional, but this proposal and layout plan not included, just for your information only, Aforementioned Roller Bench type CNC Cutting Machine already included the same function as below )

5 Axis Roller Bench Type CNC Pipe Cutting & Beveling Machine (Plasma + Flame Cutting)

1. Control System: IPC CNC cutting system
2. Cutting length: 12000MM
3. Bevel Shape: V
4. Cutting direction: radial direction
5. Roller bed Length:11500mm
6. Driving System: by solid self centering 3-Jaw Chuck.
7. Rev: 0～2.5M/Min (VF stepless speed adjustment)
8. Rotation Accuracy: ±0.5MM
9. Cutting head stroke: 11350MM (moving lengthwise)
10. Cotrol Axis: 5 axis control for pipe cutting & beveling.
11. Cutting system: Plasma & Flame
12. Cutting Torch Angle: ±45°(by plasma torch), ±60°(by flame torch)
13. Cutting Torch Quantity: one pcs for plasma cutting torch, one pcs for flame cutting torch.
14. Angle error: ±0.5 °
15. Length measuring precision: ±0.5MM
16. Length measuring system: CNC length-measuring which included control system.
17. Plasma power source: USA
Hypertherm (or as per request)

CNC/PLC PIPE END BEVELING MACHINE.

The Numerical Control Pipe End Beveling Machine with conveying system with turning around device for both end bevel of pipe processing; As well as in order to improve work efficiency at both end of pipe bevel machining and reduce the space limitation issue that you can be set up two beveling machines for both end bevel of pipe processing no need turning around device because turn around pipe require to big radial if need compound bevel shape’s pipes. Photos for NC Beveling Machine with conveyor system:

Numerical Control Pipe End Beveling Machine (PLC)

1. Bevel Shape: Compound bevel, Ｕ , Ｘ , J, Ｖ and dual V
2. Driven by: motor
3. Clamping system: work piece is clamped by hydraulic cylinder in Place;
4. Rev of the principal axis: infinitely variable speeds
5. Bevel angle: 0°-30°(adjustable) & more than 30° by PLC controlled
6. Cutting direction: radial automatic differential cutting feed or axial automatic motor cutting feed (inlet frequency)
7. Retracting direction: radial automatic motor retracting or axial automatic motor retracting (inlet frequency)
8. Control system: PLC Controlling
9. Power Supply: 380/415V-3ph/50Hz
10. Size: 2.2*1.7*2.2m ;
11. Weight: 4500KGS±5% ;
12. Lead time: 45 workdays after down payment 13. H.S Code: 8460909000 / 8458110000

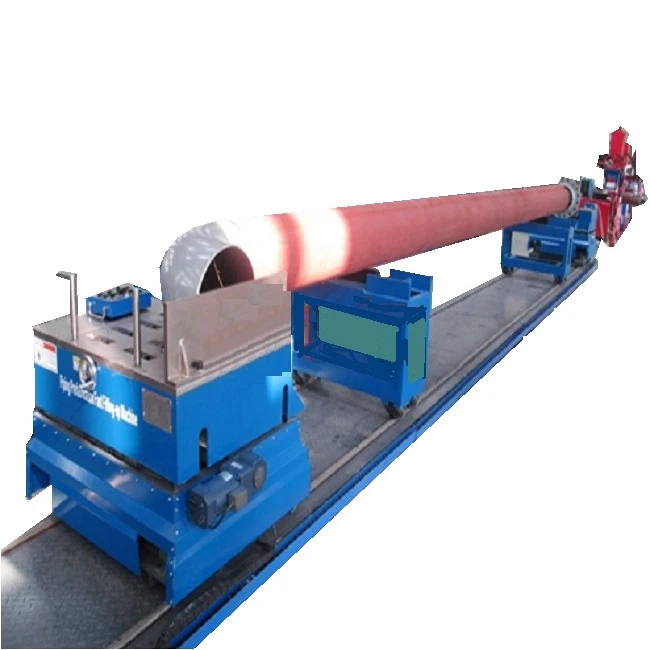

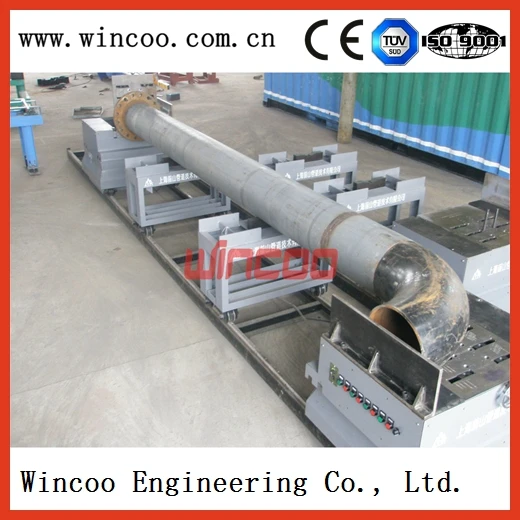

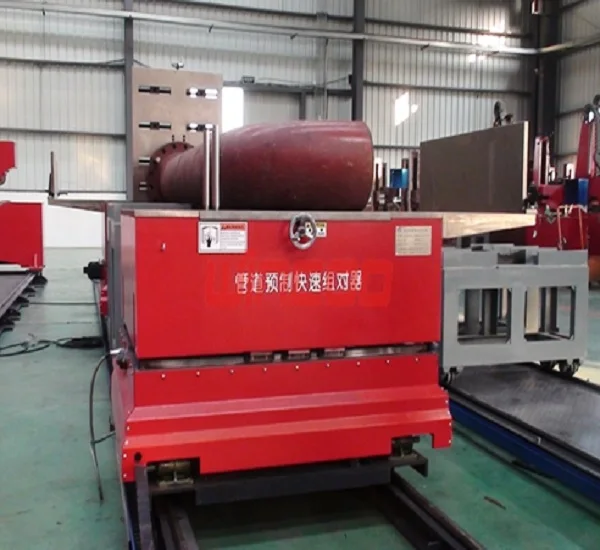

Multifunction Piping Fabrication Fast Fitting-Up Center.

1. With two multifunction fitting-up heads/table
2. Moving up/down: with screw lifter, driven electrically
3. Moving left/right: linear guiding rail, driven by electrically
4. Vertical turnover: with screw lifter, driven electrically
5. Lengthwise moving: motorized driving light rail
6. Fit up nature: pipe-pipe, pipe-elbow, pipe- flange etc.
7. Max pipe length: 12m & 9 m & 6 or as per request.
8. Rail Length: up to 15 m & 12m & 9 Or acc. to requests 9. H.S Code: 8468900000

Automatic Pipe Fitting-up & Welding System (Postioner with Chuck Clamping Type).

1. Driven system: Drive by positioner with 3 jaws chuck up to 24 inch.
2. Clamping system: clamping by chuck
3. Welding process: with Lincoln Power source for TIG/MIG/SAW for root pass, fill in & cap welding integration.
4. Control System: PLC Control with text display for MIG/TIG.
5. The system included 1 set fit up table, 4 m length rail, 1 set boom with control system, 1 set height adjustable welding positioner, 1 set big size chuck, 1 set jib crane, 1 Set Lincoln PW S500 & welding system etc
6. Oscillating system: step motor for MIG/TIG welding system 7. More Suitable for butt joint of short pipe to fittings to fit up and welding integration. (i.e short pipe to short pipe, elbow, flange, tee, reducer, other fittings etc .) 9.With one multifunction fitting-up head/table which Moving up/down: with screw lifter, driven electrically
11. Moving left/right: linear guiding rail, driven by electrically
12. Lengthwise moving: motorized driving Light Rail

Double Head Pipe Fabrication Automatic Welding Center (Cantilever/ Positioner + Press Roller Type)

1. Driven system: Drive by positioner with 3 jaws chuck up to 24"/32" or by Rotator
2. Clamping system: clamping by boom & chuck
3. Welding process: With Lincoln welding power Source for TIG+MIG for root pass, or MIG+SAW welding process for fill in, cap welding
4. Different power source with different cost.
5. Output: 300-600 D.I. / machine/ day for two head welding station;
6. Control System: PLC Control with text display.
7. The system included 3 sets height adjustable pipe supports, 12 m & 9m length rail skids, 1 set column and boom type welding machine with control system, 1 set press roller & rotator device welding machine, 1 set height adjustable welding positioner, 1 set big size chuck, 2 Sets Lincoln power source FlexTec 500P / FlexTec 650 & multi process welding system etc (Included TIG/MIG/SAW Process) 8. More Suitable for butt joint of pipe to fittings. (i.e pipe to pipe, pipe to elbow, pipe to weld neck flange, pipe to tee, pipe to reducer, pipe to fittings etc.) 9. H.S Code: 8515800090 / 8515809090

Cantilever Automatic Pipe Welding System (Postioner with Chuck Clamping Type

1. Driven system: Drive by positioner with 3 jaws chuck up to 24 inch.
2. Clamping system: clamping by chuck
3. Welding process: with Lincoln Power source for both TIG or MIG+ SAW for root pass, fill in & cap welding integration.
4. Control System: PLC Control with text display for MIG.
5. The system included 2 sets height adjustable pipe supports, 6 m length rail, 1 set column and boom with control system, 1 set height adjustable welding positioner, 1 set big size chuck, Lincoln PW S500 & welding system etc
6. Oscillating system: step motor for MIG welding system 7. Included Single welding station and with TIG+MIG + SAW 3 welding torches. 8. More Suitable for butt joint of pipe to fittings. (i.e pipe to pipe, pipe to elbow, pipe to weld neck flange, pipe to tee, pipe to reducer, pipe to fittings etc.)

Pipe Fabrication Rail & Powered Trolley Conveying System

1. Drive by low voltage slide wire to power supply & wireless remote control and conveying automatically
2. Improve work efficiency and reduce to hoisting risk during pipe spool prefabrication
3. The length of rail shall be total 102 M for 2 sets of PFBCS-10Ta, and conveying carriage supply by seller.
4. If the more length raill shall be supply by supplier and length will be depend on after confirmed the layout plan & finalised to the rail length, as well the cost exclude here. 5. The heavy rail required to embedd into concrete foundation which will supply by purchaser itself.
